• Model NO.：RB-HB-100WU2
• Certification：CCC, CE, C-tick, EMC, FCC, LVD, RoHS, SAA, VDE
• Beam Angle：60,90,120 Degrees
• Packaging：1 PCS Per Carton
• Base Material：Aluminum
• Wattage Options：100-250W
• Cable：VDE 3*1.0sq mm2
• Leading Time：7-10 Working Days
• Screw：Stainless Steal #304
• Certificate：Ce RoHS SAA
• Power Factor：>0.98
• CRI：>80%
• Warranty：5 Years
• Transport Package：1PCS,Box
• Specification：CE,EMC
• Trademark：Rayborn
• Origin：China
• HS Code：9405409000
• Production Capacity：10000PCS,Month

200W UFO LED HIGH BAY-60D Item No.:RB-HB-200WU2Input Voltage:AC 100-277VFreqency Range:50Hz~60HzPower Driver:Meanwell HBGPower Factor:>0.98Power Efficiency:>92%Luminous Efficiency:140LM/WLED Power200WLED QTY: 315pcs 3030SMDLED Working Voltage:DC 42~48VSystem Consumption:204WLIGHT Luminous FluxWarm White26500LMPure White27300LMCool White28000LMViewing Angle:120/90/60 degree Center LuminanceHeight 3M4119LUXHeight 4M2317LUXHeight 5M1483LUXIlluminance AreaHeight 3MDia.265CM  points visibleHeight 4MDia.352CM points visibleHeight 5MDia.441CM points visibleIlluminance Uniformity:>0.6Color TemperatureWarm White3000K~3500KPure White4000K~5500KCool White6000K~6500KColor Rendering IndexRa>80Light Distribution:LED points visibleLED Junction Temperature:≤115ºCWorking Temperature:-35ºC~65ºCIP Grade:IP65Working Life-span:50000 HPower Line:1.0 mm2 three lineConnect WireBrownLBlueNYellow / GreenGCertificateCE/ROHSSize:Ф400*H196Net Weight:7.2KGPackaging45.5*45.5*22.5cm

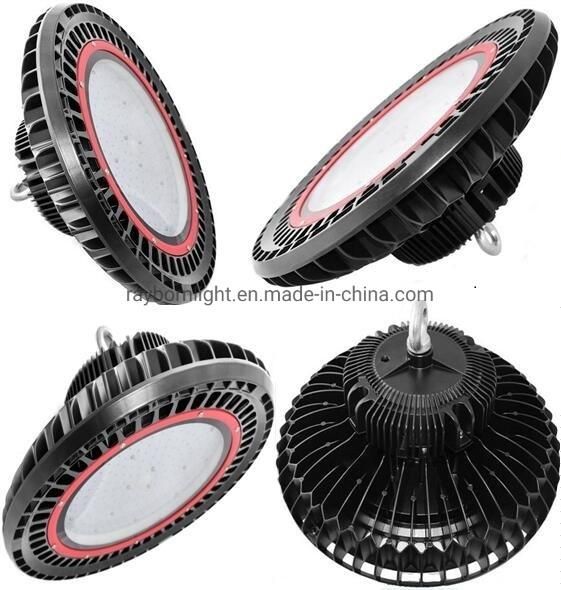

UFO Led High bay light Features:
1. Adopting 140lm/w chips, Meanwell driver
2. Private tooling and compact structure design
3. Aluminum housing and lens
4. System efficacy >130lm/W
5. IP65 weatherproof and dustproof
6. 5 years warranty, 50000hrs
7. Installation types: loop hanging/pole hanging/ceiling mounting/wall mounting
8. Dimming and Microwave sensor functions available.
9. Applitions: warehouse, workshop, showroom, indoor sports field, etc..

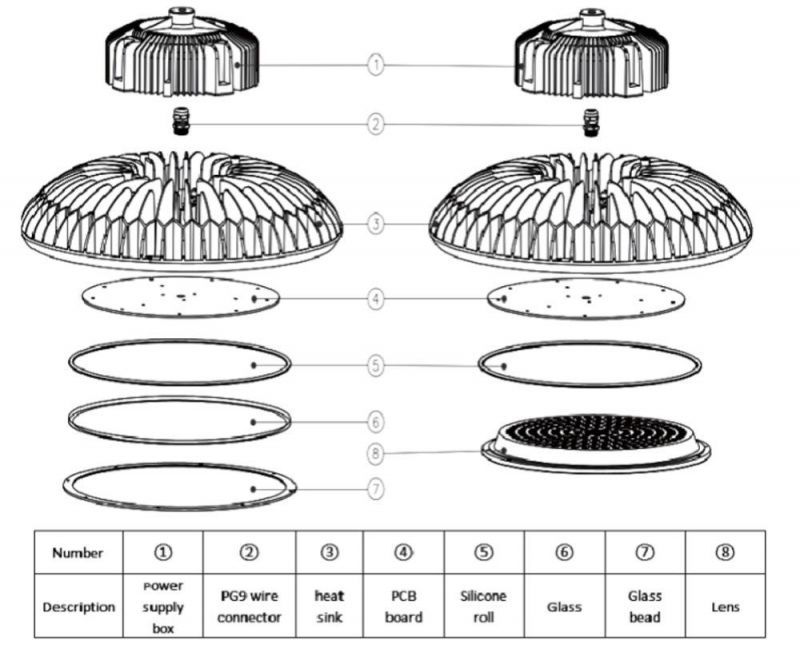

Detailed Drawing of UFO Led High Bay Light:

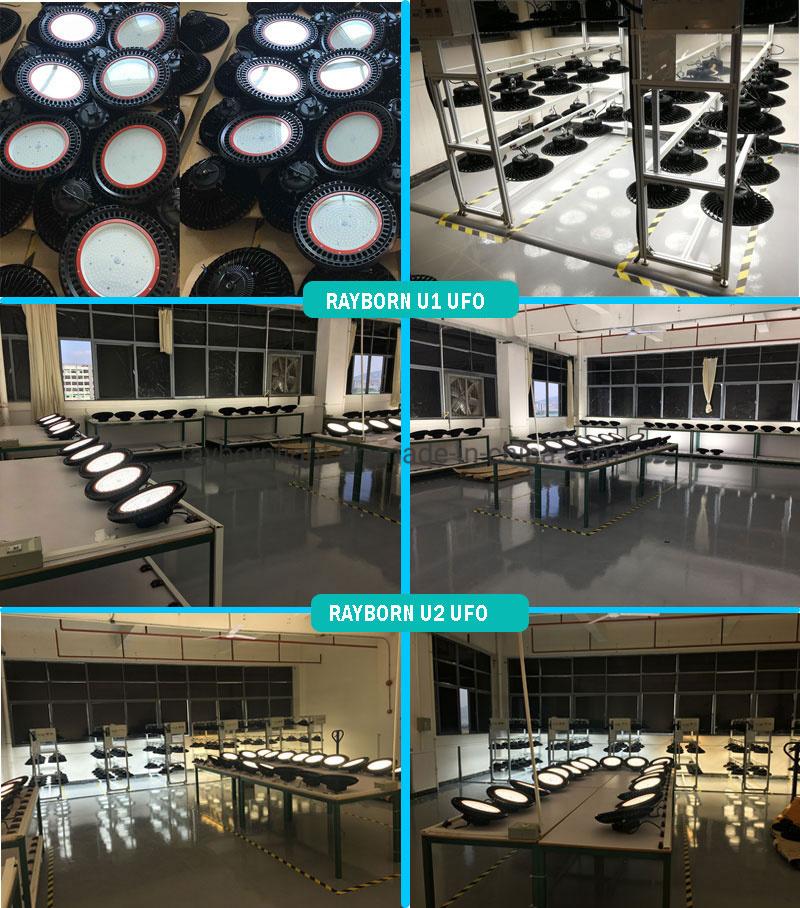

Testing of ufo led high bay light:
All our LED high bay lights will be tested before shipping, such as current and function test, earth connect test, temperature test, light distribution test, vibration test, integrating sphere test, salt spray test, aging test, etc.. Being responsible for our products is being responsible for our customers.

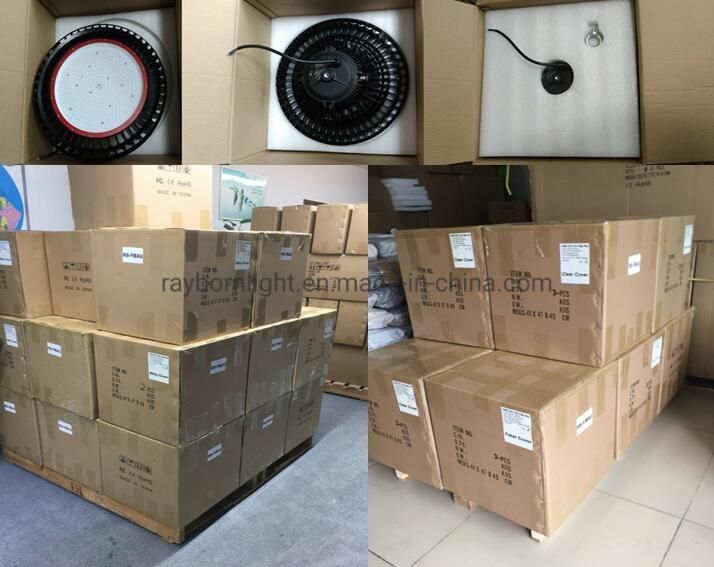

Packaging of ufo led high bay lights:

Item	Carton Size	Gross Weight	Packaging
80w/100w ufo led light	35.5*35.5*42.5cm	10.0kg	2pcs/ carton
120w/150w ufo led light	41.5*41.5*43.5cm	13.5kg	2pcs/ carton
200w/250w ufo led light	46.5*46.5*43.5cm	16.8kg	2pcs/ carton

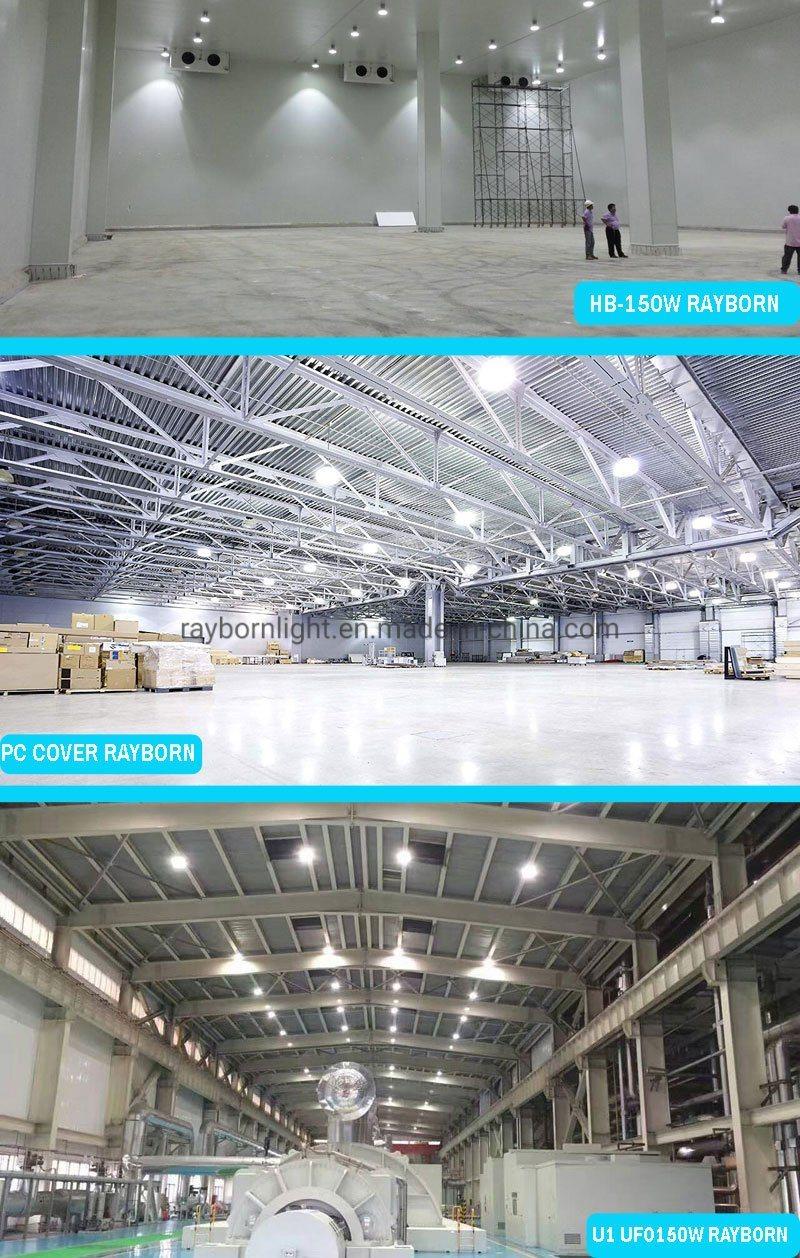

Applications of ufo led high bay light:
1. Warehouse Lighting, Factory Lighting, Industrial Lighting
2. Garage Lighting, Workshop Lighting
3. Outdoor Area Lighting, High Mast Lighting
4. Supermarket Lighting, Store Lighting
5. Tunnel Lighting, Bridge Lighting
6. Gas Station Lighting




Shipping of led high bay lights: By sea,air,express (DHL,FedEX,UPS,TNT etc.)
1. Big quantity advised to be shipped by sea.
2. Samples advised to be shipped by express.
3. Small quantity advised to be shipped by air.




After-sales service:
1.  We offer 5 years warranty base on different price and products.
2.  Any quality issue, we will replace for free within guarantee period.
3.  Any accessories, we always support our customers.



Varies services can be provided to you:
1. Your inquiry related to our products or prices will be replied in 24hours.
2. OEM or ODM service is welcome.
3. Professional service from well-trained and experienced staffs is customers' best choice to secure good communication, on time delivery, reliable warranty etc.
4. For all your inquires about us or our products, we will reply you in details within 24 hours.
5. Convenient and smooth communication.
6. Detailed and professional specifications and guidances of products.
7. Your requirements and complaints are highly respected.
8. Lighting solutions by professional technician.
9. Fast &Cheap Delivery.
10. Free Light study.
11. Various Certificates.
12. Product Update.




Trade terms:
1.  Payment: T/T, L/C and paypal are available.
2.  Lead time: Sample Order: 5-7 working days. Bulk Order: 10-15working days.
3.  Package: 1pcs-carton or as your custom package.
4.  Shipping freights are quoted under your requests.
5.  Shipping port: Shenzhen port
6.  Discounts are offered based on order quantities.



Warranty and Warranty terms:
We offer five-year guarantee on the condition of the light is used under normal environment and suitable maintenance and storage; any normal using within guarantee, we provide the repair, exchange(the components and parts)or replace the new item for your options. Exceeding the guarantee time, appropriate cost for the material and the labor should be charged.



Company Information:
1. Rayborn Lighting Co.Ltd is a professional LED manufacturer, focuing on industrial Led Light and commerical Led light research, development,production, sales and service,was in High-end operation and service provider in High power led.Under the conuntry "saving" policies,we are striving to create environmental protection,energy saving,long life lighting and earned a reputation of being a quality supplier of LED lighting.

2. We has a group of professional technical R & D team, who can provide the OEM / ODM services according to customers and LED lighting solutions,our factory has passed the authentications of ISO9001:2000,CE, FCC, ROSH ,TUV authentication.

3. With the direction of High power led light,industrial Led light and commerical Led light,company developed milti-stlye series of Led lighting,including Led Flood light,Led Tunnel Light,Led High Bay light,Led Ceiling light,Led Tube Light,Led Down Light,Led Strip,Led Bulb,Led spot light.

4. We warmly welcome domestic and overseas agents and wholesaler to join us,to light up a green planet,for a more environmental earth.
