• Model NO.：RB-HB-150WU2
• Certification：CE, EMC, LVD, RoHS, SAA
• Beam Angle：120°
• LED Chips：Osram
• Warranty：5 Years
• Input Voltage：AC100~277V, 50Hz~60Hz
• Power Driver：Meanwell Hbg
• Power Factor：>0.98
• Power Efficiency：>92%
• LED Luminous Flux：21000lm
• Color Rendering I：Ra>80
• View Angle：60,90,120 Degree
• Size：D340*H174mm
• Net Weight：6kg
• Transport Package：1 PCS,CTN
• Specification：42*42*22cm,ctn
• Trademark：Rayborn
• Origin：China (Mainland)
• HS Code：9405409000
• Production Capacity：5000 PCS,Month

150W UFO LED HIGH BAY-90D Item No.:RB-HB-150WU2Input Voltage:AC 100-277VFreqency Range:50Hz~60HzLED Chip:SMD3030 ChipPower Driver:Meanwell HBGPower Factor:>0.98Power Efficiency:>92%Luminous Efficiency:160LM/WLED Power150WLED QTY: 308pcs 3030SMDLED Working Voltage:DC 42~48VSystem Consumption:153WLIGHT Luminous FluxWarm White24000LMPure White24300LMCool White24500LMViewing Angle:120/90/60 degree Center LuminanceHeight 3M1189LUXHeight 4M669LUXHeight 5M429LUXIlluminance AreaHeight 3MDia.530CM  points visibleHeight 4MDia.706CM points visibleHeight 5MDia.883CM points visibleIlluminance Uniformity:>0.6Color TemperatureWarm White3000K~3500KPure White4000K~5500KCool White6000K~6500KColor Rendering IndexRa>80Light Distribution:LED points visibleLED Junction Temperature:≤115ºCWorking Temperature:-35ºC~65ºCIP Grade:IP65Working Life-span:50000 HPower Line:1.0 mm² three lineConnect WireBrownLBlueNYellow / GreenGCertificateCE/ROHSSize:340*H187Net Weight:6.3KGPackaging39.5*39.5*20.5cm

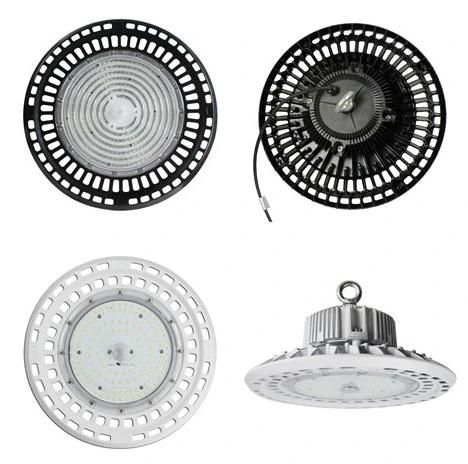

The whole series UFO LED high bay lights are adopted Meanwell HBG drivers, SMD 3030 LED chips and good heatsinks with finned welding technology, very bright and good heat dissipation and high-quality. 60, 90, 120 degree are available.

Features of our UFO LED high bay lights.

1. Adopted sheet-metal pure aluminum radiators for heat dissipation, copper cylinder for heat conduction, with compact dimensions and low weight.

2. The highest temperature of LED chips welding spot is 70 ºC, the highest temperature of heat sinks is 55 ºC, very good heat dissipation, small light failure, greatly improve the working life of the light fixtures.

3. Adopted SMD3030 LED chips,Meanwell HBG Power drivers, the lumen efficiency of whole lamps reach 120-130lm/W, 60/90/120 degree beam angles are available.

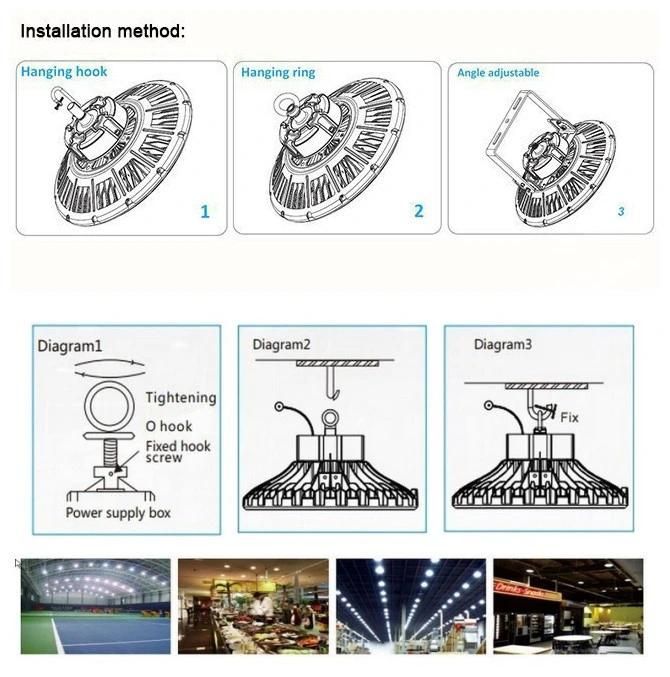

4. Several installation ways: Hanging hook, Hanging ring,Angle adjustable.



Primary Competitive Advantages of  UFO high bay LED Light :

1. Using high chrome plating fins aluminum as heat sinks.
2. Using SMD3030 LED chips.
3. Using Meanwell HBG power drivers.
4. IP level is IP65,Can be used in factories, workshops, super markets, warehouses etc.
5. Base: Hook with safety rope.
6. Beam angle: 60 / 90 / 120 degree.
7. With two pieces safety cable.
8. Energy saving than traditional lamp about 70%~80%.
9. Main part of heat dissipation is under the protection of several patents.
10. Compliance with CE&RoHS&FCC&PSE standard regulations.
11. Meeting the specifications of the traditional lamp can directly replace the traditional mercury lamp, No additional construction.





Installation information of 150W UFO LED High Bay Light :

1. Check all the parts and accessories of UFO LED High bay light;
2. Must cut off the power supply before installation;
3. Make sure the light is fixed tightly to the surface of place for installation ;
4. Connect the power line of light with power supply, then switch on the power.
5. When the UFO highbay light is working, it must be kept vertical downward.

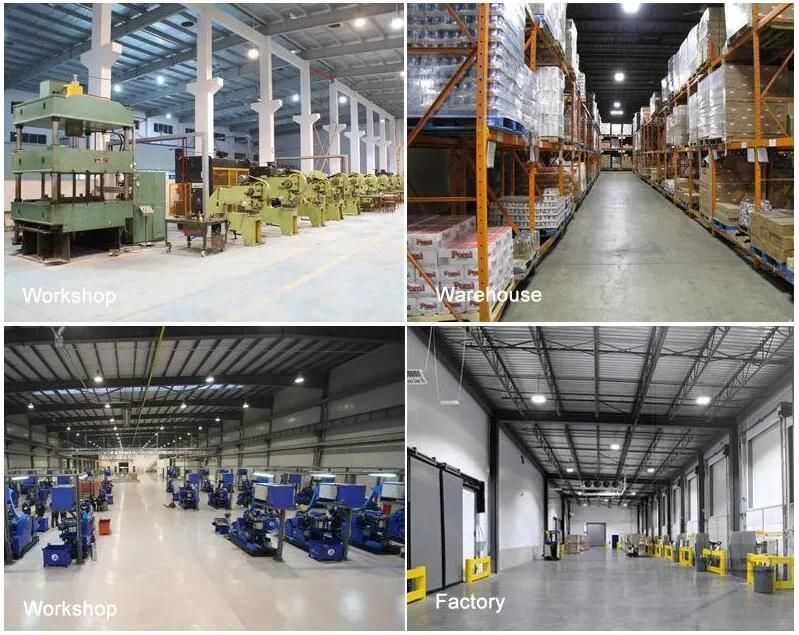

Applications of UFO high bay LED light :

1. Workshop and factory lighting.
2. Shopping mall lighting.
3. Museum and stadium lighting.
4. Highway toll station and gas station lighting.
5. Warehouse and smeltery lighting.

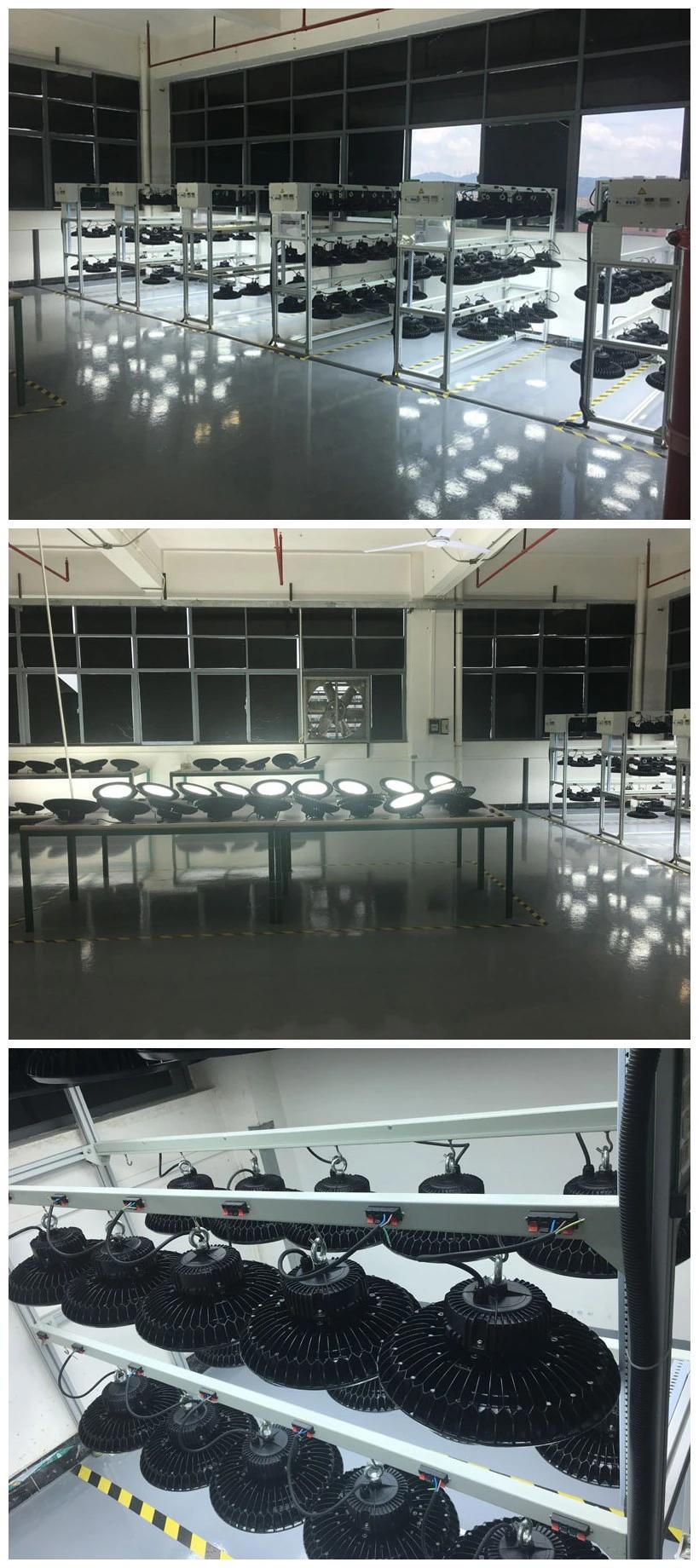

Strict Tests of industrial led high bay lighting :

Before shipping, all the LED high bay lights will be over 12 hours aging tested, inspection department will test 100% products including light up test , power wattage test , high-Voltage test , waterproof test , ground connection test and so on, defective rate is controlled  less than 0.1%. Quality is ensured, you can be assured.

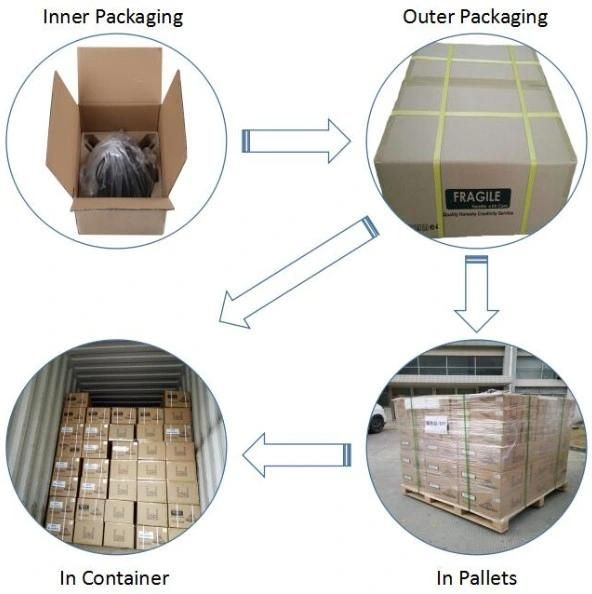

Packaging of 150W UFO LED High Bay Lighting:

Our individual package maximize protecting the UFO high bay LED lights from transfer damage in transit.
1. Label on backside of each UFO LED high bay lights and your required label is available.
2. One piece UFO led high bay Light per carton.
3. This is our regular packing of the UFO led high bay light,if you need,we can also custom color packing  and put your logo on it.



Shipping of UFO high bay light LED : By sea / air / express (DHL,FedEX,UPS,TNT etc.)

Big quantity advised to be shipped by sea.
Samples advised to be shipped by express.
Samll quantity advised to be shipped by air.




Rayborn Good Service:

1. Your inquirey related to our products or price will be replied within 24 hours.
2. All your inquireies will be well explained by our experienced staff.
3. OEM&ODM,also provide customized service.
4. Distributor ship is available for your unique design and some our current models.
5. We will keep secret for customer sale area,design ideas and all other private information.



Company Information:

Rayborn Lighting Industry Co., Ltd is a professional LED manufacturer, focuing on industrial Led Light and commerical Led light research, development,production, sales and service,was in High-end operation and service provider in High power led.Under the conuntry "saving" policies,we are striving to create environmental protection,energy saving,long life lighting and earned a reputation of being a quality supplier of LED lighting.

We has a group of professional technical R & D team, who can provide the OEM / ODM services according to customers and LED lighting solutions,our factory has passed the authentications of ISO9001:2000,CE, FCC, ROSH ,TUV authentication.

With the direction of High power led light,industrial Led light and commerical Led light,company developed milti-stlye series of Led lighting,including Led Flood light,Led Tunnel Light,Led High Bay light,Led Ceiling light,Led Tube Light,Led Down Light,Led Strip,Led Bulb,Led spot light.

We warmly welcome domestic and overseas agents and wholesaler to join us,to light up a green planet,for a more environmental earth.




FAQ:


Q1: What is the warranty of your high power led high bay lights?

A:  We offer five years guarantee for our high power LED high bay lamps,and we will offer you based on your requirement.



Q2: What color temperature we can choose?

A:  We offer LED high bay lights in warm white, natural white,pure white and cool white and the range is as follow:(These are our conventional color ranges,we also can offer you other range that you need)

Warm white = 3000K-3500K
Natural white = 4000K-4500K
Pure white = 5000K-5500K
Cool white = 6000K-7000K



Q3: Do your led high bay lights can be used in our country?

A: Yes, Our LED high bay light has wide input voltage AC100-240V, and it can be customized too.



Q4: How do you help me to save freight cost?

A: We will give you best solution based on your order quantity,and freight quotation can be sent within 1 hours.



Q5: Do you have any MOQ limited?

A: We don't have MOQ,even only one piece LED high bay light you can buy.


Q6: What's the lead time?

A: Sample :3-7 days. Mass production: 7-15 days depends on the order quantity.



Q7:How do you ship the goods and how long does it take?

A: We usually ship by DHL,UPS,FEDEX,TNT. It usually takes 4-5 days to arrive. By air,by sea are also acceptable.



Q8: Do you accept Paypal or Western Union for sample order?

A: Yes, we accept Paypal and Western Union as payment term.T/T,LC are also accepted.

Please don't feel hesitate to contact us if our products hit your requirements. Please give me one enquiry, I will give you ten surprises. Believe me, I am sincere Charmaine.
