• Model NO.：LM-P6262-36WH-60K-SKY
• Base Material：Aluminium
• Certification：CE, RoHS, ISO9001, CUL, CCC, SASO, VDE
• Voltage：85V-265V
• Beam Angle：120°
• Wattage：36W
• Warranty：5 Years
• CCT：6000K
• Surppot Custom：Yes
• Transport Package：Inner Box: 74cm*68.5cm*3.5cm ,1PCS
• Specification：620*620*10
• Trademark：Lumin
• Origin：Shenzhen China
• HS Code：9405100000
• Production Capacity：5000

P66C-36WH-xxK-SkyOpticalLight source192 pieces of SMD LED 4014Luminous fluxCool white2000 LMNatural white1800 LMWarm white1600 LMColor temperatureCool white6000-6500 KNatural white4500-5000 KWarm white2700-3000 KColor render indexRa ≥ 80Beam angle>120°Optical decay rateless than 1.8% in 3000 hoursService life≥50000 HrsElectricInput voltage220~240 VacFrequency50 ~60 HzOutput voltage30-42 VdcPower consumption40WPower factor≥0.9Anti-elec shock rateClass IIStarting time≤1.2 S (@ 110Vac)Withstand voltage3000 Vac/1 minStructureMaterialsAluminum, PS LGP, PS diffuserTemperature rising<20 Celsius degreeDimension595x595 x 9MMNet weight3KGProtection classIP 40OthersWorking temp/humidity-30~+50, 10% ~80% R.H.Storage temp/humidity-40~70, 0% ~100% R.H.CertificationCE RoHS

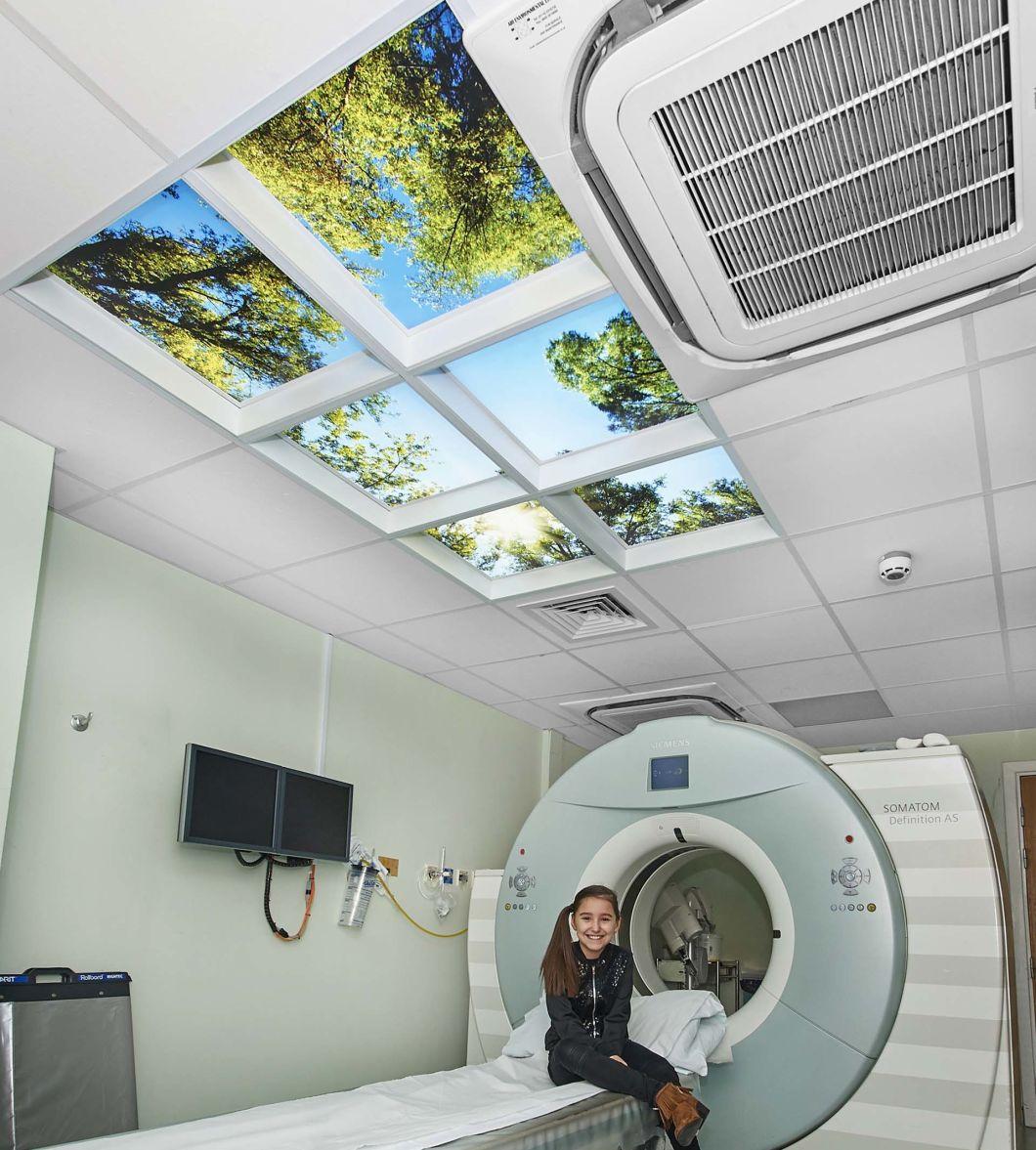

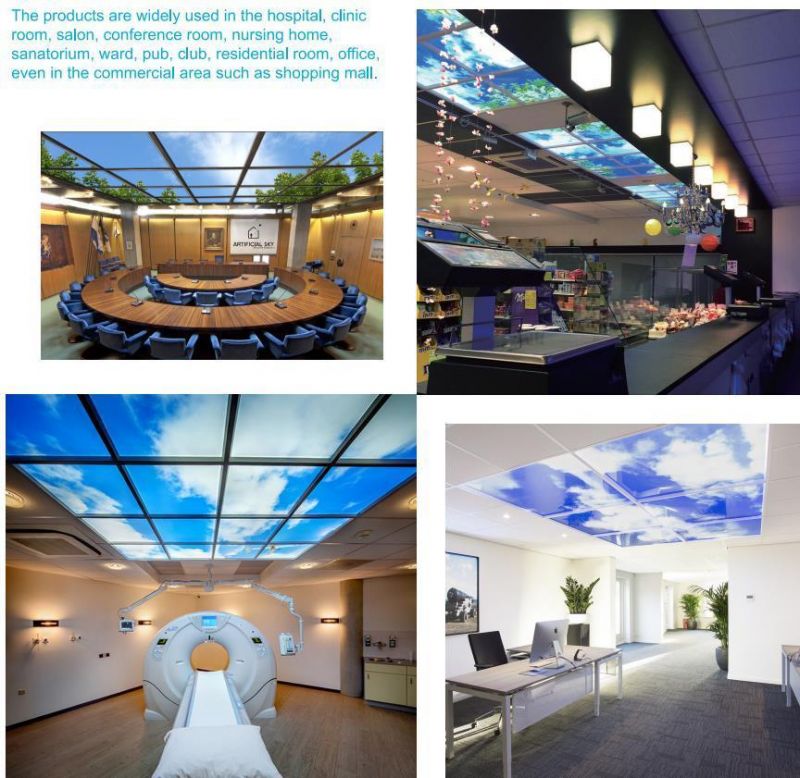

Application

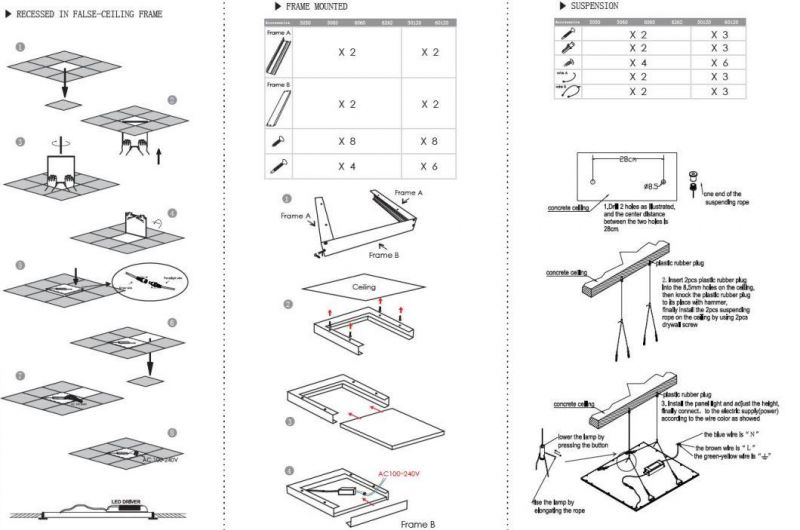

Installation

1. Fixtures must be operated by a licensed electrician.

2. Check if fixtures are sloid and in good condition once packaging is open.

3. Do not let fixture fall down from ceiling system or clash to hard stuff.

4. Make sure that the cable of fixture is long enough to connect. Do not knot or pull the cable strongly while wiring.

5. Do connect input end of fixture to output end of LED driver.

6. Wiring must be firm and tight with insulation protection well. Be aware of electricity shock.

7. Keep fixture and LED driver away from water or liquid, free from electric leakage and electricity shock.

8. Must use LED driver approved by Lumin, otherwise, fixtures may not work normally, and may be damaged, may cause unexpected incidents. Lumin will not bear any responsibilities due to such deeds.

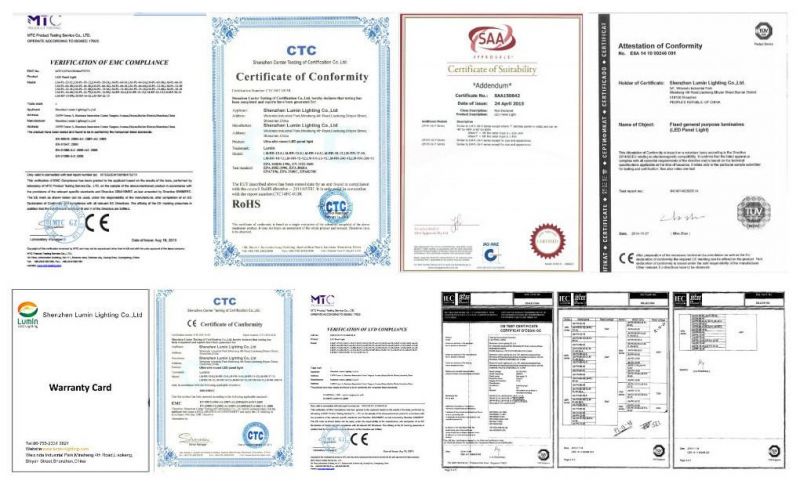

Certification

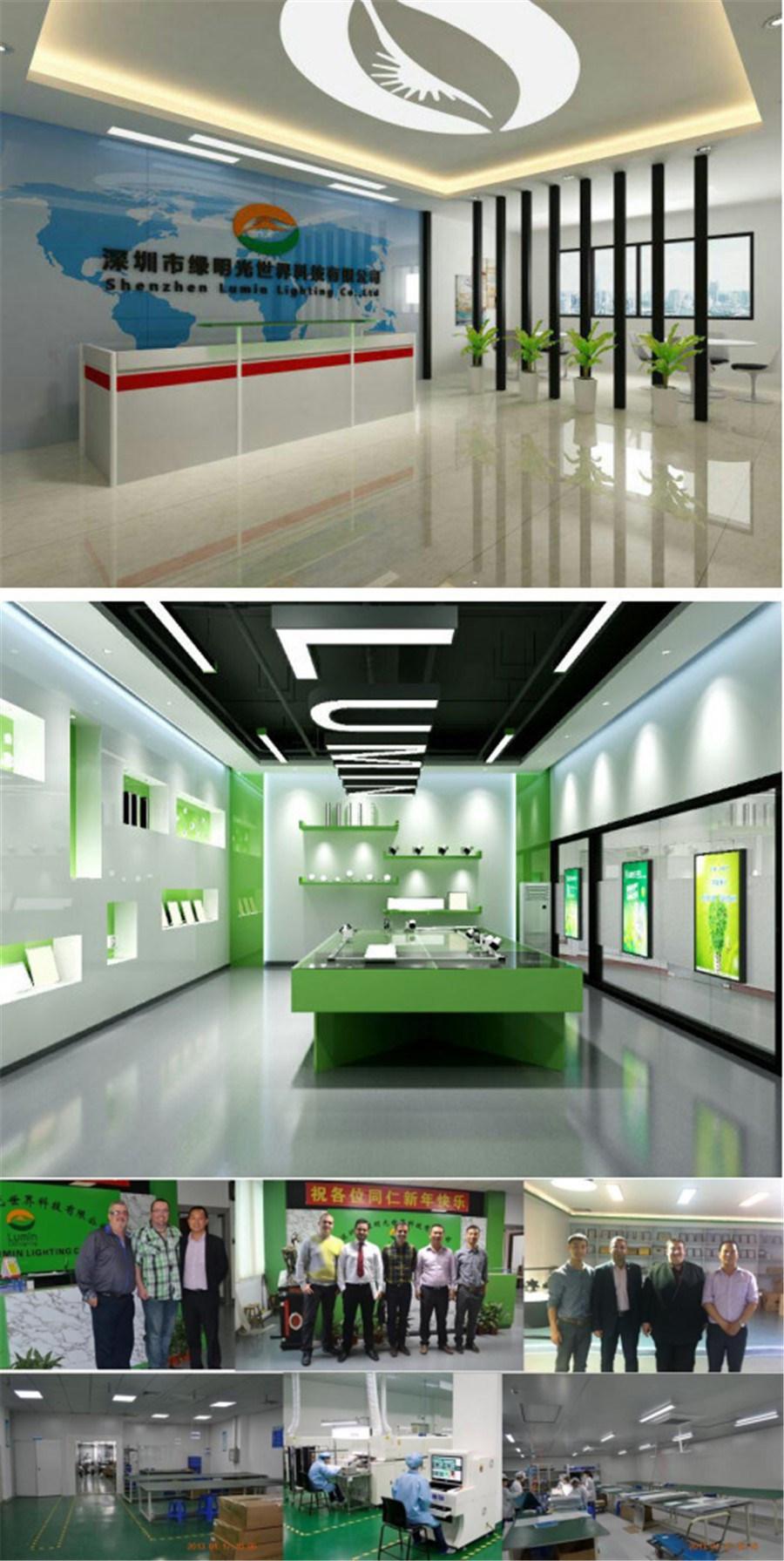

Company information



Based in Shenzhen, Lumin is a fast-growing semiconductor lighting manufacturer and supplier in China. Lumin was founded on November 17, 2008. Since its founding, Lumin is committed to developing, manufacturing, and popularizing LED lighting products, responding to the government policy of energy-saving, emission reduction, and maintainable development.

Lumin's product lines mainly include LED panel light, LED linear light, LED downlight, LED track light, LED high bay light. Meantime, Lumin also provides customized solutions services to customers.

Lumin takes product quality as our lifeline. We focus on quality control during the whole production process by strickly carrying out ISO 9001 Quality System and ISO Environment Management System. And, we emphasize training of skills and capabilities of our workers and staff to improve production management.

The products have already been awarded with certificates of CE, RoHS, and UL . With good quaity control, our products are well received by customers throughout the world.

Lumin has an excellent research and development team. New products are launched every year.

At present, Lumin has been recognized as a leading LED lighting brand in the global market. Our products have been exported to over 30 countries and regions in the world such as Spain, France, Italy, Japan, and India, establishing close business relaton with local distributors, lighting consultants, building contractors as well as end users.

Facing severe global warming and energy crisis, Lumin would like to work with anyone who loves the earth and environment protection in order to make a better place for the human being.

Best service

(1) Your inquiry will be replied within 12 hours;
(2) Fast sample delivery: 3 days around.
(3) Best-trained and experienced sales staffs follow up with your inquiries and orders;
(4) OEM/ODM services: All can be customized;
(5) Distributor, agent, investor and more are welcome;
(6) 3-5 years warranty: Spare parts can be offered along with orders.
