• Model NO.：P66C-36WH-xxK-Sky
• Base Material：Metal
• Certification：RoHS, UL, ISO9001, SAA
• Voltage：100-240V
• Beam Angle：120
• Item Name：Beautiful Sky Panel Light for Hospital
• Long Life Span：50000 Hours
• High CRI：Ra>90,95,98
• Chip Brand：SMD2835
• PF：>0.9
• Flicker：Flicker Free
• ODM/OEM：Yes
• Ugr：<22
• Frame：6063 Aluminum
• Application：Hospital,Home,Clinic
• LGP：PMMA
• Warranty：5year
• Dialux Service：Available
• Model：P66c-36wh-Xxk-Sky
• Package：6PCS Per Carton
• Transport Package：Carton
• Specification：595*595*18 mm
• Trademark：lumin lighting
• Origin：China
• HS Code：94051000
• Production Capacity：20000PCS, Month

Basic Info.

Model NO. P66C-36WH-xxK-Sky Base Material Metal Certification RoHS, UL, ISO9001, SAA Voltage 100-240V Beam Angle 120 Item Name Beautiful Sky Panel Light for Hospital Long Life Span 50000 Hours High CRI Ra>90/95/98 Chip Brand SMD2835 PF >0.9 Flicker Flicker Free ODM/OEM Yes Ugr <22 Frame 6063 Aluminum Application Hospital/Home/Clinic LGP PMMA Warranty 5year Dialux Service Available Model P66c-36wh-Xxk-Sky Package 6PCS Per Carton Transport Package Carton Specification 595*595*18 mm Trademark lumin lighting Origin China HS Code 94051000 Production Capacity 20000PCS/ Month

Product Description

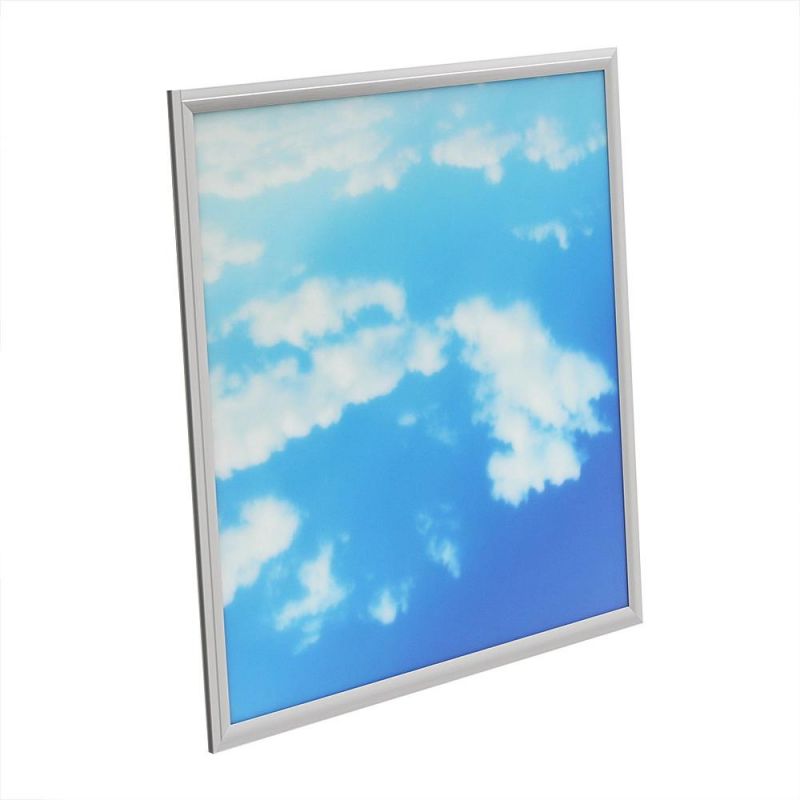

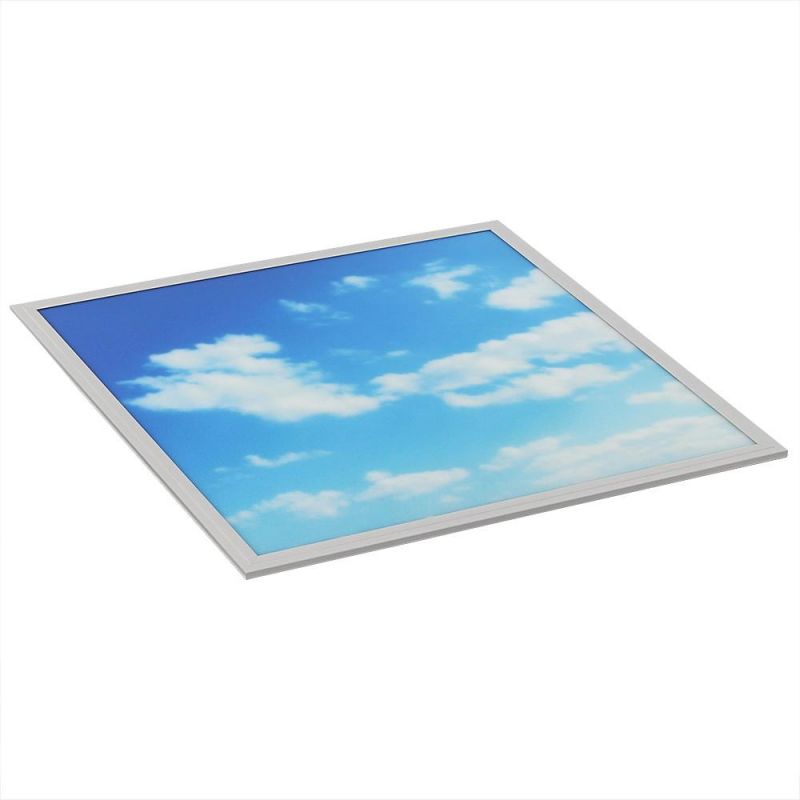

Real 3D Vision Blue sky LED panel Artificial Skylight panel light

LM-WP-66-36-sky, one of the latest product made by Shenzhen Lumin Lighting Co.,Ltd, is a product with ultra-slim design,  elegant appearance, comfortable light, optical PMMA LGP and optical PMMA diffuser. We call it  frameless skylight  LED Panel. It is very popular in the European market now.




Features

  (1) Ultra-slim design, elegant appearance and comfortable light
  (2) Optical PMMA LGP and PMMA diffuser
  (3) High efficiency and super energy saving, saving 70% than fluorescent tube
  (4) Long lifespan,low optical decay, more than 50,000h lifespan
  (5) Different installation ways, flexible to use any where

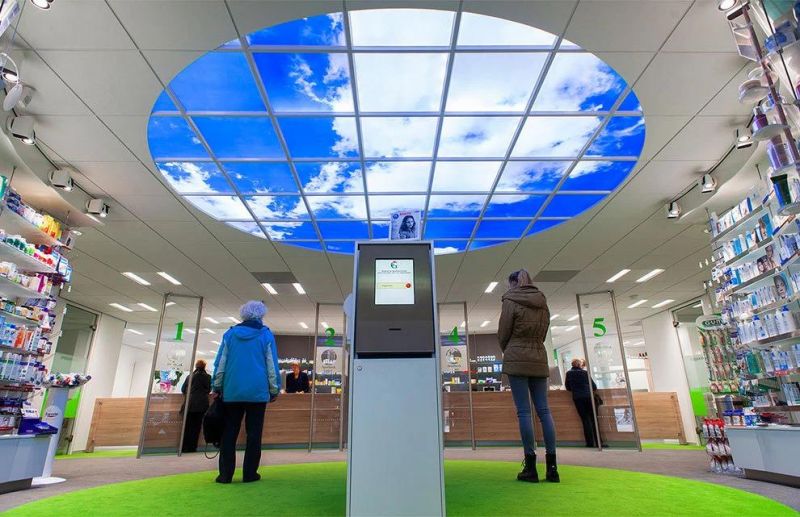

Application

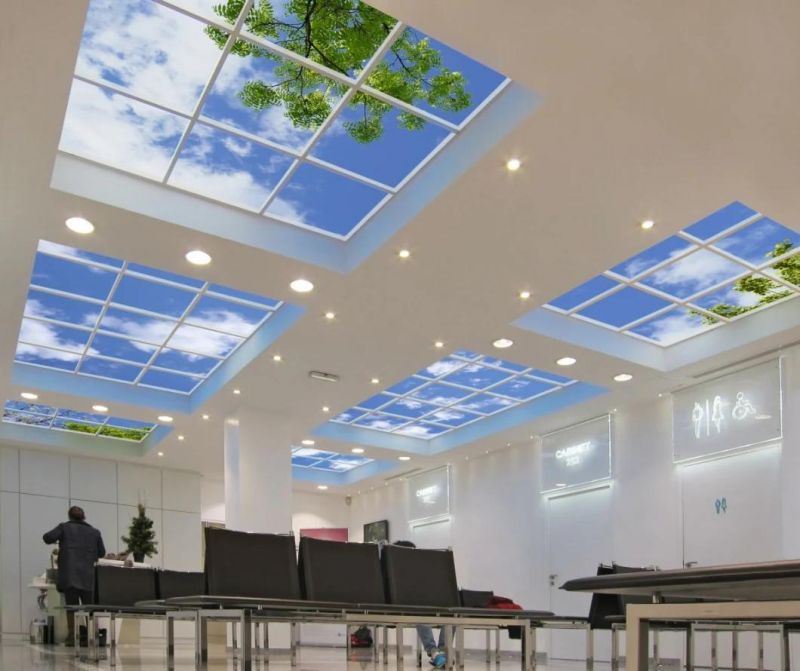

Offices, workshops, shopping malls, schools, libraries, hospitals, hotels, retail outlets, living rooms, airports, entertainment spaces, etc.

Replacement

  Replace Fluorescent tube and grille lamp with fluorescent tubes, saving 70% energy.

Parameter

	LM-WP-66-36-sky
Input Power	40W
Luminous Flux	2000lm
Input Voltage	AC 100-240V
CRI	>95
CCT	3000K(WW), 4000K(NW), 5000K(DW), 6000K(CW)
Dimming	0-10V /  Triac  / DALI
Mounting	Surface Mounted, Suspended
Life Time	Designed to 50,000 hours
Warranty	3 years limited
IP Rating	IP40
Size	595X595MM
Weight	5KG

Benefits

  (1) Longer lifetime than traditional light.
  (2) 80% Energy-saving over traditional light .
  (3) Minimum maintenance costs.
  (4) Quick and easy installation to minimize retrofit costs
  (5) Using aluminum alloy shell, with frosted poly cover, Have good heat dissipation ability and
        optical effects.

Packaging & Shipping

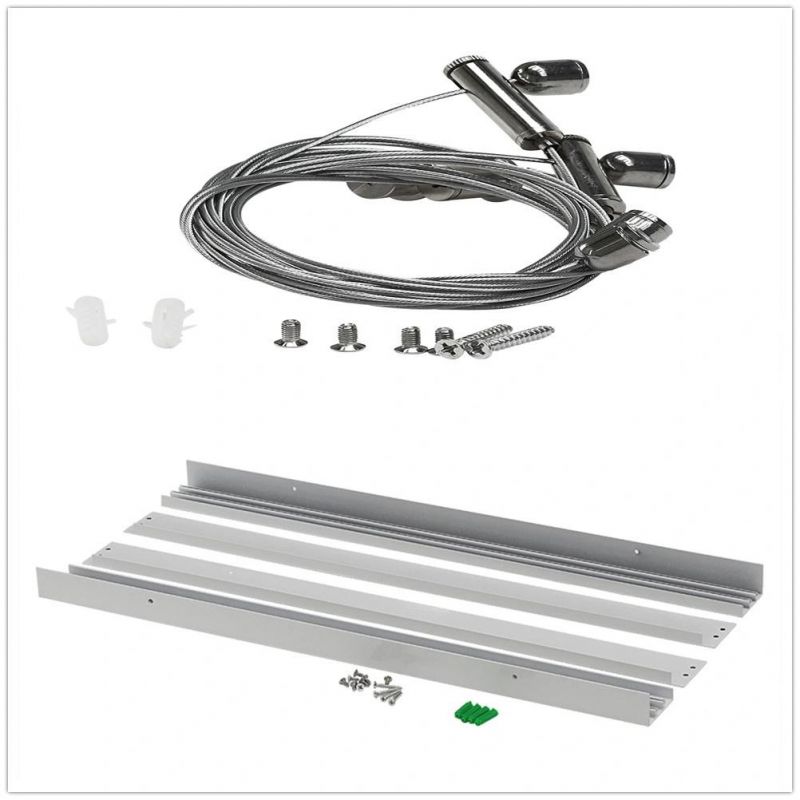

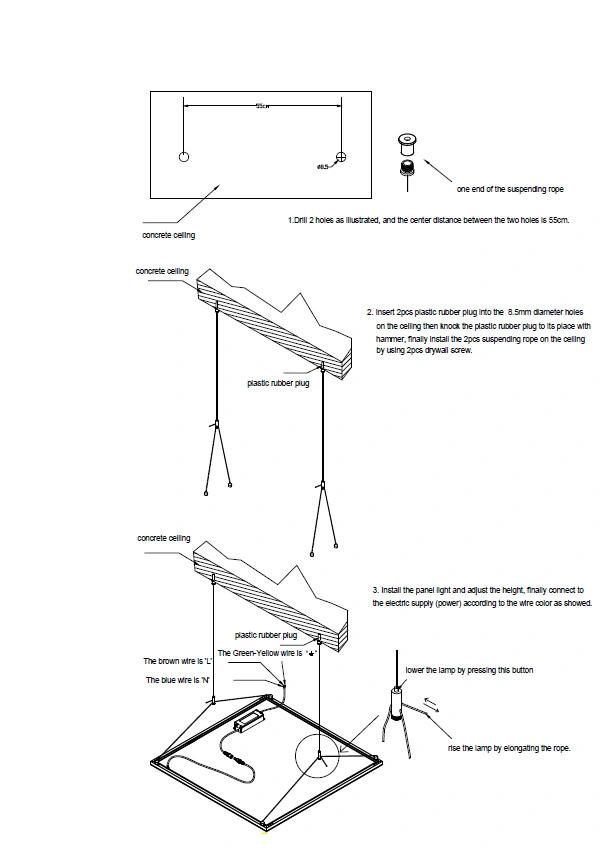

Installation





About LUMIN

Based in Shenzhen, Lumin Lighting was founed on November 17, 2008. Since its founding, Lumin Lighting is committed to developing, manufacturing, and popularizing LED lighting products,we are ISO9001 factory.


Lumin have more than 100 skill workers,8 production lines.
More than 3000 square meters workshop.
3 sales team,more than 20 saels.
R&D department: more than 3 engineers.

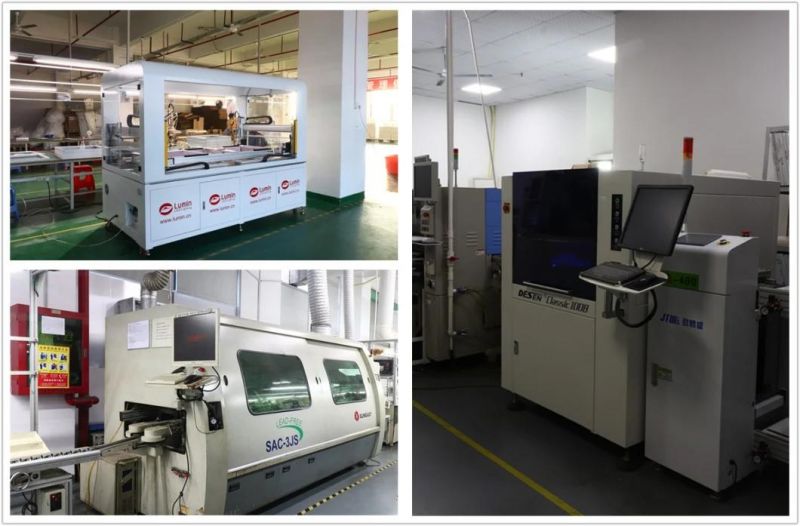

We have ourselves auto production equipments:Screw machine,SMD Mounter,Reflow soldering machine,Integrating sphere and other Electronic testing equipments.

Exhibtion
Lumin will attend the HK ligthing fair in every year,welcome to viist our booth.

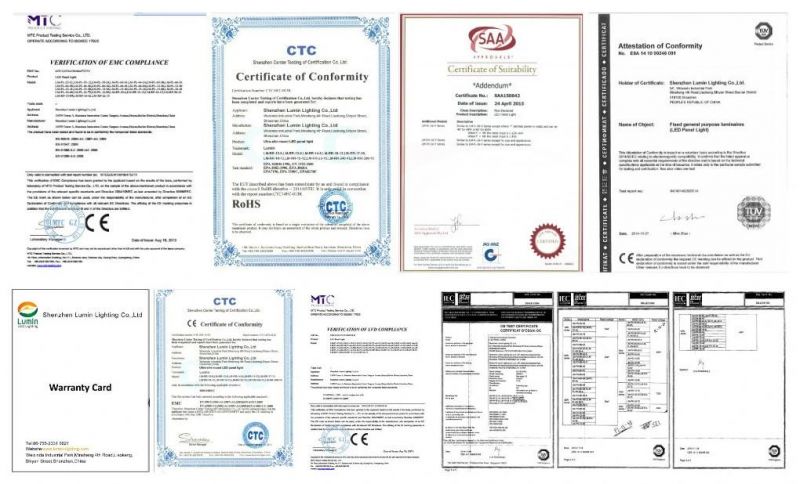

Certification
Lumin led light,all of them have TUV CE,CB,SAA,UL etc certification.

FAQ

Q1: Can I have a sample order for led panel light?

A: Yes, we welcome sample order to test and check quality. One sample or mixed samples are acceptable.



Q2: Is it possible to print my logo on led light product?

A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.



Q3: How to deal with the faulty?

A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.02%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.



Q4. Can you supply the special lighting design?

A:Sure, LED lighting design including the Dialux simunlation,3D products renderings etc.



Q5: Are you a manufacturer?

A: Yes, Lumin lighting creative team has over 10 years' experience in LED lighting industry.
