• Model NO.：LLX-Panel
• Dimmable：With Dimmable
• Appearance：Square
• Type：Hanging
• Base Material：Plastic
• Certification：CE, RoHS, SAA, SASO
• Voltage：85V-265V
• Beam Angle：120°
• PF：>0.9
• Efficiancy：>90lm,W
• Warranty：3 Years
• CRI：>80
• IP/Ik：20,03
• Sdcm：<6
• Housing：Aluminum
• CCT：3000K-6500K
• Flicker：No Flicking
• Installation：Embedded or Hanging
• Transport Package：Carton
• Specification：595*595*9mm
• Trademark：longlux
• Origin：China
• HS Code：9405409000
• Production Capacity：500000

Basic Info.

Model NO. LLX-Panel Dimmable With Dimmable Appearance Square Type Hanging Base Material Plastic Certification CE, RoHS, SAA, SASO Voltage 85V-265V Beam Angle 120° PF >0.9 Efficiancy >90lm/W Warranty 3 Years CRI >80 IP/Ik 20/03 Sdcm <6 Housing Aluminum CCT 3000K-6500K Flicker No Flicking Installation Embedded or Hanging Transport Package Carton Specification 595*595*9mm Trademark longlux Origin China HS Code 9405409000 Production Capacity 500000

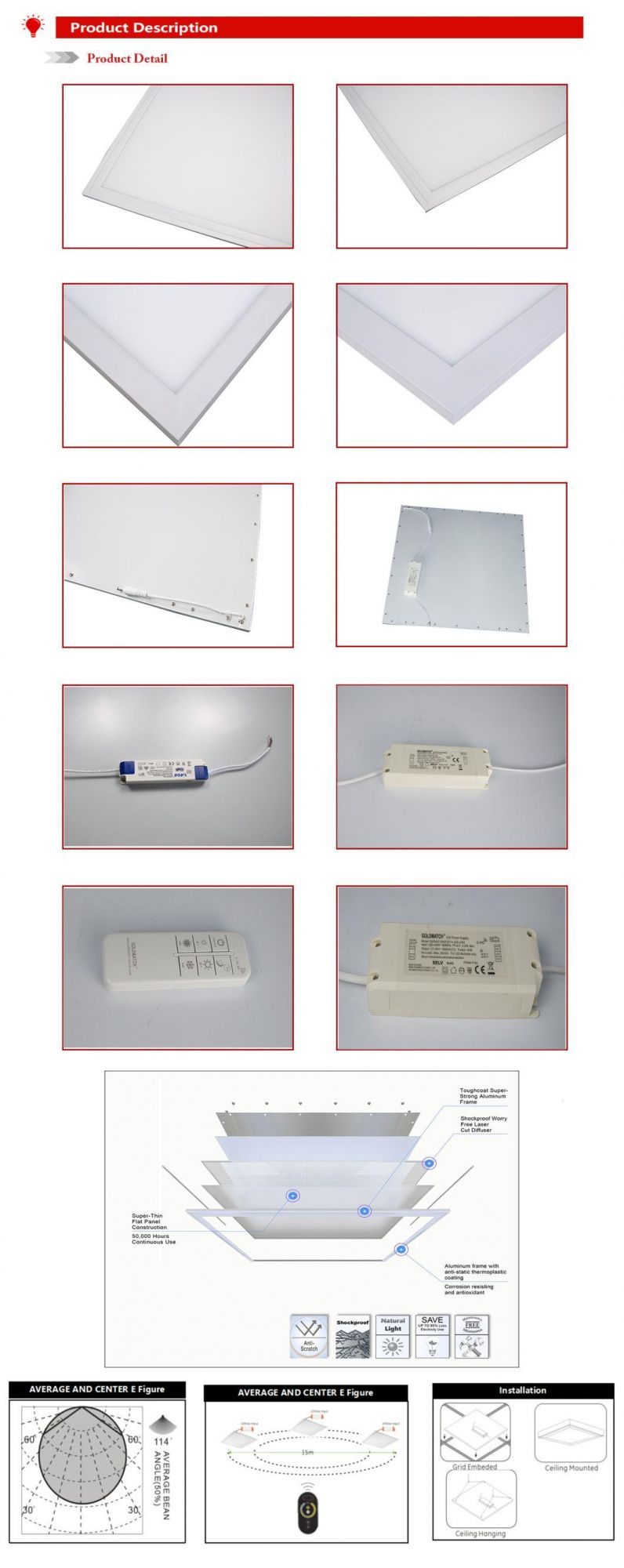

Product Description

Feature:
1.Standard replacement for traditional grille light.
2.Ultra slim design,aluminum frame.
3.PMMA light guide plate,nice and consistent lighting distribution.
4.25000Hrs lifespan.
5.Smooth and even light.
Specification:

Item	Lamp Bead	Power	Material	IP	Lumen	PF	Voltage
LLX-595*595*9mm	4014	36W	Aluminum +MS2.0+0.8PP	IP20	2880lm	≥0.9	AC220-240v
LLX-595*595*9mm	4014	40W	Aluminum +MS2.0+0.8PP	IP20	3200lm	≥0.9	AC220-240v
LLX-595*595*9mm	4014	48W	Aluminum +MS2.0+0.8PP	IP20	3840lm	≥0.9	AC220-240v
LLX-295*1195*9mm	4014	36W	Aluminum +MS2.2+0.8PP	IP20	2880lm	≥0.9	AC220-240v
LLX-295*1195*9mm	4014	40W	Aluminum +MS2.2+0.8PP	IP20	3200lm	≥0.9	AC220-240v
LLX-295*1195*9mm	4014	48W	Aluminum +MS2.2+0.8PP	IP20	3840lm	≥0.9	AC220-240v
LLX-595*1195*9mm	4014	60W	Aluminum +MS2.6+1.0PP	IP20	4800lm	≥0.9	AC220-240v
LLX-595*1195*9mm	4014	72W	Aluminum +MS2.6+1.0PP	IP20	5760lm	≥0.9	AC220-240v
