• Model NO.：LM-UHB100
• Beam Angle：60,90,120
• Dimming：0-10V,PWM,Resistance
• Installation：Installation
• Install Height：6 to 20 Meters
• Flicker：Flicker Free
• LED Qty：280PCS
• Appearance：Round
• Dimmable：with Dimmable:
• Transport Package：Carton
• Specification：400*194mm
• Trademark：Lumin
• Origin：Shenzhen Guangdong China
• HS Code：94051000
• Production Capacity：2000 PCS Per Week

Basic Info.

Model NO. LM-UHB100 Beam Angle 60,90,120 Dimming 0-10V/PWM/Resistance Installation Installation Install Height 6 to 20 Meters Flicker Flicker Free LED Qty 280PCS Appearance Round Dimmable with Dimmable: Transport Package Carton Specification 400*194mm Trademark Lumin Origin Shenzhen Guangdong China HS Code 94051000 Production Capacity 2000 PCS Per Week

Product Description

100w LED UFO High Bay Lights Fixtures






Parameter

Model	LM-UHB200
Power	200W
Luminous	24000-28000LM
Input Voltage	AC100-277V
CRI	Ra>80
CCT	3000K-3500K/4000K-4500K/5500K-6500K
Dimmable       Solution	PWM/ 0/1-10V /RESISTORS
Installation	Suspended
Light Efficacy	120LM/W-140LM/W
IP,IK Rating	IP65,IK07
Warranty	5 year limited
Dimension	¢400*170
Weight	5.6KG

Features

1.IP65 both for indoor and wet location

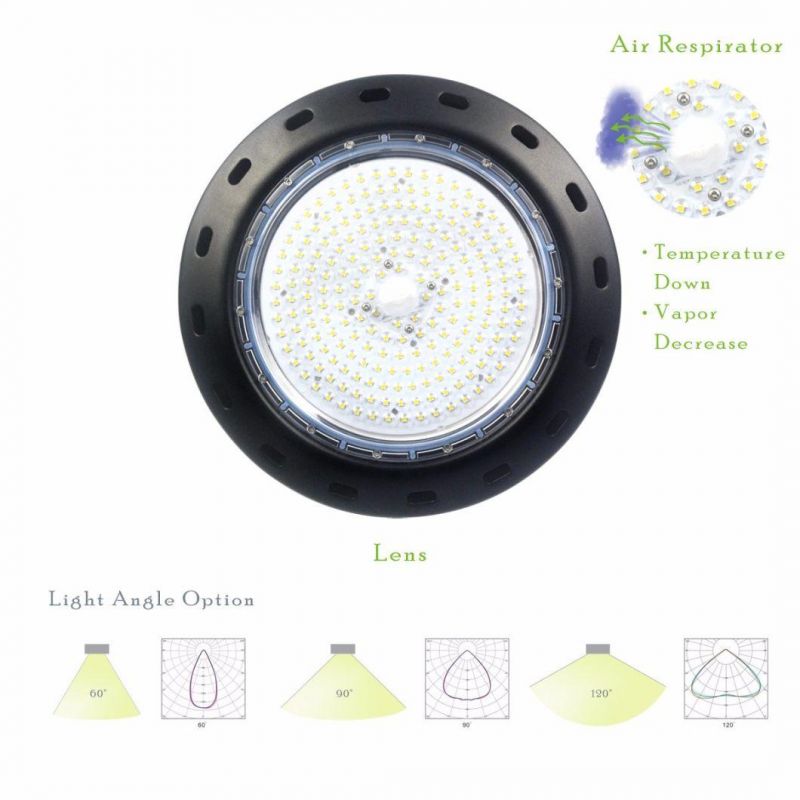

2.Various beam angleoptions:60degree,90degree,120degree
3.3030 led chip,140lm/w max
4.Intelligent microwave sensor,auto ON or OFF LED high bay
5.From 100w to 200w solution for 6 to 20 meters
6.Meamwell driver,1-10V and PWM or resistance dimmable available
7.5 years warranty

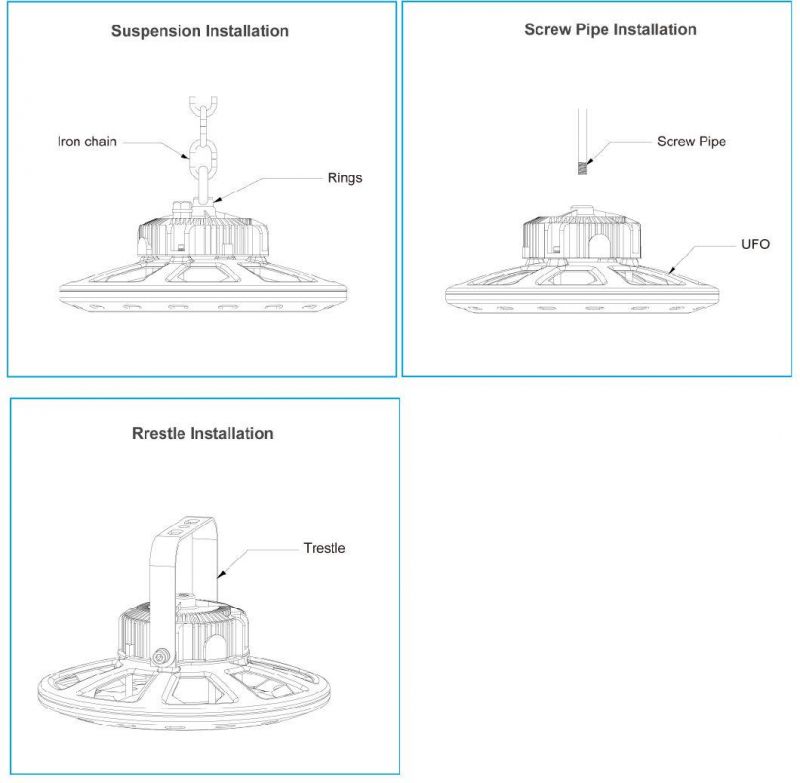

Installation instructions



1. Fixtures must be operated by a licensed electrician.
2. Check if fixtures are sloid and in good condition once packaging is open.
3. Do not let fixture fall down from ceiling system or clash to hard stuff.
4. Make sure that the cable of fixture is long enough to connect. Do not knot or pull the cable strongly while  wiring.
5. Do connect input end of fixture to output end of LED driver.
6. Wiring must be firm and tight with insulation protection well. Be aware of electricity shock.
7. Keep fixture and LED driver away from water or liquid, free from electric leakage and electricity shock.
8. Must use LED driver approved by Lumin, otherwise, fixtures may not work normally, and may be damaged, may cause unexpected incidents. Lumin will not bear any responsibilities due to such deeds.

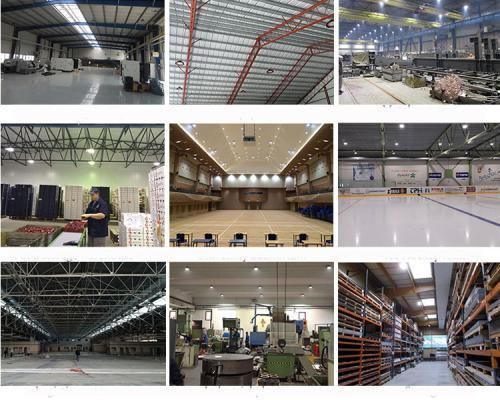

Application



Wide beam angle with good lighting distribution is quite suitable for industrial lighting,warehouse,factory,gym,etc.


Trade Terms
1. Samples will be delivered in 3-5days.
2. Payment terms: 100% T/T or Western Union for small order; 30% deposit and 70% T/T for large order.
3. Delivery time: 5-7 days for small orders; 15-20 days for big orders.
4. Shipping port: Shenzhen

Our Service
1. Inquiry will be replied within 12 hours.
2. Fast sample delivery: 1-3 days.
3. Best-trained and experienced sales staffs follow up with your inquiries and orders.
4. Powerful R&D team,new products will be launched every season.
5. 3-5 years warranty.Complaints will be solved within 24 hours by our profession team.
6. OEM/ODM services: all can be customized.

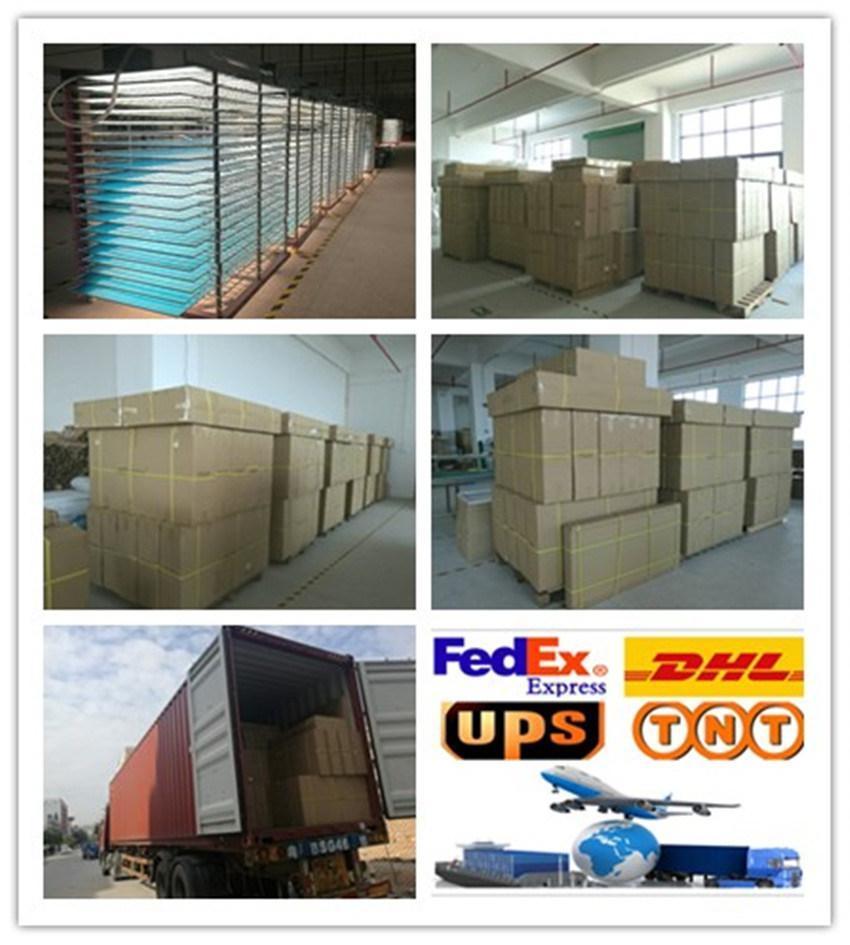

Packaging and Shipping

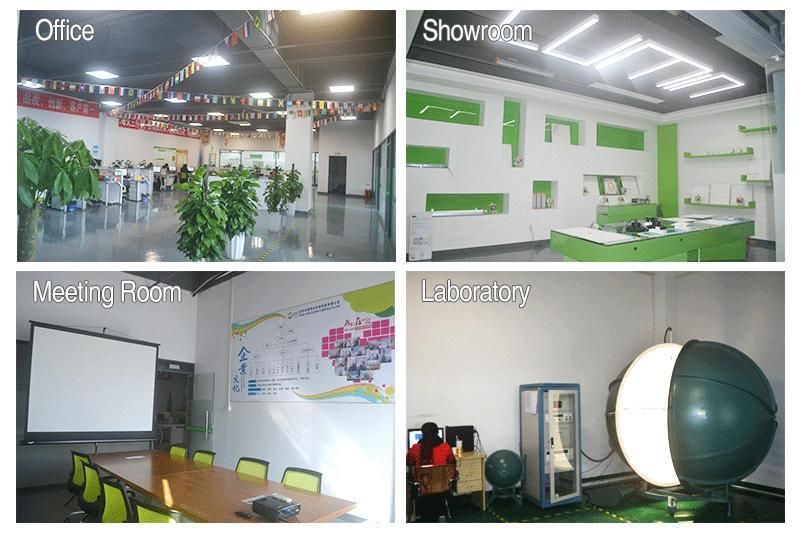

Company  Profile



Based in Shenzhen, Lumin Lighting is a fast-growing semiconductor lighting manufacturer and supplier in China. Lumin Lighting was founed on November 17, 2008. Since its founding, Lumin Lighting is committed to developing, manufacturing, and popularizing LED lighting products, responding to the government's policy of energy-saving, emission reduction, and maintainable development. Nowadays, Lumin Lighting has already been successful in providing quality LED lighting products and green lighting solutions to thousands of families, institutions, and communities worldwide.


Our key product lines mainly include LED panel light, LED pendant light, and LED downlight. Meantime, Lumin Lighting also provides professional customized lighting solutions to customers.

Lumin Lighting takes product quality as our lifeline. We focus on quality control during the whole production process by seriously carrying out ISO 9001 Quality System and ISO Environment Management System. At the same time, we emphasize training of skills and capabilities of our workers and staff to improve production performance.

Our products have already been awarded with certificates of TUV CE, RoHS, SAA,CB, UL, and DLC. With good quaity control, our products are well received by customers throughout the world.
