• Model NO.：RB-HB-515-100W
• Certification：CE, C-tick, EMC, LVD, RoHS, SAA, UL
• Beam Angle：30,45,90,120
• LED Chips：Bridgelux
• Life：50,000h
• Power Source：AC
• Electric Current Type：AC
• Emitting Color：Full Range
• Base Material：Aluminum
• Input Voltage：100-240V
• CRI：80
• Transport Package：1PCS,Box
• Specification：CE,EMC,LVD,SAA
• Trademark：Rayborn
• Origin：China
• HS Code：94054090
• Production Capacity：40000PCS,Month

Item No.:RB-HB-515-100WInput Voltage:AC 100~240VFreqency Range:50Hz~60HzLed Chip:Bridgelux 45 milPower Factor:>0.96Power Efficiency:>90%LED Power100WLED QTY:1pc*100WLED Working Voltage:DC 30~36VSystem Consumption:106WLED Luminous FluxWarm White9100LMPure White10450LMCool White10450LMViewing Angle:120degreeCenter IlluminanceHeight 3M343LUXHeight 4M192LUXHeight 5M123LUXIlluminance AreaHeight 3MDia.2.6 M  points visibleHeight 4MDia.3.4 M points visibleHeight 5MDia.4.2 M points visibleIlluminance Uniformity:>0.6Color TemperatureWarm White3000K~3300KPure White5500K~5700KCool White6000K~6500KColor Rendering IndexRa>78Light Distribution:LED points visibleLight Design:LED+Reflectors secondary light distributionLED Junction Temperature:≤115ºCWorking Temperature:-40ºC~50ºCIP Grade:IP54Working Life-span:50000 HPower Line:1.0 mm three lineConnect WireBrownLBlueNYellow / GreenG

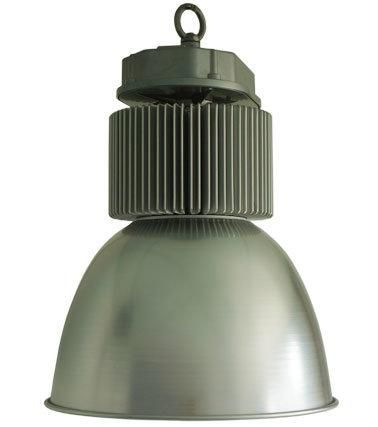

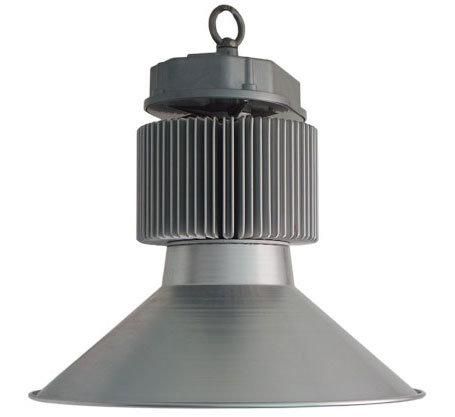

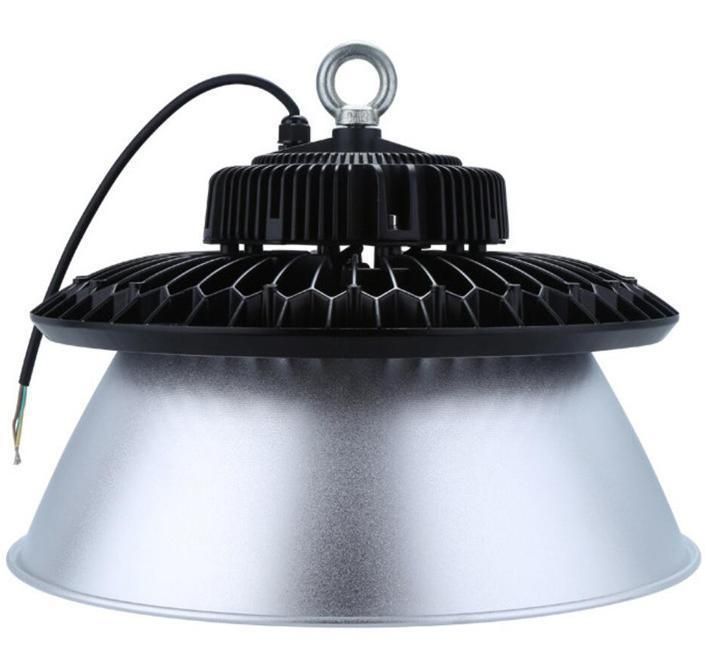

Led High bay light Features:

· Integrated USA Bridgelux LED system for optimum lifetime performance

· Ideal for Box Stores, Supermarkets, Factories, Warehouses.

· Special radiator design for better heat dissipation

· Reduced energy consumption and operating costs by up to 80%.

· Maintenance free operation - lasts up to 10 times longer than conventional lighting

· Solid state design and circuitry

· Great for shock and high vibration environments

· 50-80% reduced energy usage. Save money on your utility bill

· No humming or flickering.

· Cool beam - Does not produce Ultra Violet (UV) light or IR, reduces air conditioning loads.

· Unique design with anodized silver housing for cooler operation and extended lamp life.

· Environmentally friendly fully recyclable, no mercury or other hazardous materials.


High Bay LED Light Applications:

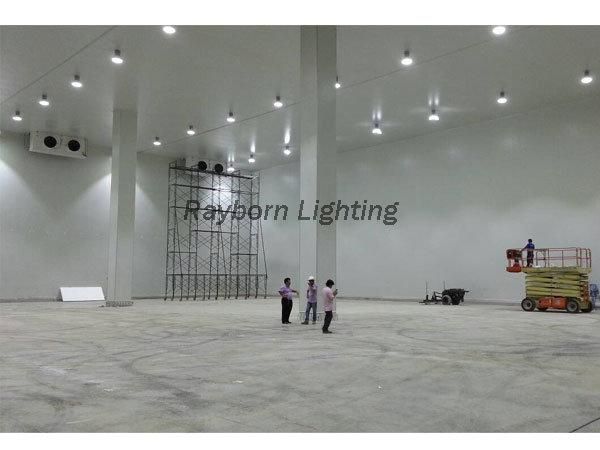

LED High Bay Lights widely used for Indoor and outdoor places:
Factories, workshops, warehouse, toll stations, gas stations, stadiums, big supermarket, exhibition, commercial building, stadium hall, parking building etc.
