• Model NO.：2D 3D LED Panel Light
• Base Material：Metal
• Certification：CE, RoHS, ISO9001, VDE
• Voltage：85V-265V
• Beam Angle：120
• Ra：>80
• Lumen：>90lm,W
• PF：>0.5;>0.9
• Urg：<19
• Transport Package：Carton Color Box
• Specification：60*60*5cm
• Trademark：OEM
• Origin：China
• HS Code：9405409000
• Production Capacity：50000PCS,Month

Basic Info.

Model NO. 2D 3D LED Panel Light Base Material Metal Certification CE, RoHS, ISO9001, VDE Voltage 85V-265V Beam Angle 120 Ra >80 Lumen >90lm/W PF >0.5;>0.9 Urg <19 Transport Package Carton Color Box Specification 60*60*5cm Trademark OEM Origin China HS Code 9405409000 Production Capacity 50000PCS/Month

Product Description

Sky 2D 3D 600*600mm 600*1200mm 40W 60W Ultra Slim LED Panel Lamp With Customer Design Picture





Our Product:
Specification of LED Panel


1.Size:2x2ft (600x600mm)
2.Emergency Power:36W 48W
3.CRI: ≥80
4.PF:0.9 / 0.5
5.Input Voltage:AC100-285V
6.Lumens:90-100LM/W
7.Driver:Lifud
8.Dimmable:Available
9.Life span:50,000hrs
10.Certificates:CE ROHS EMC


Model No.	DS-PL6060-36W	DS-PL6060-40W	DS-6060-48W
Power Consumption	36W	40W	48W
Input Voltage	AC180-285V	AC180-285V	AC180-285V
Working Frequency	50/60HZ	50/60HZ	50/60HZ
Size	600*600*10MM	600*600*10MM	600*600*10MM
LED Type	SMD2835	SMD2835	SMD2835
LED QTY	192PCS	216PCS	240PCS
IP Grade	IP54	IP54	IP54
Luminous	3500LM	3800LM	4300MM
CRI	>80	>80	>80
Brand of Driver	Lifud	Lifud	Lifud
Power Factor	>0.9	>0.9	>0.9
Certification of Driver	CE TUV SAA	CE TUV SAA	CE TUV SAA
working Temperature	-20~+60°C	-20~+60°C	-20~+60°C
Warranty	3 Years	3 Years	3 Years

*** Aluminium frame with good heat conduction.
***Warranty: 3 years
***it has the feature of uniform and smooth light beam, low glare rating, low light pollution, and excel lent protection from eyestrain.
***Green and environmentally-friendly. Healthy beam, without ultraviolet radiation &infrared, no radicalization
***No twinkling: rapid start, steady work, no noise, no twinkling can effectively protect the eyes
***Energy saving: low power consumption, low heat, high level of brightness, uniform light-emitting, energy-saving about 50%
***the range of color temperature:2700K-6500K
***Color rendering index(CRI)is optional , for example we can make Ra>70
***Designed with constant current technology.
***The latest indoor illumination product with comprehensive application
***Easy to install and low cost of maintenance
*** High lumen, low degradation, low heat

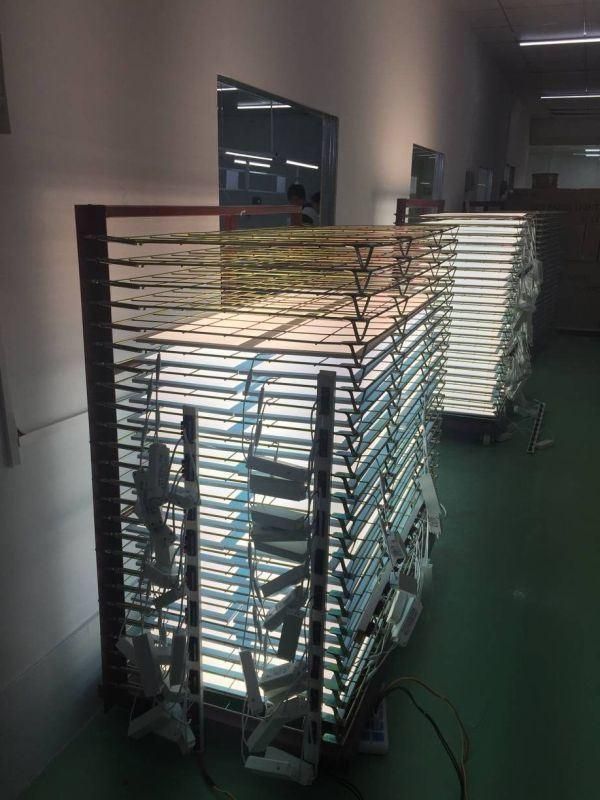

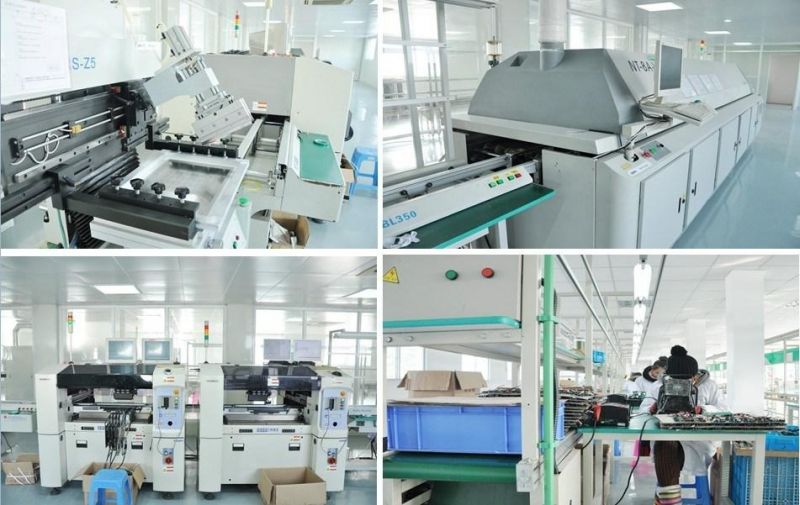

Our factory

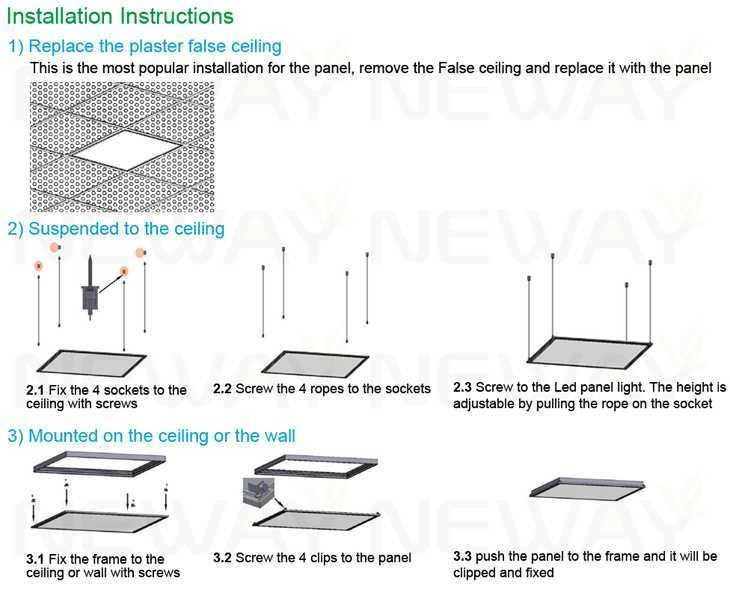

Installation information of LED Panel Light :

1.Please note the power wiring of positive and negative when installation power wiring (positive with word)
2.Connect into the panel lamp terminals power wire needs to tighten with the screw
3.To avoid danger, pls cut off power supply before connecting wiring.
4.Lock the screw, pls not use


Embedded installation of led panel light

1.Taken the ceiling and LED panel light turn 45 degrees, and put it above the ceiling , pls do not force squeezing or through the ceiling
2.please placed panel lamp handled with care, ensure the products shine with the best effect
3.Choose embedded installation LED panel lamp, first consideration that wether the panel light and the size of the ceiling corresponds


Suspension installation of led panel light

1.Pls put a soft mat on the floor before Installing corner fixing parts , lest scratches or damaged panel
2.please placed panel lamp handled with care, ensure the products shine with the best effect
3.Lock the screw, pls not use greatly forcibly, lest crush the panel lamp

1.The first open four φ5mm holes on the ceiling
2.Make the glue plug put into open good holes
3.Screw through fixed cap, locked in plug hole

Suitable Scene

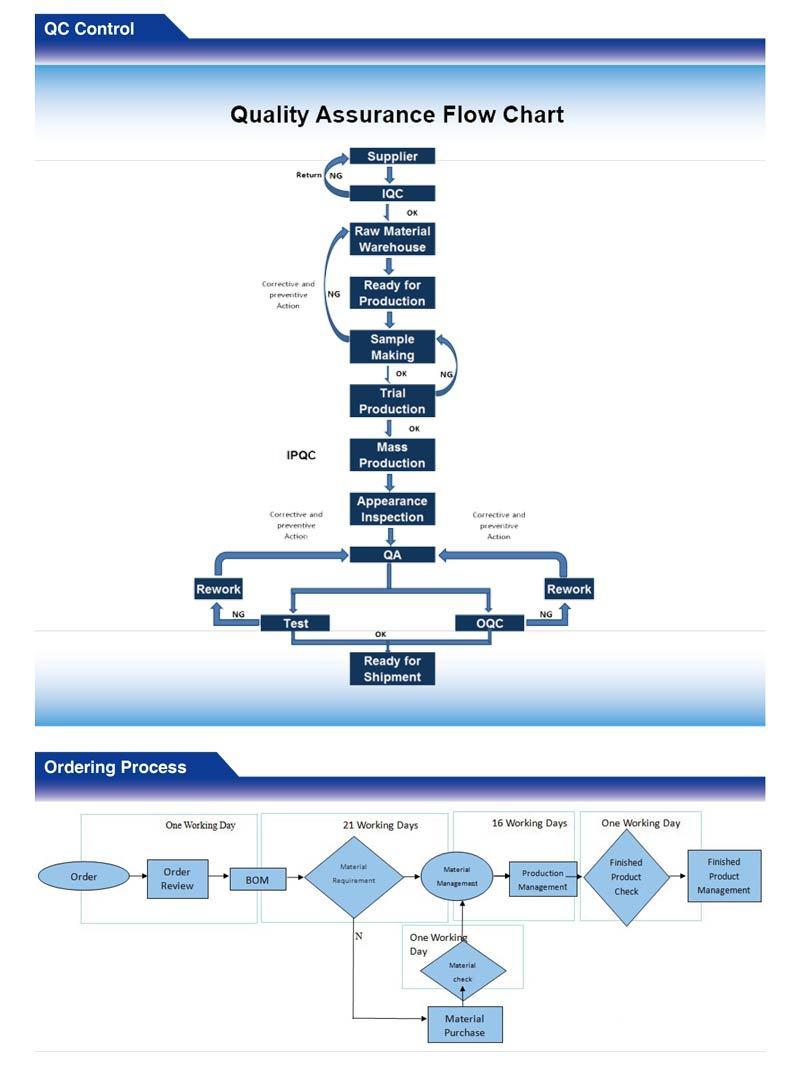

Quality Control




FAQ
Q1.Are you manufacturer or Trade Company?
We are a professional manufacturer of led light,led tube,led panel and energy saving lamps.
Q2. What terms of payment you use?
TT,LC at sight and Western union
Q3.How do you offer samples?
We offer free samples in certain quantity and delivery within 5-7 working days.
Q4. What's the order process?
a. Inquiry---provide us all clear requirements.
b. Quotation---official quotation form with all clear specifications.
c. Printing file--- PDF, Ai, CDR, PSD, the picture resolution must be at least 300 dpi.
d. Sample confirmation---digital sample, blank sample without printing or hardcopy.
e. Payment terms--- TT 30% in advanced, balanced before shipment.
f. Production---mass production
g. Shipping--- by sea, air or courier. Detailed picture of package will be provided.
Q5.What is your delivery time?
Sample order: 5-7 working days
Mass order:  25-30 working days after 30% deposit received.
Q6.What is your MOQ?
For this model, usually our MOQ is 5000pcs, but we also accept sample order for trial.
Q7.Can your factory make the lights based on customers' design?
Yes, OEM and ODM service are available, we have professional designing team.
