• Model NO.：DG06F LINEAR LIGHT
• Lamp Holder/Base：G13
• LED Type：SMD 2835
• Shell Type：Striped
• Lifespan：≥50000H
• Warranty：3 Years
• Certification：CE, RoHS, UL, ETL, FCC, CETL
• Input Voltage：85-265V
• LED Chips：SMD
• PF：>0.9
• Thd：<15%
• CRI：>80
• Size：30cm,45cm,60cm,90cm,120cm,150cm
• Transport Package：20PCS,Carton Individule Package in White Box
• Specification：ETL, CETL, RoHS,
• Trademark：wonka
• Origin：Shenzhen Guangdong
• HS Code：9405409000
• Production Capacity：2000PCS Per Day

DescriptionLinear lightDimension:1ft 1.5ft 2ft 3ft 4ft 5ft Power:10W 15W 20W 30W 35W 45W 50WHousing Material:Aluminium+PCLED Type:SMD2835Dimming:0~10V dimming, Triac dimming, Dali dimming, Bluetooth brightness & CCT dimmingColor Temperature:2700K-6500KVoltage:120-277V Beam Angle:120°PF:>0.9Luminous Flux:950-5000lmOperation Temp:-30Cel~+45CelCRI:>80Certifications:CE, FCC, DLC, ETL/CETLEfficacy:110lm/WMOQ:20pcs

Production Features
• Free combination in shapes, also available alphabet shape from A to Z
• One power cord supported free combination group in 250W ~ 500W
• No obvious gaps and darkness areas between the direct connection points
• Integrated luminaire, ceiling mount and wall mount available, no need extral fixture
• Extra way for dimming supported: 0-10V, Triac, Dali, Bluetooth dimmable & CCT controllable
• High efficacy up to 110LM/W, super bright up to 5000lm
• Output lumen is twice as much as that of a general led T8 tube

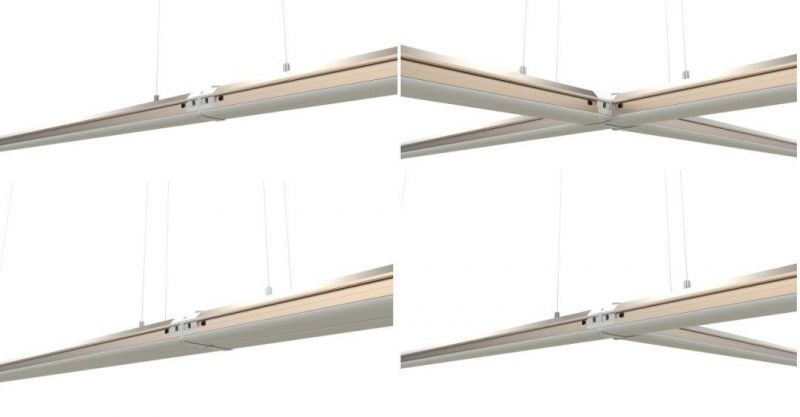

Free Combination

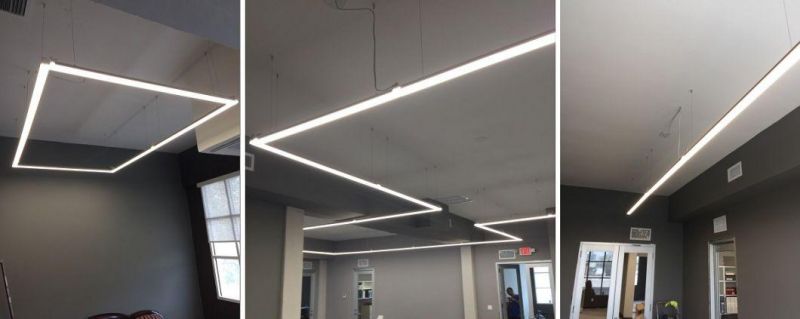

Real ApplicationsWelcome asking for spec and inquiry, any good idea and advice, pls just enlighten me.
Looking forward for our new cooperations.
