High Efficacy 150lm/W Backlit LED Panel Light Aluminum Housing 3 Years Warranty
Shenzhen Lumin Lighting Co., Ltd.- Light Source：LED
- Housing Material：Aluminium
- Emitting Color：Cool White
- Dimmable：With Dimmable
- Appearance：Square
- Type：Flat-Type
Base Info
- Model NO.：LM-BP-66-28
- Base Material：Metal
- Certification：CE, RoHS
- Voltage：200-240V
- Beam Angle：120°
- Long Life Span：50000 Hours
- Housing：Aluminum Alloy
- Driver：Flicker Free
- PF：0.9
- Size：595*595mm
- Ra：80
- Efficacy：150lm,W
- Transport Package：10PCS,CTN
- Specification：595*595mm
- Trademark：lumin lighting
- Origin：China
- HS Code：9405100000
- Production Capacity：20000PCS, Month
Description
Description

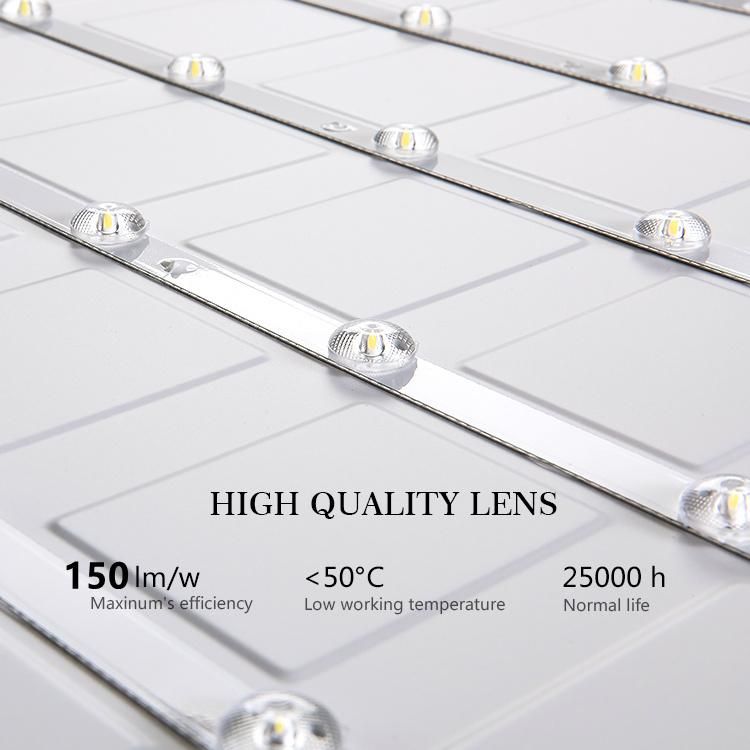

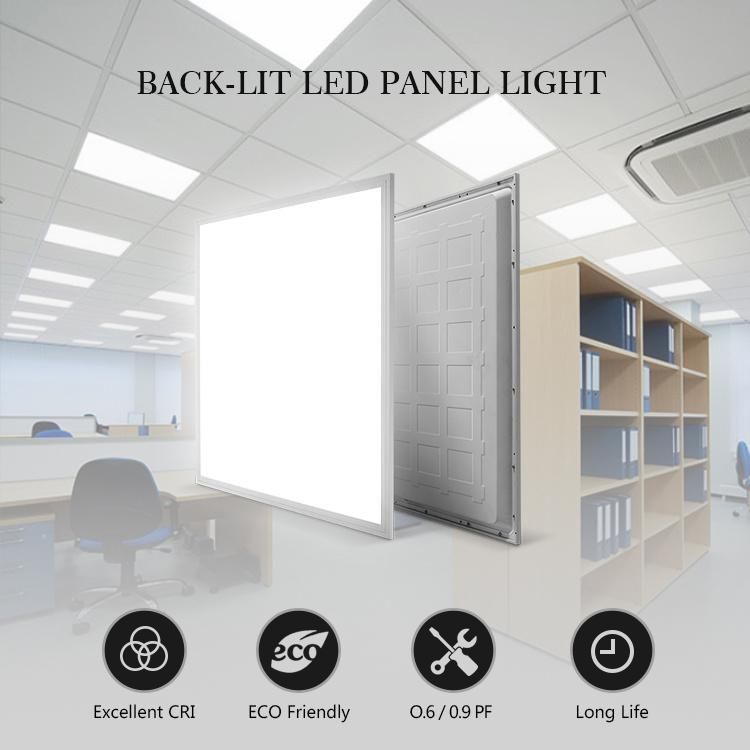

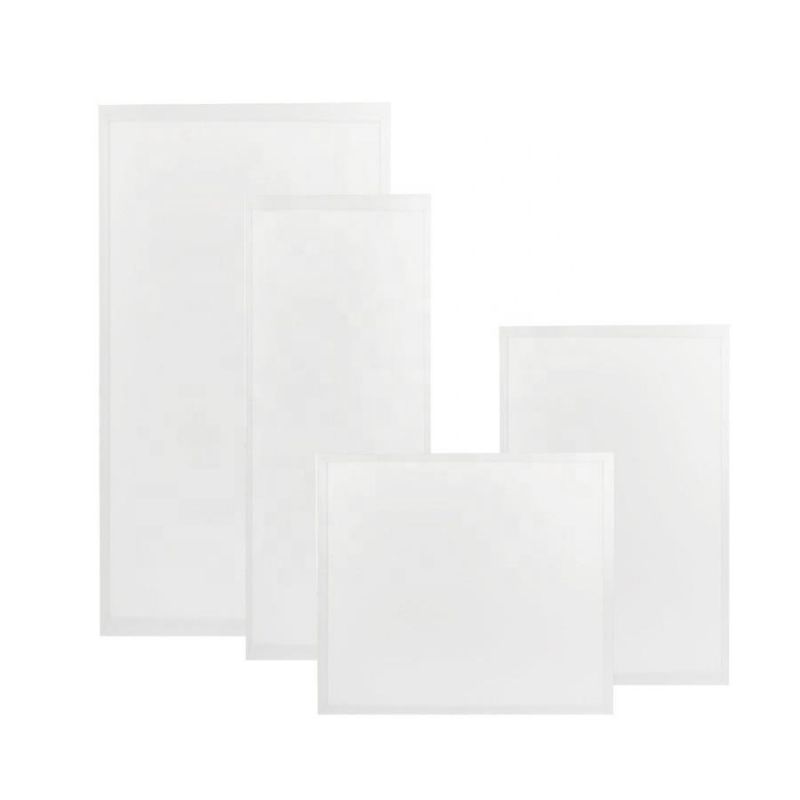

Backlit Panel light, one of the latest product made by Shenzhen Lumin Lighting Co.,Ltd, is a product with thick design,
elegant appearance, comfortable light, plastic housing and metal backplate. We call it Backlit LED Panel.
It is very popular in the European market now.
Features
(1) Backlit design, elegant appearance and comfortable light
(2) Plastic housing and metal backplate
(3) High efficiency and super energy saving, saving 70% than fluorescent tube
(4) Long lifespan,low optical decay, more than 50,000h lifespan
(5) Flicker free driver
Application
Offices, workshops, shopping malls, schools, libraries, hospitals, hotels, retail outlets, living rooms, airports, entertainment
spaces, etc.
Replacement
Replace Fluorescent tube and grille lamp with fluorescent tubes, saving 70% energy.
ParameterLM-BP-66-28 | |
Input Power | 28W |
Luminous Flux | 4200LM |
Input Voltage | AC 220-240V |
CRI | >80 |

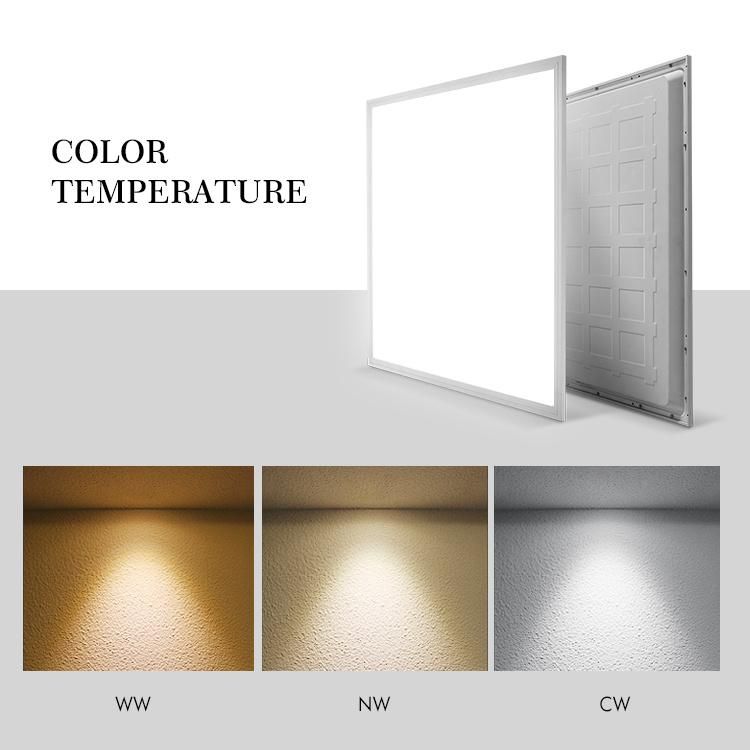

CCT | 3000K(WW), 4000K(NW), 5000K(DW), 6000K(CW) |
Dimming | 0-10V / Triac / DALI |
Mounting | Embedded, Surface Mounted, Suspended |
Life Time | Designed to 50,000 hours |
Warranty | 3 years limited |
IP Rating | IP20 |
Size | 595x595mm |
Weight | 2KG |
