New Design Frameless Ceiling LED Panel Light with Ce Certificate & RoHS Approvals
Shenzhen Lumin Lighting Co., Ltd.- Light Source：LED
- Housing Material：Acrylic
- Emitting Color：White
- Dimmable：Without Dimmable
- Appearance：Square
- Type：Hanging
Base Info
- Model NO.：LM-WP-66-36
- Base Material：Metal
- Certification：CE, RoHS, UL, ISO9001, SAA, CUL
- Voltage：85V-265V
- Beam Angle：120°
- Lumen：4000lm
- PF：>0.95
- Opertating Temperature：-20~+40 Deg
- Storage Temperature：-40~+85 Deg
- CRI：>80
- Transport Package：Carton
- Specification：595*595*18mm
- Trademark：Lumin
- Origin：Shenzhen
- HS Code：9405409000
- Production Capacity：10000PCS,Month
Description
1195*295*18mm5000K PMMA LM-PW1203B-37W-XXK 6000K PS
-------------------------------------------------------------------------------------------------------
---------------
1. Innovative frameless design,elegant appearance light,Can be joined together without limited,Perfect visual effect-no extra frame on the ceiling once installed comparing to framed LED Panel.
2. Optical PMMA LGP,optical PC fire resistant diffuser.
3. Energy saving up to 80%
4. High brightness: > 100LM /W
5. Nice lighting distribution: > 90 %
6. High color rendering index: Ra> 80/90/95
7.Stable LEDs light source design solution: use the best 4014 LEDs ---- high CRI, high brightness, and low light decay.
8. Excellent circuit design, each group of LEDs work separately, avoiding any problem of lighting output caused or influenced by single faulty LED.
9. New high efficiency constant current driver: wide range of input voltage : AC85-265V.
10.All size can be customized
11. All light color are available
12.Dimmable solutions: 0-10V, Traic, Dali
13.More IP Rating: IP40
14. Instant starting time: < 1.2 s, and no noise as it starts.
15.With special crafts, luminous is 3% higher than other same products from the market
16.Famous LED source and driver chosen for the LED Panel
17. Environment friendly : No mecury, no harmness to human healthy and the earth.

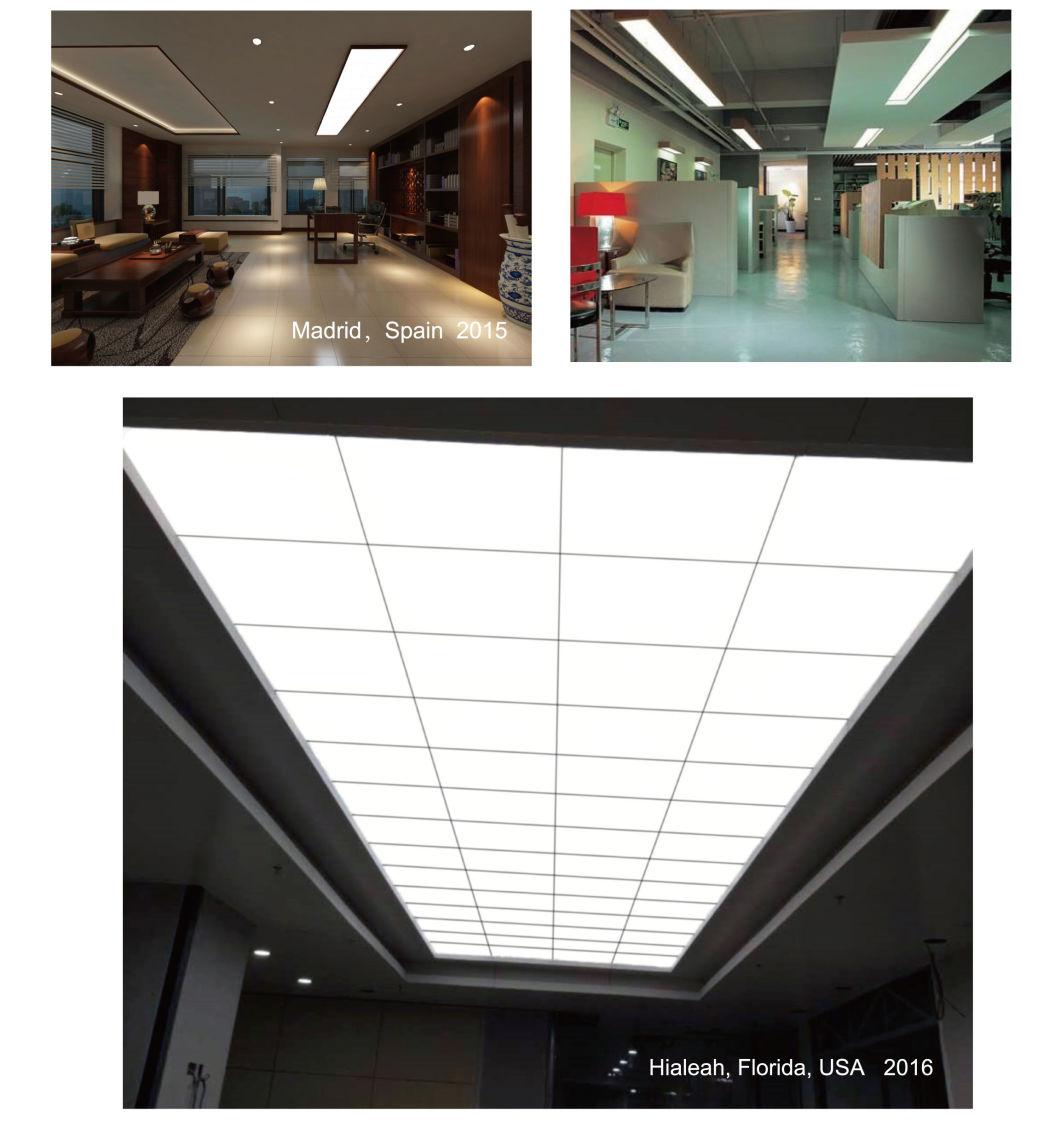

Application
-------------------------------------------------------------------------------------------------------
---------------
Widely used for home lighting, office lighting, supermarket lighting and other place

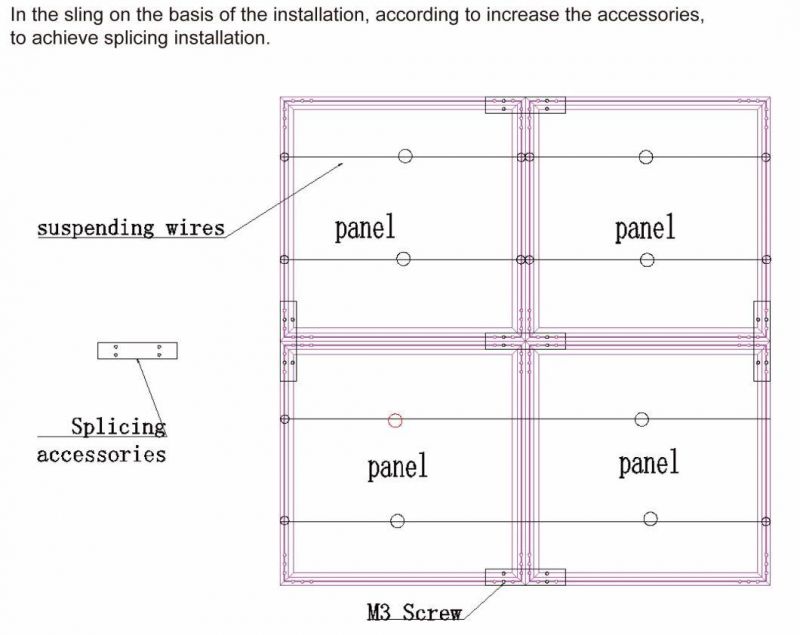

Installation
-------------------------------------------------------------------------------------------------------
---------------
Certificate
Trade Terms
-------------------------------------------------------------------------------------------------------
---------------
1. Samples will be delivered in 3-5days.
2. Payment terms: 100% T/T or Western Union for small order; 30% deposit and 70% T/T for large order.
3. Delivery time: 5-7 days for small orders; 15-20 days for big orders.
4. Shipping port: Shenzhen
Company Profile
-------------------------------------------------------------------------------------------------------
---------------
Based in Shenzhen, Lumin Lighting is a fast-growing semiconductor lighting manufacturer and supplier in China. Lumin Lighting was founed on November 17, 2008. Since its founding, Lumin Lighting is committed to developing, manufacturing, and popularizing LED lighting products, responding to the government's policy of energy-saving, emission reduction, and maintainable development. Nowadays, Lumin Lighting has already been successful in providing quality LED lighting products and green lighting solutions to thousands of families, institutions, and communities worldwide.
Lumin Lighting focus on innovating high-end and high-quality office and commercial lighting business. So our key product lines mainly include LED panel light, LED pendant light, and LED downlight. Meantime, Lumin Lighting also provides professional customized lighting solutions to customers.
Lumin Lighting takes product quality as our lifeline.
We focus on quality control during the whole production process by seriously carrying out ISO 9001 Quality System and ISO Environment Management System.
At the same time, we emphasize training of skills and capabilities of our workers and staff to improve production performance.
Our products have already been awarded with certificates of TUV CE, RoHS, SAA,CB, UL, and DLC. With good quaity control, our products are well received by customers throughout the world.
Exhibiton
-------------------------------------------------------------------------------------------------------
---------------
