China Fiber Optic Blue Sky Ceiling Lighting Panel Light 600X600

Shenzhen Lumin Lighting Co., Ltd.
  • Light Source：LED
  • Housing Material：Aluminum Alloy
  • Emitting Color：3000K 4000K 5000K 6000K
  • Dimmable：Without Dimmable
  • Appearance：Square
  • Type：Suspend Embeded Recessed,Mounted

Base Info

  • Model NO.：P66-36-Sky
  • Base Material：Metal
  • Certification：CE, RoHS, UL, ISO9001, SAA
  • Voltage：200-240V
  • Beam Angle：120 Degree
  • Service Life：50.000 Hrs
  • Protection Class：IP40
  • Power Factor：0.9
  • Color Rendering Index(CRI)：Ra>85
  • Net Weight：3 Kg,Piece
  • Warranty：5 Years
  • Transport Package：Carton
  • Specification：595*595*9mm
  • Trademark：Lumin
  • Origin：Shenzhen, China
  • HS Code：9405409000
  • Production Capacity：50, 000PCS Per Month

Description

P66C-36WH-xxK-SkyOpticalLight source192 pieces of SMD LED 4014Luminous fluxCool white2000 LMNatural white1800 LMWarm white1600 LMColor temperatureCool white6000-6500 KNatural white4500-5000 KWarm white2700-3000 KColor render indexRa ≥ 90Beam angle>120°Optical decay rateless than 1.8% in 3000 hoursService life≥50000 HrsElectricInput voltage220~240 VacFrequency50 ~60 HzOutput voltage30-42 VdcPower consumption40WPower factor≥0.9Anti-elec shock rateClass IIStarting time≤1.2 S (@ 110Vac)Withstand voltage3000 Vac/1 minStructureMaterialsAluminum, PS LGP, PS diffuserTemperature rising<20 Celsius degreeDimension595x595 x 9MMNet weight3KGProtection classIP 40OthersWorking temp/humidity-30~+50, 10% ~80% R.H.Storage temp/humidity-40~70, 0% ~100% R.H.CertificationCE RoHS
China Fiber Optic Blue Sky Ceiling Lighting Panel Light 600X600China Fiber Optic Blue Sky Ceiling Lighting Panel Light 600X600
China Fiber Optic Blue Sky Ceiling Lighting Panel Light 600X600

China Fiber Optic Blue Sky Ceiling Lighting Panel Light 600X600
China Fiber Optic Blue Sky Ceiling Lighting Panel Light 600X600

Features:

1. HD image printing
2. High CRI: Ra>90
3. Replacement: 600x600 mm CFL tube fixture
4. Long Lifespan: Over 50, 000 hours.
5. Easy to Install: Male-female driver connector
6. Ultra-thin Design: Only 9mm
7. Luxary surface treatment: Baked white frame
8. Light Weight: Only 3.5kg / pieces, save your international freight cost by 30%


Why Lumin LED panel?
1. Rich Experiences: 5 years' research and development in LED panel;
2. Real Strengths: Top 5 LED panel manufacturer in China
3. Key components: Light guide plate is from Japan, epistar chip from Taiwan, LED driver from USA
4. Better Quality control: ISO9000 quality system and IBM internal quality system are carried out in the factory.
5. Better Services: Mothly and annual follow-up for your order + 3 year limited warranty
6. Better Solutions: Suitable LED panel lighting solutions can be offered free of charge, save your cost and expenditure.
7. First-class Equipments: Dust-free workshop, and top optical lab for LED panel light test.
8. OEM & ODM services: Your logo on the product and packing as well as customized design can be acceptable.

Applications

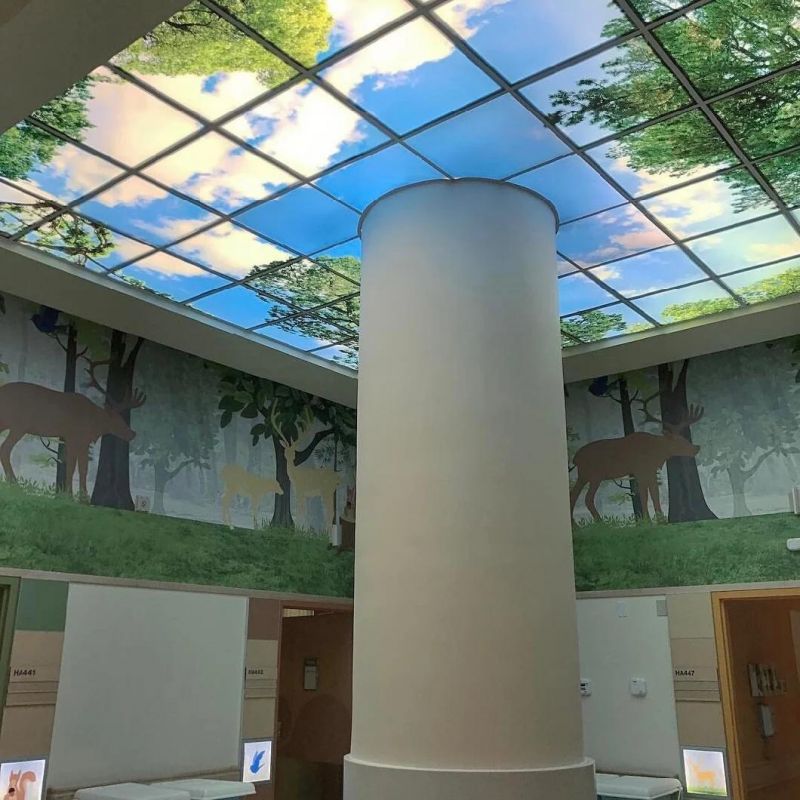

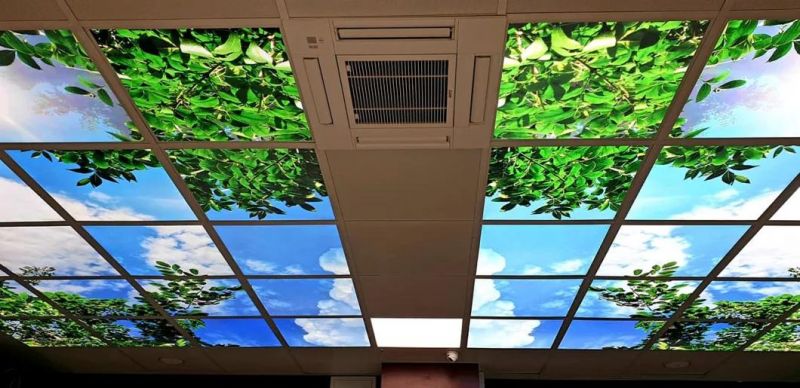

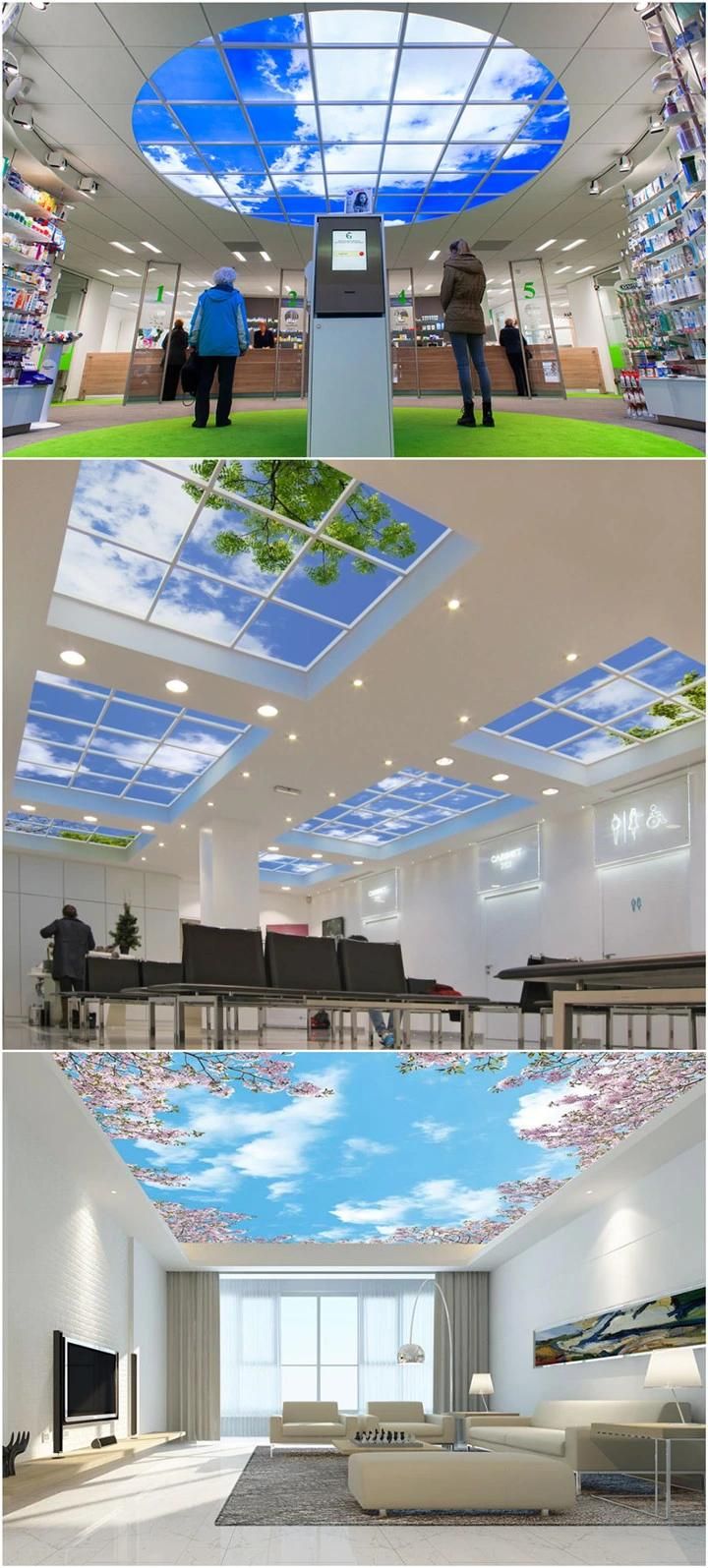

The LED panel is suitable for office building, hospical, hotel, department store, home, etc.
Lumin LED panel can be suspended, embeded, recessed, and surface mounted
