• Model NO.：RB-CPX100W-C
• Certification：CE, EMC, LVD, RoHS
• LED Chips：Epistar
• Input Voltage：AC 100~277V
• Freqency Range：50Hz~60Hz
• Power Factor：>0.98
• Power Efficiency：>93%
• Thd：<15%
• Luminous Efficiency：140-150lm,W
• Color Rendering Index：Ra>75
• Housing Color：Black
• Material：Aluminum ADC12+PC

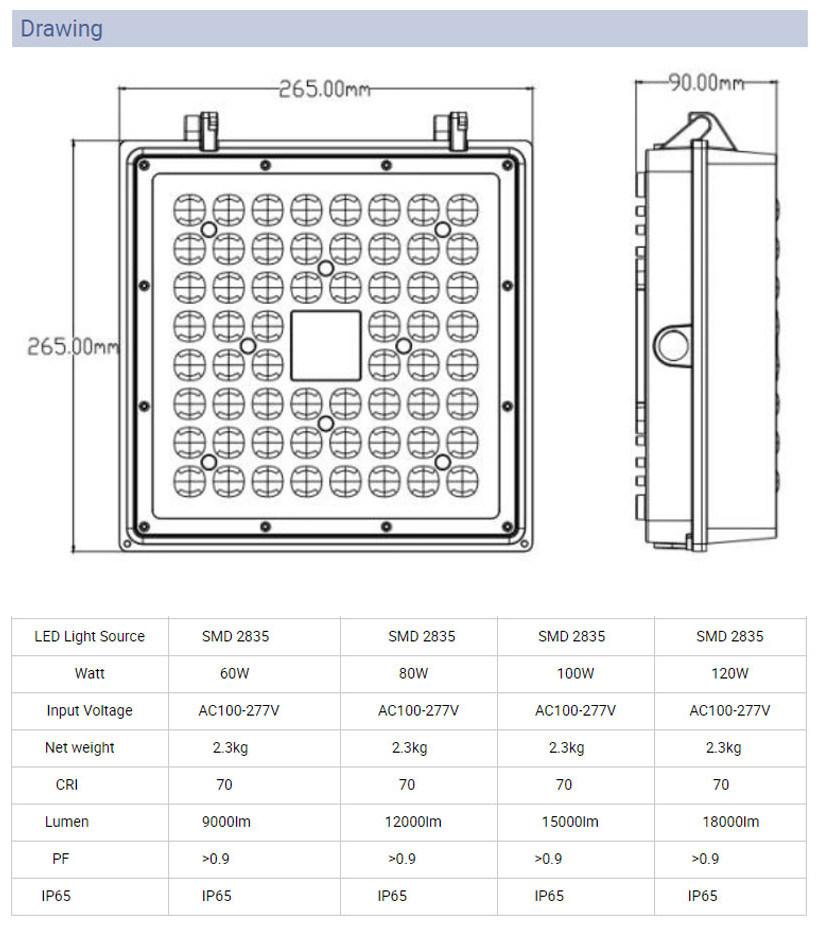

• Product Size：L265xw265xh90mm
• Intallation Area：Indoor,Outdoor
• Net Weight：3.05kg
• Size of Box：L335*W300*H155
• Transport Package：57X42X39cm
• Specification：International Standard
• Trademark：Rayborn
• Origin：China (Mainland)
• HS Code：9405409000
• Production Capacity：5000 PCS,Month

100W LED Canopy Light Main Technical ParametersItem No.:RB-CPX100W-CInput Voltage:AC 100~277VFreqency Range:50Hz~60HzLed Chip:Taiwan EpistarPower Factor:>0.98Power Efficiency:>93%THD:<15%LED Power:100WLED Working Voltage:DC 60-65VLuminous Efficiency:140-150lm/WSystem Consumption:97WLED Luminous FluxWarm White13800LMPure White14600LMCool White15000LMViewing Angle:150 degreeIlluminance Uniformity:>0.6Color TemperatureWarm White3000-3500KPure White4000-4500KCool White5000-5500KColor Rendering IndexRa>75Light Distribution:LED points visibleLight Design:LED The secondary light distribution lensLED Junction Temperature:≤115ºCWorking Temperature:-35ºC~50ºCIP Grade:IP65Working Life-span:50000 HPower Line:1.0 mm² three lineConnect WireBrownLBlueNYellow / GreenGCertificateCE/ROHSHousing Color:BlackMaterial:Aluminum ADC12+PCIntallation AreaIndoor/OutdoorNet Weigh:3.05KGSize of box:L335*W300*H155Product size L265xW265xH90mm


Advantages of LED Canopy Light :

1. HIGH BRIGHTNESS :Providing a DAY LIGHT (5000K) color of light at 12000 lumens of output, delivers bright, high-quality illumination, increases safety and security.

2. EASY INSTALLATION: Two types of installation method.Supports pendant mounting or direct surface mounting. Decreasing the energy consumption, maintenance and your electric bill by replacing 250W to 350W metal halide with our 80W LED canopy light fixture.

3. ENERGY SAVING: Replacing 300w to 600w metal halide.150LM/W, Cut down your electricity bill by up to 75% by replacing 300W with 80W! Wide Voltage Input:100-277Vac.Compatible for USA 120Vac voltage.

4. WIDE RANGE OF USES: Ideal for indoor or half outdoor lighting, like indoor parking, gas stations, Stairwells, Passageway's, Toll booth's, waiting rooms, etc.

5. CERTIFICATES: ETL cETL Listed and 5 year warranty. A good Security led lighting.

Features of LED Canopy Light :

1. Energy-saving and environmental, no ultra-violet, mercury and infrared, conform to ETL DLC CE ROHS requires

2. Isolated high qaulity current driver, over current protection, over voltage protection and output short circuit protection; High safety, stability and reliability;

3. Adopt import top brand light source and advanced heat dissipation technology, product malfunction life span achieve to 50000 hrs.

4.Can be frequent starting, no flickering and glaring; high CRI; shock-resistant;

5. Simple & elegant appearance, Super easy to install ,Patent newly & attractive design, suit for Gas station and parking lot area IP65 waterproof .



Strict Tests of industrial SMD Waterproof IP65 Canopy LED Lights :

Before shipping, all our LED Canopy lights will be over 12 hours aging tested, inspection department will test 100% products including light up test , power wattage test , high-Voltage test , waterproof test , ground connection test and so on, defective rate is controlled less than 0.1%. Quality is ensured, you can be assured.

Packaging of LED Canopy Light :

1. Label on backside of each Canopy LED lights and your required label is available.
2. One piece LED Canopy Light per carton.
3. This is our regular packing of the LED Canopy lamps, if you need, we can also custom color packing and put your logo on it.



Shipping of Canopy LED lights : By sea, air, express (DHL, FedEX, UPS, TNT etc.)

Big quantity advised to be shipped by sea.
Samples advised to be shipped by express.
Samll quantity advised to be shipped by air.




Rayborn Good Service:

1. Your inquirey related to our products or price will be replied within 24 hours.
2. All your inquireies will be well explained by our experienced staff.
3. OEM&ODM,also provide customized service.
4. Distributor ship is available for your unique design and some our current models.
5. We will keep secret for customer sale area,design ideas and all other private information.


  Company Information:

Rayborn Lighting Industry Co., Ltd is a professional LED manufacturer, focuing on industrial Led Light and commerical Led light research, development,production, sales and service,was in High-end operation and service provider in High power led.Under the conuntry "saving" policies,we are striving to create environmental protection,energy saving,long life lighting and earned a reputation of being a quality supplier of LED lighting.

We has a group of professional technical R & D team, who can provide the OEM / ODM services according to customers and LED lighting solutions,our factory has passed the authentications of ISO9001:2000,CE, FCC, ROSH ,TUV authentication.

With the direction of High power led light,industrial Led light and commerical Led light,company developed milti-stlye series of Led lighting,including Led Flood light,Led Tunnel Light,Led High Bay light,Led Ceiling light,Led Tube Light,Led Down Light,Led Strip,Led Bulb,Led spot light.

We warmly welcome domestic and overseas agents and wholesaler to join us,to light up a green planet,for a more environmental earth.



FAQ:

Q1: What is the warranty of your led Canopy lights?

A:  We offer three years guarantee for our LED Canopy lights,and we will offer you based on your requirements.


Q2: What color temperature we can choose?

A:  We offer LED Canopy lights in warm white, natural white,pure white and cool white and the range is as follow:(These are our conventional color ranges,we also can offer you other range that you need)

Warm white = 3000K-3500K
Natural white = 4000K-4500K
Pure white = 5000K-5500K
Cool white = 6000K-7000K


Q3: Do your led Canopy lamps can be used in our country?

A: Yes, Our LED Canopy lamps have wide input voltage AC85-265V, and it can be customized too.


Q4: How do you help me to save freight cost?

A: We will give you best solution based on your order quantity,and freight quotation can be sent within 1 hours.


Please don't feel hesitate to contact us if our products hit your requirements.Pls give me one enquiry,I will give you ten surprises.Believe me,I am sincere Charmaine.
