High Power 275nm LED Duv Module
TaoYuan Optoelectronics Shenzhen Co., Ltd.- Emitting Color:Purple
- Base Material:Ceramics
- Usage:Disinfection
- Life:10,000h
- IP Rating:Not Waterproof
- Certification:RoHS
Base Info
- Model NO.:TY-DUV
- Power Source:DC
- Electric Current Type:400-500mA
- Input Voltage:10-14V
- Irradiation Intensity:80-100MW
- Transport Package:Carton
- Trademark:UVTaoYuan
- Origin:China
- HS Code:9405990000
- Production Capacity:50, 000 PCS,Year
Description
ModelOptical power(MW) Wavelength Forward voltage Beam Angle IF=500mA VF[V] Minimum Maximum Minimum Maximum TY-UV275nm SMD 80 100 275-280nm 10.0 14.0 120-140

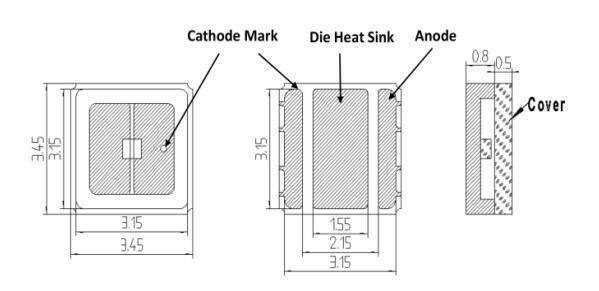

The LED on the Board (Unit : mm)

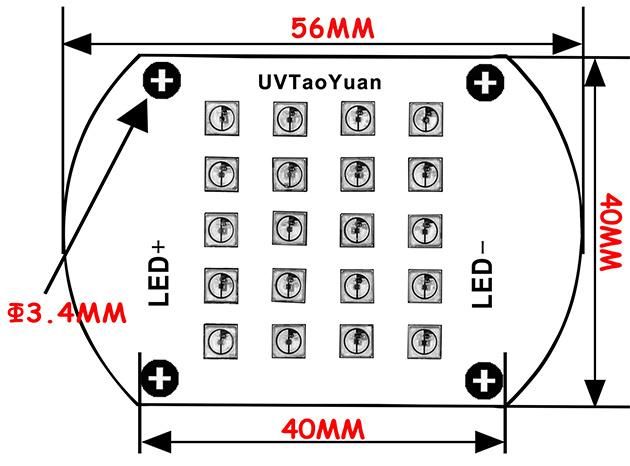

LED Board

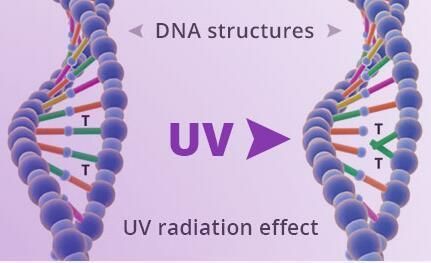

Principle of sterilization
The LED on the Board (Unit : mm)
LED Board
Principle of sterilization
