• Model NO.：OED-F16150-J22W
• Lamp Holder/Base：G5
• LED Type：SMD 2835
• Shell Type：Frosted
• Lifespan：≥50000H
• Warranty：3 Years
• Certification：CE, RoHS, CCC, EMC, LVD
• Input Voltage：85-265V
• LED Chips：Epistar

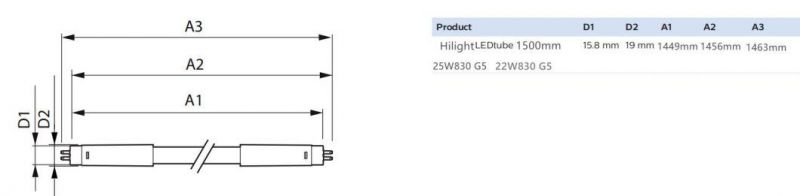

• Product Size：1500*16mm
• Product Type：T5- G5, PF.>0.9
• LED Power：22W
• Lumens：Lumens: 2200-2300lm
• Beam Angle：120degree
• LED Qty：128PCS
• Transport Package：Neutral
• Specification：CE, LVD, RoHS, EMC
• Trademark：OED
• Origin：China
• HS Code：94054090
• Production Capacity：30, 000,Month

LED TypeUltra-bright 2835SMDLumens110-120LM/W, 2400 - 2600LMCRI Ra>82Beam angle140°Power consumption22WattsDimensions1149 x 16mmMaterials1/2 Aluminum + 1/2 PC, frosted PCInput voltageAC85-265V / 50-60HzPower factor>0.95Base typeG5 - 2pinsPower modeone end power or two ends powerOperating temperature-40°C to 55°C
T6: 1500MM LED Tube with AC85-265V or AC100-277V
Viewing angle:120°
LED: SMD2835 x 128pcs
Power consumption: 22 Watts
Lumens: 2400-2600LM
Power Factor. > 0.95
CRI. >82Ra
Driver efficiency >85%
Lifespan: 50,000 hours
Warranty: 3 years
Energy saving up to 70% than normal fluorescent lamp
Special circuit design: each LED works separately, it doesn't affect other LED's work even if one fails.
Special structure design with excellent heat dissipation, 140 viewing angle.




A,Application:
Apply for reference room, classroom, shopping mall, factory, other indoor lighting.

B,Product features

1. Environment, no ultra violet, infra red and mercury free, comply CE standard;
2. Aluminium housing + PC cover, resist high impact, soft lighting, no glare;
3. High transparent ratio, uniform light beam, no black space;
4. Special encapsulating ledchip and thermal dispatching design, low lumen decay, color temperature      consistent;
5. No blinking switch on, high color rendering index(CRI);
6. Elegancy appearance, fashionable, easy install and transportation.

C,Packing, transportation and storage condition
1. All products have label onto the tube and inner packing;
2. Packing standard: sealed, braided, labeled w/product description, and quantity;
3. Storage requirment: no wet, no dust, fragile, anti-corrosion liquid, avoid direct sunshine and frozen;
4. Storage period: 1year, must be re-inspected(electricity driver) after 1year.
5. Packing standard: Inner packing + outer box

D,Installation
1. Power off before installation. AC110V / 277V / 230V direct in put both side connection.
2. This product protection standard is IP20, indoor only, not for outdoor and cfl emergency lighting system.
3. Must be installed by licenced electrician, must follow the relative power supply instruction to install this lamp.
4. For the safety, don't remend the Led tube structure.
5. Design comply IEC standard, by standard G5 bin-pin.
6. Study the menu before install, strictly follow the menu instruction (ref. to attached photo).
