• Model NO.：LM-P240-18W
• Base Material：Metal
• Certification：CE, RoHS, ISO9001, SAA, C-Tick
• Voltage：100V-240VAC
• Beam Angle：120degree
• LGP：PMMA
• Warranty Year：5
• Lumen Effective：100lm,W
• Cut Hole Size：225mm
• LED Quantity：Epistar SMD285 99PCS
• Power：18W
• Transport Package：Carton(51.5*29.3*40.8cm)
• Specification：225*20mm
• Trademark：Lumin
• Origin：Shenzhen, China
• HS Code：9405100000
• Production Capacity：20, 000 Pieces,Month

Basic Info.

Model NO. LM-P240-18W Base Material Metal Certification CE, RoHS, ISO9001, SAA, C-Tick Voltage 100V-240VAC Beam Angle 120degree LGP PMMA Warranty Year 5 Lumen Effective 100lm/W Cut Hole Size 225mm LED Quantity Epistar SMD285 99PCS Power 18W Transport Package Carton(51.5*29.3*40.8cm) Specification 225*20mm Trademark Lumin Origin Shenzhen, China HS Code 9405100000 Production Capacity 20, 000 Pieces/Month

Product Description

5-Year SMD2835 18W Office Round LED Panel Light

Specification
1. P240-18W is certificated by ISO9001, SAA, C-Tick, CE, RoHS
2. The size is 240*20mm and its cutted hole size is 225*20mm
3. Light source is 0.5W, SMD2835
4. The quantity of LED source is 99pcs
5. CCT is from 2700K to 6500K
6. LGP adopts the material--PMMA
7. Diffuser adopts the material--PS
8. Net weight is 0.80kg
9. Beam angle is 120 degree
10. Luminous flux is from 1580lm to 1700lm according to the change of CCT
11. The minimum luminous efficacy is 90lm/W
12. CRI is 80Ra, but 90Ra or 95Ra is available
13. SDCM is under 7, but SDCM≤3 is optional
15. UGR is 22
16. Its warranty is 5 years
17. Its driver can be PHILIPS or LIFUD and the voltage from 0 to 10V is available
18. WIFI, DALI and TRIAC are applied into the LED
19. Emergency power system is optional
20. IP is 20
21. Cartons are applied into the packaging, and each carton contains 20pcs and the gross weight of each is 16.5kg and the size of each is 51.5cm*29.3cm*40.8cm

Features of LED Panel Light
(1)  100-277VAC(Limit:90-305V), 50~60Hz, PF>0.95, THD<13%
(2)  Environmental-friendly: no mercury, no harm to human healthy and the earth
(3)  For Long life, 0.5W 2835 standard current 150mA, and we only use 55mA, only the standard value of 36.7%
(4)  Using aluminum PCB, and 90% of the manufacturers with FPC
(5)  Additional process: emergency Power Solution, Microwave Motion Sensor
(6)  No need worry about replacement failed incandescent or CFL bulbs very often
(7)  Uniform light output

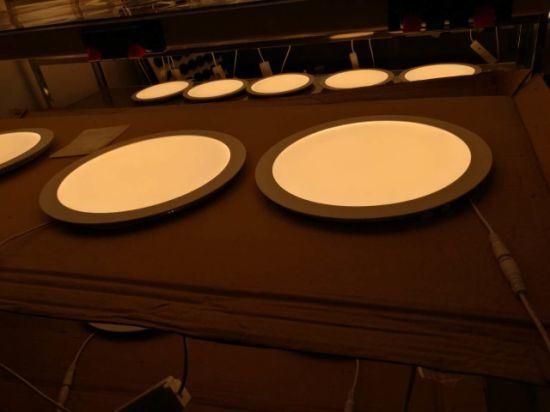

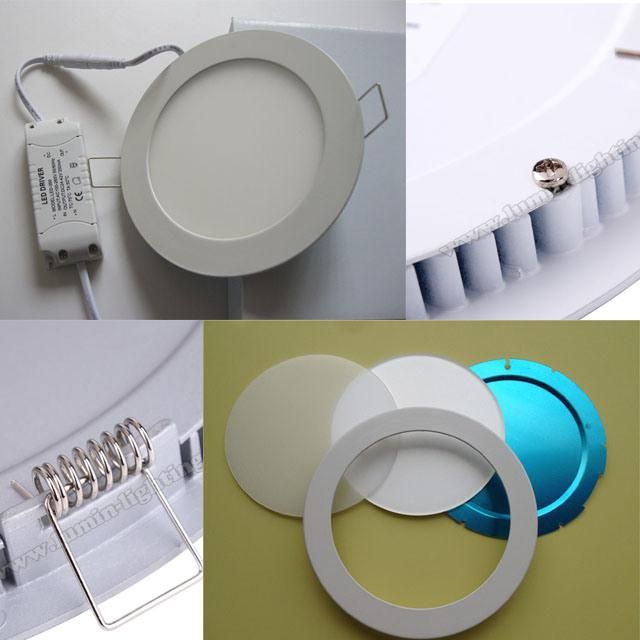

Pictures of the Product

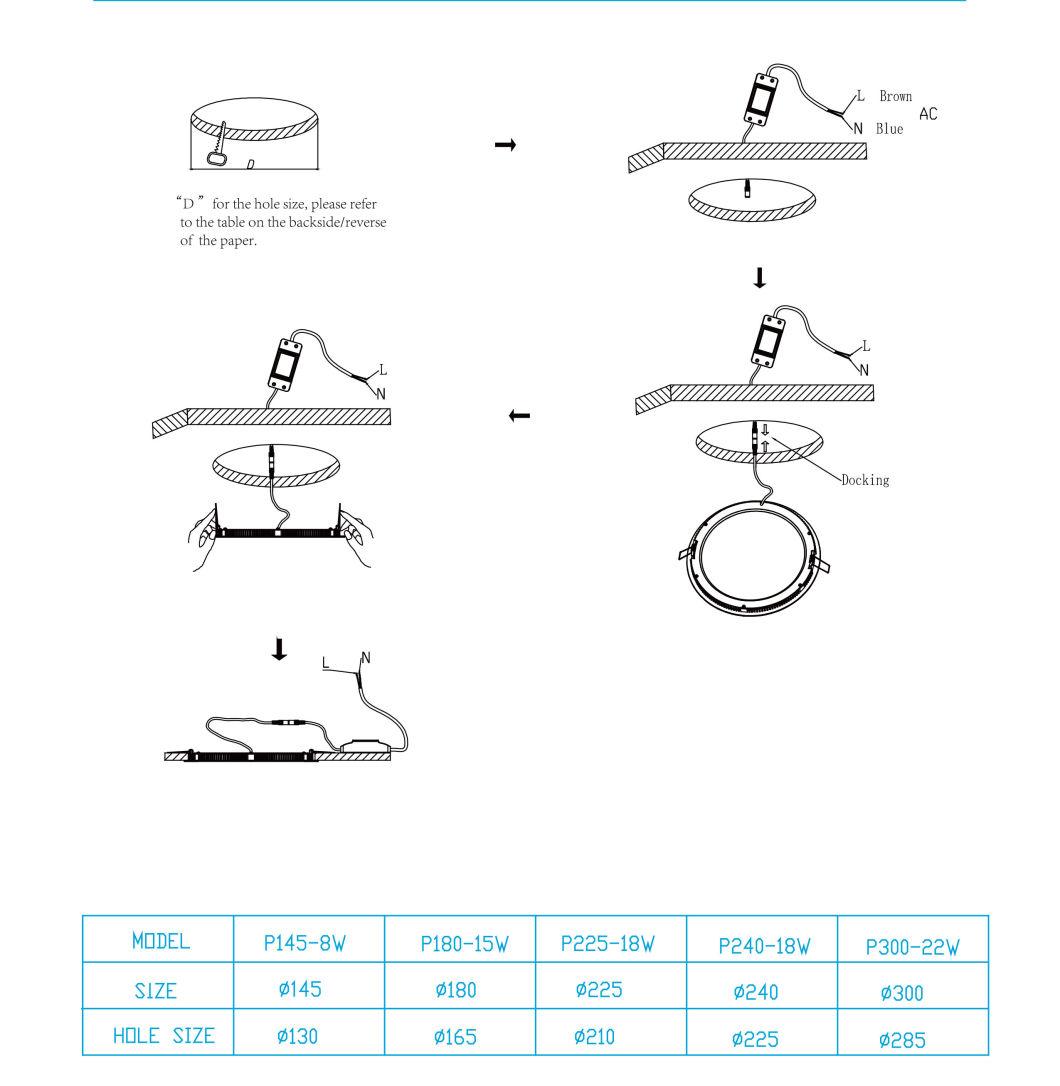

Installation

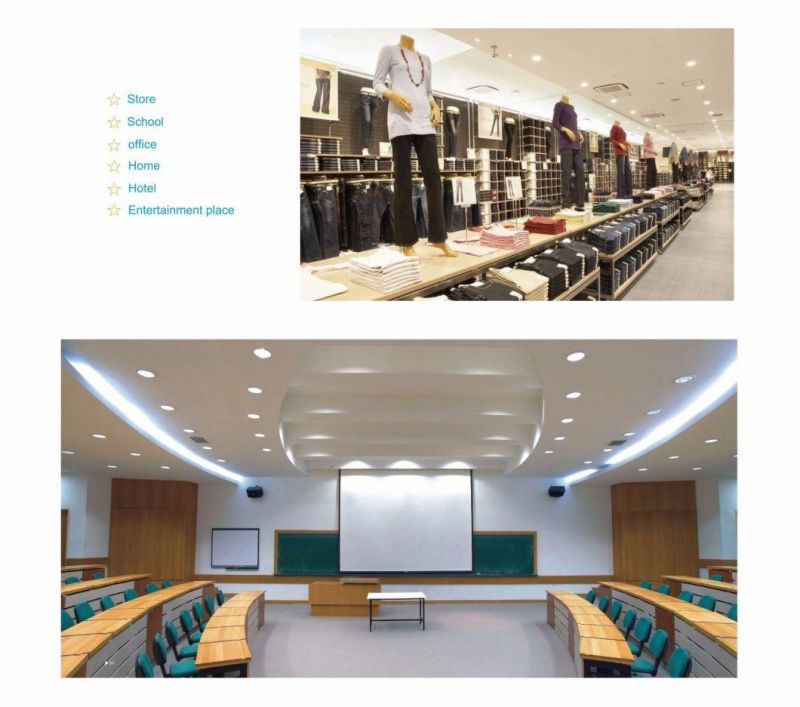

Application & Project
The LED panel light can be applied as follows:
1. Entertainment Place Lighting
2. Store Lighting
3. School Lighting
4. Home Lighting
5. Office Lighting

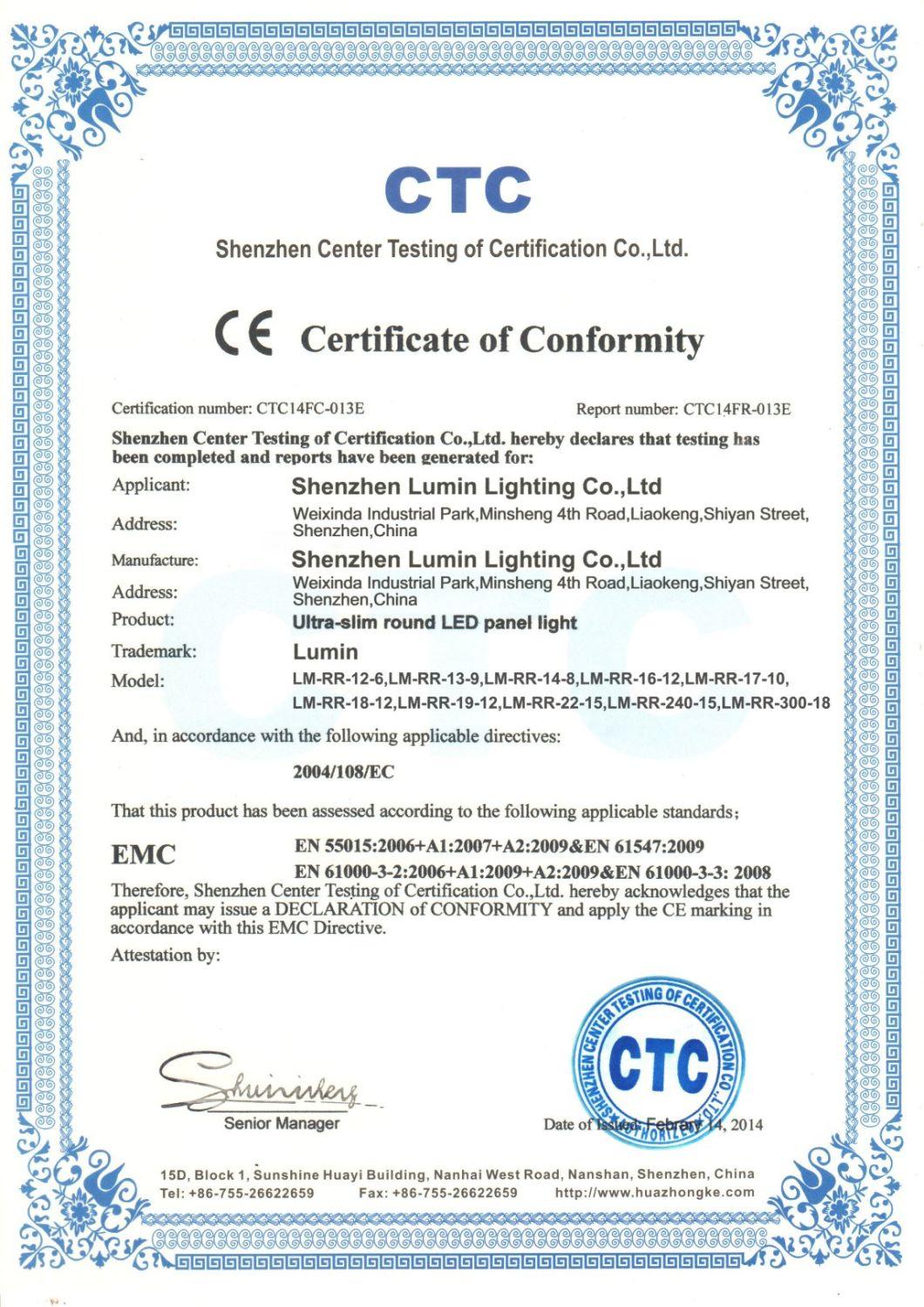

Certification

Benefits
1. Longer lifetime than traditional light.
2. Minimum maintenance costs.
3. Quick and easy installation to minimize retrofit costs.
4. Using aluminum alloy shell and having good heat dissipation ability and optical ability and optical effects.

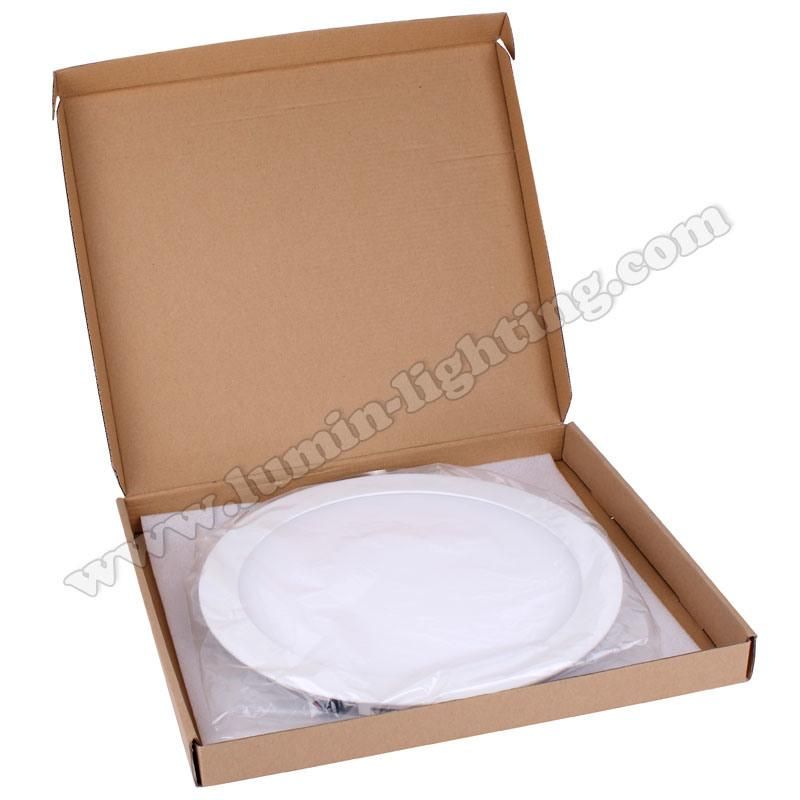

Packaging&Shippping


About LUMIN


Based in Shenzhen, Lumin Lighting is a fast-growing semiconductor lighting manufacturer and suppliers in China. Lumin Lighting  was founded on November 17, 2008. Since its founding, Lumin Lighting is committed to developing, manufacturing, and popularizing LED lighting products, responding to the government policy of energy-saving, emission reduction, and maintainable development.


Lumin Lighting product lines mainly include LED Panel, LED downlight, LED bulbs, and outdoor lights. Meantime, Lumin Lighting also provides customized lighting solutions to customers.

Lumin Lighting takes product quality as our lifeline. We focus on quality during the whole production process by seriously carrying out ISO 9001 Quality System and ISO Environment Management System.

Best service

(1) Your inquiry will be replied within 12 hours.
(2) Fast sample delivery: 3 days around.
(3) Best-trained  and experienced sales staffs follow up with your inquiries and orders.
(4) OEM/ODM services: all can be customized.
(5) Distributor, agent, investor and more are welcome.
(6) 5-year limited warranty: spare parts can be offered along with orders.
