• Model NO.：FT-BLS126-W60
• Base Material：None
• Certification：CE, RoHS, SAA, CB
• Voltage：200-240V
• Beam Angle：120°
• Power Factor：>0.9
• CRI：>80
• Warranty：3 Years
• Flicker Free：Yes
• Power：60W
• Transport Package：Color Box
• Specification：595*1195mm
• Trademark：flolite
• Origin：China
• HS Code：9405409000
• Production Capacity：20, 000PCS,Day

Basic Info.

Model NO. FT-BLS126-W60 Base Material None Certification CE, RoHS, SAA, CB Voltage 200-240V Beam Angle 120° Power Factor >0.9 CRI >80 Warranty 3 Years Flicker Free Yes Power 60W Transport Package Color Box Specification 595*1195mm Trademark flolite Origin China HS Code 9405409000 Production Capacity 20, 000PCS/Day

Product Description

Professional Manufacturer of LED Backlit Panel Light, TUV/CE/CB/SAA Approved.

Product Name	Backlight LED Panel light
Model No	FT-BLS126-W60
Certificate	TUV, CE, CB, RoHs, ERP, LM80, LM79, TM21, ISTMT

1.  Product Features

* High efficiency & energy saving. Under the condition of the same illumination. It saves more than 67% energy compared with the traditional lamp.

* Wide input voltage(200-240V); Flicker free.

* Long life span, using semiconductor chip as the light resource, the life can be over 50,000hrs.

* No UV & IR. It won't distribute ray radiation

* Eco-friendly, No Hg & Xe, or other harmful element; Recyclable, also it won't generate EMI.

* High-performance external constant current driver, flat and smooth frame, very easy to clean

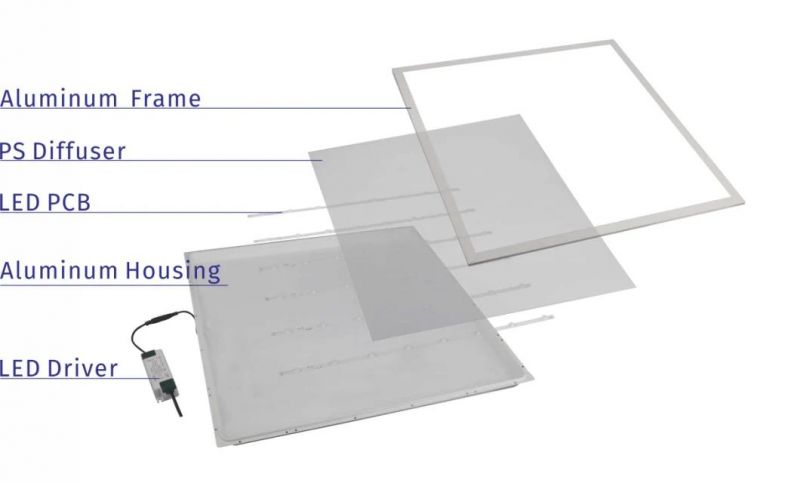

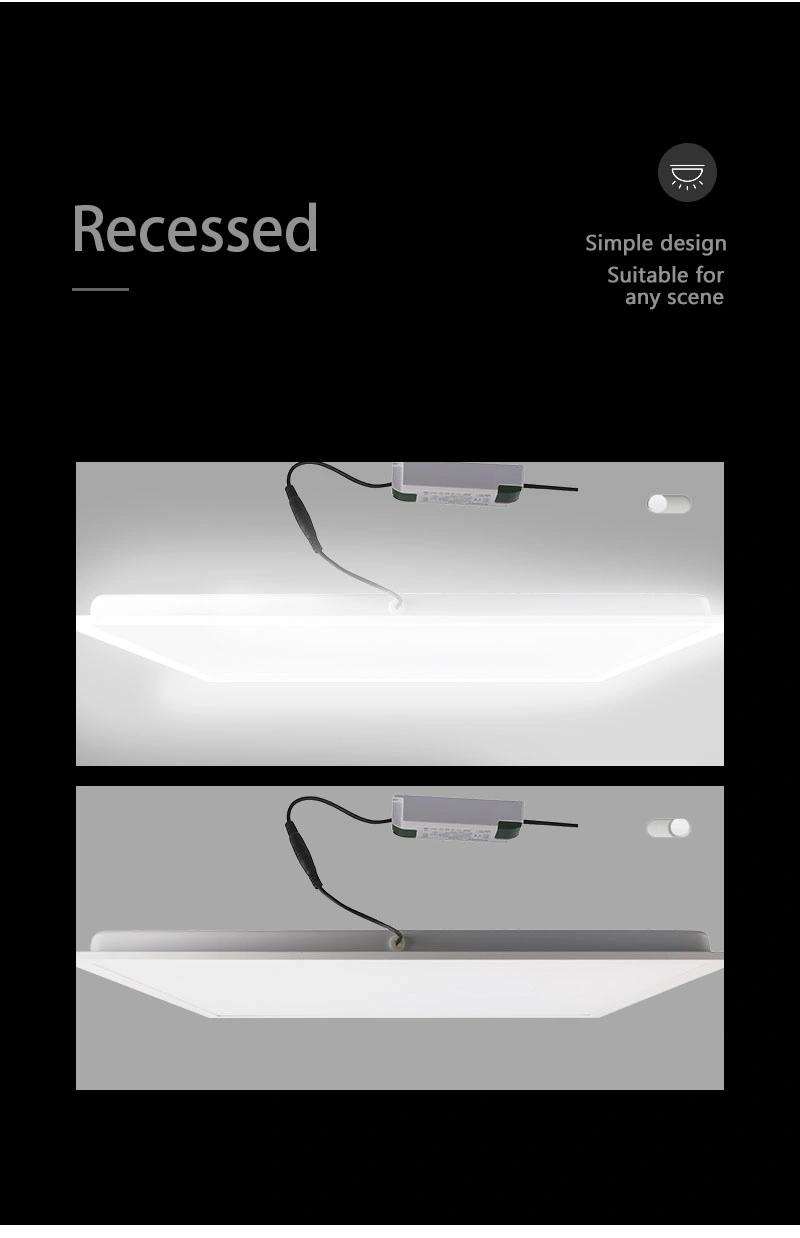

2.  Product Pictures

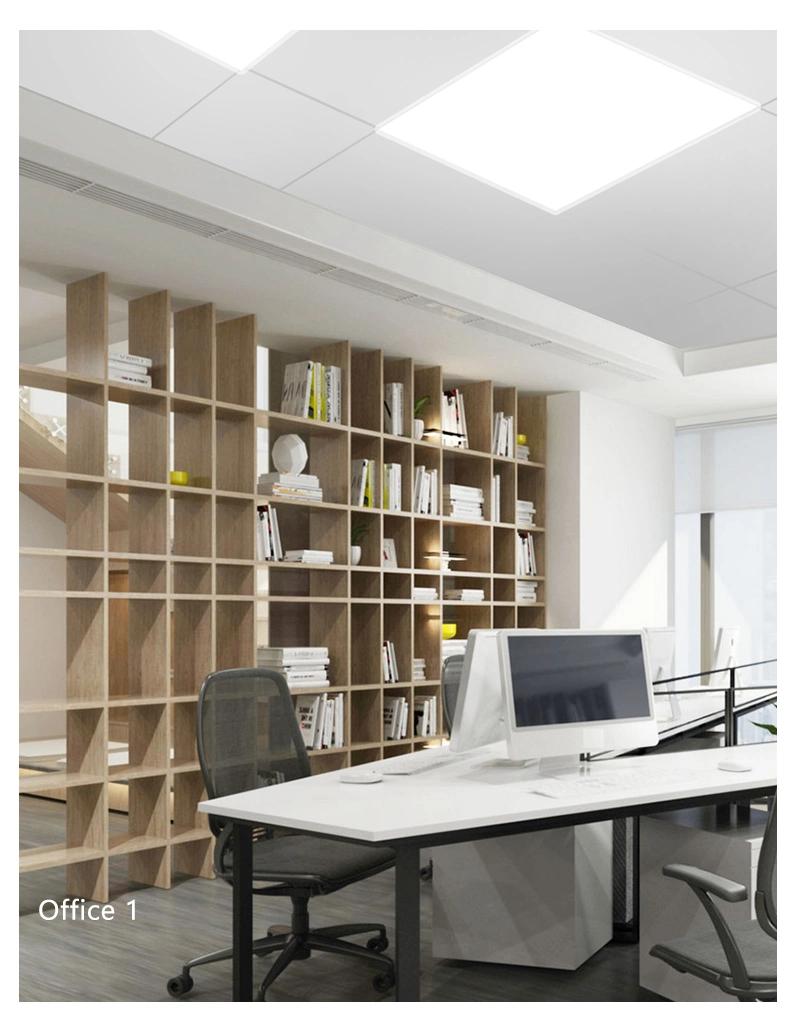

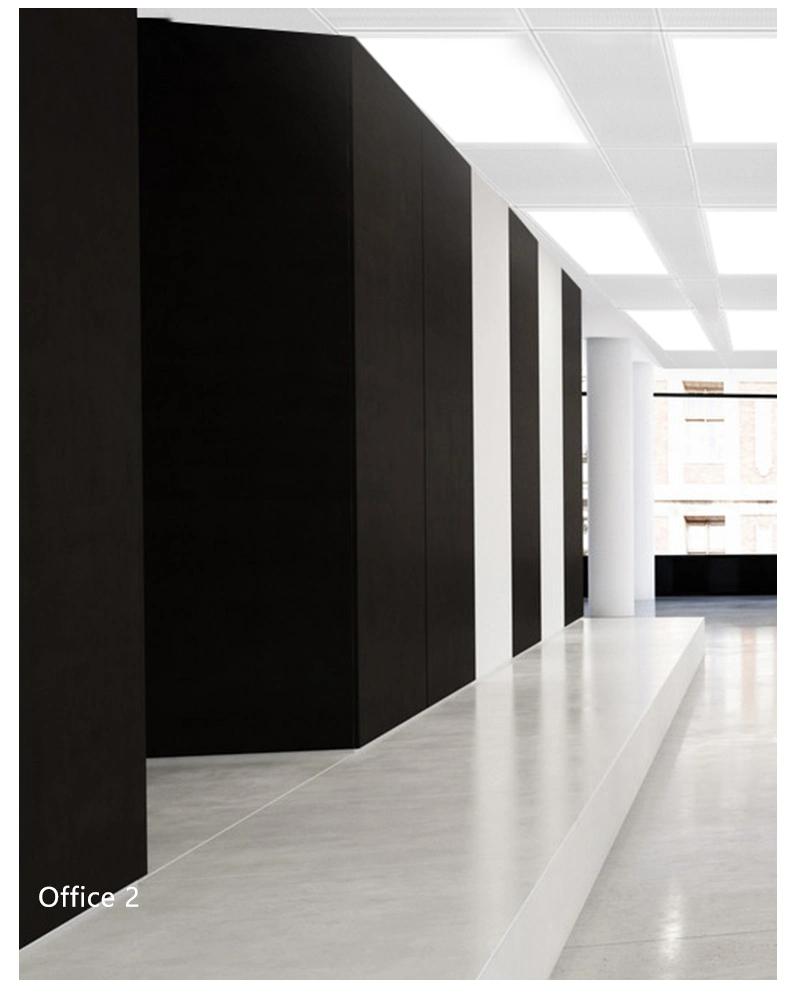

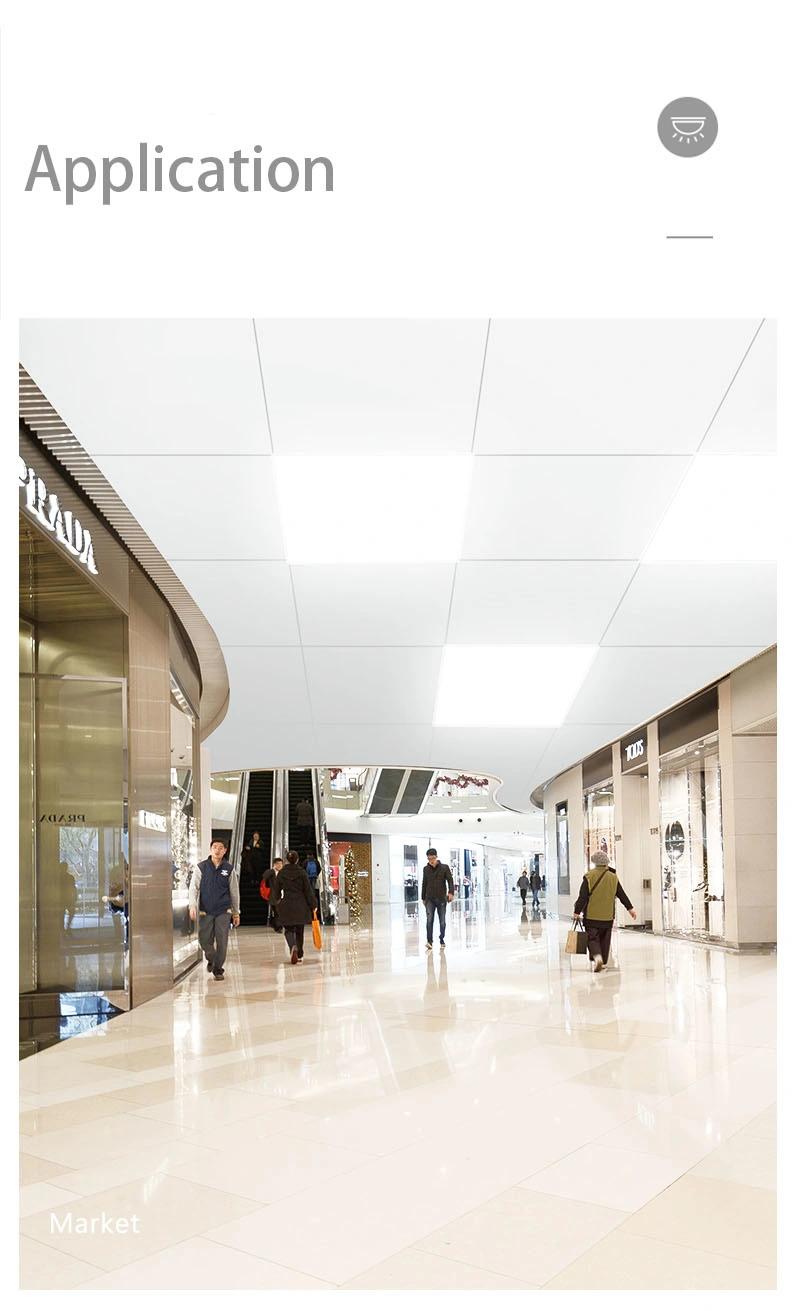

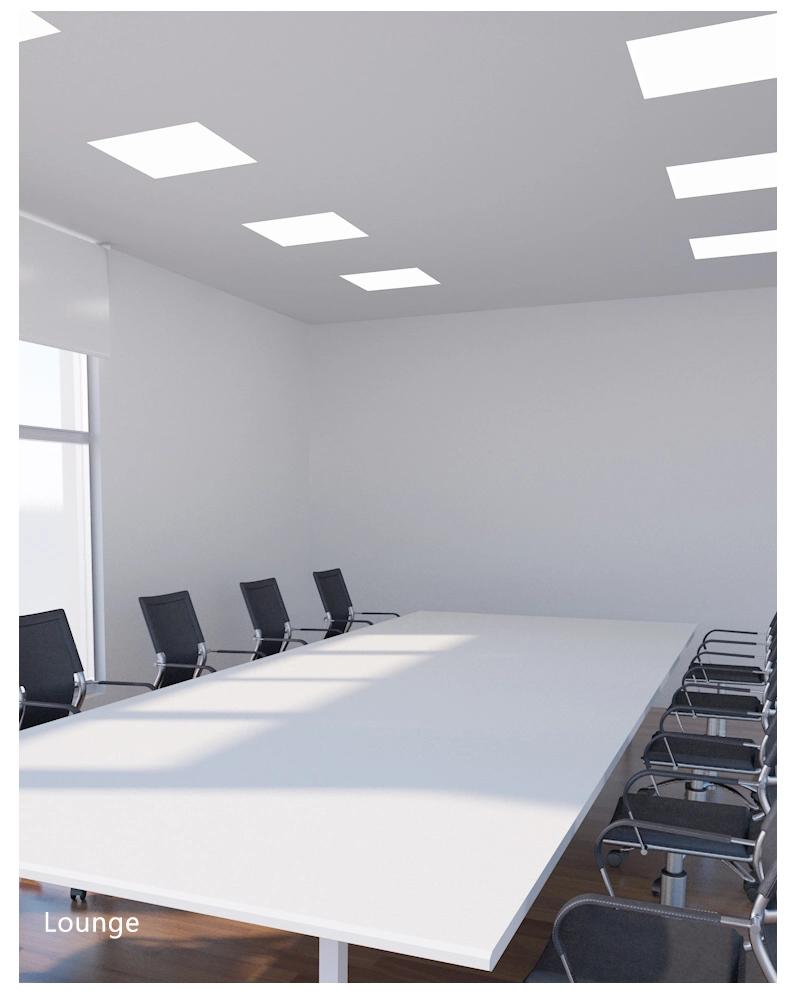

3.  Applications

* Direct replacement for luminaires with 4 x 36 W or 4 x 28 W fluorescent lamps

* Corridors

* Offices

* Conference rooms

* Reception areas

* Foyers

* Elevators

* Suitable for recessed ceiling systems with grid size of 595x1195 or 600x1200 mm



4. Technical Parameters

Power parameters

Power	60W
Input Voltage/Frequency	AC200-240V 50/60Hz
Input Current(Type)Max	0.3A
Output Voltage	DC27-40V
Output Current	1000mA
Power Factor	PF>0.9

 Lighting parameters

LED Consumption	40W
Lumen	>6600LM
LED Type	SMD 2835

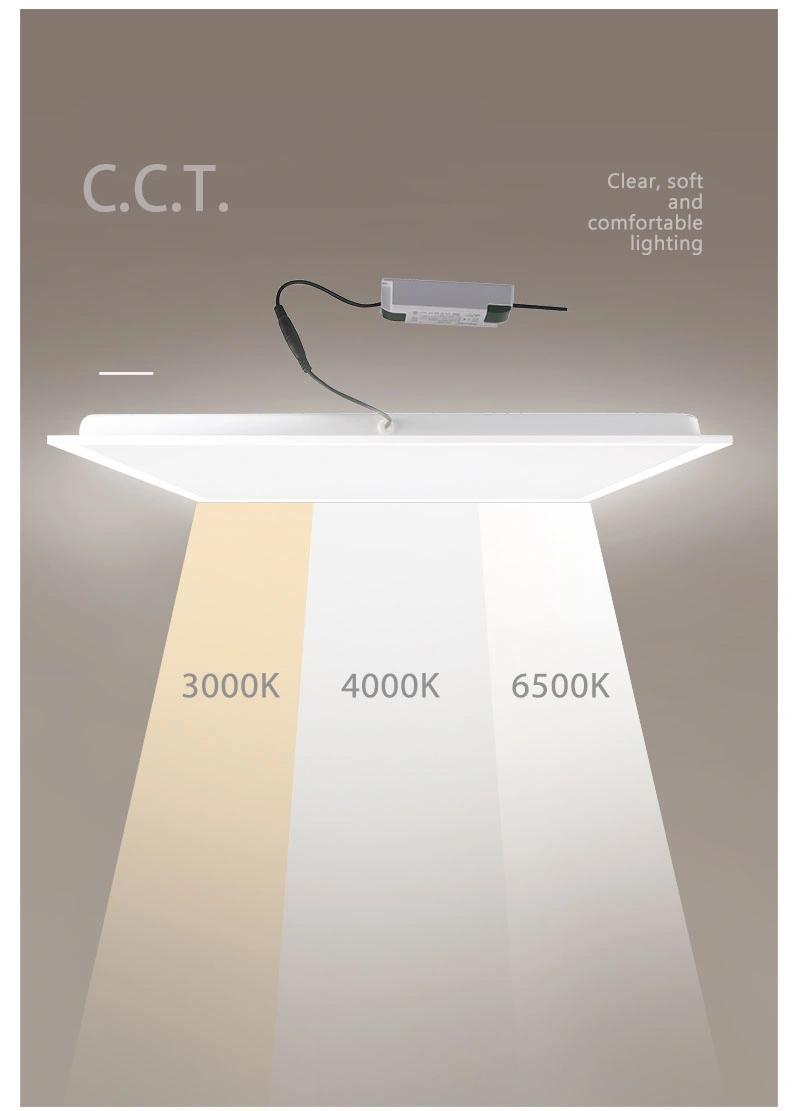

Color Temperature	3000/4000/6000K
Color Rendering Index	Ra≥80
Operating Temperature	-20~+40 ºC
IP Grade	IP40
Life-span	>50,000Hrs
LED Chips	San'an / Epistar
Energy efficiency	A+
Beam Angle	120°
Frame Materials	PS+Aluminum
Appliance Class	Class II
Certification	TUV CE CB RoHs

Note:

1. Light optic with a little deviation for different color temperature LED ,deviation value≤5%

2. There parameters will exist tolerance of error according to related rules.

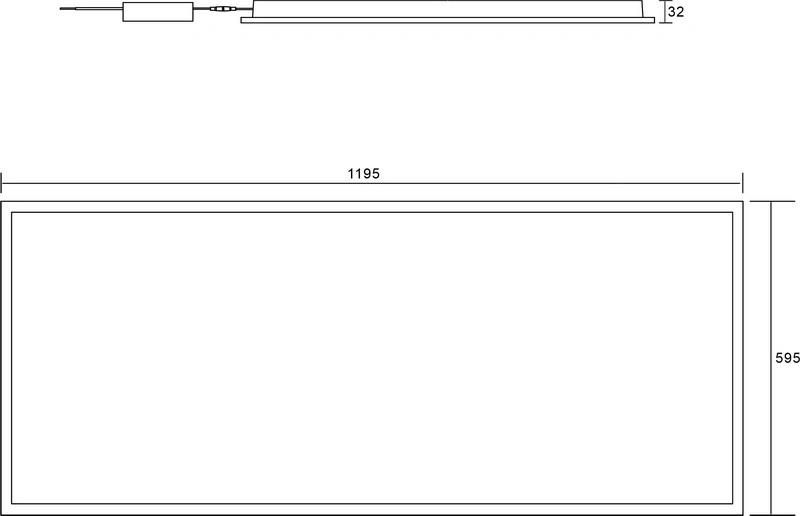

5.  Dimension(mm)



6. Packing /weight

Item No.	Net Weight	Package Size	QTY/Carton	Carton Size	Cross Weight
FT-BLS123-W40	3.15kg	1205*70*650mm	6	1220*225*670mm	16.5kg



7. Integrating Sphere Testing

8. Installation

Δ Please ask professional electrician when installing.

Δ And the ways of connecting of three-core cable is that Brown is firing line, Blue is netural line, Yellow is earth line.



9. Attention

Δ Input voltage AC200-240V, off when installation to prevent electric shock

Δ Product IP40 waterproof level,Indoor use only and don't used in too high temperature place.

Δ When the temperature is too high, Over-temperature control circuitry activates, output will be cut off, and the lamp will light off for a few minutes, After lowering temperature will be back to normal.



10. Warranty

3 years warranty for the products

The warranty on the base of right storing way, right installing way, right using way, right maintaining way. Any broken out of our rule, it will be out of our warranty. During the warranty time, we can choose repairing, replacing parts or replacing the whole products according to the detail information. And we'll charge the customers some material fee and labor cost if the product is out of our warranty time.

Δ  Please read the instruction carefully before you use the product. We keep the right of final explanation for instruction and product. The product will keep updating continues. And sorry for the no notice for the updating.
