• Model NO.：HRD12501D-5W
• Color Temperature：Cool White
• Lamp Body Material：Heat-Conducting Nylon
• Installation：Recessed
• Switch Type：With Remote Control
• Warranty：2 Years
• Application：Home Furnishing
• IP Rating：IP44
• Certification：CCC, CE, LVD, RoHS, SAA, SASO
• Cut-out：80mm
• CIR：Ra>90
• Chips：SMD2835 12LEDs 1W,LED
• Lumen：>90lm,W
• Transport Package：Carton
• Specification：96*35mm
• Trademark：HOSD
• Origin：Zhongshan, China
• HS Code：9405409000
• Production Capacity：100000PCS,Mounth
• Package size per unit product：10.00cm * 10.00cm * 4.00cm
• Gross weight per unit product：0.150kg

Basic Info.

Model NO. HRD12501D-5W Color Temperature Cool White Lamp Body Material Heat-Conducting Nylon Installation Recessed Switch Type With Remote Control Warranty 2 Years Application Home Furnishing IP Rating IP44 Certification CCC, CE, LVD, RoHS, SAA, SASO Cut-out 80mm CIR Ra>90 Chips SMD2835 12LEDs 1W/LED Lumen >90lm/W Transport Package Carton Specification 96*35mm Trademark HOSD Origin Zhongshan, China HS Code 9405409000 Production Capacity 100000PCS/Mounth

Packaging & Delivery

Package size per unit product 10.00cm * 10.00cm * 4.00cm Gross weight per unit product 0.150kg

Product Description

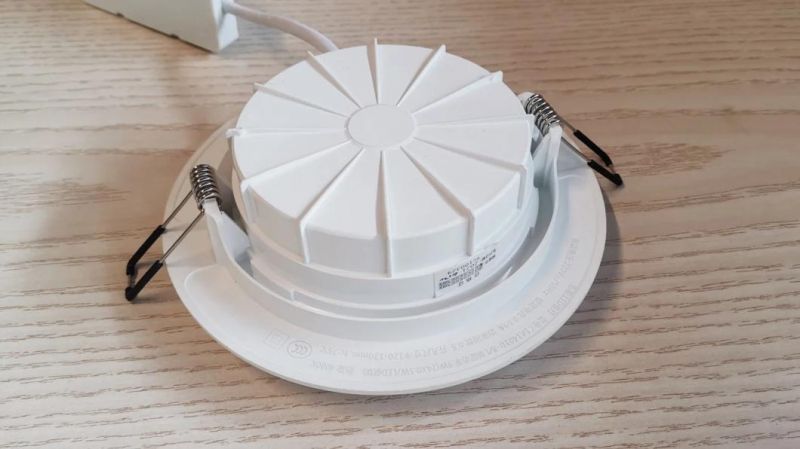

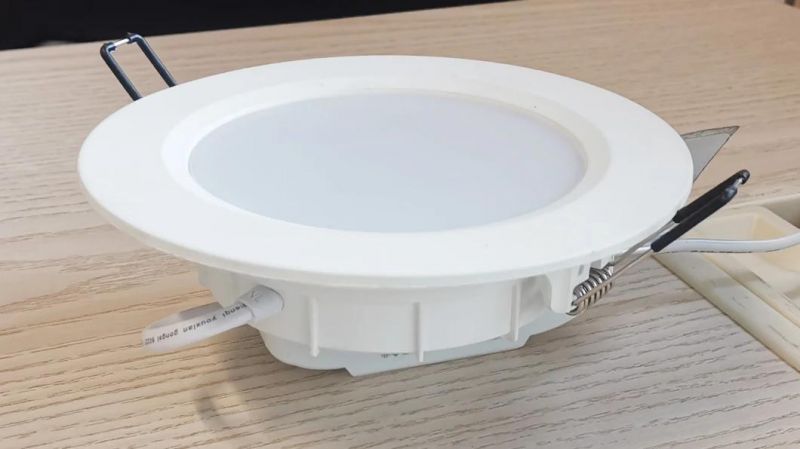

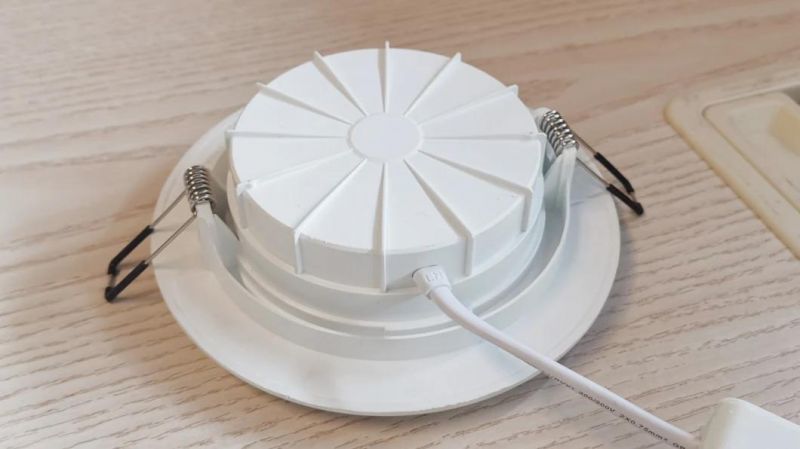

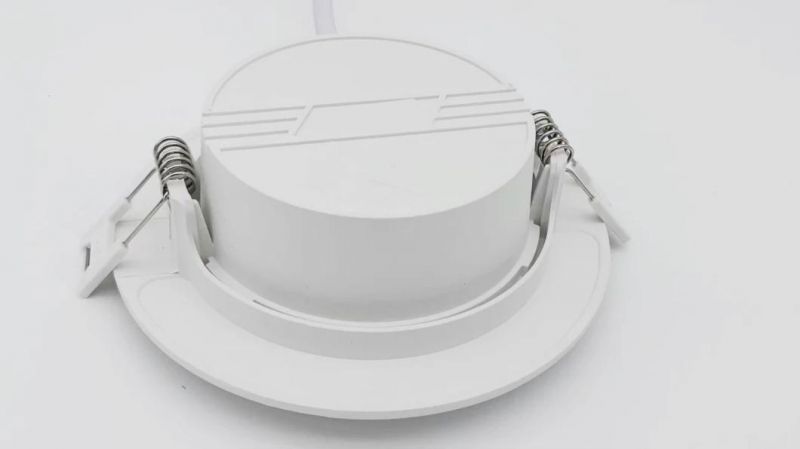

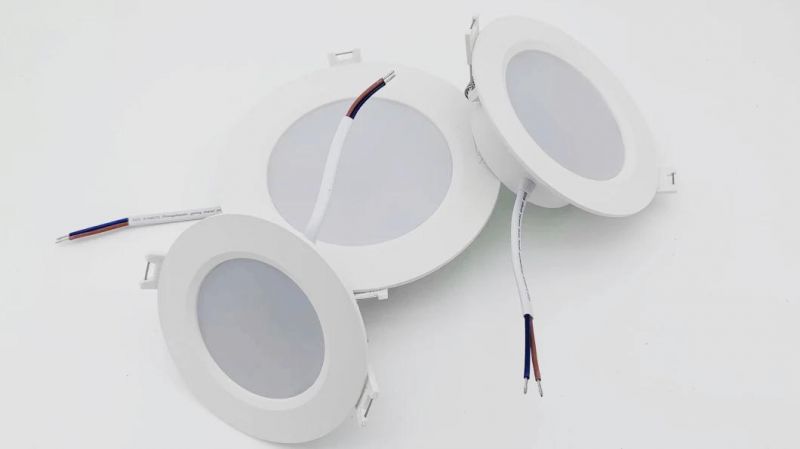

Economic High Quality Plastic Body smart SMD2835 Ra90 Recessed LED Downlight for Home room or corridor radar sensor option residential apartment rooms:

Model No.	Watt	Q'ty of SMD2835 chips	Input Voltage	CRI	CCT	Beam Angle	Dimension  (mm)	Cut-out (mm)
HRD12501D	3W	12	AC100-240V	Ra≥90	WW/NW/CW	110°	96*35	80
HRD12501D	5W	12	AC100-240V	Ra≥90	WW/NW/CW	110°	96*35	80
HRD1301D	5W	12	AC100-240V	Ra≥90	WW/NW/CW	110°	106*35	85
HRD13501D	7W	25	AC100-240V	Ra≥90	WW/NW/CW	110°	120*35	100
HRD1401D	9W	48	AC100-240V	Ra≥90	WW/NW/CW	110°	145*35	125



HOME DOWLIGHT FEATURES:

* Plastic economical ceiling recessed led downlight for residential site

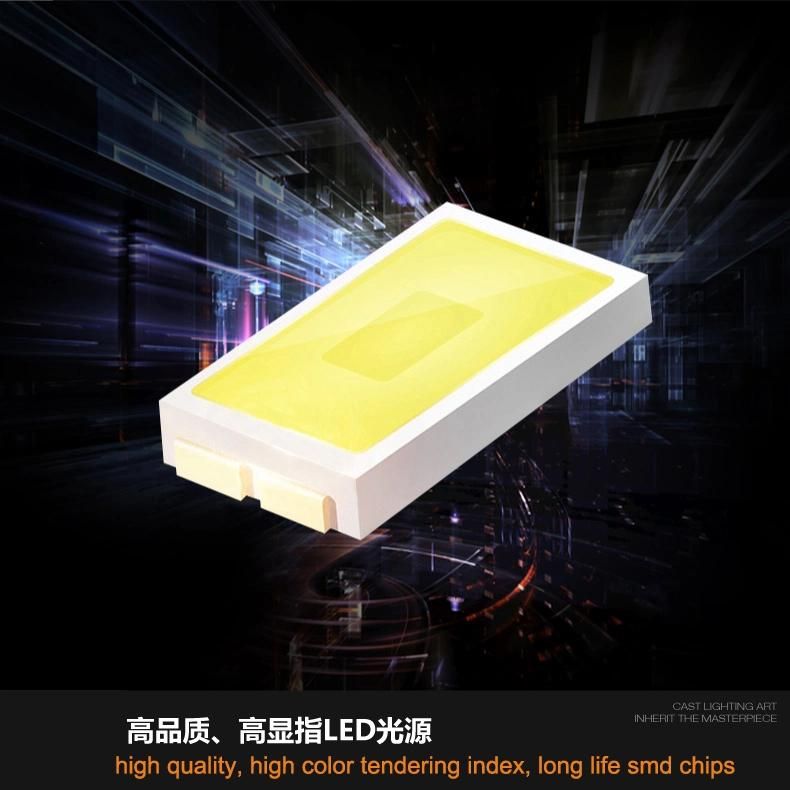

* San'an SMD2835 led chips, high CRI and brightness, 90lm/W

* Built-in non-isolated led driver, no flickering, no humming

* Built-in microwave (radar) sensor type option

* PMMA diffusor no UV and IR radiation, soft and tender light

* Material: Architectural heat-conducting nylon and PC housing

* Color Temperature: warm white, nature white, day white

* Less than 3% light decay in 10000hrs testing, SDCM≤5

* Operating temperature: -25ºC~55ºC

* Energy saving up to 60% comparing to fluorescent lamp

* Applied to corridor, dining, porch, kitchen and toilet Etc.

* Long Life span up to 25,000 hours

FAQ:

Q1: Are you a factory manufacturer?

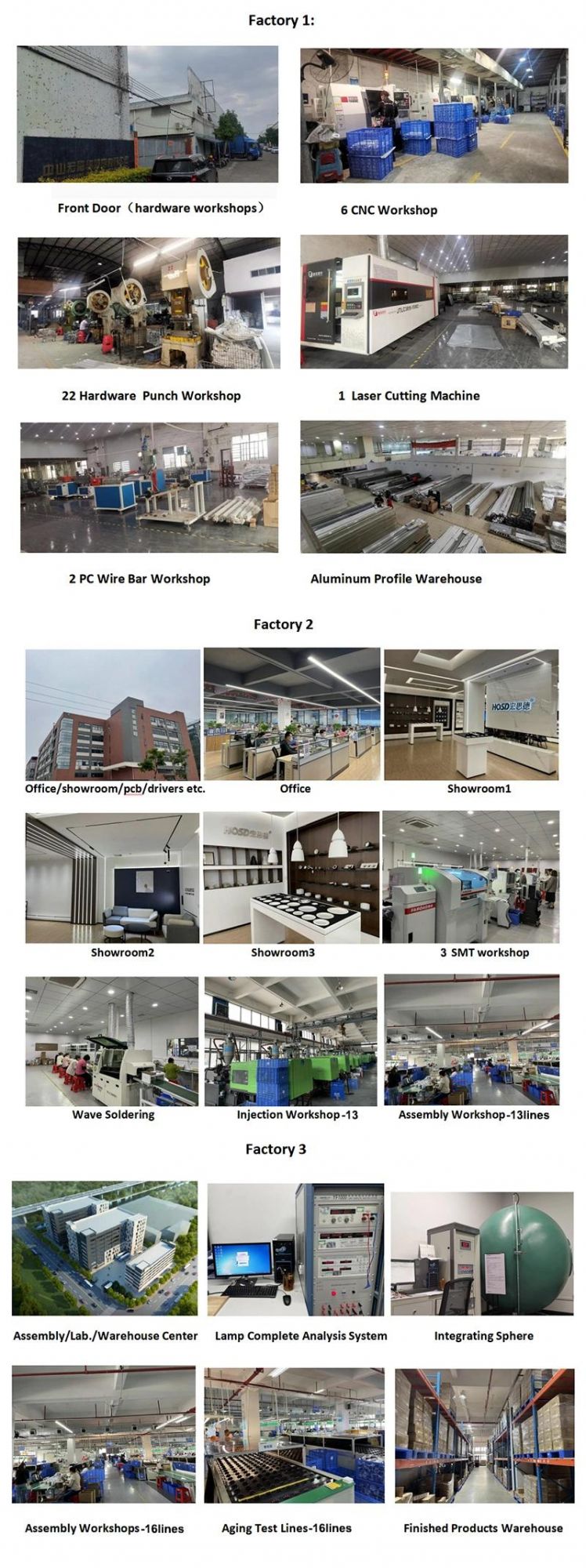

A1: Yes, we are. HOSD Lighting is a purely and professional original manufacturer, we have three own factories now.

Q2. Do you have the ability to develop OEM new products and how long to make mould samples?
A2: Yes, our structure engineers can make CAD and 3D drawing and development new products based on the requirements of client. we have mould workshops of punched, injection and die-casting products, mould samples are faster much.

Q3. Can I have a sample order for the item we insterest?
A3: Yes, we accept sample order to test and check quality. Mixed models are acceptable.
Q4. What's the lead time for sample and bulk order?
A4: 3-5 days for samples, 2-4 weeks for batch bulk order.

Q5. What is the quality process of lights and what is warranty time of products?
A5: Our factory passed GBT19001-2016 and ISO9001-2015, 100% finished products passed test aging before packing. we offer 2-5 years guarrantee to all our products.

Q6. How to deal with the products fail in period of guarantee?
A6. For parts fail in guarantee, we will send free replacements with new order for small quantity. For fail batch products, we will repair and resend them without our own shipping account or we negotiate the best solution together.

Q7. What type test report can you offer for your led indoor and outdoor light?
A7. We have own lab. and can offer EMC, IES report, Photometric report, LM80 reports Etc.
