• Model NO.：TLD12A-20W
• Color Temperature：Ww,Nw,Cw
• Lamp Body Material：Aluminum or PC Trim, Aluminum Casting Heat Sink
• Source Number：Single Plug
• Installation：Recessed
• Warranty：3 Years
• Application：Engineering, Home Furnishing
• IP Rating：20
• Certification：CCC, CE, LVD, RoHS, SAA
• Driver：Constant Current Isolated Driver
• Cut-out：120mm
• CRI：Ra>90
• Trim：PC or Aluminum Alloy
• Heat Sink：Aluminum Casting
• Transport Package：Carton
• Specification：138*70mm
• Trademark：HOSD
• Origin：Zhongshan, China
• HS Code：9405409000
• Production Capacity：100000PCS,Mounth
• Package size per unit product：15.00cm * 15.00cm * 8.00cm
• Gross weight per unit product：0.400kg

Basic Info.

Model NO. TLD12A-20W Color Temperature Ww/Nw/Cw Lamp Body Material Aluminum or PC Trim, Aluminum Casting Heat Sink Source Number Single Plug Installation Recessed Warranty 3 Years Application Engineering, Home Furnishing IP Rating 20 Certification CCC, CE, LVD, RoHS, SAA Driver Constant Current Isolated Driver Cut-out 120mm CRI Ra>90 Trim PC or Aluminum Alloy Heat Sink Aluminum Casting Transport Package Carton Specification 138*70mm Trademark HOSD Origin Zhongshan, China HS Code 9405409000 Production Capacity 100000PCS/Mounth

Packaging & Delivery

Package size per unit product 15.00cm * 15.00cm * 8.00cm Gross weight per unit product 0.400kg

Product Description

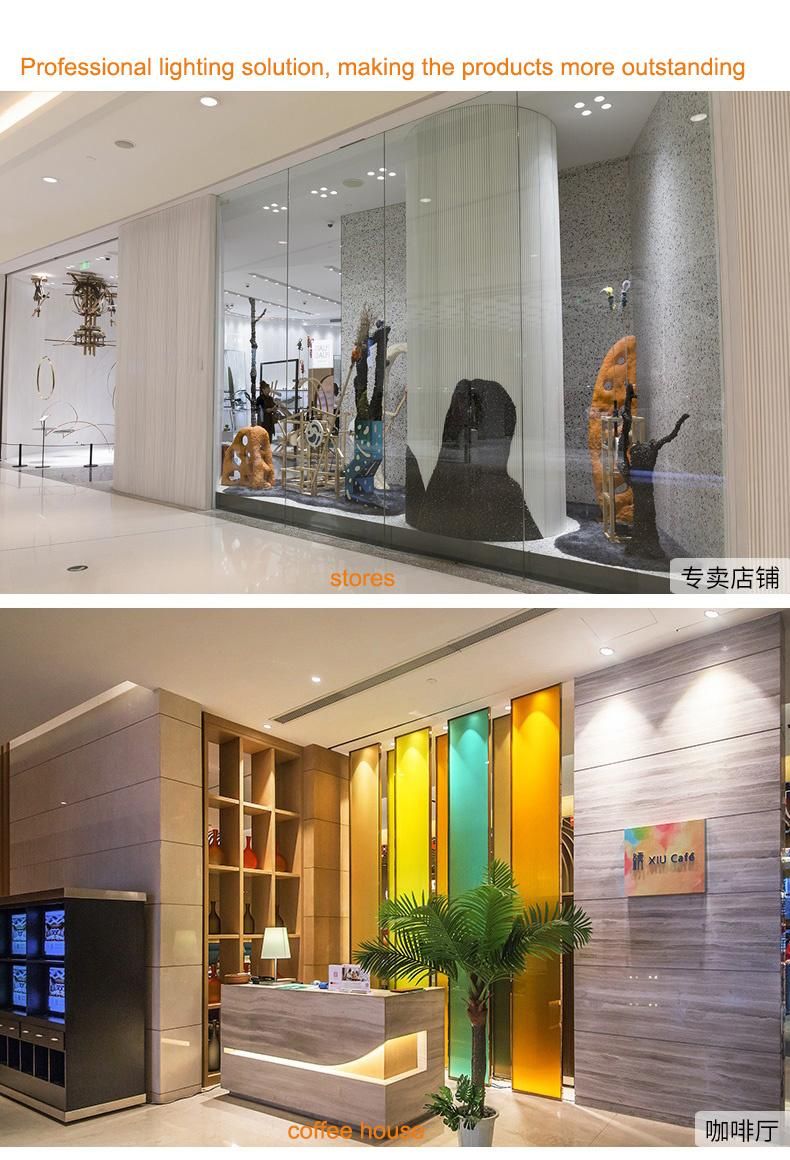

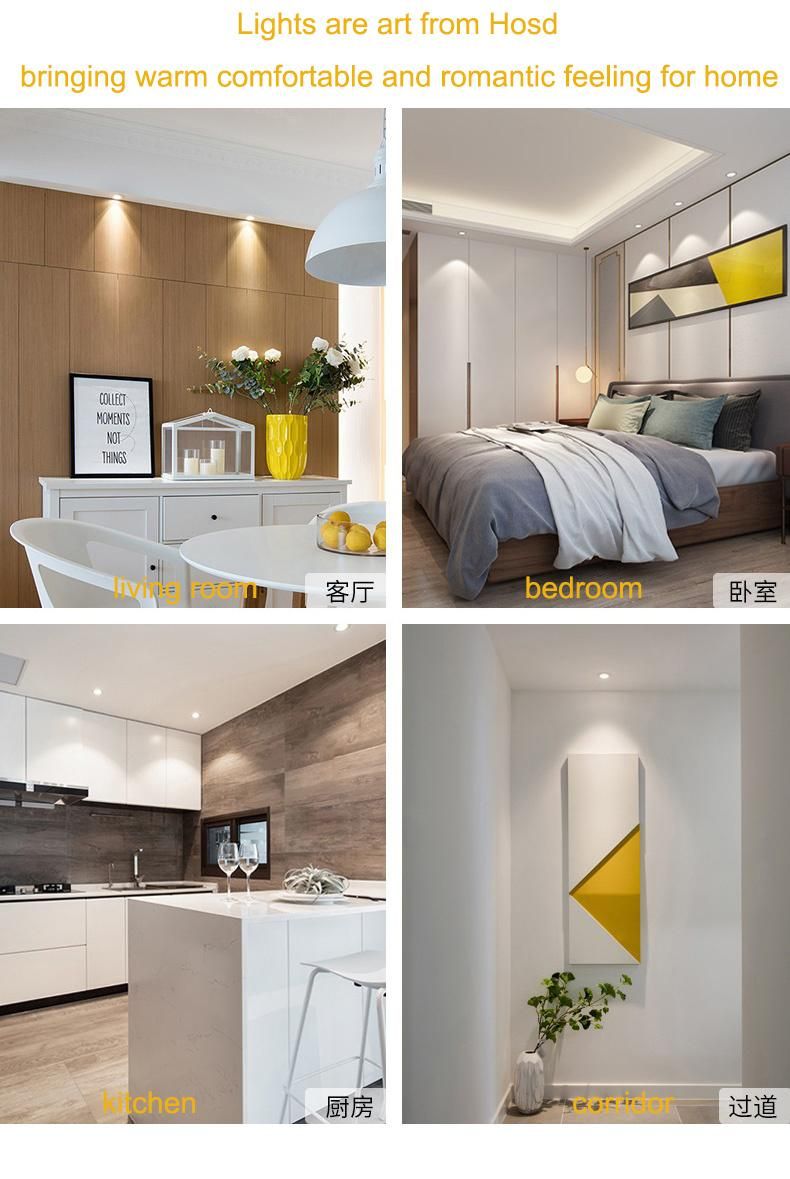

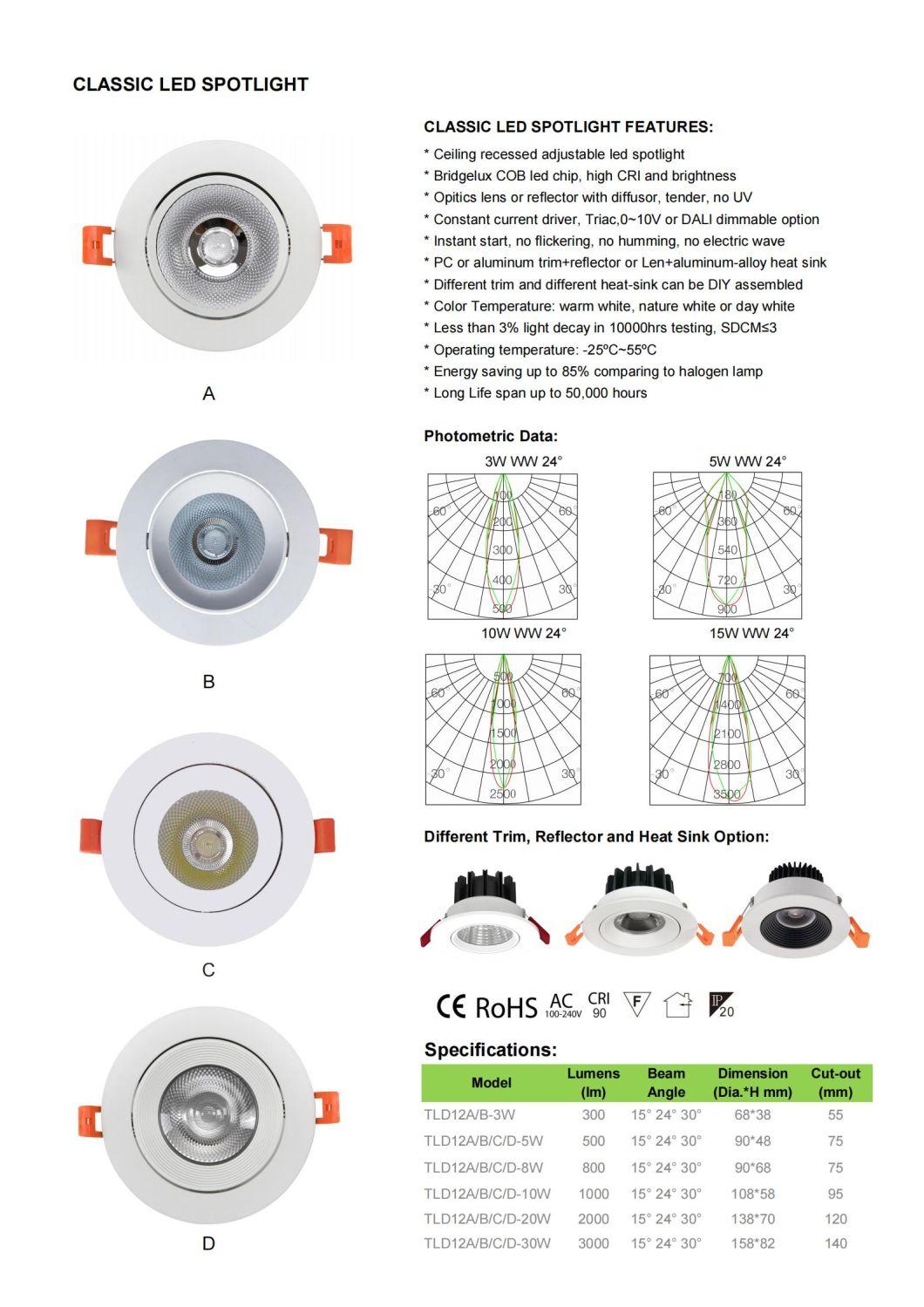

15W-20W dimmable Ceiling Recessed Adjustable LED down Spotlight for commercial project office Hotel Apartment Residential corridor Room


Model	Lumens (lm)	Input Voltage	CRI	CCT	Beam Angle	Dimension (Dia.*H mm)	Cut-out (mm)
TLD12A/B-3W	300	AC100-240V	Ra≥90	WW/NW/CW	15° 24° 30°	68*38	55
TLD12A/B/C/D-5W	500	AC100-240V	Ra≥90	WW/NW/CW	15° 24° 30°	90*48	75
TLD12A/B/C/D-7W	700	AC100-240V	Ra≥90	WW/NW/CW	15° 24° 30°	90*68	75
TLD12A/B/C/D-10W	1000	AC100-240V	Ra≥90	WW/NW/CW	15° 24° 30°	108*58	95
TLD12A/B/C/D-20W	2000	AC100-240V	Ra≥90	WW/NW/CW	15° 24° 30°	138*70	120
TLD12A/B/C/D-30W	3000	AC100-240V	Ra≥90	WW/NW/CW	15° 24° 30°	158*82	140

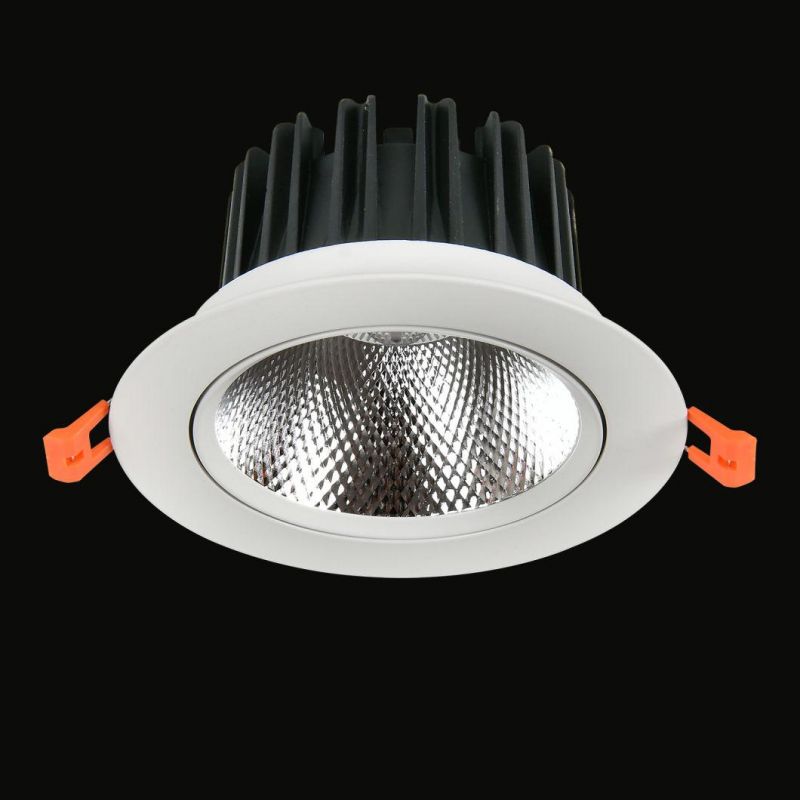

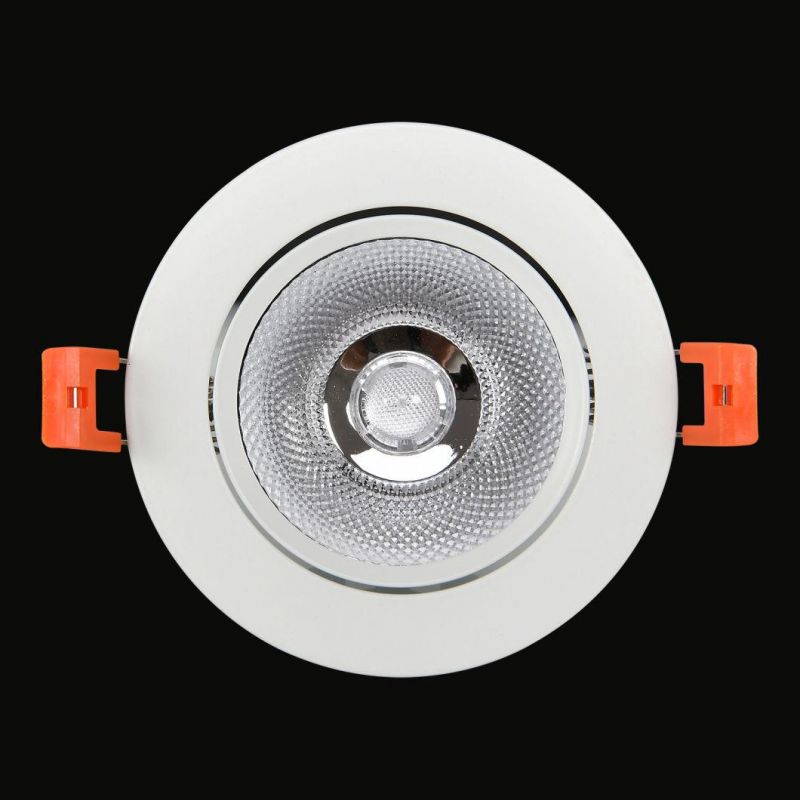

* Ceiling recessed adjustable led spotlight

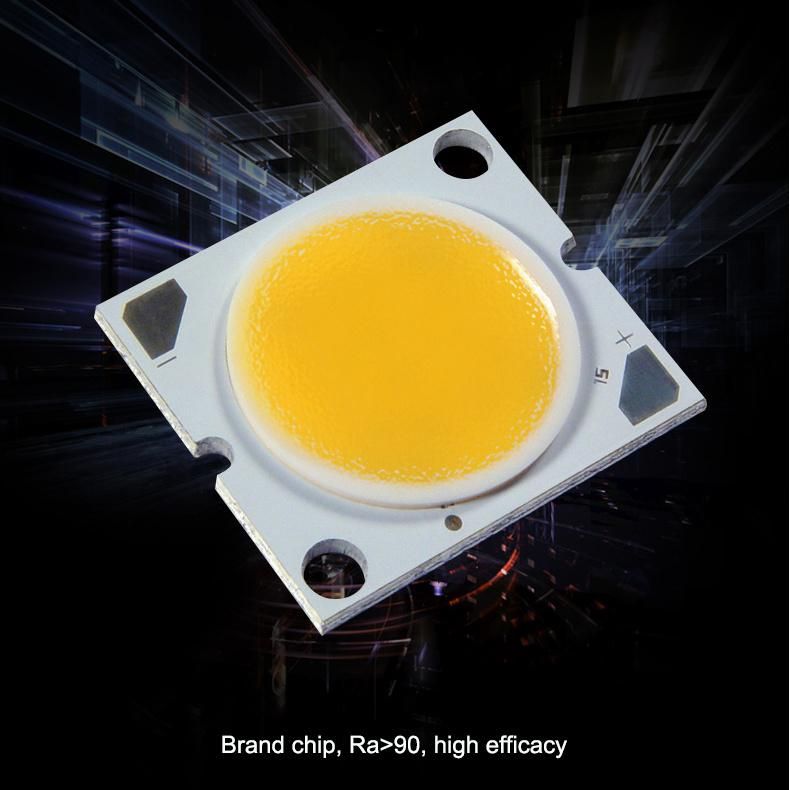

* Bridgelux COB led chip, high CRI and brightness

* Opitics lens or reflector with diffusor, tender, no UV

* Constant current driver, Triac,0~10V or DALI dimmable option

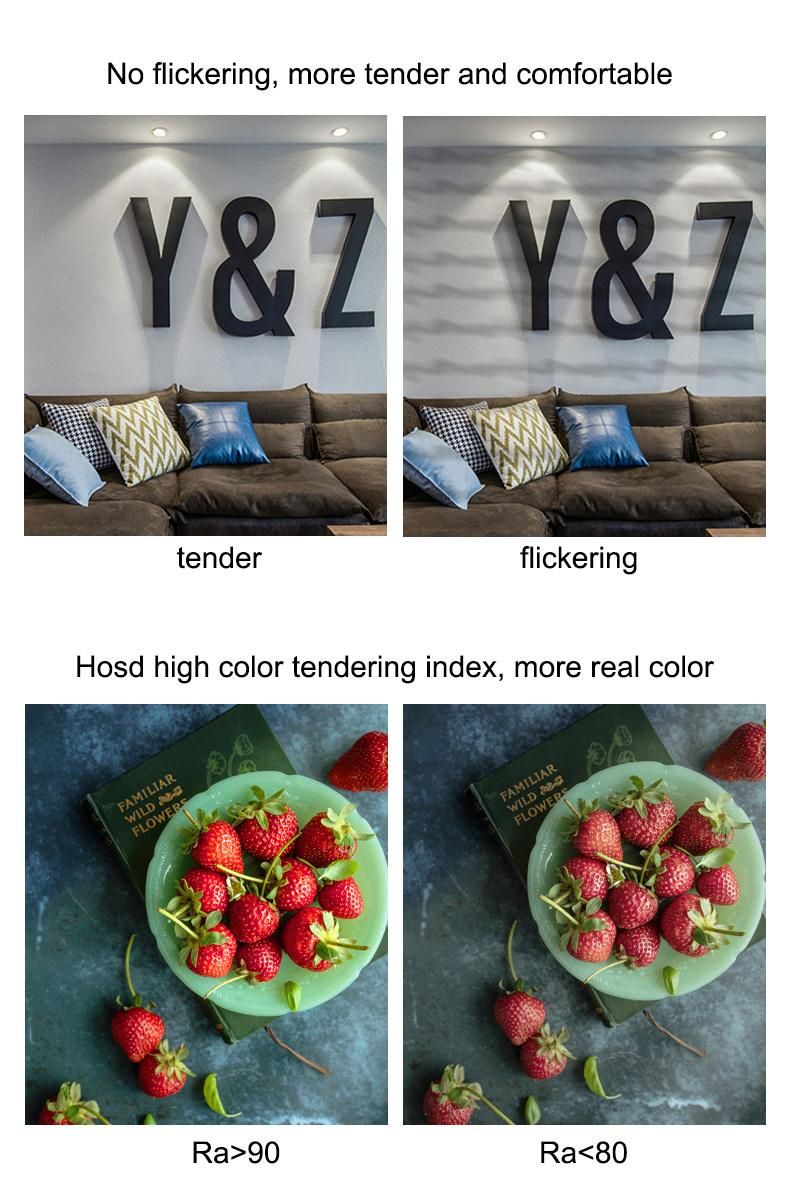

* Instant start, no flickering, no humming, no electric wave

* PC or aluminum trim+reflector or Len+aluminum-alloy heat sink

* Different trim and different heat-sink can be DIY assembled

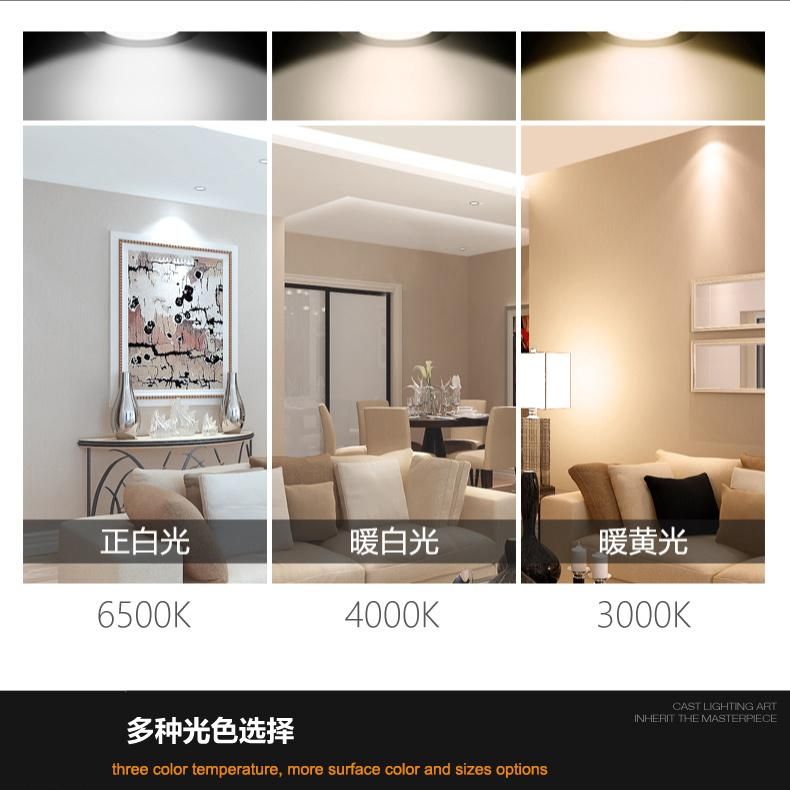

* Color Temperature: warm white, nature white or day white

* Less than 3% light decay in 10000hrs testing, SDCM≤3

* Operating temperature: -25ºC~55ºC

* Energy saving up to 85% comparing to halogen lamp

* Long Life span up to 50,000 hours







FAQ:

Q1: Are you a factory manufacturer?

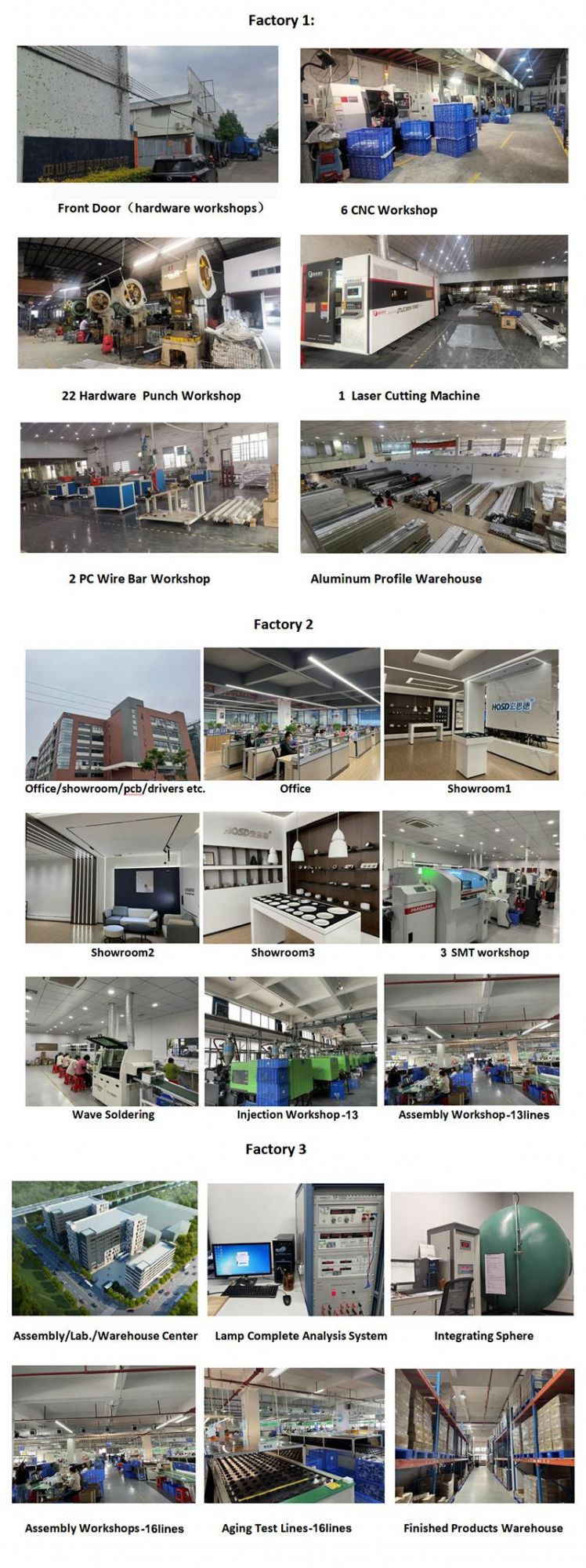

A1: Yes, we are. HOSD Lighting is a purely and professional original manufacturer, we have three own factories now.

Q2. Do you have the ability to develop OEM new products and how long to make mould samples?
A2: Yes, our structure engineers can make CAD and 3D drawing and development new products based on the requirements of client. we have mould workshops of punched, injection and die-casting products, mould samples are faster much.

Q3. Can I have a sample order for the item we insterest?
A3: Yes, we accept sample order to test and check quality. Mixed models are acceptable.

Q4. What's the lead time for sample and bulk order?

A4: 3-5 days for samples, 2-4 weeks for batch bulk order.



Q5. What is the quality process of lights and what is warranty time of products?

A5: Our factory passed GBT19001-2016 and ISO9001-2015, 100% finished products passed test aging before packing. we offer 2-5 years guarrantee to all our products.



Q6. How to deal with the products fail in period of guarantee?

A6. For parts fail in guarantee, we will send free replacements with new order for small quantity. For fail batch products, we will repair and resend them without our own shipping account or we negotiate the best solution together.



Q7. What type test report can you offer for your led indoor and outdoor light?

A7. We have own lab. and can offer IES report, Photometric report, LM80 reports Etc.
