Ultraviolet Chip Metal Package To39 265nm UVC UV LED
TaoYuan Optoelectronics Shenzhen Co., Ltd.- Emitting Color：Purple
- Power：0.5-1MW
- Base Material：Copper
- Life：3, 000-5, 000h
- Certification：RoHS
- Power Source：DC
Base Info
- Model NO.：TY-UV265-TO39
- Electric Current Type：20mA
- Input Voltage：5-8V
- LED Chips：Bridgelux
- Size：8.0*14*3.0
- Transport Package：50PCS
- Specification：PCS
- Trademark：LED TaoYuan
- Origin：China
- HS Code：9405990000
- Production Capacity：50, 000 PCS,Year
Description
ModelSize Optical power(MW) Wavelength Forward voltage Beam Angle IF=20mA VF[V] Minimum Maximum Minimum Maximum TY-UVP8D265 8.0*14*3.0 0.5 1 265 7 8.5 140

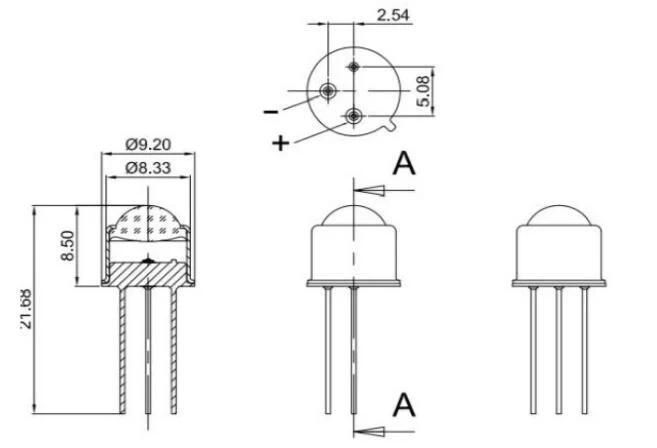

Dimension:
1. DUV LED 265nm features:
A. Efficient: The effect of sterilization is up to 99.9% during a short period of time.
B. Energy saving: Compared with the traditional fluorescent lamp, energy saving is 80%.
C. Environmental protection: Non-metal gas or harmful substances emitting technologies.
D. Long life.
2. DUV LED 265nm Note:
A. Do not touch the LED, or will affect the normal light-emitting devices
B. Power devices must confirm the positive and negative, reversing polarity may damage the device
C. Strictly operate in accordance with electrical parameters too high voltage may damage the device
D. DUV LED status should be avoided close observation with the naked eye.
Company Information
TAOYUAN ELECTRON (HK) LIMITED specializes in the UV LED curing syetem and UV solutions, high power UV LED, UV LED
lamps series (UV LED 50W, UV 100W, UV 300W etc ). Collected advantages of exquisite technology and experienced talents,
we are committed to further research and manufacture, to create new UV LED world.
Dimension:
1. DUV LED 265nm features:
A. Efficient: The effect of sterilization is up to 99.9% during a short period of time.
B. Energy saving: Compared with the traditional fluorescent lamp, energy saving is 80%.
C. Environmental protection: Non-metal gas or harmful substances emitting technologies.
D. Long life.
2. DUV LED 265nm Note:
A. Do not touch the LED, or will affect the normal light-emitting devices
B. Power devices must confirm the positive and negative, reversing polarity may damage the device
C. Strictly operate in accordance with electrical parameters too high voltage may damage the device
D. DUV LED status should be avoided close observation with the naked eye.
Company Information
TAOYUAN ELECTRON (HK) LIMITED specializes in the UV LED curing syetem and UV solutions, high power UV LED, UV LED
lamps series (UV LED 50W, UV 100W, UV 300W etc ). Collected advantages of exquisite technology and experienced talents,
we are committed to further research and manufacture, to create new UV LED world.
