• Model NO.：RB-PL-P6060C
• Certification：CE, RoHS, SAA, SASO
• Voltage：120V
• Beam Angle：120degree
• Color Temperature：3000K,4000K,5000K,6000K
• Frame Color：Grey,White
• CRI：80
• Output：150lm,W
• Warranty：5 Years
• Transport Package：Carton
• Specification：CE,ROHS,EMC,SAA
• Trademark：Rayborn
• Origin：China
• HS Code：94054090
• Production Capacity：400000PCS,Month

Dimension: 600mm * 600mmPower: 48WInput Voltage: AC85-265VLED Type: 4014 High LuminLED quantity: 240pcs  0.2w/pcs 0.2w/pcsView angle: 120°Viewing angleCCT:3000/4000/5000/6000KCRI: ≥80RaLuminous flux:  4500 lmPower Factor: >0.92Life time:  >50,000 hrsWorking  Environment:IndoorHousing Material: Aluminum Alloy+PCWorking Temperature: -20ºC ~ +50ºC

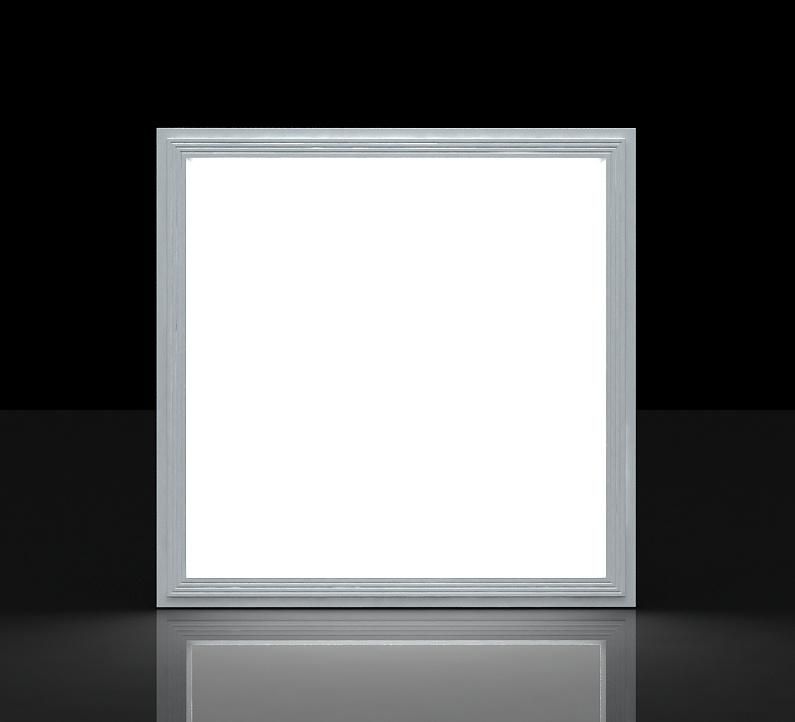

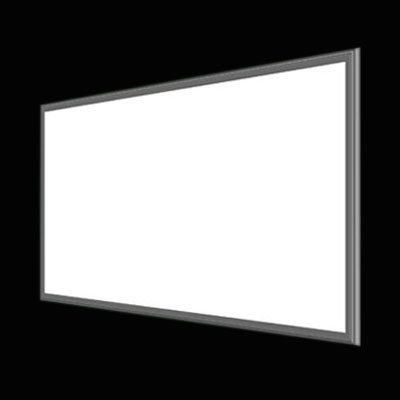

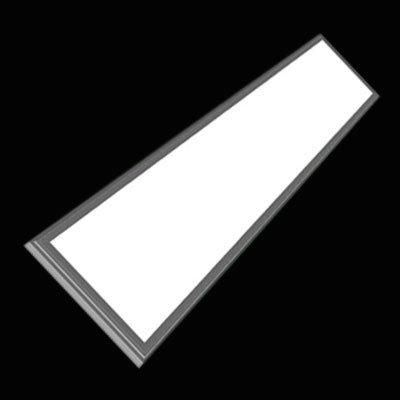

SAMSUNG LED PANEL LIGHT Features:

LED Panel Light with stable quality,  3 years warranty is guaranteed. We adopt Taiwan Epistar LEDs as its light source.

LED Panel Light has easy installation and luxurious appearance.

LED Panel Light can save at least 70% energy compared to general light .

LED Panel Light not contains any heat affect, IR, and harmful metals.

LED Panel Light adopts imported LED, it can achieve high power factor.

LED Panel Light can turns on in a trice, no noise and flicker.

LED Panel Light adopts the best technique, it can achieve the good uniformity of illumination, it is a comfortable light, protection your eyes .

There are a variety way of installation (suspension and embedded) .

Can be dimmable and remotxe control.

Flat LED panel Lamp Applications:

1. Hotel, interior decoration, subway station, parking places

2. Illumination lighting for homes, offices, restaurants, hotels, malls, casinos,  bars etc

3. Display lighting for museums

4. Galleries, stores, shop windows

5. Exhibitions etc.


LED Panel Lights Installation

1.Please note the power wiring of positive and negative when installation power wiring (positive with word)
2.Connect into the panel lamp terminals power wire needs to tighten with the screw
3.To avoid danger, pls cut off power supply before connecting wiring.4.Lock the screw, pls not use


Embedded installation of led panel light

1.Taken the ceiling and LED panel light turn 45 degrees, and put it above the ceiling , pls do not force squeezing or through the ceiling
2.please placed panel lamp handled with care, ensure the products shine with the best effect
3.Choose embedded installation LED panel lamp, first consideration that wether the panel light and the size of the ceiling corresponds


Led panel light test:
