• Model NO.：BN-CT20A
• IP Rating：IP20
• Certification：CE
• Power Source：AC
• Electric Current Type：AC
• Input Voltage：100-120V,200-240V
• LED Chips：Epistar
• Cut Size：D120mm
• Flux：1850lm
• CRI：>80
• Driver：Constant Current, External
• Carton Size：75.5X31.5X23cm,20PCS
• Warranty：2 Years
• Transport Package：Carton
• Specification：D139xH110mm
• Trademark：Banner, SUNER
• Origin：Danyang, Jiangsu, China
• HS Code：9405409000
• Production Capacity：45, 000pieces,Month

Basic Info.

Model NO. BN-CT20A IP Rating IP20 Certification CE Power Source AC Electric Current Type AC Input Voltage 100-120V/200-240V LED Chips Epistar Cut Size D120mm Flux 1850lm CRI >80 Driver Constant Current, External Carton Size 75.5X31.5X23cm/20PCS Warranty 2 Years Transport Package Carton Specification D139xH110mm Trademark Banner, SUNER Origin Danyang, Jiangsu, China HS Code 9405409000 Production Capacity 45, 000pieces/Month

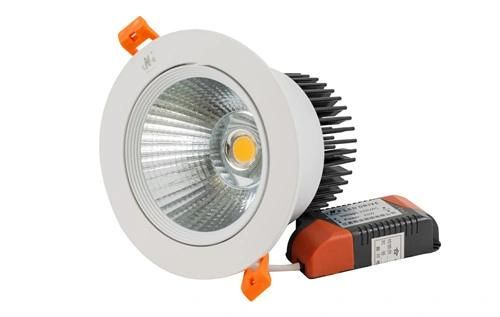

Product Description

Features:
1. Energy efficient and eco-friendly with LED light source;
2. High color rendering, high lumen output;
3. Long lifespan, less maintenance;
4. Direction adjustable;
5. Easy installation.

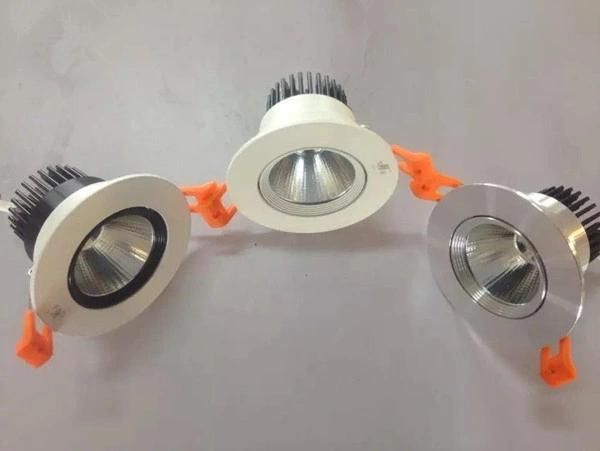

COB Downlight Series Specifications:

Item No.	Power	Flux	Dimensions (mm)	Cut Size (mm)	Carton Size (cm)	PCS/CTN
BN-CT3A/B	3W	220LM	Ф68*50	Ф60	43x18x37.5	50
BN-CT7A/B	7W	510LM	Ф90*67	Ф75	53X22X25.5	30
BN-CT12A/B	12W	860LM	Ф110*85	Ф95	59X24X33	30
BN-CT20A/B	20W	1850LM	Ф139*110	Ф120	75.5X31.5X23	20
BN-CT30A/B	30W	2400LM	Ф157*133	Ф140	87X36X27.5	20

Material: Aluminium, PMMA
Shape: Round
Input Voltage: 100-120Vac; 200-240Vac
Dimensions: Φ139x110mm
Cut Size: Φ120mm
Flux: 1850lm
Color Temperature: 3000/4000/6500K
CRI: >80
Beam Angle: 25°
IP Rating: IP20
Driver: Constant Current; External
Finish: A-White; B-Silver
Installation: Embedded
Applicaton: Residential and Commercial Projects
Lifespan: 30,000 hours
Warranty: 2 years

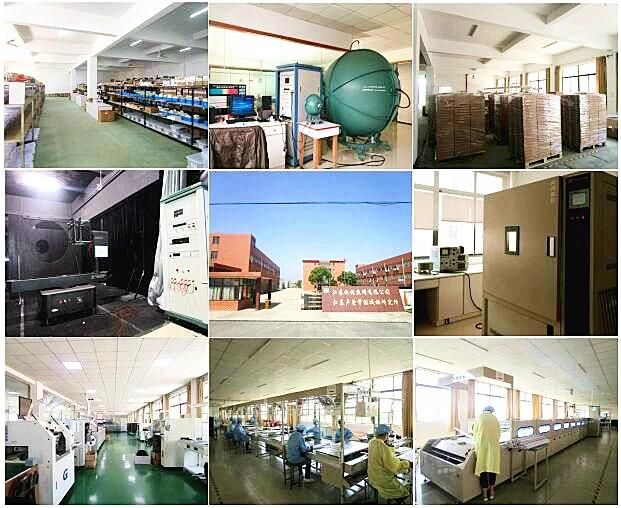

SHINUO LIGHTING Company Profile:
History: Established in 1998.
Products: LED Indoor & Outdoor Lighting.
Certificates: ISO9001, ISO14001, ISO45001, CCC, CQC, CE, FCC.
