• Dimmable：With Dimmable
• Appearance：Square
• Type：Ceiling,Hanging,Pendant
• Base Material：Aluminum
• Certification：CE, RoHS, SAA, SASO
• Voltage：85V-265V
• Beam Angle：120°
• PF：>0.9
• Efficiancy：80-130lm,W
• Warranty：5 Years
• CRI：>80
• IP/Ik：40,03
• Sdcm：<3
• Housing：Aluminum
• CCT：Cool White, Nature White, Warm White
• Flicker：No Flicking

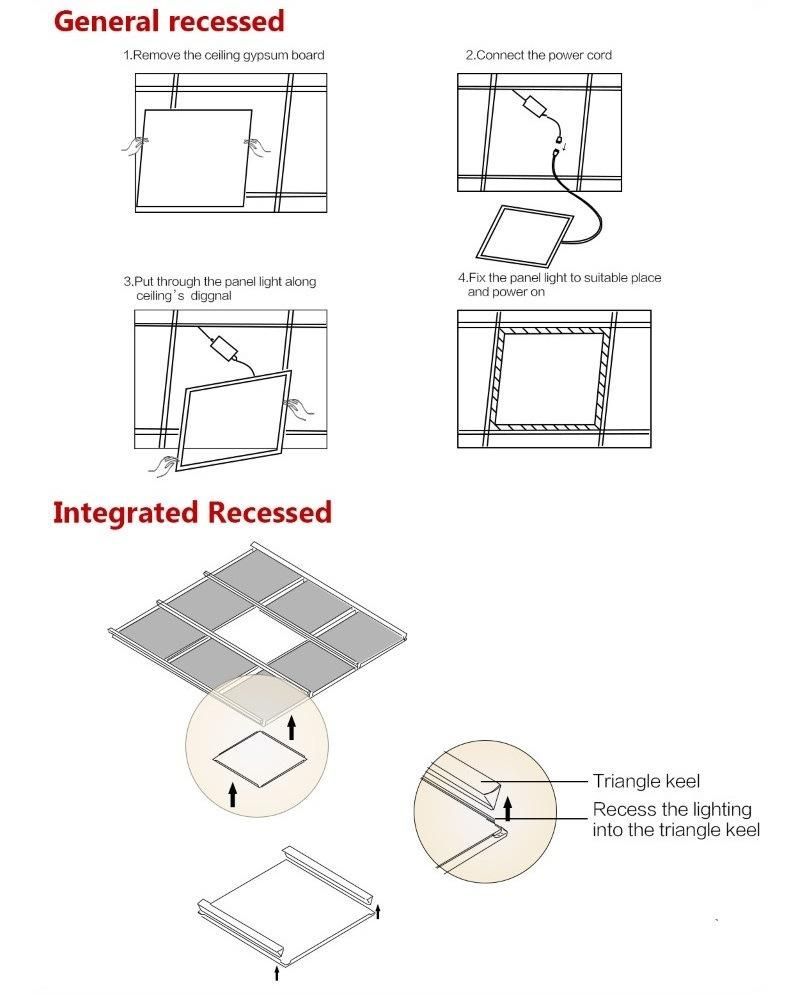

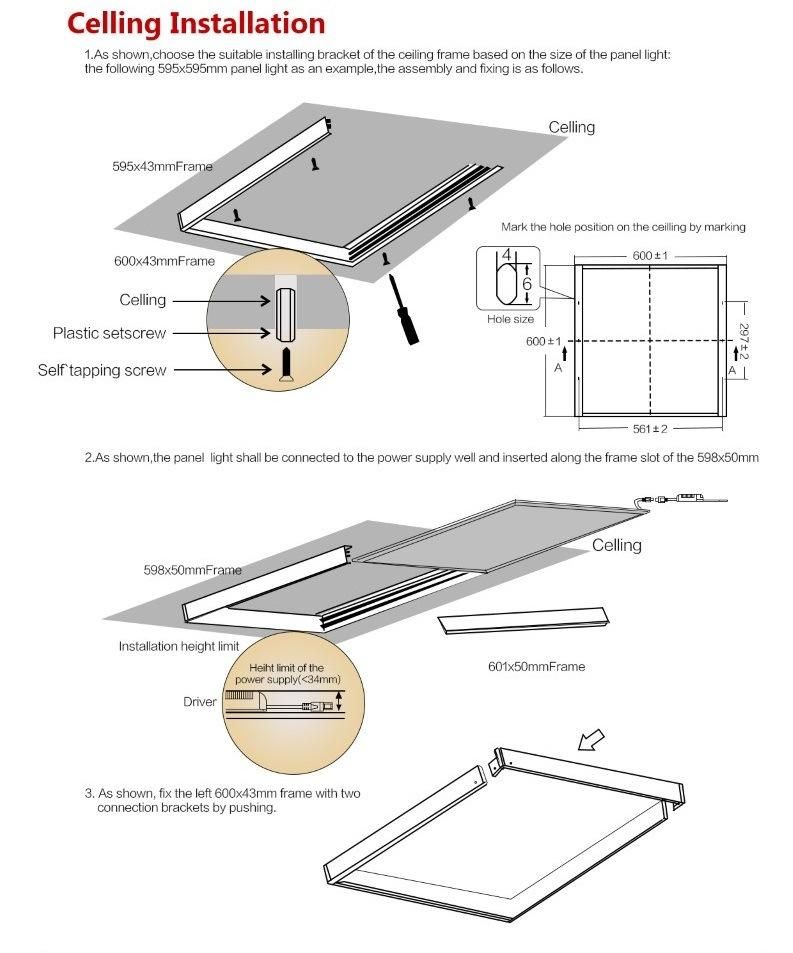

• Installation：Recessed or Embedded or Hanging
• LED：SMD4014
• Thd：<15

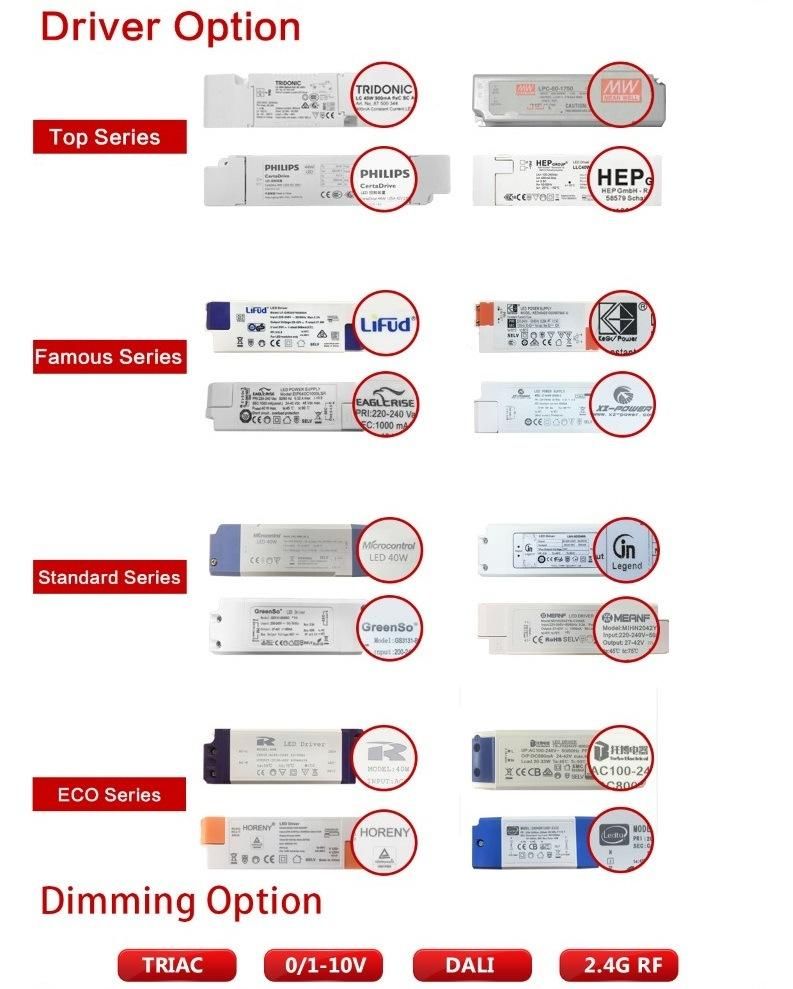

• Driver：Lifud
• Working Temperature：-45-55
• Life：50000
• Transport Package：Carton
• Specification：595*595*9mm
• Trademark：OEM
• Origin：China
• HS Code：9405409000
• Production Capacity：500000

Basic Info.

Dimmable With Dimmable Appearance Square Type Ceiling/Hanging/Pendant Base Material Aluminum Certification CE, RoHS, SAA, SASO Voltage 85V-265V Beam Angle 120° PF >0.9 Efficiancy 80-130lm/W Warranty 5 Years CRI >80 IP/Ik 40/03 Sdcm <3 Housing Aluminum CCT Cool White, Nature White, Warm White Flicker No Flicking Installation Recessed or Embedded or Hanging LED SMD4014 Thd <15 Driver Lifud Working Temperature -45-55 Life 50000 Transport Package Carton Specification 595*595*9mm Trademark OEM Origin China HS Code 9405409000 Production Capacity 500000

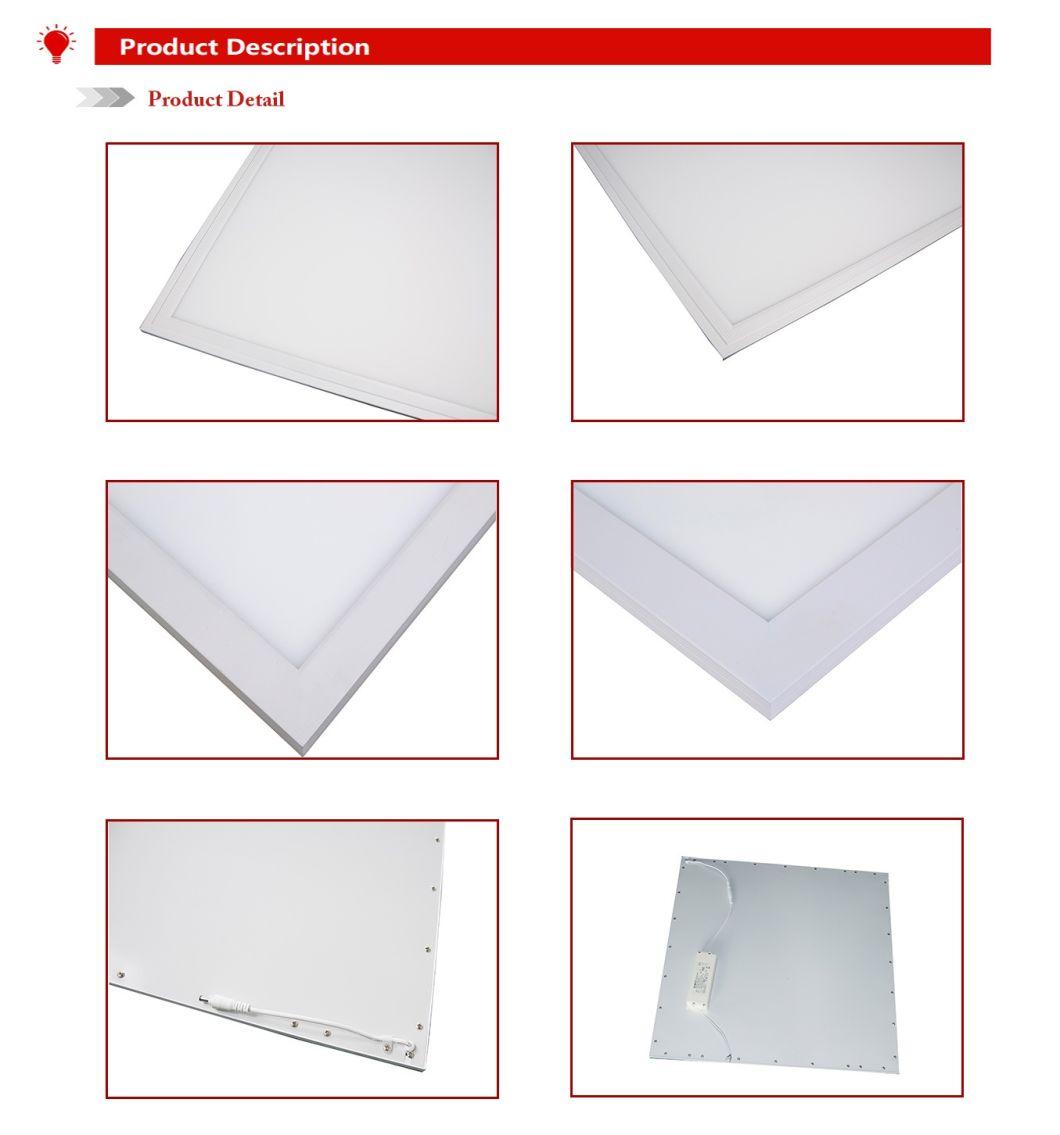

Product Description

Feature:
1.Standard replacement for traditional grille light.
2.Ultra slim design,aluminum frame, elegant appearance and comfortable light

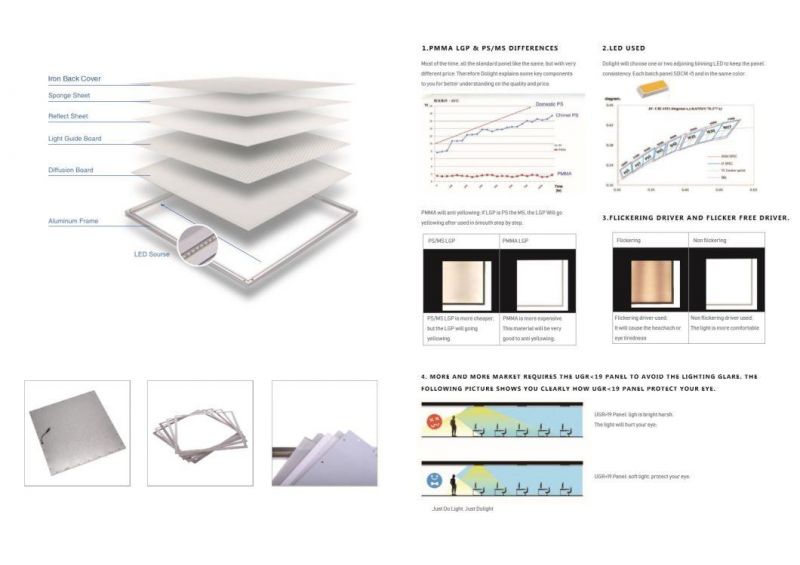

3.Optical PMMA LGP and optical PC fire resistant diffuser,nice and consistent lighting distribution.
4.High efficiency and super energy saving, saving 70% than fluorescent tube
5. Long lifespan,low optical decay, more than 50,000h lifespan
6. Different installation ways, flexible to use any where, Quick and easy installation to minimize retrofit costs
7.Smooth and even light.
8. Using aluminum alloy shell, with frosted poly cover, Have good heat dissipation ability and optical effects.

Specification:

Item	Size	Power	Material	CRI	Lumen Efficiancy	PF	Voltage
LLX-595*595*9mm	6060	36W	Aluminum Frame PMMA LGP PC DIFFUSER PET REFLECTOR	>80	80lm/W-130lm/W	≥0.9	AC220-240v
LLX-595*595*9mm	6060	40W	Aluminum Frame PMMA LGP PC DIFFUSER PET REFLECTOR	>80	80lm/W-130lm/W	≥0.9	AC220-240v
LLX-595*595*9mm	6060	48W	Aluminum Frame PMMA LGP PC DIFFUSER PET REFLECTOR	>80	80lm/W-130lm/W	≥0.9	AC220-240v
LLX-295*1195*9mm	30120	36W	Aluminum Frame PMMA LGP PC DIFFUSER PET REFLECTOR	>80	80lm/W-130lm/W	≥0.9	AC220-240v
LLX-295*1195*9mm	30120	40W	Aluminum Frame PMMA LGP PC DIFFUSER PET REFLECTOR	>80	80lm/W-130lm/W	≥0.9	AC220-240v
LLX-295*1195*9mm	30120	48W	Aluminum Frame PMMA LGP PC DIFFUSER PET REFLECTOR	>80	80lm/W-130lm/W	≥0.9	AC220-240v
LLX-595*1195*9mm	60120	60W	Aluminum Frame PMMA LGP PC DIFFUSER PET REFLECTOR	>80	80lm/W-130lm/W	≥0.9	AC220-240v
LLX-595*1195*9mm	60120	72W	Aluminum Frame PMMA LGP PC DIFFUSER PET REFLECTOR	>80	80lm/W-130lm/W	≥0.9	AC220-240v
