• Model NO.：LWQ-0108
• IP Rating：IP20
• Install Style：Surface Mounted
• Certification：CCC, CE, C-tick, EMC, SAA
• Voltage：220V
• Beam Angle：120 Degrees
• CRI：80, 90
• Dimmable：Dimmable Optional
• Working Temperature：-20 to 60 Celsius
• Working Lifetime：50000h
• Warranty：3 or 5 Years
• Transport Package：Individual Box+Master Carton

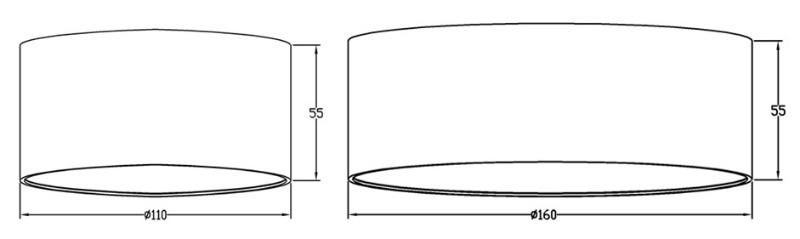

• Specification：D110*H55MM,D160*H55MM
• Trademark：Laviki
• Origin：Guangdong, China
• HS Code：9405100000
• Production Capacity：5000000 Pieces,Year

Basic Info.

Model NO. LWQ-0108 IP Rating IP20 Install Style Surface Mounted Certification CCC, CE, C-tick, EMC, SAA Voltage 220V Beam Angle 120 Degrees CRI 80, 90 Dimmable Dimmable Optional Working Temperature -20 to 60 Celsius Working Lifetime 50000h Warranty 3 or 5 Years Transport Package Individual Box+Master Carton Specification D110*H55MM/D160*H55MM Trademark Laviki Origin Guangdong, China HS Code 9405100000 Production Capacity 5000000 Pieces/Year

Product Description

Model No.	LWQ-0108
Housing Material	Aluminum

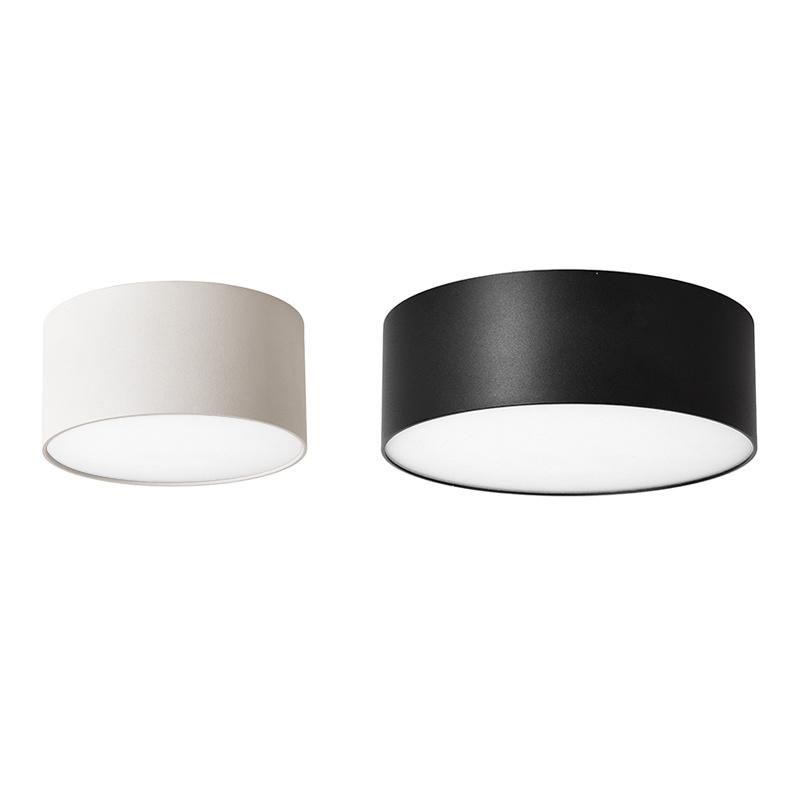

Finish Color	Matt White / Matt Black
Input Voltage/HZ	AC220-240V/50-60HZ
Input Power	12W/ 18W
LED Light Source	Osram SMD
LED Driver	Regular(Normal) / Eaglerise (CE&SAA&TUV)
CCT	3000K/4000K/5000K/6000K
CRI	80RA /90RA
Beam Angle	120°
Installation	Surface Mounted
Warranty	3 / 5 Years

 Company Information

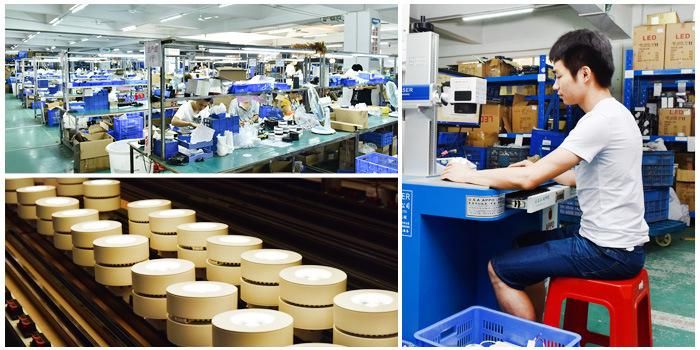

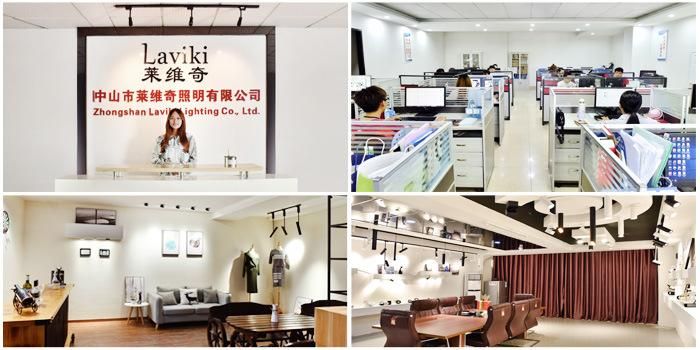

Since its establishment in 2012, Zhongshan Laviki Lighting Co.,Ltd has dedicated itself wholeheartedly to the development of high-quality LED luminaires for architectural lighting, with its product line currently covering LED track lights, LED spotlights, LED downlights etc. At the present, our company occupies an area of 7000 square meters with more than 70 working staff that comprises the main five functional units: Production Center, R&D Center, Overseas Sales Department, Domestic Sales Department and Financial Department.

Young, but aggressive. After years of exploratory efforts, we have now become one of the leading companies in the field of architectural lighting and have secured numerous patents on our products in terms of functionality and exterior appearance.

Featuring a 'compact, sleek and sophisticated' design, a number of our models are regarded by our customers worldwide as most ideal for high-end architectural lighting, with the 'zoomable' series of spotlights even acclaimed as a perfect option for museum and art gallery lighting by virtue of their powerful functions relating to the beam angle adjustment.

Constantly adhering to the principle of 'original design' and the philosophy of 'combining the technologies with arts', we dare to declare that we settle for nothing but the world's finest.




Certification
