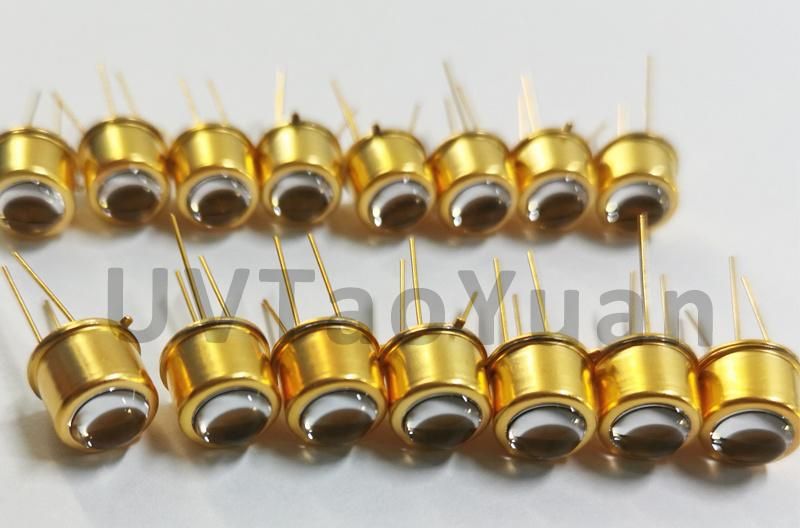

High Power UVC-LED Lamp 280nm To39 LED
TaoYuan Optoelectronics Shenzhen Co., Ltd.- Emitting Color：Purple
- Base Material：Copper
- Life：3,000-5,000h
- Power Source：DC
- Electric Current Type：20mA
- Input Voltage：5-8V
Base Info
- Model NO.：TY-TO39-280nm
- Voltage：5-8V
- Current：20mA
- Transport Package：Carton
- Specification：50pcs
- Trademark：UVTaoYuan
- Origin：China
- HS Code：9405990000
- Production Capacity：50000
Description
Wavelength (nm)Model Encapsulation mode Optical power [mW] Forward voltageV(V) Beam Angle IF = 20mA minimum maximum minimum maximum 280±2 TY-UV280-TO39HS-A TO39
HS 2.0 2.8 7.0~8.5 120
Features of UVC-LED 280nm:
A. Efficient: Sterilization effect can be up to 99.9% in short time.
B. Energy saving: Compared with the traditional lamps, the energy-saving is up to 80%
C. Environmental protection: Non-metal gas or harmful substances emitting technologies.
E. Instant start
3. Notes for UVC-LED 280nm:
A. Do not touch the LED, or will affect the normal light-emitting devices
B. Power devices must confirm the positive and negative, reversing polarity may damage the device
C. Strictly operate in accordance with electrical parameters too high voltage may damage the device
D. UVC-LED status should be avoided close observation with the naked eye.
HS
Features of UVC-LED 280nm:
A. Efficient: Sterilization effect can be up to 99.9% in short time.
B. Energy saving: Compared with the traditional lamps, the energy-saving is up to 80%
C. Environmental protection: Non-metal gas or harmful substances emitting technologies.
E. Instant start
3. Notes for UVC-LED 280nm:
A. Do not touch the LED, or will affect the normal light-emitting devices
B. Power devices must confirm the positive and negative, reversing polarity may damage the device
C. Strictly operate in accordance with electrical parameters too high voltage may damage the device
D. UVC-LED status should be avoided close observation with the naked eye.
