40W Edge-Lit 595*595*10 3years Warranty Dimmable Aluminum Slim LGP LED Panel Light for Office, School, Hospital Engineering Projects

Zhongshan HOSD Lighting Co., Ltd.
  • Housing Material：Aluminium
  • Emitting Color：Ww,Nw,Cw

Base Info

  • Model NO.：GEP6060-40W
  • Dimmable：Without Dimmable
  • Appearance：Square
  • Type：Recessed
  • Base Material：Aluminum
  • Certification：CE, RoHS, ISO9001, CCC
  • Voltage：85V-265V
  • Beam Angle：120°
  • Watt：40W
  • Input Voltage：85-265V
  • Ra：>80
  • PF：>0.95
  • Material：Aluminum Trim + +Acrylic LGP

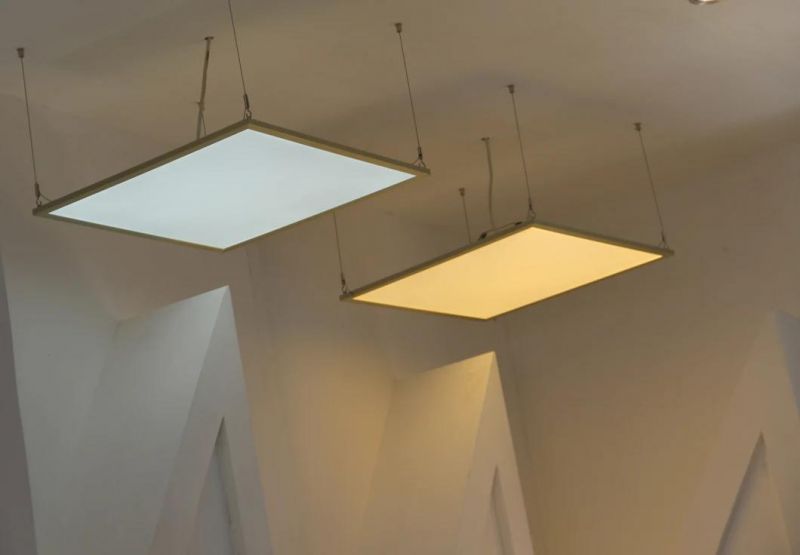

  • Option：Surface Mounted or Pendant
  • Warranty：3years
  • Driver Brand：Eropean Brand or Eaglerise etc.
  • Lumen：100lm,W
  • Transport Package：Carton
  • Specification：595*595*10
  • Trademark：HOSD
  • Origin：Zhongshan, China
  • HS Code：9405409000
  • Production Capacity：3000PCS,Mounth

Description

Basic Info.

Model NO. GEP6060-40W Dimmable Without Dimmable Appearance Square Type Recessed Base Material Aluminum Certification CE, RoHS, ISO9001, CCC Voltage 85V-265V Beam Angle 120° Watt 40W Input Voltage 85-265V Ra >80 PF >0.95 Material Aluminum Trim + +Acrylic LGP Option Surface Mounted or Pendant Warranty 3years Driver Brand Eropean Brand or Eaglerise etc. Lumen 100lm/W Transport Package Carton Specification 595*595*10 Trademark HOSD Origin Zhongshan, China HS Code 9405409000 Production Capacity 3000PCS/Mounth

Product Description

40W edge-lit 595*595*10 3years Warranty High power factor dimmable Aluminum slim LGP LED Panel Light for office, school, hostpital Engineering Projects:

Item No.Power  (W)SMD chipCRILumens (lm)Dimension                 (mm)Cut-out (mm)Q'ty /CTN  (PCS)Meas./Ctn                (LxWxH cm)
GEP6060-36W36W2835*180PCS>803600600*600*10      595*595*10585*5855 69*21*67
GEP6060-40W40W2835*200PCS>804000600*600*10      595*595*10585*585569*21*67
GEP6060-48W48W2835*240PCS>804800600*600*10      595*595*10585*585569*21*67
GEP30120-36W36W2835*180PCS>803600300*1200*10  295*1095*10285*11855128*21*37
GEP60120-72W72W2835*360PCS>807200600*1200*10   595*1095*10585*11853128*12*66


EDGE-LIT ENGINEERING PANEL LIGHT FEATURES:
* Aluminum trim slim recessed LED panel light
* Edge-lit Epistar SMD Led chips, high CRI and brightness
* 3mm PMMA/acrylic light guild plate, high lumen output, no dark
* No UV and IR radiation, no-glare, soft and tender light
* Constant current driver, Triac,0~10V or DALI dimmable option
* Instant start, no flickering, no humming, no electric wave driver
* Thick aluminum slim trim housing, nice heat dissipation
* Color Temperature: warm white, nature white or day white
* Less than 3% light decay in 10000hrs testing, SDCM≤5
* Operating temperature: -25ºC~55ºC
* Energy saving up to 60% comparing to fluorescent lamp
* Long Life span up to 50,000 hours
* Applied to kitchen, offices, hospital, hotel and shopping mall Etc.


40W Edge-Lit 595*595*10 3years Warranty Dimmable Aluminum Slim LGP LED Panel Light for Office, School, Hospital Engineering Projects40W Edge-Lit 595*595*10 3years Warranty Dimmable Aluminum Slim LGP LED Panel Light for Office, School, Hospital Engineering Projects
 40W Edge-Lit 595*595*10 3years Warranty Dimmable Aluminum Slim LGP LED Panel Light for Office, School, Hospital Engineering Projects40W Edge-Lit 595*595*10 3years Warranty Dimmable Aluminum Slim LGP LED Panel Light for Office, School, Hospital Engineering Projects







40W Edge-Lit 595*595*10 3years Warranty Dimmable Aluminum Slim LGP LED Panel Light for Office, School, Hospital Engineering ProjectsFAQ:
Q1: Are you a factory manufacturer?

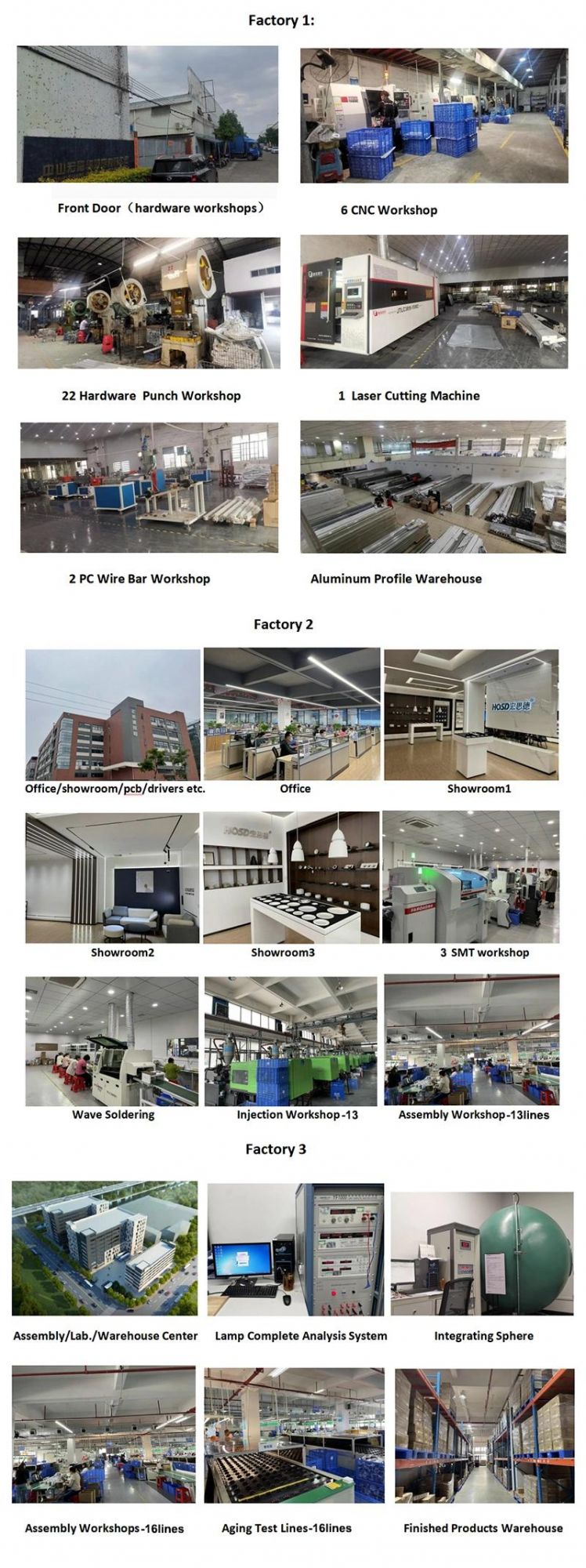

A1: Yes, we are. HOSD Lighting is a purely and professional original manufacturer, we have three own factories now.

Q2. Do you have the ability to develop OEM new products and how long to make mould samples?
A2: Yes, our structure engineers can make CAD and 3D drawing and development new products based on the requirements of client. we have mould workshops of punched, injection and die-casting products, mould samples are faster much.

Q3. Can I have a sample order for the item we insterest?
A3: Yes, we accept sample order to test and check quality. Mixed models are acceptable.
Q4. What's the lead time for sample and bulk order?
A4: 3-5 days for samples, 2-4 weeks for batch bulk order.

Q5. What is the quality process of lights and what is warranty time of products?
A5: Our factory passed GBT19001-2016 and ISO9001-2015, 100% finished products passed test aging before packing. we offer 2-5 years guarrantee to all our products.

Q6. How to deal with the products fail in period of guarantee?
A6. For parts fail in guarantee, we will send free replacements with new order for small quantity. For fail batch products, we will repair and resend them without our own shipping account or we negotiate the best solution together.

Q7. What type test report can you offer for your led indoor and outdoor light?
A7. We have own lab. and can offer IES report, Photometric report, LM80 reports Ete
