• Model NO.：LM-TP-1203-36
• Base Material：Metal
• Certification：CE, RoHS, UL, ISO9001, SAA, TUV Dlc CB
• Voltage：100-240V
• Beam Angle：120degree
• Long Life Span：50000 Hours
• High CRI：Ra>80
• Chip Brand：SMD2835
• Low Glare：Ugr<22
• High Color Consistency：Macadam3
• Drivers：Lifud Meanwell
• Feature：Microwave Sensor Motion&Emergency
• Dimming Ways：Traic
• Efficacy：100lm,W
• PF：>0.9
• Transport Package：10PCS,Carton 37.7cm X 33.3cm X 35cm , 13 Kg
• Specification：595*295*9mm
• Trademark：lumin led lighting
• Origin：China
• HS Code：94051000
• Production Capacity：20000PCS, Month

Basic Info.

Model NO. LM-TP-1203-36 Base Material Metal Certification CE, RoHS, UL, ISO9001, SAA, TUV Dlc CB Voltage 100-240V Beam Angle 120degree Long Life Span 50000 Hours High CRI Ra>80 Chip Brand SMD2835 Low Glare Ugr<22 High Color Consistency Macadam3 Drivers Lifud Meanwell Feature Microwave Sensor Motion&Emergency Dimming Ways Traic Efficacy 100lm/W PF >0.9 Transport Package 10PCS/Carton 37.7cm X 33.3cm X 35cm / 13 Kg Specification 595*295*9mm Trademark lumin led lighting Origin China HS Code 94051000 Production Capacity 20000PCS/ Month

Product Description

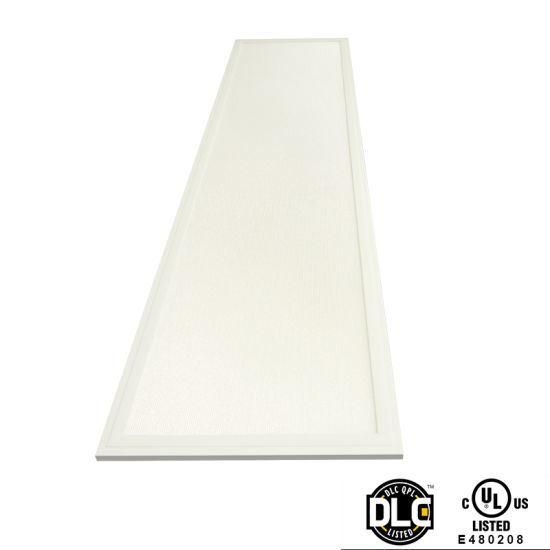

5 Years Warranty Triac Dimmable Ceiling LED Panel Light 1200X300






Specification


Model	LM-TP-13-40
Power	40W
Luminous	4000LM
Input Voltage	AC100-240V
CRI	Ra>90
CCT	3000K /4000K/5000K/6000K
Dimmable Solution	0-10V    DALI    Triac

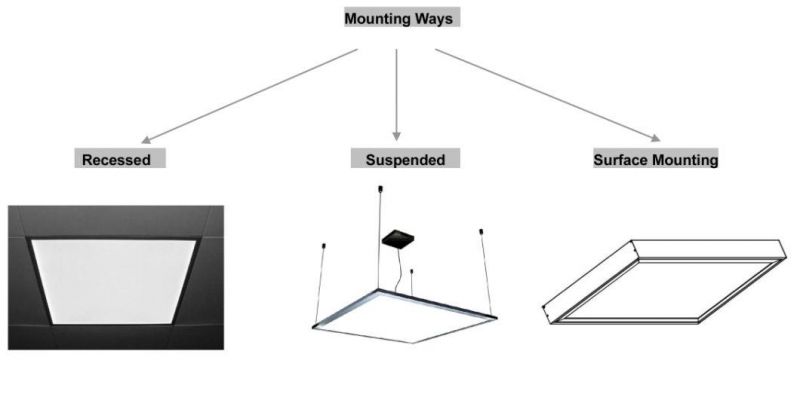

Installation	Suspended, Recessed, Surface mounted
Lifetime	Designed to 50,000 hours
Light Efficacy	100 LM/W
IP Rating	IP40
Warranty	5 year limited
Dimension	1195*295*9MM
Weight	3.6KG

Features

Structure & Material
·9 mm super slim design. White / silver finish for frame surface treatment
·High hardness aero aluminum alloy material 6063
·Good heat dissipation, weighed 400G
·IP rates 40,used indoors
LED & Optics
·LM-80 listed LEDs realize high luminous efficacy & low optical decay
·50,000 hours design lifespan, 6 times than fluorescent tube
·High transmittance PMMA Light Guide Plate
·Optical fire-resistant PC diffuser
·Beam Angle: 120º
Electrics
·High efficiency power supply, ENEC listed
·Input Voltage: AC100-240V, 50/60Hz
·Power Factor: >0.98
·Dimming solutions can be customized
Environmentally friendly
·No glare, mercury, ultraviolet, infrared or other hazardous substances
·Working Temperature: -25ºC to 55ºC

 Installation





1. Fixtures must be operated by a licensed electrician.
2. Check if fixtures are sloid and in good condition once packaging is open.
3. Do not let fixture fall down from ceiling system or clash to hard stuff.
4. Make sure that the cable of fixture is long enough to connect. Do not knot or pull the cable strongly while wiring.
5. Do connect input end of fixture to output end of LED driver.
6. Wiring must be firm and tight with insulation protection well. Be aware of electricity shock.
7. Keep fixture and LED driver away from water or liquid, free from electric leakage and electricity shock.
8. Must use LED driver approved by Lumin, otherwise, fixtures may not work normally, and may be damaged, may cause unexpected incidents. Lumin will not bear any responsibilities due to such deeds.

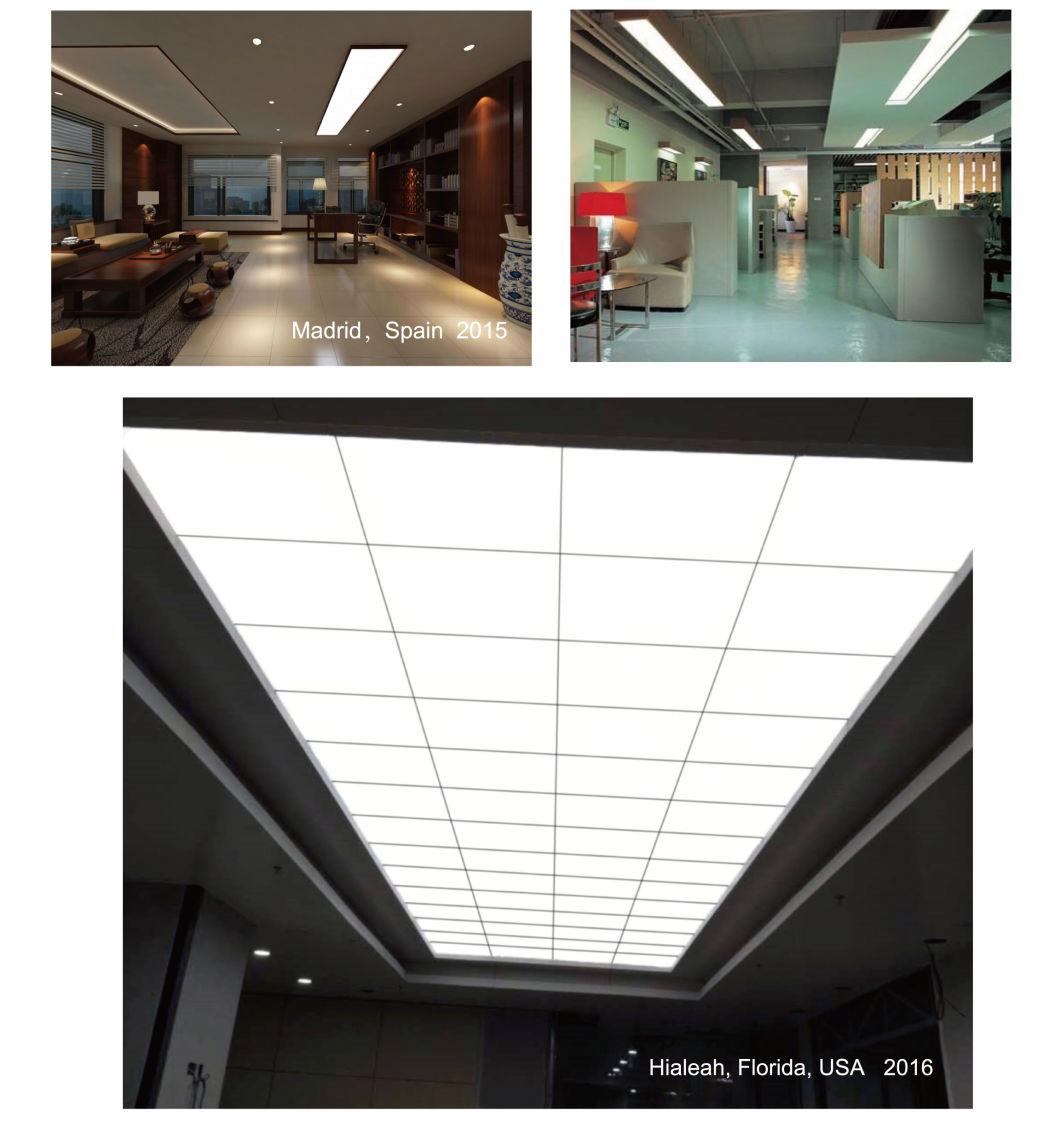

Applications& Project
Applications: It is widely used in the offices, workshops, shopping malls, schools, libraries, hospitals, hotels,
retail outlets, living rooms, airports, entertainment spaces, etc



Lumin Led Lighting




Founded in 2008 an based in Shenzhen, Lumin Lighting is a fast-growing semiconductor lighting manufacturer and supplier in China. Lumin Lighting has provided quality LED lighting products and green lighting solutions to many Europen countries and America. LED panel light, LED pendant light, and LED downlight is included in key product line and customized lighting solutions is provided.

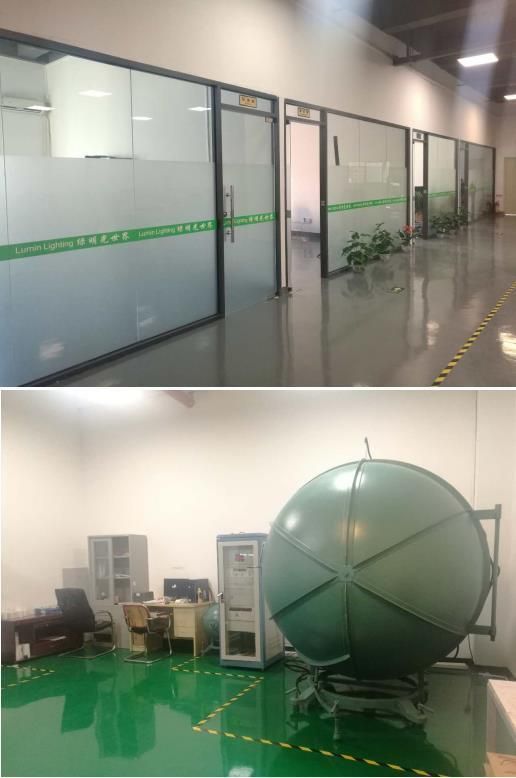

By seriously carrying out ISO 9001 Quality System and ISO Environment Management System,the quality is guaranteed. Our products have been awarded with certificates of TUV CE, RoHS, SAA,CB, UL, and DLC.

Best service
(1) Your inquiry will be replied within 12 hours;
(2) Fast sample delivery: 3 days around.
(3) Best-trained and experienced sales staffs follow up with your inquiries and orders;
(4) OEM/ODM services: all can be customized;
(5) Distributor, agent, investor and more are welcome;
(6)  3 year limited warranty: spare parts can be offered along with orders.
