• Model NO.：LM-PL40Y1430
• Base Material：Metal
• Certification：CE, RoHS, UL, ISO9001, SAA, CUL, CB,TUV
• Voltage：85V-265V
• Beam Angle：120°
• Lumen：4000lm
• PF：>0.95
• Opertating Temperature：-20~+40 Deg
• Storage Temperature：-40~+85 Deg
• Transport Package：Carton
• Specification：1*4 ft
• Trademark：Lumin
• Origin：Shenzhen
• HS Code：9405409000
• Production Capacity：10000PCS,Month

Basic Info.

Model NO. LM-PL40Y1430 Base Material Metal Certification CE, RoHS, UL, ISO9001, SAA, CUL, CB,TUV Voltage 85V-265V Beam Angle 120° Lumen 4000lm PF >0.95 Opertating Temperature -20~+40 Deg Storage Temperature -40~+85 Deg Transport Package Carton Specification 1*4 ft Trademark Lumin Origin Shenzhen HS Code 9405409000 Production Capacity 10000PCS/Month

Product Description

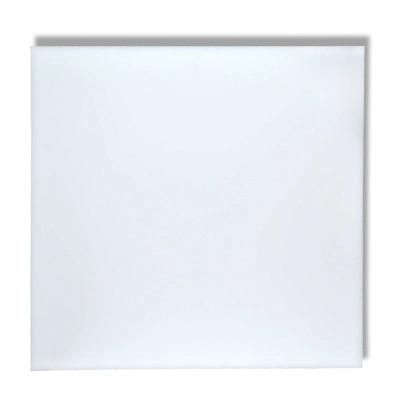

New flat panel light  1*4 ft   frameless led panel light  with UL certificate

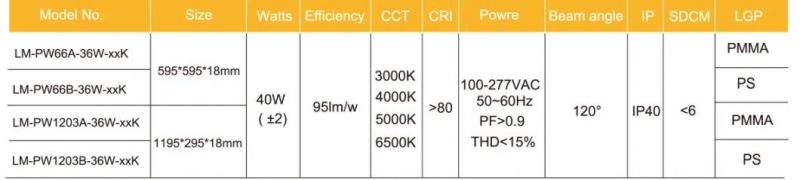

Specification
-------------------------------------------------------------------------------------------------------
---------------


 Features
-------------------------------------------------------------------------------------------------------
---------------
1. Innovative frameless design,elegant appearance light,Can be joined together without limited,Perfect visual effect-no extra frame on the ceiling once installed comparing to framed LED Panel.
2. Optical PMMA LGP,optical PC fire resistant diffuser.
3. Energy saving up to 80%
4. High brightness: > 100LM /W
5. Nice lighting distribution: > 90 %
6. High color rendering index:  Ra> 80/90/95
7.Stable LEDs light source design solution: use the best 4014 LEDs ---- high CRI, high brightness, and low light decay.
8. Excellent circuit design, each group of LEDs work separately, avoiding any problem of lighting output caused or influenced by single faulty LED.
9. New high efficiency constant current driver: wide range of input voltage : AC85-265V.
10.All size can be customized
11. All light color are available
12.Dimmable solutions: 0-10V, Traic, Dali
13.More IP Rating: IP40
14. Instant starting time: < 1.2 s, and no noise as it starts.
15.With special crafts, luminous is 3% higher than other same products from the market
16.Famous LED source and driver chosen for the LED Panel
17. Environment friendly : No mecury, no harmness to human healthy and the earth.

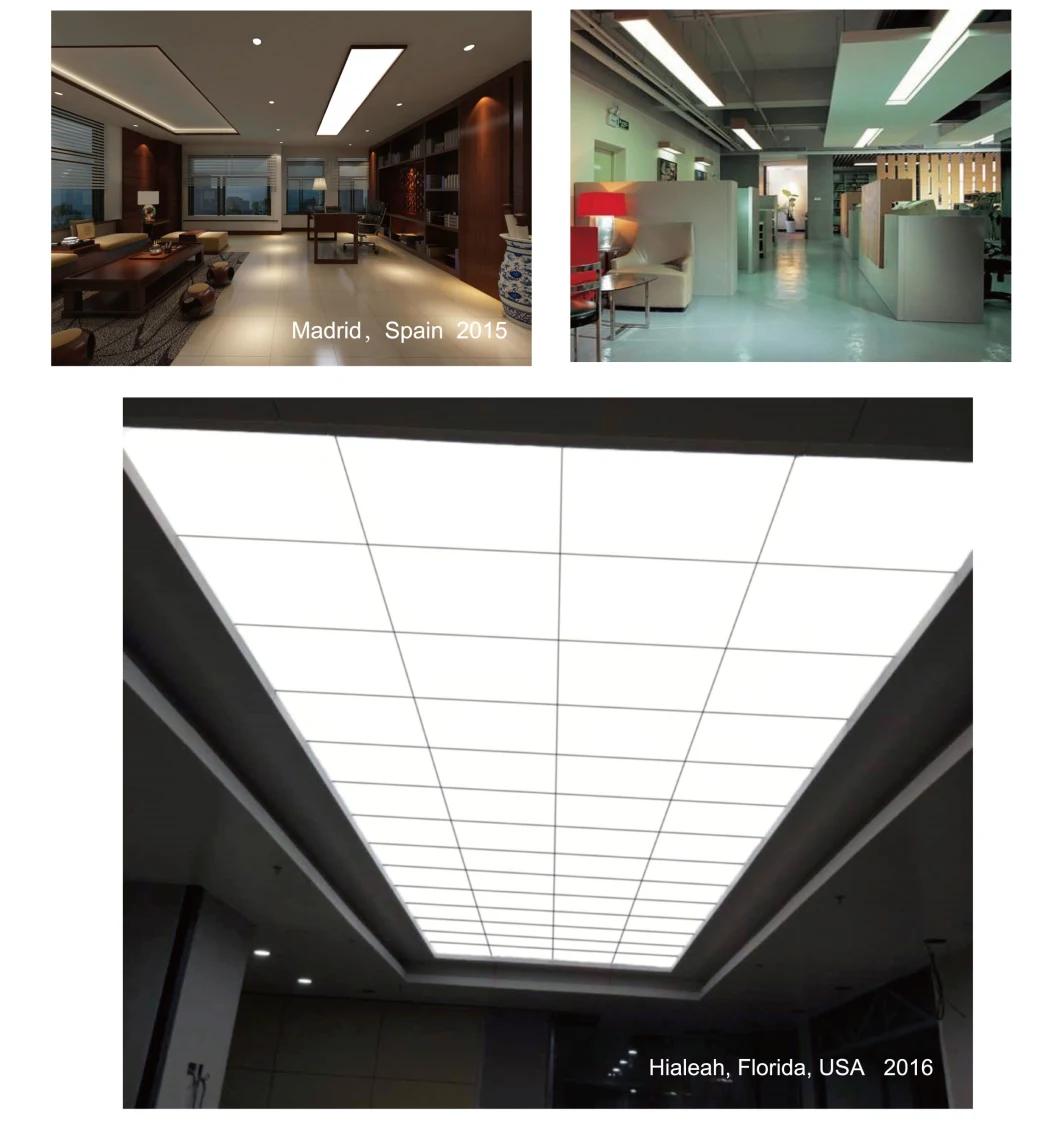

Application
-------------------------------------------------------------------------------------------------------
---------------
         Widely used for home lighting, office lighting, supermarket lighting and other place

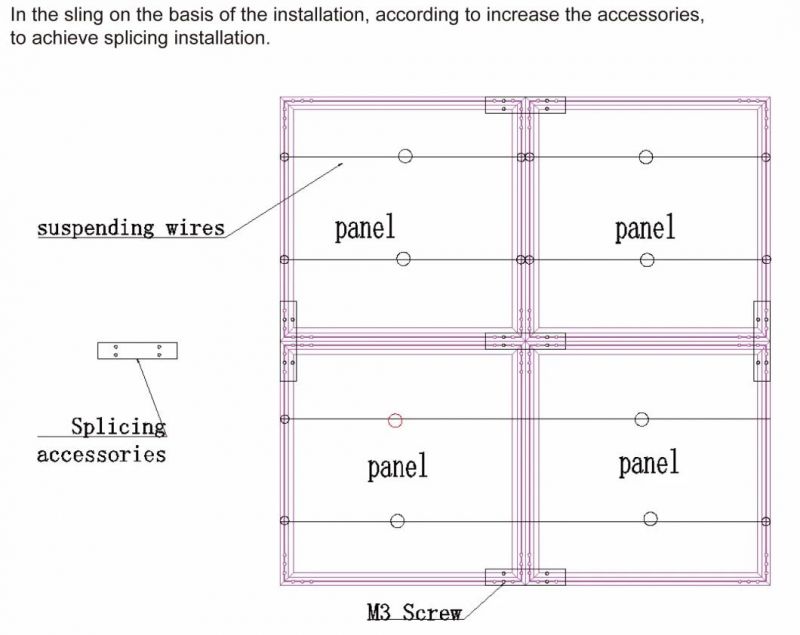

Installation
-------------------------------------------------------------------------------------------------------
---------------




Trade Terms
-------------------------------------------------------------------------------------------------------
---------------
1. Samples will be delivered in 3-5days.
2. Payment terms: 100% T/T or Western Union for small order; 30% deposit and 70% T/T for large order.
3. Delivery time: 5-7 days for small orders; 15-20 days for big orders.
4. Shipping port: Shenzhen

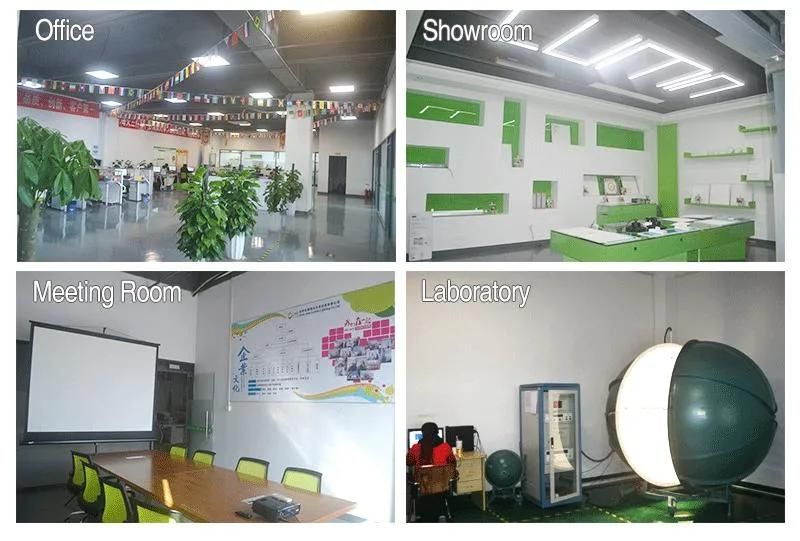

Company Profile




-------------------------------------------------------------------------------------------------------
---------------
Based in Shenzhen, Lumin Lighting is a fast-growing semiconductor lighting manufacturer and supplier in China. Lumin Lighting was founed on November 17, 2008. Since its founding, Lumin Lighting is committed to developing, manufacturing, and popularizing LED lighting products, responding to the government's policy of energy-saving, emission reduction, and maintainable development. Nowadays, Lumin Lighting has already been successful in providing quality LED lighting products and green lighting solutions to thousands of families, institutions, and communities worldwide.

Lumin Lighting focus on innovating high-end and high-quality office and commercial lighting business. So our key product lines mainly include LED panel light, LED pendant light, and LED downlight. Meantime, Lumin Lighting also provides professional customized lighting solutions to customers.
