• Model NO.：LM-P66-36WH-CCT
• Base Material：Metal
• Certification：CE, UL, ISO9001, SAA, TUV-CB, C-Tick, Dlc
• Voltage：100-270VAC
• Beam Angle：120degree
• Lumen Effective：80-120lm,W
• Power：40W
• Warranty Year：3
• LED Q′ty (PCS)：216
• Flicker：Flicker Free
• Transport Package：Carton(68cm*63cm*3.5cm)
• Specification：595mm*595mm*9mm
• Trademark：Lumin
• Origin：Shenzhen, China
• HS Code：9405100000
• Production Capacity：20, 000 Pieces,Month

Basic Info.

Model NO. LM-P66-36WH-CCT Base Material Metal Certification CE, UL, ISO9001, SAA, TUV-CB, C-Tick, Dlc Voltage 100-270VAC Beam Angle 120degree Lumen Effective 80-120lm/W Power 40W Warranty Year 3 LED Q′ty (PCS) 216 Flicker Flicker Free Transport Package Carton(68cm*63cm*3.5cm) Specification 595mm*595mm*9mm Trademark Lumin Origin Shenzhen, China HS Code 9405100000 Production Capacity 20, 000 Pieces/Month

Product Description

LM-P66-36WH-CCT, one of the latest product made by Shenzhen Lumin Lighting Co.,Ltd, is a product with ultra-slim design, elegant appearance, comfortable light, optical PMMA LGP and optical PC fire resistant diffuser. We call it  Tunable white LED Panel light. It is very popular in the European market now.


 Features

  (1) Ultra-slim design, elegant appearance and comfortable light
  (2) Optical PMMA LGP and optical PC fire resistant diffuser
  (3) High efficiency and super energy saving, saving 70% than fluorescent tube
  (4) Long lifespan,low optical decay, more than 50,000h lifespan
  (5) Different installation ways, flexible to use any where

 Application

Offices, workshops, shopping malls, schools, libraries, hospitals, hotels, retail outlets, living roms, airports, entertainment spaces, etc.

 Replacement

  Replace Fluorescent tube and grille lamp with fluorescent tubes, saving 70% energy.

 Parameter

	LM-P66-36WH-CCT
Input Power	40W
Luminous Flux	3800~4000LM
Input Voltage	AC 100-240V
CRI	>80
CCT	3000K(WW)- 6000K(CW)
Dimming	CCT & Brightness
Mounting	Embedded, Surface Mounted, Suspended
Life Time	Designed to 50,000 hours
Warranty	3 years limited
IP Rating	IP20
Size	595X595MM
Weight	3.2KG

  Benefits

  (1) Longer lifetime than traditional light.
  (2) 80% Energy-saving over traditional light .
  (3) Minimum maintenance costs.
  (4) Quick and easy installation to minimize retrofit costs
  (5) Using aluminum alloy shell, with frosted poly cover, Have good heat dissipation ability and
       optical effects.

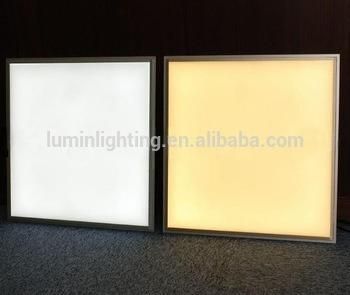

Pictures of the Product









About LUMIN

Based in Shenzhen, Lumin Lighting is a fast-growing semiconductor lighting manufacturer and suppliers in China. Lumin Lighting  was founded on November 17, 2008. Since its founding, Lumin Lighting is committed to developing, manufacturing, and popularizing LED lighting products, responding to the government policy of energy-saving, emission reduction, and maintainable development.

Lumin Lighting product lines mainly include LED Panel, LED downlight, LED bulbs, and outdoor lights. Meantime, Lumin Lighting also provides customized lighting solutions to customers.

Lumin Lighting takes product quality as our lifeline. We focus on quality during the whole production process by seriously carrying out ISO 9001 Quality System and ISO Environment Management System.



Best Services
(1) Your inquiry will be replied within 12 hours
(2) Fast sample delivery: 3 days around
(3) Best-trained and experienced sales staffs follow up with your inquiries and orders
(4) OEM/ODM services: all can be customized
(5) Distributor, agent, investor and more are welcome
(6) 5-year limited warranty: spare parts can be offered along with orders.
