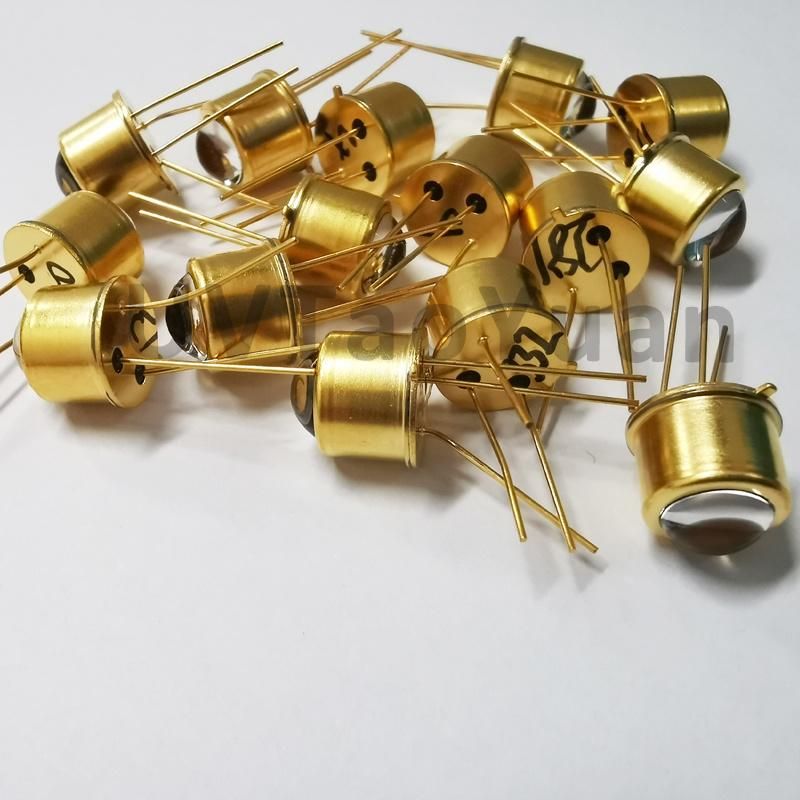

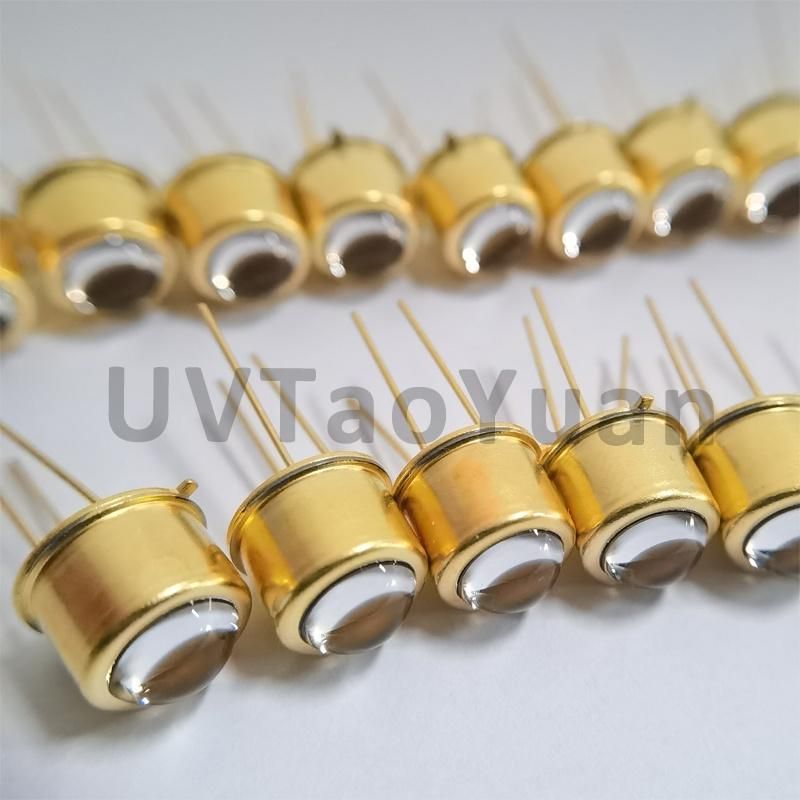

265nm UVC LED To39 Package Ultraviolet Light Chip
TaoYuan Optoelectronics Shenzhen Co., Ltd.- Emitting Color：Purple
- Power：0.5-1MW
- Base Material：Copper
- Usage：Disinfection
- Life：3,000-5,000h
- Power Source：DC
Base Info
- Model NO.：TY-TO39-265nm-A
- Electric Current Type：20mA
- Input Voltage：5-8V

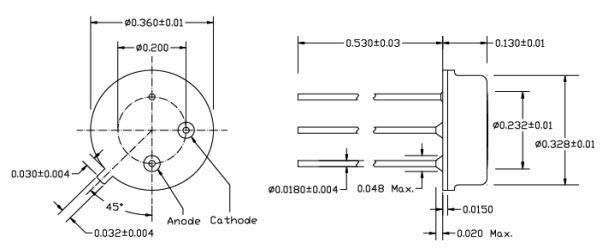

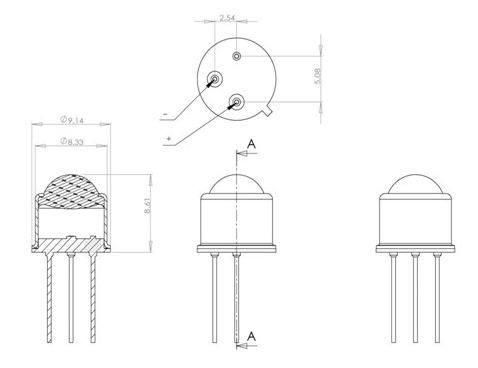

- Size：8.0*14*3.0
- Transport Package：50PCS
- Specification：PCS
- Trademark：UVTaoYuan
- Origin：China
- HS Code：9405990000
- Production Capacity：50, 000 PCS,Year
Description
ModelSize Optical power(MW) Wavelength Forward voltage Beam Angle IF=20mA VF[V] Minimum Maximum Minimum Maximum TY-UVP8D265 8.0*14*3.0 0.5 1 265 7 8.5 140
1. DUV LED 260nm features:
a.efficient: the effect of sterilization is up to 99.9% during a short period of time.
b.Energy saving: Compared with the traditional fluorescent lamp, energy saving is 80%.
c.Environmental protection: non-metal gas or harmful substances emitting technologies.
d.long life.
2.DUV LED 260nm Note:
a.Do not touch the LED, or will affect the normal light-emitting devices
b.Power devices must confirm the positive and negative, reversing polarity may damage the device
c.Strictly operate in accordance with electrical parameters too high voltage may damage the device
d.DUV LED status should be avoided close observation with the naked eye.
1. DUV LED 260nm features:
a.efficient: the effect of sterilization is up to 99.9% during a short period of time.
b.Energy saving: Compared with the traditional fluorescent lamp, energy saving is 80%.
c.Environmental protection: non-metal gas or harmful substances emitting technologies.
d.long life.
2.DUV LED 260nm Note:
a.Do not touch the LED, or will affect the normal light-emitting devices
b.Power devices must confirm the positive and negative, reversing polarity may damage the device
c.Strictly operate in accordance with electrical parameters too high voltage may damage the device
d.DUV LED status should be avoided close observation with the naked eye.
