• Model NO.：JGK515-180W
• Certification：CE, RoHS
• Beam Angle：120°
• LED Chips：Bridgelux
• Size：380*380*515
• PF：95
• Fixture Efficiency：95%
• Installation：2-3m
• Transport Package：Natual Packing
• Specification：CE ROHS
• Trademark：JIAN TECHNOLOGY
• Origin：China

Basic Info.

Model NO. JGK515-180W Certification CE, RoHS Beam Angle 120° LED Chips Bridgelux Size 380*380*515 PF 95 Fixture Efficiency 95% Installation 2-3m Transport Package Natual Packing Specification CE ROHS Trademark JIAN TECHNOLOGY Origin China

Product Description

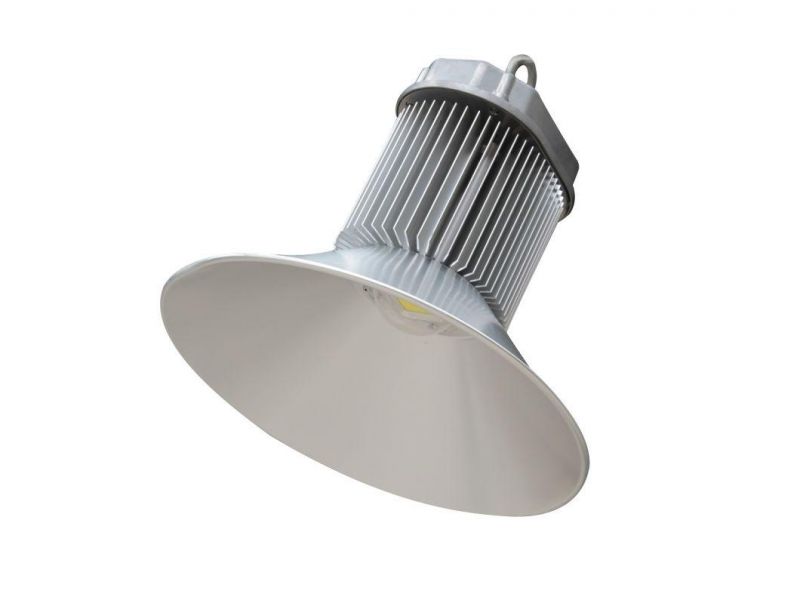

LED High bay light
Item No.: JAGK515 -180W
Work voltage: AC(85-265V)
LEDPower: 180W
Luminosity: 16000-18000LM
Power factor (PF): >0.95
Fixture efficiency: >95%
Color temperature: 2700-7000K
LED Life: >50000Hrs

1. Application

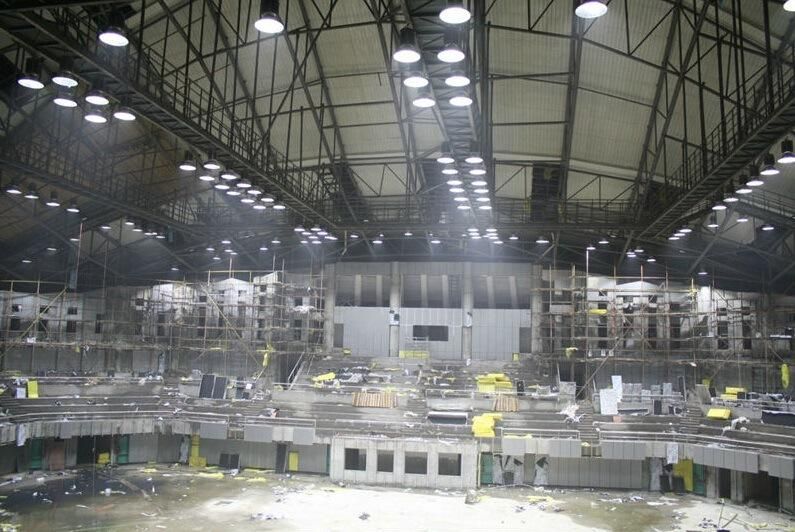

Apply to workshops, factory, buildings, gyms, storehouse, hall, supermarket

2. Feature

(1)Using imported chip, integrated packaging single high power LED, the lamp has the advantage of longer life, power saving, no pollution and pure color. After installation, almost don't need to change the light source, greatly reduced the cost.
(2)The light source with high luminous efficiencylow power dissipationexcellent color rendering and the power factor>0.95. Without glare, effectively avoided the harm to workers' eyes, improved the work efficiency.
(3)Using Aluminium alloy lamp housing and 4mm toughened glass. The silicone insole makes the waterproofness of lamp excellent, 180 degree rotating, easy to install.
(4)The use of Aluminium alloy lamp housing and the overall moulded light technology ensures a good cooling effect, reduces the light decline.
(5)Unique constant current source switches to ensure the stability of the work of each LED.
(6)Modern form, excellent design, protecting grade reaches IP65.

Code	JAGK515 -180W
Working voltage	AC( 85- 265V) / 50- 60HZ
Power(W)	180
PF	>0.95
Lumen	90- 100lm/W
Total Lumen(Lm)	16000-18000LM
Efficency	>95%
Color temperature(K)	2700-7000
Lifespan(h)	>50,000
