• Model NO.：LM-PL-13-40
• Base Material：Metal
• Certification：CE, RoHS, UL, SAA
• Voltage：85V-265V
• Beam Angle：120°
• Light Efficacy：100 Lm,W
• CRI：Ra>80
• IP Rating：IP20
• Light Soure：SMD2835
• Transport Package：10PCS,Carton
• Specification：1200*300*30mm
• Trademark：Lumin
• Origin：Shenzhen, China
• HS Code：9405100000
• Production Capacity：20000pieces,Month

Basic Info.

Model NO. LM-PL-13-40 Base Material Metal Certification CE, RoHS, UL, SAA Voltage 85V-265V Beam Angle 120° Light Efficacy 100 Lm/W CRI Ra>80 IP Rating IP20 Light Soure SMD2835 Transport Package 10PCS/Carton Specification 1200*300*30mm Trademark Lumin Origin Shenzhen, China HS Code 9405100000 Production Capacity 20000pieces/Month

Product Description

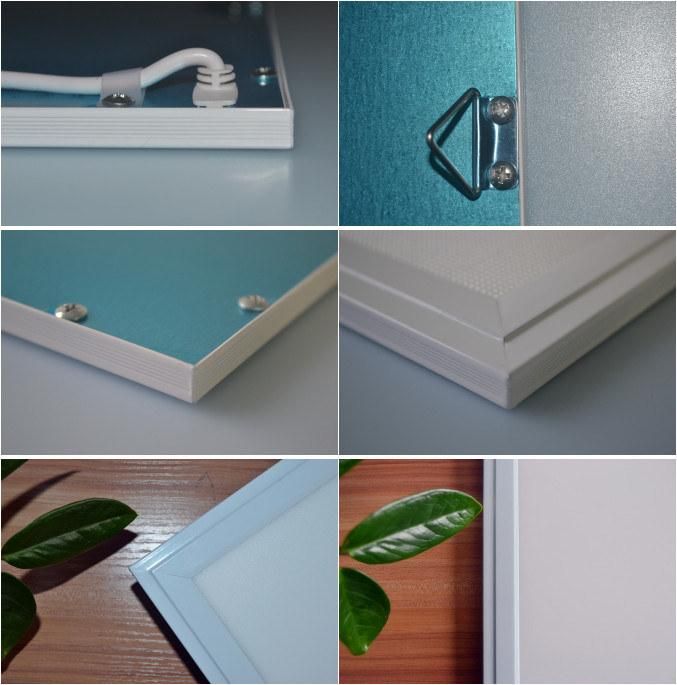

1200*300mm 40W PMMA Aluminum 9mm Dimmable LED Panel Light


A professional LED panel light manufacturer and supplier, and an outstanding led panel light designer   -- Lumin Lighting

Model	LM-PL-13-40
Power	40W
Luminous	4000 LM
Input Voltage	AC90 ~ 265 V
CRI	Ra>82
UGR	≤22
CCT	3000K /4000K/5000K/6000K
Dimmable Solution	0-10V    DALI    Triac
Installation	Suspended,  Embedded , Surface mounted
Lifetime	Designed to 50,000 hours
Light Efficacy	>100 LM/W
IP Rating	IP40
Warranty	5year limited
Dimension	295*1195*9MM
Weight	3.8KG

Our Features
1.   100 lm/w
       Remarkable light efficiency
       With the panel 28W 1200*300mm,you realize more
           than 60% energy savings compared to a classic
          4×18W T8 Luminaire.

2.    CRI 82
           Excellent  color rendering
           With an CRI of 82,you get a 82 faithful colors.Particularly suited for
           office lighting.

3.     No UV,no IR
           Photobiological saftey
           Photobiological saftey(UV,IR,Blue Light,etc.) complies with the IEC/
           EN62471 standard.

4.    Flicker Free
           Low ripple LED driver
           The ripple of LED driver is controlled below 300mV,which makes the
            panel realize flicker free .(Non-professional tools:take photos with
            digital camera,the light does not flicker)

5.     Dimmable
            Dimming options
            DALI,RF 2.4G,3 in1 dimming(0/1-10V, PWM, Rx).



Electrics
1. High efficiency power supply,ENEC listed.
2. Input Voltage:AC200-240V,50/60Hz.
3. Power Factor: >0.9.
4. Dimming solutions can be customized.

Environmentally friendly
1. No glare,mercury,ultraviolet,infrared or other hazardouse substances.
2. Working Temperature:-25ºC~50ºC.

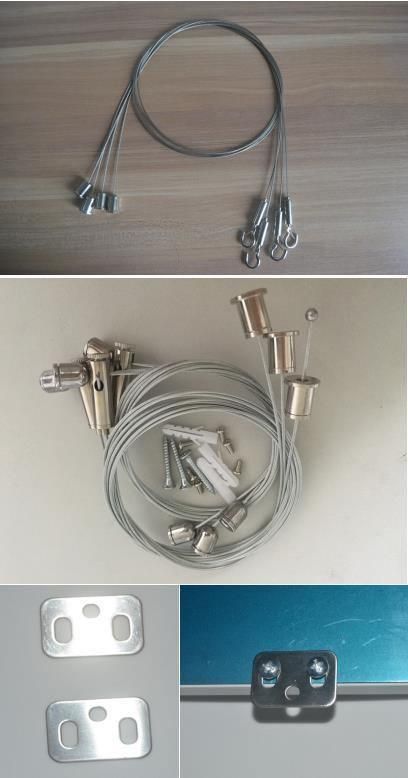

Installation Instructions
1. Fixtures must be operated by a licensed electrician.
2. Check if fixtures are in good condition once the packaging is open.
3. Do not let fixture fall down from ceiling system or clash to hard staff.
4. Make sure that the cable of fixture is long enough to connect.Do not knot or pull the cable strongly.
5. Do connect input end of fixture to output end of LED driver.
6. Wiring must be firm and tight with insulation protection well.Be aware of electricity shock.
7. Keep fixture and LED driver away from water or liquid,free from electric leakage and eletricity shock.

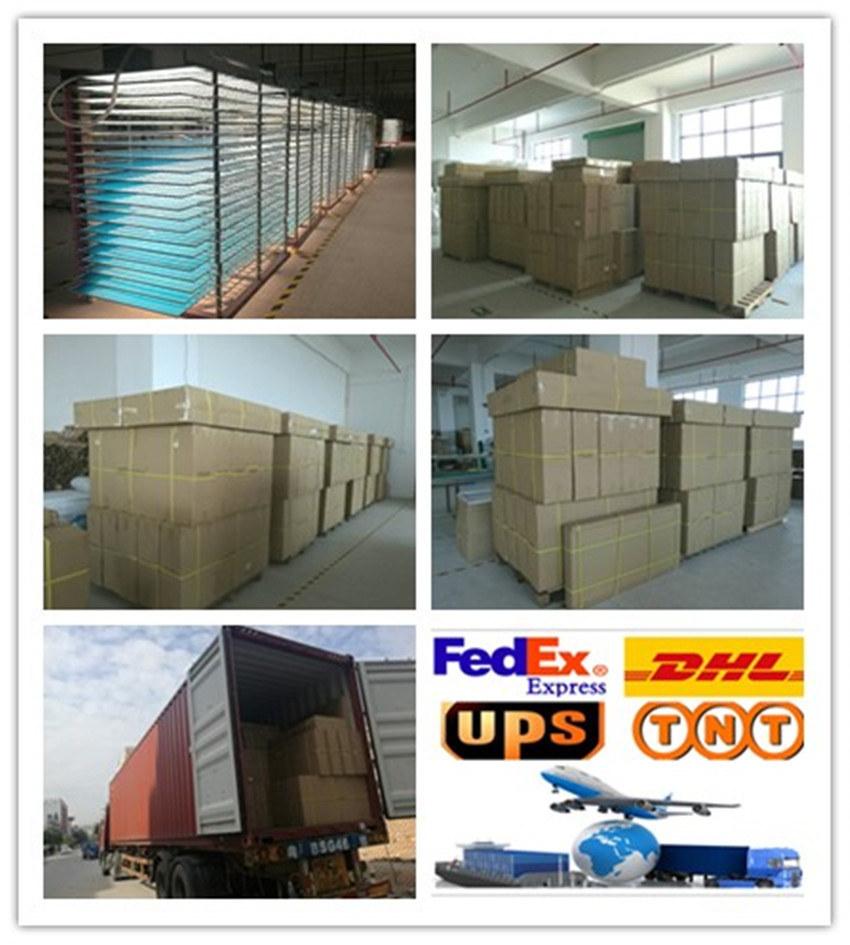

Packaging

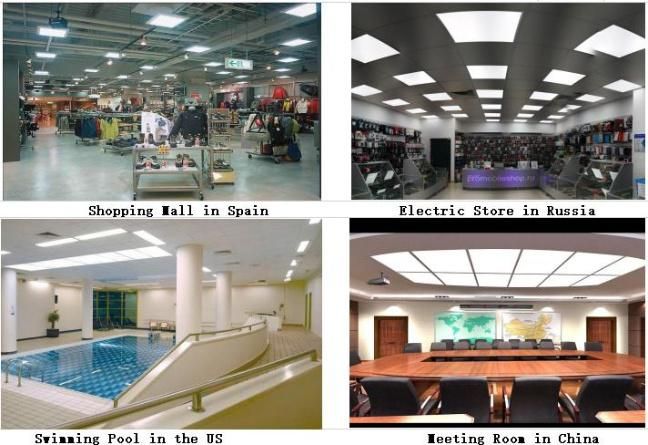

Projects

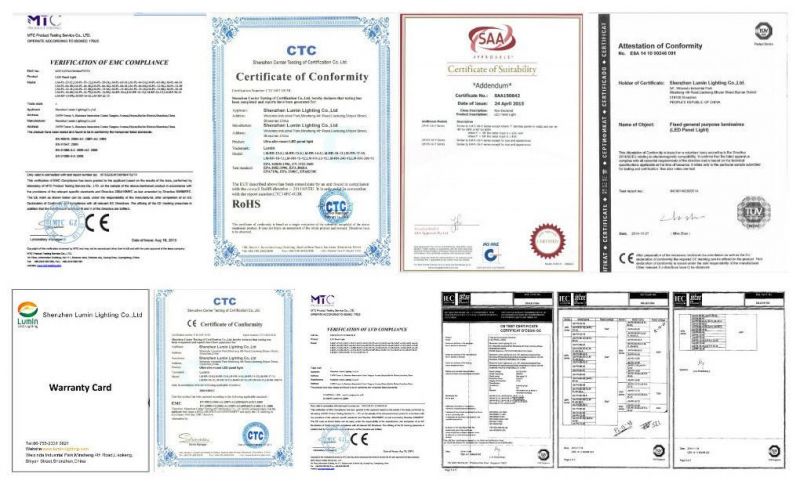

Certification


About LUMIN

Based in Shenzhen,Lumin Lighting is a fast-growing semiconductor lighting manufacturer and suppliers in
China.Lumin Lighting was founded on November 17,2008.Since its founding,Lumin Lighting is committed
to developing,manufacturing and popularizing LED lighting products,responding to the government policy of
energy-saving,emission reduction,and maintainable development.

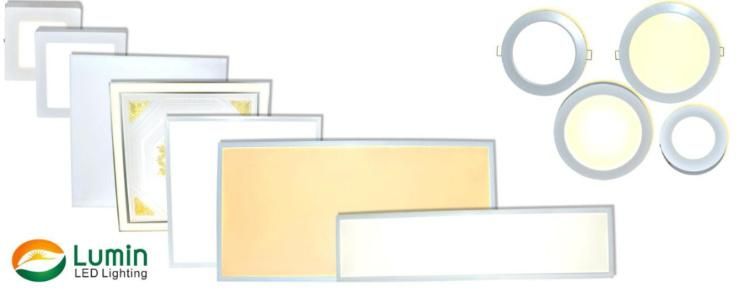

Lumin Lighting product lines mainly include LED Panel,LED downlight,LED bulbs,and outdoor lights.Meantime,
Lumin Lighting also provides customized lighting solutions to customers.

Lumin Lighting takes product quality as our lifeline.We focus on quality during thewhole production process
by seriously carrying out ISO 9001 Quality System and ISO Environment Management System.

Best Services
(1) Your inquiry will be replied within 12 hours.
(2) Fast sample deliverly:3 days around.
(3) Best-trained and experienced sales staffs follow up with your inquiries and orders.
(4) OEM/ODM services:all can be customized.
(5) Distributor,agent,investor and more are welcome.
(6) It can be 5-year limited warranty:spare parts can be offered along with orders.

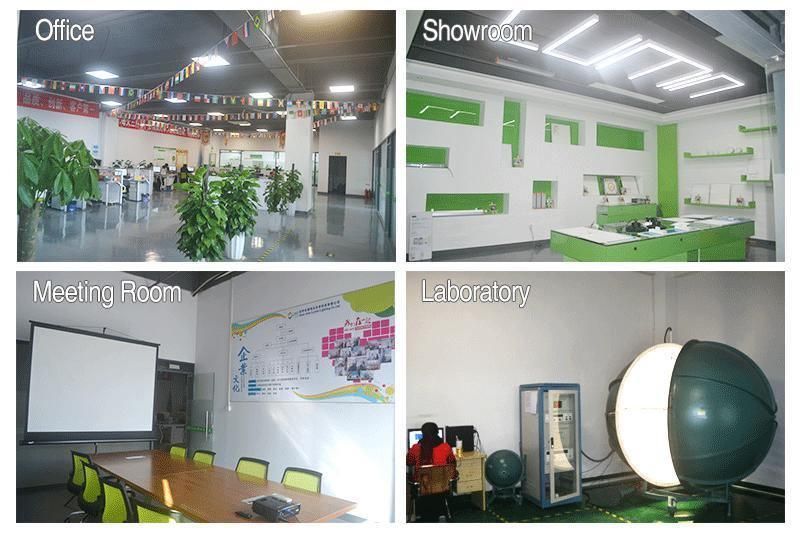

Company Profile

Exhibition
