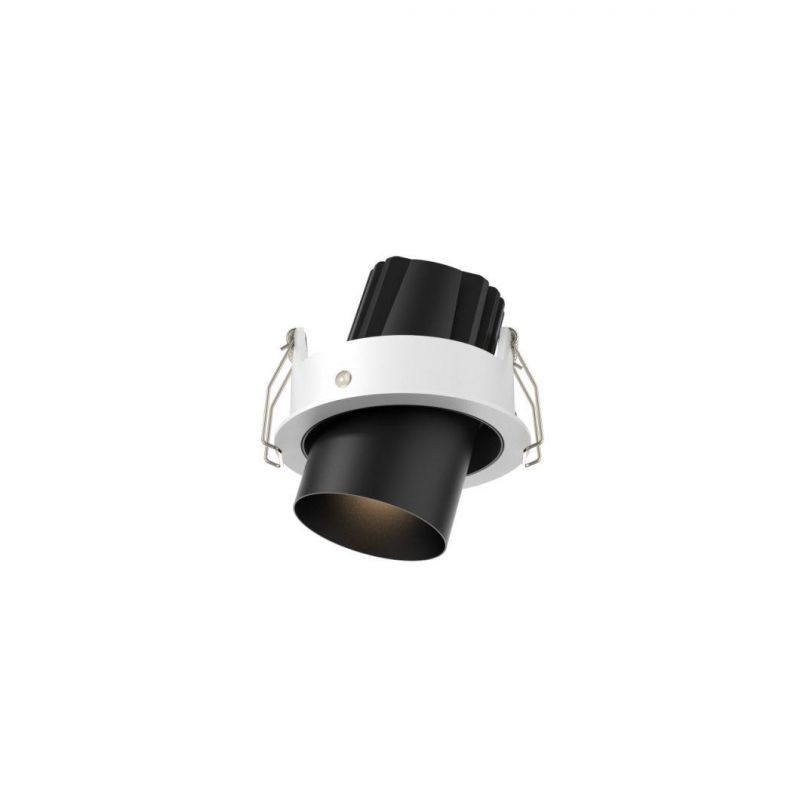

Dimmable 10W COB LED Downlight with Cutout 75mm
Ledoux Lighting Co., Ltd.- Beam Angle：15°,24°,36°,45°
- Input Voltage：220V
- Power：10W
- Color Temperature：Ø82*87mm
- Lamp Body Material：Aluminum
- Source Number：Single Plug
Base Info
- Model NO.：DSL2210-C
- Installation：Recessed
- Lamp Installation：Plug Lamp
- Switch Type：Touch On,Off Switch
- Warranty：2 Years
- Application：Engineering, Home Furnishing
- IP Rating：IP20 Class II
- Certification：CCC, CE, EMC, LVD, RoHS
- Material：Aluminum
- Color：Wwh,Wbk
- CCT：2700K,3000K,3500K,4000K
- Lens：15°,24°,36°,45°
- Size：Ø82*87mm
- Cut-out：Φ75mm
- Transport Package：Carton Packing
- Specification：Ø 82*87mm
- Trademark：LEDOUX
- Origin：China
- HS Code：9405100000
- Production Capacity：500000PCS,Year
Description
Basic Info.
Model NO. DSL2210-C Installation Recessed Lamp Installation Plug Lamp Switch Type Touch On/Off Switch Warranty 2 Years Application Engineering, Home Furnishing IP Rating IP20 Class II Certification CCC, CE, EMC, LVD, RoHS Material Aluminum Color Wwh/Wbk CCT 2700K/3000K/3500K/4000K Lens 15°/24°/36°/45° Size Ø82*87mm Cut-out Φ75mm Transport Package Carton Packing Specification Ø 82*87mm Trademark LEDOUX Origin China HS Code 9405100000 Production Capacity 500000PCS/YearProduct Description

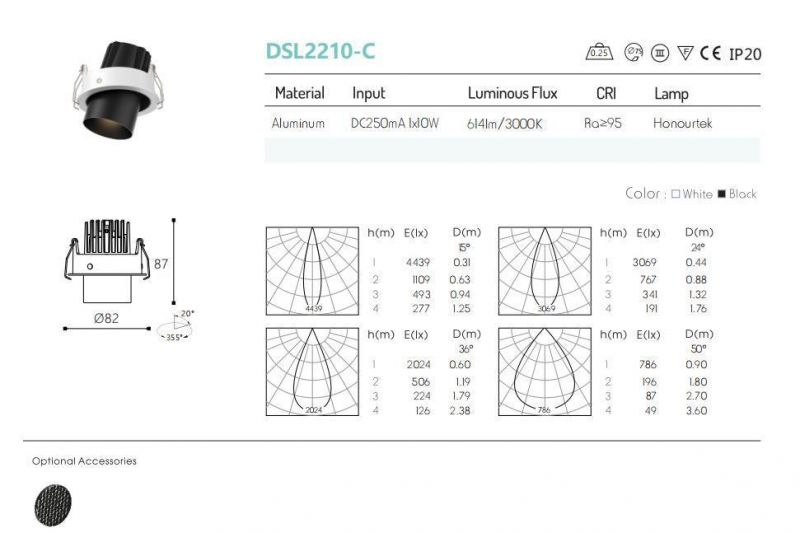

| Material: | Aluminum | Color: | WWH/WBK |
| LED: | Honourtek HRA0607 1*10W DC250mA | CCT: | 2700K/3000K/3500K/4000K |
| CRI: | Ra>95(2700K/3000K);Ra>90(3500K/4000K) | Lumen Output: | 614lm/3000K |
| Lens: | 15°/24°/36°/45° | Lumen Maintenance: | 50000Hrs≥70% |
| Driver: | LS-12-250 SI3 | Power Factor: | ≥0.5 |
| Size: | Ø82*87mm | Cut-out: | Φ75mm |
| Safty: | IP20 CLASS II | Weight: | 0.25KG |
| Optional Accessory: | Honeycomb | Baffle Color: | Specular/Matt Black |
