• Model NO.：RB-PL-P12030B
• Base Material：Aluminium
• Certification：CE, RoHS, SAA
• Voltage：85V-265V
• Beam Angle：120 Degress
• Color Temperature：2700-6500K
• Power Supply：Lifud
• Customs Code：94054090
• Driver：SAA Approved
• CRI：>80
• Warranty：5 Years
• Ugr：16
• Installation：Suspension,Embedded
• Transport Package：5PCS,Box
• Specification：CE,ROHS,SAA
• Trademark：Rayborn
• Origin：China
• HS Code：94054090
• Production Capacity：40000PCS,Month

Dimension: 600mm * 1200mmPower: 60WInput Voltage: AC85-265VLED Type: 4014 High LuminLED quantity: 300pcs  0.2w ledView angle: 120°Viewing angleCCT:3000/4000/5000/6000KCRI: ≥80RaLuminous flux: 5300 lmPower Factor: >0.92Life time:  >50,000 hrsWorking  Environment:IndoorHousing Material: Aluminum Alloy+PCWorking Temperature: -20ºC ~ +50ºC




LED Panel Light Features:
1. Energy-efficient, environment-friendly
2. No glare, no noise, no UV
3. Ultra slim and fashionable design
4. Maintenance free, easy installation
5. No maintenance for the life of unit, apart from cleaning
6. Remote-control dimming available
7. Solid-state, high shock/vibration resistant
8. No fluorescent flickering
9. No danger of broken glass
10. Long lifetime, 50, 000+hrs(5+years)

Flat LED Panel Light Applications:
1. Commercial and exhibition locations
2. Hotel, conference room
3. Factory, office, house
4. Airport, metro station
5. School, hospital and other public places
6. Place that require energy-efficiency and high color rendering index

LED Panel Light Installation:
1. Please note the power wiring of positive and negative when installation power wiring (positive with word)
2. Connect into the panel lamp terminals power wire needs to tighten with the screw
3. To avoid danger, pls cut off power supply before connecting wiring. 4. Lock the screw, pls not use


Embedded installation of led panel light
1. Taken the ceiling and LED panel light turn 45 degrees, and put it above the ceiling, pls do not force squeezing or through the ceiling
2. Please placed panel lamp handled with care, ensure the products shine with the best effect
3. Choose embedded installation LED panel lamp, first consideration that wether the panel light and the size of the ceiling corresponds


Suspension installation of led panel light
1. Pls put a soft mat on the floor before Installing corner fixing parts, lest scratches or damaged panel
2. Please placed panel lamp handled with care, ensure the products shine with the best effect
3. Lock the screw, pls not use greatly forcibly, lest crush the panel lamp
1. The first open four φ 5mm holes on the ceiling
2. Make the glue plug put into open good holes
3. Screw through fixed cap, locked in plug hole




FAQ:

1, Are you factory?
A:Yes, we produce LED panel lights for more than 6 years.

2, Can leadtime be more shorter because I am urgent?
A:Yes, please contact us urgent to check the details.

3, I want high quality LED panel light, can you do?
 A:Yes, quality is our culture,we only use best components to build our led panel lights.

4.Can we do our brand? Can you print or emboss our logo on the
tank? And our own brand box?
 A:Yes!

5. If there are some lights that can not work when i receive the goods?
A:Don't worry, we will give you same quantity of good lights for compensation in your next order.

6.How does your factory do regarding quality control?
A:Quality is priority. people always attach great importance to quality
controlling from the very beginning to the very end.  Our factory has

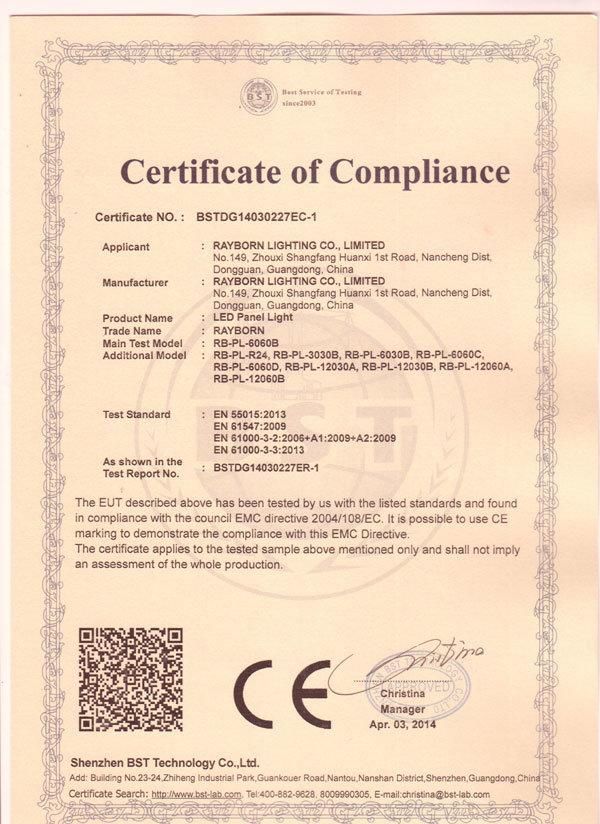

gained CE,CCC,ROHS,FCC,ISO900, authentication.

7.Where is your factory located? How can I visit there?
A:Our factory is located in Dongguan City, GuangDong Province, China.

Welcome you visit us anytime!
