• Model NO.：LM-LHB150P
• Certification：CE, RoHS, SAA, UL
• Beam Angle：60° , 90 ° , 160°
• LED Chips：Samsung
• Light Efficacy：>120 Lm,W
• CRI：Ra>80
• Package：1PCS,Carton
• Lumen：18000-19500lm
• Transport Package：Neutral Carton
• Specification：1200*123*155mm
• Trademark：Lumin Lighting
• Origin：Shenzhen, China
• HS Code：9405100000
• Production Capacity：20000pieces,Month

Basic Info.

Model NO. LM-LHB150P Certification CE, RoHS, SAA, UL Beam Angle 60° / 90 ° / 160° LED Chips Samsung Light Efficacy >120 Lm/W CRI Ra>80 Package 1PCS/Carton Lumen 18000-19500lm Transport Package Neutral Carton Specification 1200*123*155mm Trademark Lumin Lighting Origin Shenzhen, China HS Code 9405100000 Production Capacity 20000pieces/Month

Product Description

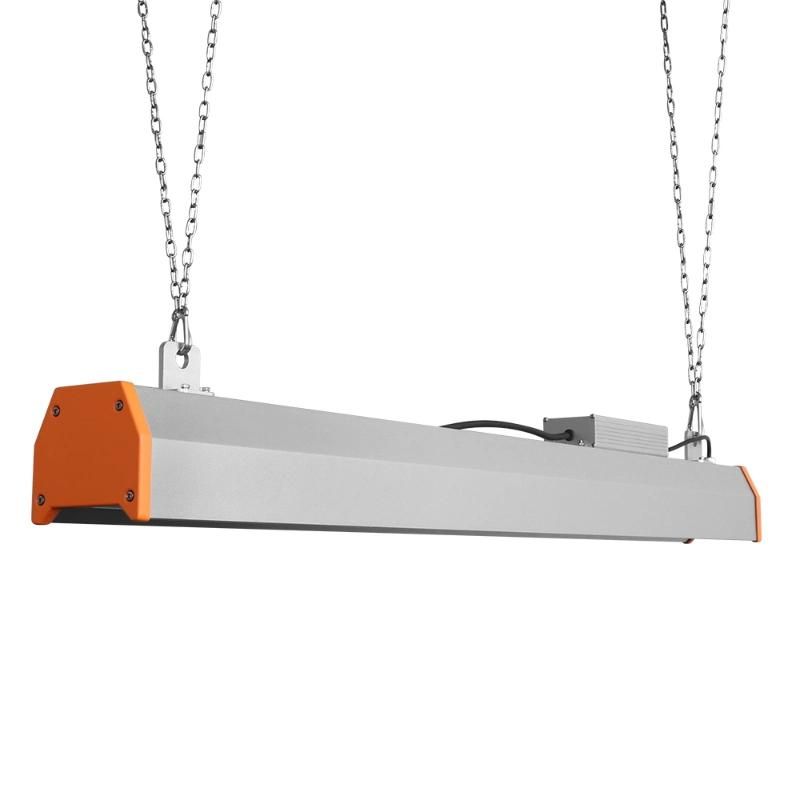

6500k 150w 1.2m  led linear high lumen high bay light for industrial lighting
with CE  & RoHS approvals

Model No.	LM-LHB150-60L
Power(W)	150W
Input Voltage(V)	AC90-305V
Color Temperature(K)	3000K-6000K
Luminous Flux(lm)	18000~19500lm
Corlor Rendering Index(CRI)	>80
Beam Angle	120°
Designed Lifetime(Hrs)	>50000
Warranty	5
Dimmable Solutions	0-10v
Dimension  (MM)	L1200*W123*H118

More Power is avaliable,300W,400W,600W,etc


Characteristics
1,Aluminum alloy housing and electrostatic sprayed surface reaches good resistance to corrosion.
2,Adopted high power led chips and equipped high efficiency power driver, energy saving can reach 50% compared
   with traditional sodium lamp.
3,No lead, mercury pollution elements and eco-friendly.
4,Good color rendering, the physical color rendering is more real.
5,Varieties of color temperature are optional which can meet the requirements for different environments.
Eliminated workers depressed mood caused by traditional lamp in high or low color temperature and improved work efficiency.
6,Special constant current power driver can assure wide voltage(AC100-277V) input and output constant current.
   With short-circuit and overvoltage protection, over-temperature protection etc.
7,Built-in patented sunflowers design, adopted PMG technology which can assure superior cooling performance.

Environmentally friendly
1. No glare,mercury,ultraviolet,infrared or other hazardouse substances.
2. Working Temperature:-25ºC~50ºC.

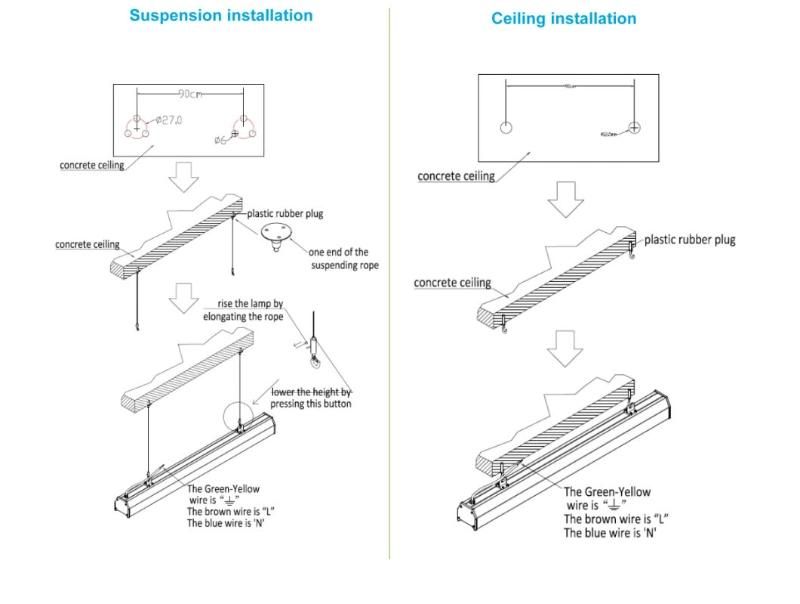

Installation Instructions
1. Fixtures must be operated by a licensed electrician.
2. Check if fixtures are in good condition once the packaging is open.
3. Do not let fixture fall down from ceiling system or clash to hard staff.
4. Make sure that the cable of fixture is long enough to connect.Do not knot or pull the cable strongly.
5. Do connect input end of fixture to output end of LED driver.
6. Wiring must be firm and tight with insulation protection well.Be aware of electricity shock.
7. Keep fixture and LED driver away from water or liquid,free from electric leakage and eletricity shock.

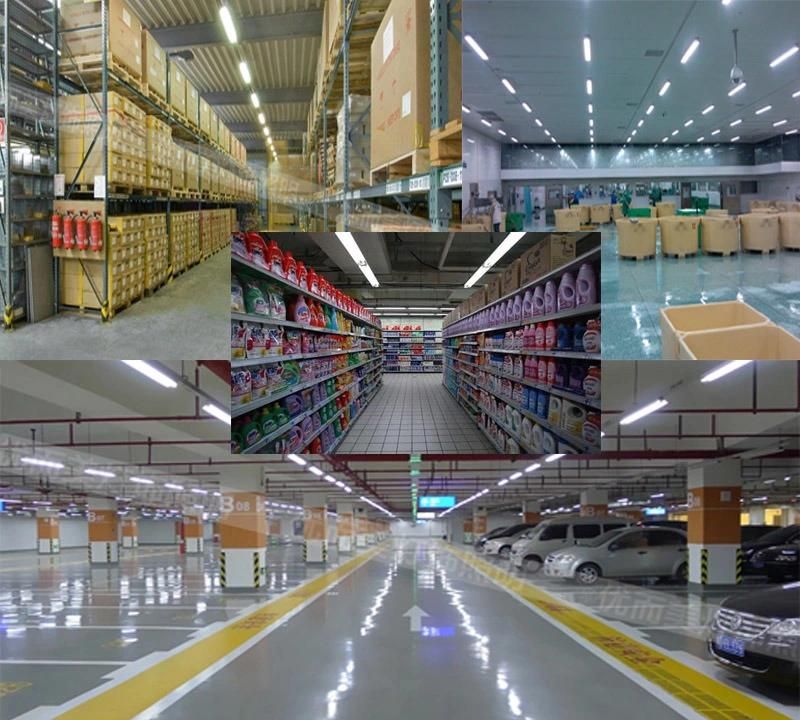

Projects


About LUMIN


Based in Shenzhen,Lumin Lighting is a fast-growing semiconductor lighting manufacturer and suppliers in
China.Lumin Lighting was founded on November 17,2008.Since its founding,Lumin Lighting is committed
to developing,manufacturing and popularizing LED lighting products,responding to the government policy of
energy-saving,emission reduction,and maintainable development.

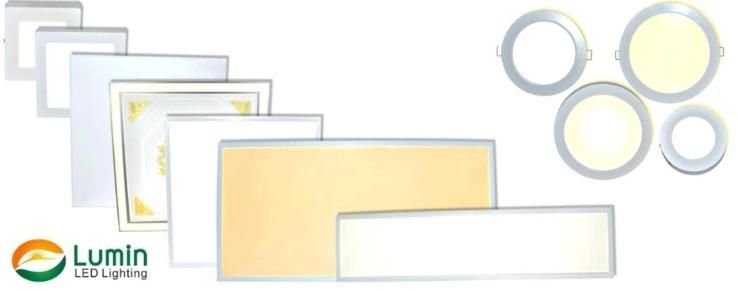

Lumin Lighting product lines mainly include LED Panel,LED downlight,LED bulbs,and outdoor lights.Meantime,
Lumin Lighting also provides customized lighting solutions to customers.

Lumin Lighting takes product quality as our lifeline.We focus on quality during thewhole production process
by seriously carrying out ISO 9001 Quality System and ISO Environment Management System.

Best Services
(1) Your inquiry will be replied within 12 hours.
(2) Fast sample deliverly:3 days around.
(3) Best-trained and experienced sales staffs follow up with your inquiries and orders.
(4) OEM/ODM services:all can be customized.
(5) Distributor,agent,investor and more are welcome.
(6) It can be 5-year limited warranty:spare parts can be offered along with orders.

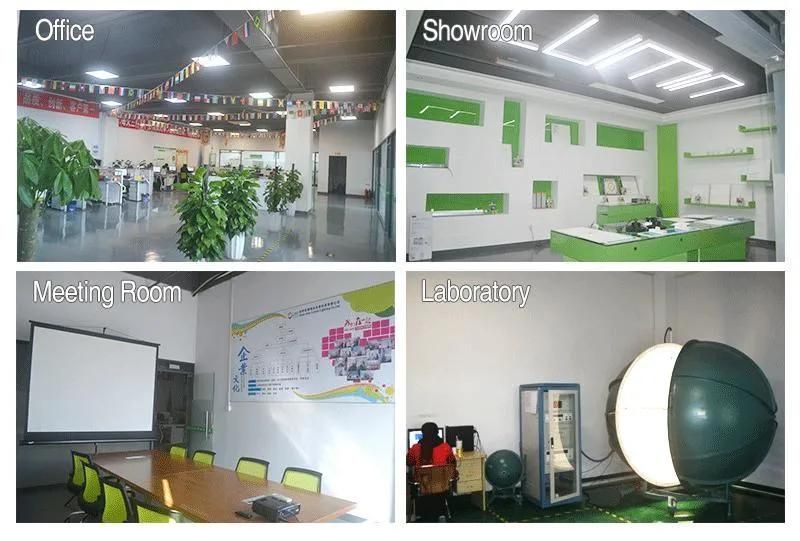

Company Profile

Exhibition

FAQ

Q1: What is the Warranty for the lamps?
A1: Re the panels,it has 5 years warranty.If there any quality problems on our side ,we will  replace the panels or
return-back the money to you .

Q2: What is colour temperature?
A2: The panels has warm white, natural white and pure white  colour temperatures for choice.
Warm white = 2700K-3200K
Natural white = 4000K-4500K
Pure white = 6000K-6500K

Q3:: What is CRI?
A3: CRI is a figure which feedback the real objects colors.Higher CRI with higher cost.For our LED panels,Our CRI is >85.

Q4: Will your LED panel work on a dimmer switch?
A4: Yes, can do as per your request.

Q5: What is the size you have for UFO high bay light?(mm)
A5:100W: φ290*170mm,  150W:φ340*180mm,  200W:400*194.

Q6:Is there cheap shipping cost to import to our country?
A6: For small order,express will be best, for bulk order,sea ship way is best but take much time.
For urgent orders,we suggest by express, big quantity by air.

Q7:Can we get support if we have our own market position?
A7: Please inform us your detailed mind on your market demand,we will discuss and
propose helpful suggestion for you,to find the best solution for you.
