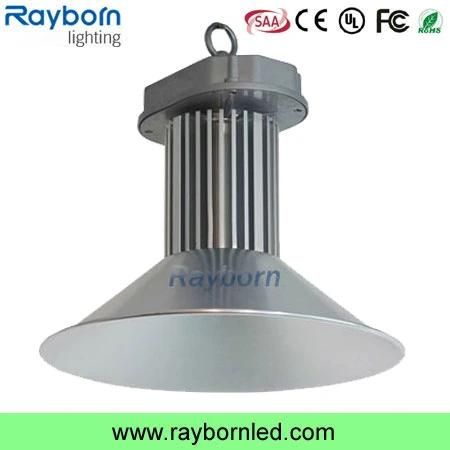

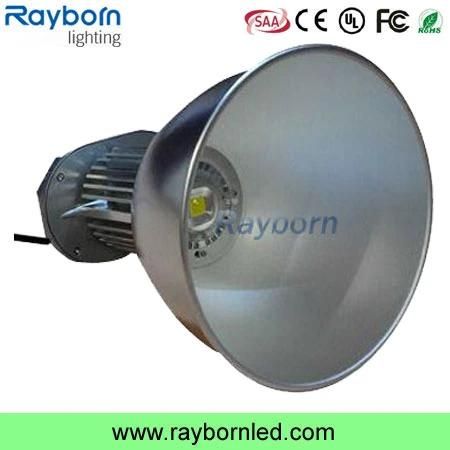

Sports Halls LED High Bay Light 100W for LED Canopy Light

Rayborn Lighting Co., Ltd.
  • Color Temperature：Cool White
  • Lamp Body Material：Aluminum
  • Power：100W
  • Usage：Mine, Gymnasium, Shipyard, Exhibition, Warehouse, Shopping Mall, Factory
  • Lifespan：≥50000H
  • IP Rating：IP65

Base Info

  • Model NO.：RB-HB-515-100W
  • Certification：CE, C-tick, EMC, LVD, RoHS, SAA, UL
  • Beam Angle：30,45,90,120
  • LED Chips：Bridgelux
  • Life：50,000h
  • Power Source：AC
  • Electric Current Type：AC
  • Emitting Color：Full Range
  • Base Material：Aluminum
  • Input Voltage：100-240V
  • Transport Package：1PCS,Box
  • Specification：CE,EMC,LVD,SAA
  • Trademark：Rayborn
  • Origin：China
  • HS Code：94054090
  • Production Capacity：20000PCS,Month

Description

Item No.:RB-HB-515-100WInput Voltage:AC 100~240VFreqency Range:50Hz~60HzLed Chip:Bridgelux 45 milPower Factor:>0.96Power Efficiency:>90%LED Power100WLED QTY:1pc*100WLED Working Voltage:DC 30~36VSystem Consumption:106WLED Luminous FluxWarm White9100LMPure White10450LMCool White10450LMViewing Angle:120degreeCenter IlluminanceHeight 3M343LUXHeight 4M192LUXHeight 5M123LUXIlluminance AreaHeight 3MDia.2.6 M  points visibleHeight 4MDia.3.4 M points visibleHeight 5MDia.4.2 M points visibleIlluminance Uniformity:>0.6Color TemperatureWarm White3000K~3300KPure White5500K~5700KCool White6000K~6500KColor Rendering IndexRa>78Light Distribution:LED points visibleLight Design:LED+Reflectors secondary light distributionLED Junction Temperature:≤115ºCWorking Temperature:-40ºC~50ºCIP Grade:IP54Working Life-span:50000 HPower Line:1.0 mthree lineConnect WireBrownLBlueNYellow / GreenGSports Halls LED High Bay Light 100W for LED Canopy Light
Sports Halls LED High Bay Light 100W for LED Canopy Light


Led High bay light Features:

· Integrated USA Bridgelux LED system for optimum lifetime performance

· Ideal for Box Stores, Supermarkets, Factories, Warehouses.

· Special radiator design for better heat dissipation

· Reduced energy consumption and operating costs by up to 80%.

· Maintenance free operation - lasts up to 10 times longer than conventional lighting

· Solid state design and circuitry

· Great for shock and high vibration environments

· 50-80% reduced energy usage. Save money on your utility bill

· No humming or flickering.

· Cool beam - Does not produce Ultra Violet (UV) light or IR, reduces air conditioning loads.

· Unique design with anodized silver housing for cooler operation and extended lamp life.

· Environmentally friendly fully recyclable, no mercury or other hazardous materials.


High Bay LED Light Applications:
LED High Bay Lights widely used for Indoor and outdoor places:
Factories, workshops, warehouse, toll stations, gas stations, stadiums, big supermarket, exhibition, commercial building, stadium hall, parking building etc.
