• Model NO.：TFR-G3W
• IP Rating：IP42
• Certification：CE, RoHS, FCC, EMC
• Power Source：DC
• Electric Current Type：DC
• Input Voltage：3V,12V
• LED Chips：Epistar
• CRI：80ra
• Beam Angle：100,60°
• Dimension：D20mm X H25mm, 15mm Cut
• Transport Package：Neutral
• Specification：0.02KG,PC
• Trademark：Treefores
• Origin：China
• Production Capacity：100000PCS,Month

Basic Info.

Model NO. TFR-G3W IP Rating IP42 Certification CE, RoHS, FCC, EMC Power Source DC Electric Current Type DC Input Voltage 3V/12V LED Chips Epistar CRI 80ra Beam Angle 100/60° Dimension D20mm X H25mm, 15mm Cut Transport Package Neutral Specification 0.02KG/PC Trademark Treefores Origin China Production Capacity 100000PCS/Month

Product Description

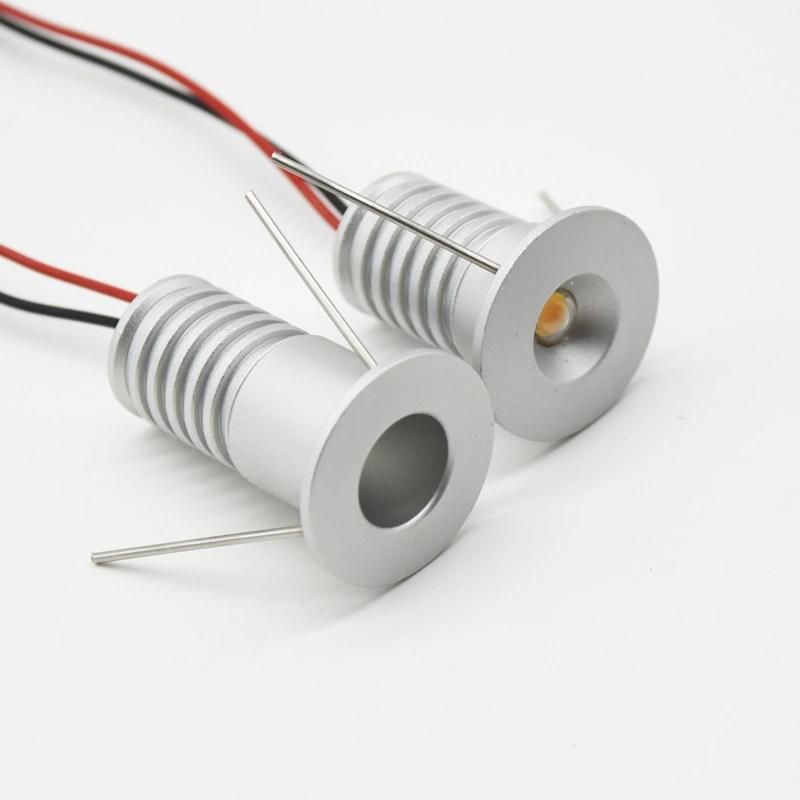

2W AC 110V 220V Spotlight 15mm Cut Mini LED Lamp Spot Light


Power: 2W Bridgelux

Luminous Flux: 100Lm/W

Input Voltage: DC12V-24V

Beam Angle: 60°/100°

IP Rate: IP52,

Main Material: 6063 Aluminum Shell

Dimension: 15mm (D20mm X H25mm)

Working Temperature: -25°C~+45°C,

Cable: 46CM,

Warranty: 3 Years,

CE RoHS,














2W Mini Lamp LED Spot






Warranty policy:
1: Warranty: 3 years.
2: 100% of all products will be tested before shipping by our QC staff.
3: During the warranty period, we will immediately supply replacement for free.
4: Promot technciail supports and led solution will be offered!
5: Favorable price according to large qty.
6: Once partnership established, newest and hottest products information


Testing
