• Model NO.：LLX-LL
• Power：10W-60W
• Lumen Efficiancy：100-130lm,W
• Flicker：No Flicking
• IP：20
• Ra：>80,90
• PF：0.95
• Life Time：50000hours
• Installation：Pendant or Wall Mounted
• Style：Modern
• Irradiated Area：≥30㎡
• Certification：CE, EMC, ETL, LVD, RoHS, SAA, Dlc
• Beaming Angle：80°
• LED Chips：Bridgelux
• Color Temperature：3000K-6000K
• Lamp Body Material：Coated Steel
• Base Type：SMT LEDs
• Voltage：110-277V,220-240V
• Transport Package：Carton
• Specification：600mm,1200mm,1500mm,1800mm
• Trademark：longlux
• Origin：China
• Production Capacity：1000000

Basic Info.

Model NO. LLX-LL Power 10W-60W Lumen Efficiancy 100-130lm/W Flicker No Flicking IP 20 Ra >80/90 PF 0.95 Life Time 50000hours Installation Pendant or Wall Mounted Style Modern Irradiated Area ≥30㎡ Certification CE, EMC, ETL, LVD, RoHS, SAA, Dlc Beaming Angle 80° LED Chips Bridgelux Color Temperature 3000K-6000K Lamp Body Material Coated Steel Base Type SMT LEDs Voltage 110-277V/220-240V Transport Package Carton Specification 600mm/1200mm/1500mm/1800mm Trademark longlux Origin China Production Capacity 1000000

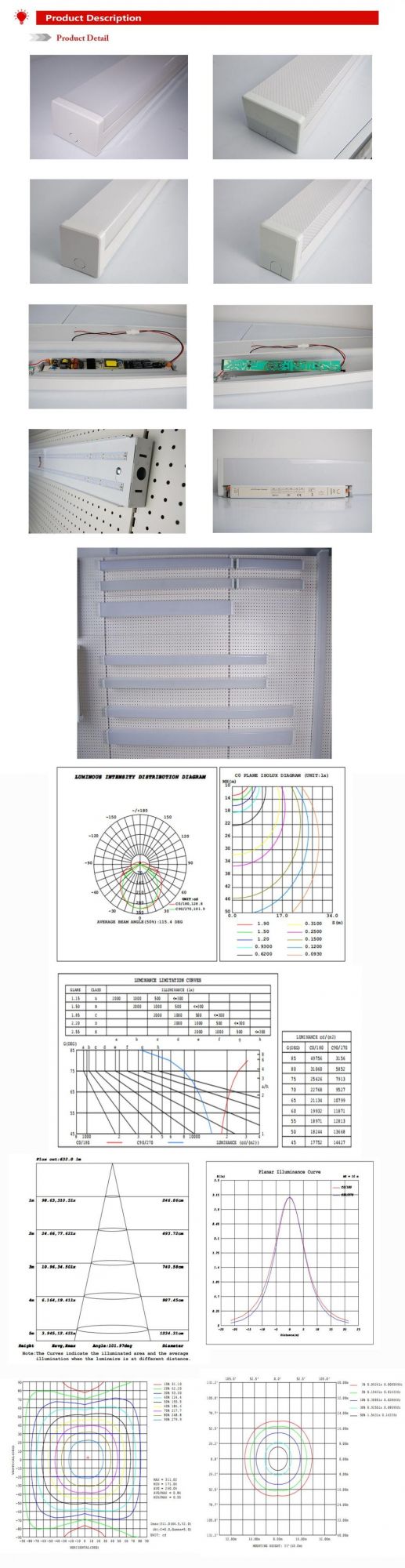

Product Description

Feature
High Efficiency and more energy saving up to 70% than normal fluorescent lamp
SMT LEDs, easy to install, 50,000 hrs life span
Safe and healthy to eye
Environmental-friendly: Lead (Pb) free-RoHS compliant
High quality DC driver, no flickering with soft light
Size:Narrow
Housing: Coated Steel + Polycarbonate/Acrylic
Installation:Pendant or Wall Mounted
Specification
Housing: Coated Steel + Polycarbonate
Width: Single LED strip

Model No.	LLX-LL-PN-600	LLX-LL-PN-1200	LLX-LL-PN-1500	LLX-LL-PN-1800
Voltage(V)	110-277	110-277	110-277	110-277
Rated current(A)	10	20	25	28
Wattage(W)	0.09/0.04A	0.18/0.08A	0.22/0.1A	0.26/0.11A
Lumen(lm)	1200	2200	2800	3400
P.F.	0.95	0.95	0.95	0.95
Ra	≥80/90	≥80/90	≥80/90	≥80/90
Lifetime(H)	50000+	50000+	50000+	50000+
Protection Class	Class 1	Class 1	Class 1	Class 1
IP degree	IP20	IP20	IP20	IP20
Body Size(MM)	620*69*82	1230*69*82	1530*69*82	1795*69*82

Housing: Coated Steel + Polycarbonate
Width: Double LED strip

Model No.	LLX-LL-PW-600	LLX-LL-PW-1200	LLX-LL-PW-1500	LLX-LL-PW-1800
Voltage(V)	110-277	110-277	110-277	110-277
Rated current(A)	20	37	46	56
Wattage(W)	0.18/0.08A	0.35/0.15A	0.43/0.19A	0.52/0.23A
Lumen(lm)	2000	4000	5000	6000
P.F.	0.95	0.95	0.95	0.95
Ra	≥80/90	≥80/90	≥80/90	≥80/90
Lifetime(H)	50000+	50000+	50000+	50000+
Protection Class	Class 1	Class 1	Class 1	Class 1
IP degree	IP20	IP20	IP20	IP20
Body Size(MM)	620*109*82	1230*109*82	1530*109*82	1795*109*82

Housing: Coated Steel + Acrylic
Width: Single LED strip

Model No.	LLX-LL-AN-600	LLX-LL-AN-1200	LLX-LL-AN-1500	LLX-LL-AN-1800
Voltage(V)	110-277	110-277	110-277	110-277
Rated current(A)	10	20	25	28
Wattage(W)	0.09/0.04A	0.18/0.08A	0.22/0.1A	0.26/0.11A
Lumen(lm)	1200	2200	2800	3400
P.F.	0.95	0.95	0.95	0.95
Ra	≥80/90	≥80/90	≥80/90	≥80/90
Lifetime(H)	50000+	50000+	50000+	50000+
Protection Class	Class 1	Class 1	Class 1	Class 1
IP degree	IP20	IP20	IP20	IP20
Body Size(MM)	620*68*90	1230*68*90	1530*68*90	1795*68*90

Housing: Coated Steel + Acrylic
Width: Double LED strip

Model No.	LLX-LL-AW-600	LLX-LL-AW-1200	LLX-LL-AW-1500	LLX-LL-AW-1800
Voltage(V)	110-277	110-277	110-277	110-277
Rated current(A)	20	36	45	56
Wattage(W)	0.18/0.08A	0.35/0.15A	0.43/0.19A	0.52/0.23A
Lumen(lm)	2200	4400	5500	6600
P.F.	0.95	0.95	0.95	0.95
Ra	≥80/90	≥80/90	≥80/90	≥80/90
Lifetime(H)	50000+	50000+	50000+	50000+
Protection Class	Class 1	Class 1	Class 1	Class 1
IP degree	IP20	IP20	IP20	IP20
Body Size(MM)	620*124*90	1230*124*90	1530*124*90	1795*124*90

User Manual Instruction
SAFETY HINT:
1. The luminaire must be installed by a licensed electrician.
2. Disconnect the main power before installation.
3. The mounting location of your new fitting should allow the product to be securely mounted (e.g. to a ceiling joist) and safely connected to the mains supply (lighting circuit).
4. After installed the luminaire, please ensure the enclosure has been assembled securely.
5. If the mounting location of your new fitting requires the provision of a new electrical supply, the supply must conform to the requirements of the latest edition of the IEEE wiring regulations.
6. The light source is LED and irreplaceable.

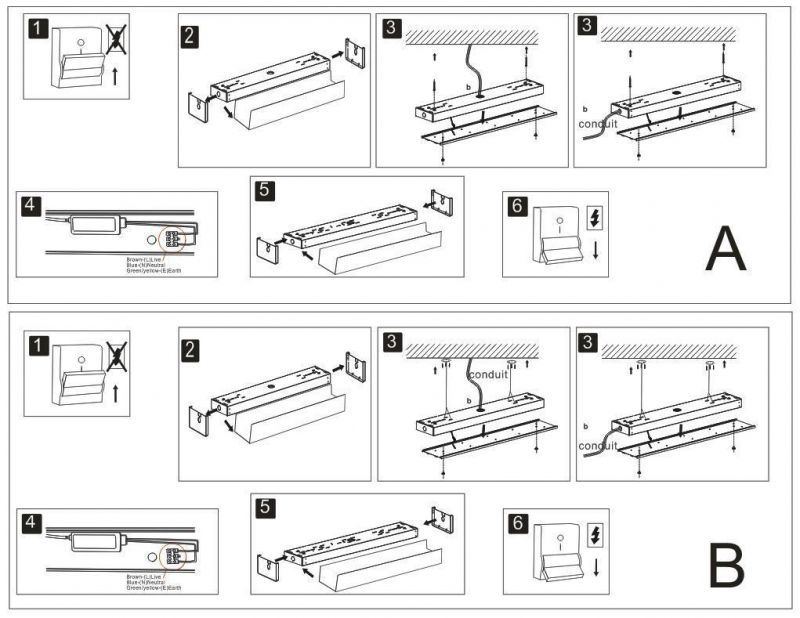

INSTLLATION

MAINTENANCE AND REPAIR
In case of malfunctions and damage please contact an authorized electrician.
Please turn off power supply before maintenance and let the product cool down.
DISPOSAL

This marking indicates that this product should not be disposed with other household wastes throughout the US. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.
