• Model NO.：RB-HB-415-120W
• IP Rating：IP54
• Certification：CE, RoHS, UL, SAA, LVD
• Power Source：AC
• Electric Current Type：AC
• Input Voltage：85-265V
• LED Chips：Bridgelux
• Waterproof Grade：IP65
• Transport Package：1PCS,Box
• Specification：CE,EMC,UL
• Trademark：Rayborn
• Origin：China
• HS Code：940540
• Production Capacity：40000PCS,Month

120W LED Industrial Light Main Technical ParametersItem No.:RB-HB-415-120WInput Voltage:AC 100~240VFreqency Range:50Hz~60HzLed Chip:Bridgelux 45 milPower Factor:>0.97Power Efficiency:>90%LED Power120WLED QTY:1pc*120WLED Working Voltage:DC 30~36VSystem Consumption:126 WLED Luminous FluxWarm White10200LMPure White12500LMCool White12500LMViewing Angle:45degreeCenter IlluminanceHeight 3M1021LUXHeight 4M574LUXHeight 5M367LUXIlluminance AreaHeight 3MDia.2.6 M  points visibleHeight 4MDia.3.4 M points visibleHeight 5MDia.4.2 M points visibleIlluminance Uniformity:>0.6Color TemperatureWarm White2700K~3500KPure White5000K~5500KCool White6000K~7000KColor Rendering IndexRa>78Light Distribution:LED points visibleLight Design:LED+LED Junction Temperature:≤115degreeWorking Temperature:-40degree~50degreeIP Grade:IP54Working Life-span:50000 HPower Line:1.0 mm three lineConnect WireBrownLBlueNYellow / GreenGThe color of the lamp shellsilver is availableCertificateCE /ROHS/SAANet Weight:8.5g

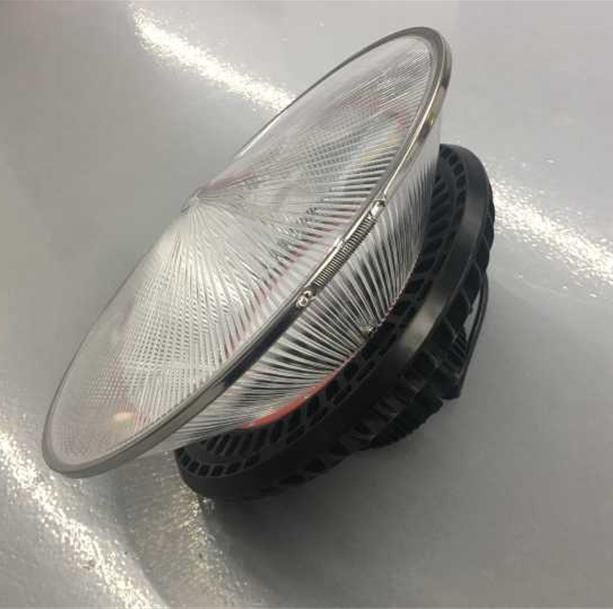

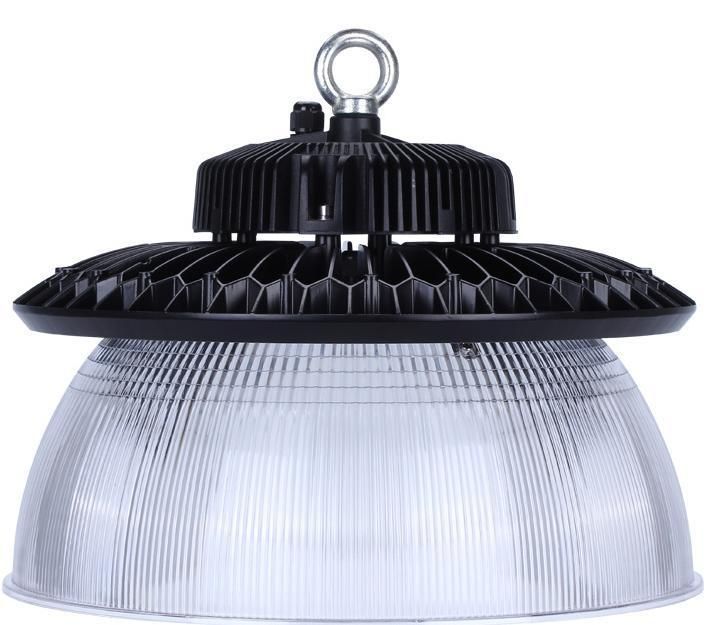

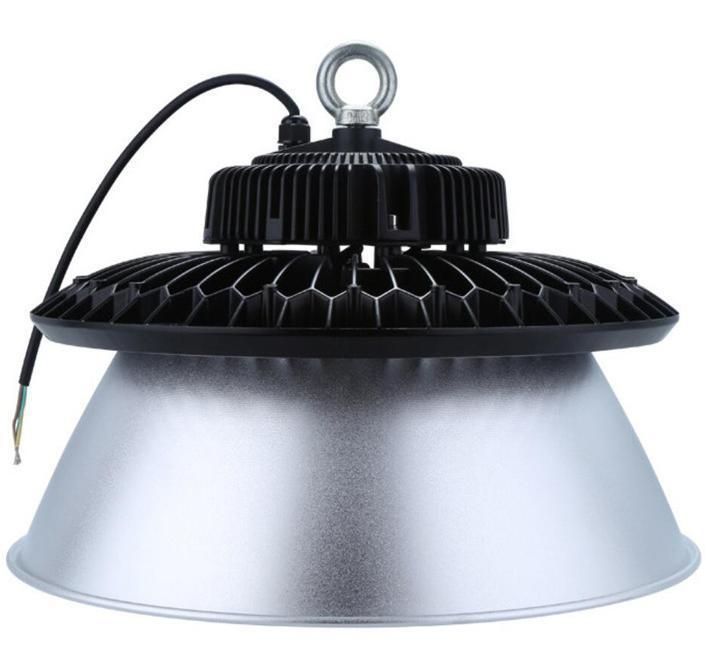

Hi-Bay LED Lighting/High Bay Ligh Lamp (30W-300W)
Item No.: RB-HB-415-120W
Input Voltage: AC 100~240V 50-60HZ
Power Factor: >0.98; Power Efficiency: >0.90
LED Luminous Efficiency 100-110lm/W
Lamp Rated Total Luminous Flux: 10950LM
LED High Bay Light Power Consumption: 120W
System Power Consumption: 132W
LED Chip: Bridgelux/CREE
Lamp Beam Angle: 45 degrees
Color Index: Ra≥ 78
Color Temperature: 2700-7000K
Protection Class: IP44
Useful Life: ≥ 50000 hours
Weight: N. W. 7.2KG
Lamp Body Material: Aluminum 6063
Color of Housing: Black or Silver


Led High bay light Features:
1. Using single powerful LED(30-250W)as the light source, with unique lighting design of Multi- chip integrated single-module; Select for excellent imported semiconductor chip, it has high thermal conductivity, low luminous decay, pure colors and no heavy shade etc.
2. High bay lighting Unique heat sink design perfectly combine with power box, effectively transmit the heat, thereby lowering the body's temperature, ensure the life of LED chip and power driver.
3. High bay led The heat sink surface have conducted anodic oxidation anticorrosive process, with compact structure and aesthetic appearance, water proof and dust proof.
4. High bay light Adopted advanced constant current controlling techniques, wide voltage range available and global universal; Overcome the lighting instability caused by electric network of ballast and noise pollution.
5. High color rendering, meet the requirement of different environment, improve working efficiency.
6. Easy installation and demolition, wide range of application. Environment-friendly, no air pollution, no lead-free, no-mercury

Applications:

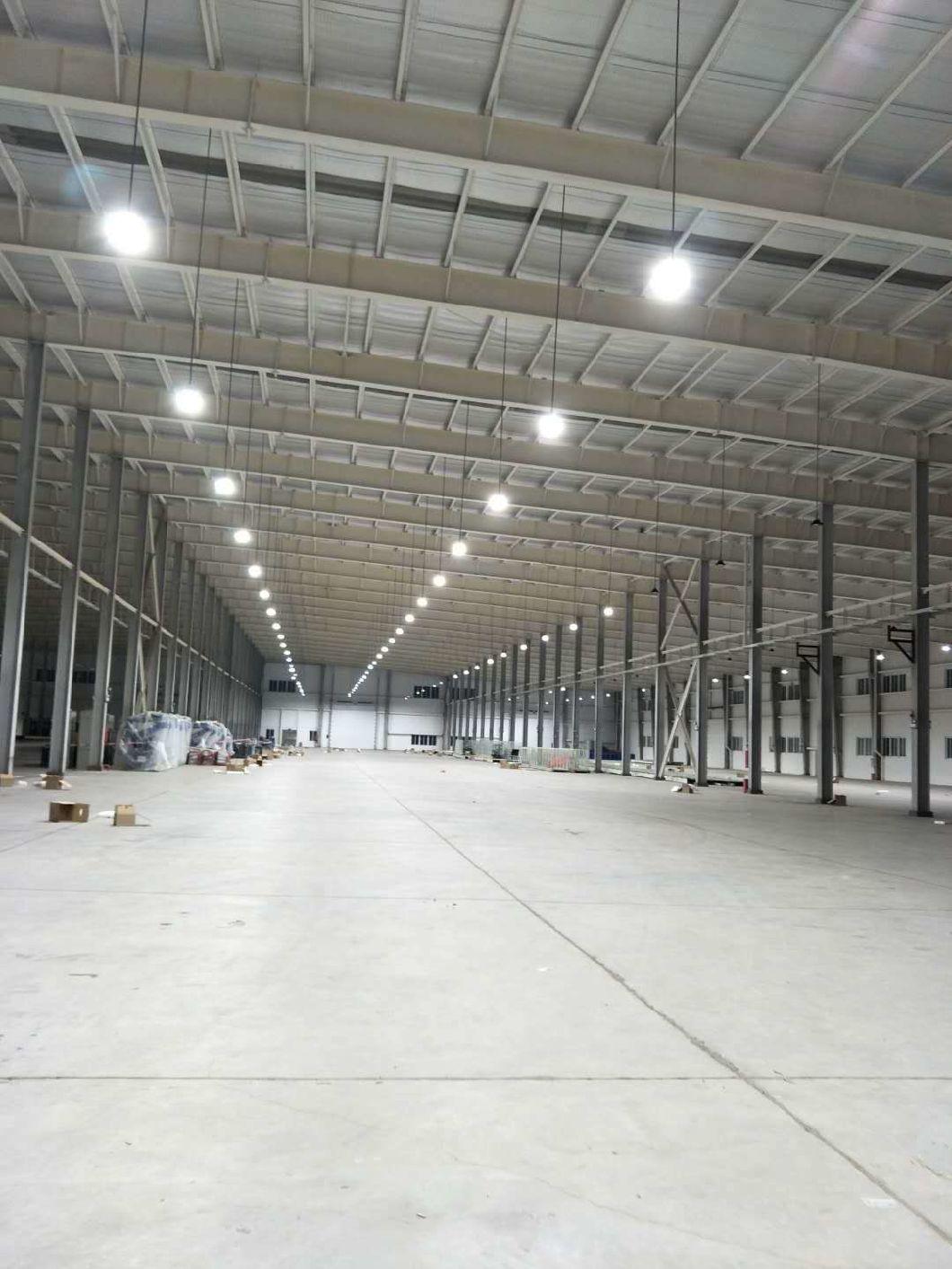

Widely used in factory, gymnasium, billboards, buildings, lawns, landscaping, offices, the site of light project and decorative lighting project etc.
