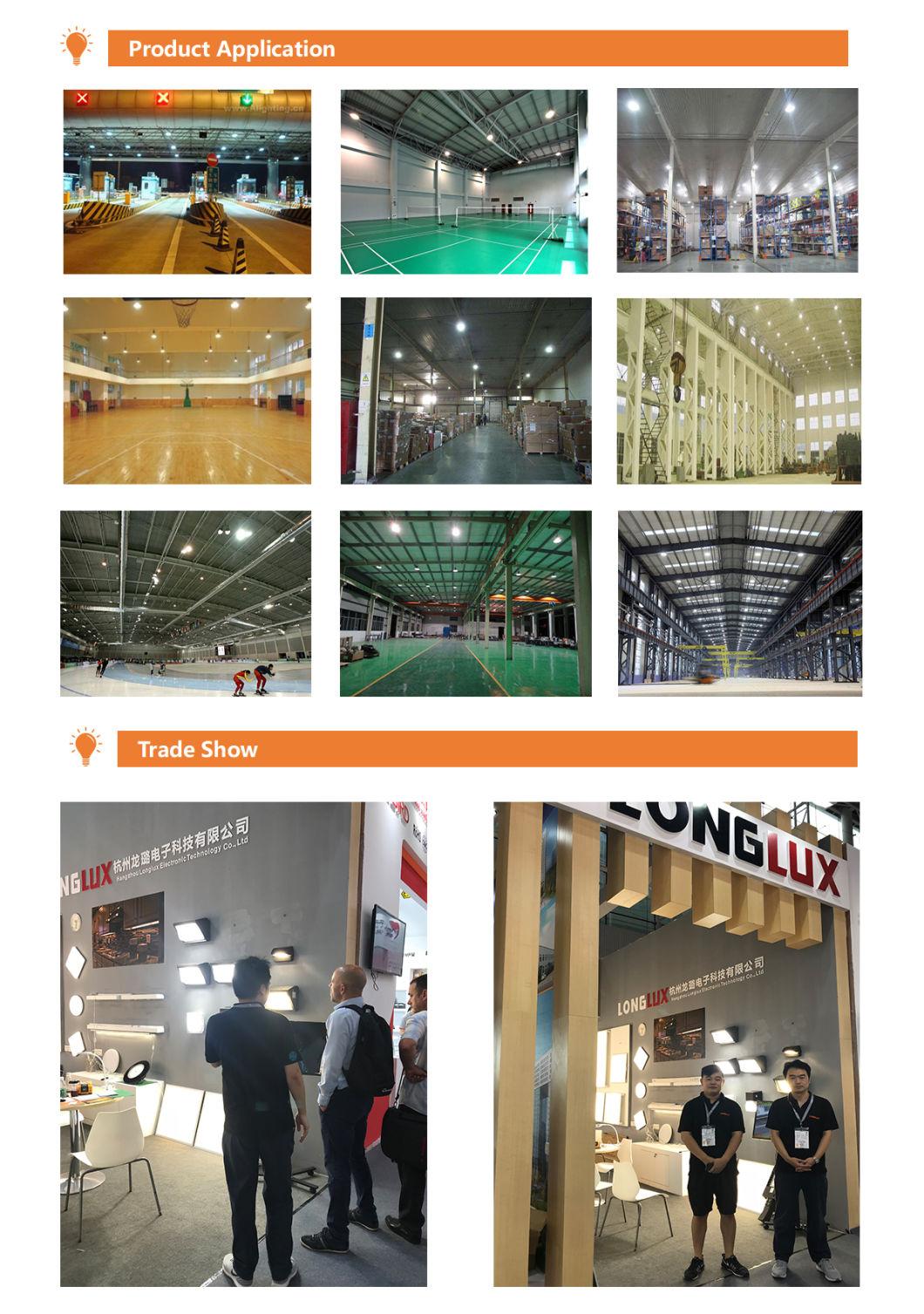

• Usage：Mine, Gymnasium, Shipyard, Exhibition, Warehouse, Shopping Mall, Factory, Tunnel
• Lifespan：≥50000H
• IP Rating：IP65
• Certification：CCC, CE, C-tick, EMC, ETL, LVD, RoHS, SAA, UL, Dlc
• Beam Angle：120
• LED Chips：LED
• Efficiancy：130LMW-150LMW
• Voltage：AC100-277V 347-480V
• Warranty：5 Years
• Lifetime：50000hours
• CRI：70,80
• PF：>0.95
• Location：Wet
• Mounting：Hanging or Wall
• Dimming：Yes
• Transport Package：Carton
• Trademark：longlux
• Origin：China
• HS Code：9405100000
• Production Capacity：500000

Basic Info.

Usage Mine, Gymnasium, Shipyard, Exhibition, Warehouse, Shopping Mall, Factory, Tunnel Lifespan ≥50000H IP Rating IP65 Certification CCC, CE, C-tick, EMC, ETL, LVD, RoHS, SAA, UL, Dlc Beam Angle 120 LED Chips LED Efficiancy 130LMW-150LMW Voltage AC100-277V 347-480V Warranty 5 Years Lifetime 50000hours CRI 70/80 PF >0.95 Location Wet Mounting Hanging or Wall Dimming Yes Transport Package Carton Trademark longlux Origin China HS Code 9405100000 Production Capacity 500000

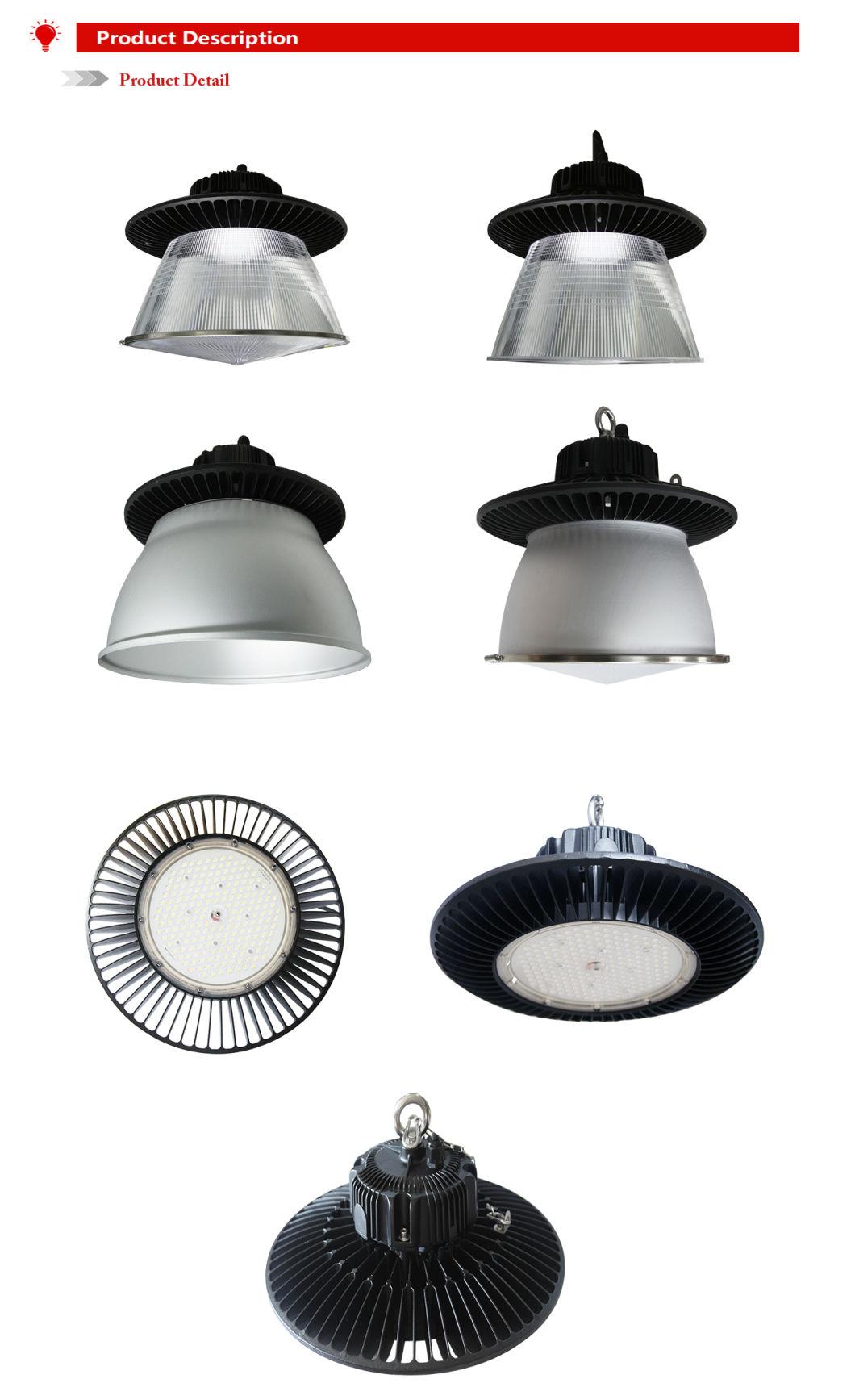

Product Description

Feature
1. Perfect heat disspation, die-casting aluminum UFO shape body
2. Private mould, light weight, good quality
3. High transmittance PC lens
4. Different reflect shade is optional
5. Beam angle:60°°/90°/120°
6. Motion sensor can be added to control the light automatically
Specification

Model	LLX-HB-80	LLX-HB-100	LLX-HB-120	LLX-HB-150	LLX-HB-180	LLX-HB-200	LLX-HB-240
Power (W)	80	100	120	150	180	200	240
Voltage (V)	AC100-277V 347-480V	AC100-277V 347-480V	AC100-277V 347-480V	AC100-277V 347-480V	AC100-277V 347-480V	AC100-277V 347-480V	AC100-277V 347-480V
Hz	50/60	50/60	50/60	50/60	50/60	50/60	50/60
CCT (K)	3000-6500	3000-6500	3000-6500	3000-6500	3000-6500	3000-6500	3000-6500
IP	IP65	IP65	IP65	IP65	IP65	IP65	IP65
Luminous Flux @5000K, 120° (LM)	10400	13000	15600	19500	23400	26000	29000
CRI	70/80	70/80	70/80	70/80	70/80	70/80	70/80
Material	AL+PC	AL+PC	AL+PC	AL+PC	AL+PC	AL+PC	AL+PC
Suitable Locations	wet	wet	wet	wet	wet	wet	wet
Beam angle	60°/90°/120°	60°/90°/120°	60°/90°/120°	60°/90°/120°	60°/90°/120°	60°/90°/120°	60°/90°/120°

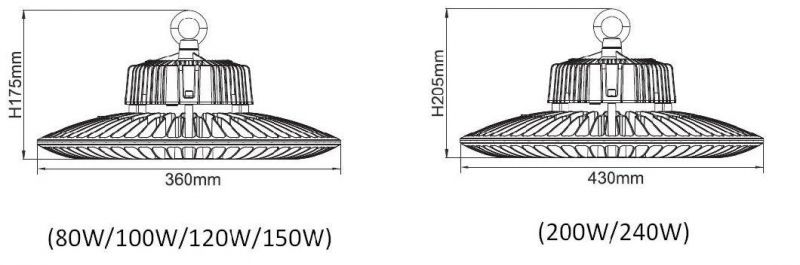

Size(MM)	Φ270*161	Φ270*161	Φ360*175	Φ360*175	Φ430*205	Φ430*205	Φ430*205
Life Time (H)	50000	50000	50000	50000	50000	50000	50000
LED Chip	3030	3030	3030	3030	3030	3030	3030

IMPORTANT SAFETY INFORMATION:
Input Voltage: AC 120-277V, 50/60Hz
Working Temperature: -25ºC~40ºC
This fitting must be wired in accordance with the National Electrical Code and applicable local codes and ordinances.
Installation and servicing this fitting should be performed by qualified electrician only.
Before installation or maintenance, turn off electric power and allow the fitting to be cool.
Proper grounding is required to insure personal safety. Carefully observe grounding procedure under installation section.
Ensure all electrical connections are secure & that there are no loose strands.
Install the fitting in a well-ventilated environment, keep away from corrosive/explosive materials, flammable gas or
electric dust.
Violent shaking or impact should be avoided when the fitting is working.
To weather proof your outdoor installation, be sure to seal all holes, conduit plugs with silicone caulking.

SUGGESTED METHOD OF INSTALLATION:
ALWAYS SWTICH OFF THE MAINS SUPPLY BEFORE INSTALLATION.
STEP 1: Hang the fitting to the fixing through the hook.
STEP 2: Secure the safety chain to the fixing.
STEP 3: Connect the wires through an IP rate connector.

WIRING INSTRUCTION OF MAIN CABLE:


WARNING:
The product must be grounded and installed in accordance with the National Electrical Code and all local codes.
Failure to do so may increase the RISH OF PERSONAL INJURY, PROPERTY DAMAGE, FIRE AND DEATH.
