• Model NO.：P66BS-36WH
• Base Material：Metal
• Certification：CE, RoHS, UL, ISO9001, SAA, TUV-CB, C-Tick, Dlc
• Voltage：100-270VAC
• Beam Angle：120
• Long Life Span：50000 Hours
• Chip Brand：SMD2835
• High Color Consistency：Macadam3
• Feature：Microwave Sensor Motion&Emergency
• Dimming Ways：Dali
• Warranty：5years
• Transport Package：5PCS,Carton
• Specification：595mm*595mm*9mm
• Trademark：lumin led lighting
• Origin：China
• HS Code：94051000
• Production Capacity：20000PCS, Month

Basic Info.

Model NO. P66BS-36WH Base Material Metal Certification CE, RoHS, UL, ISO9001, SAA, TUV-CB, C-Tick, Dlc Voltage 100-270VAC Beam Angle 120 Long Life Span 50000 Hours Chip Brand SMD2835 High Color Consistency Macadam3 Feature Microwave Sensor Motion&Emergency Dimming Ways Dali Warranty 5years Transport Package 5PCS/Carton Specification 595mm*595mm*9mm Trademark lumin led lighting Origin China HS Code 94051000 Production Capacity 20000PCS/ Month

Product Description

PMMA 100-130lm/W 40W 600*600mm Dali Dimming LED Panel
LM-PL-66-36, one of the latest product made by Shenzhen Lumin Lighting Co.,Ltd, is a product withultra-slim design,  elegant appearance, comfortable light, optical PMMA LGP and optical PC fire resistant diffuser.. It is very popular in the European market now.


Model	P66BS-36WH	Diffuser	PS
Power	40W	Net Weight	3.6KG
Size	595*595*9mm	Beam Angle	120 degree
Chip Size	26*46mil	Luminous Flux	3800lm-4100lm
Light Voltage	36V	Minimum Luminous Efficacy(lm/W)	100lm/W
Input Voltage	100-277VAC 50-60Hz(Limit:90-305V)	CRI	80Ra(optional:90Ra/95Ra)
Current	1A	SDCM	<7(optional:≤3)
Light Source	0.5W SMD2835(Optional:Samsung)	UGR	22
LED Source Quantity	240pcs	Warranty	3years
CCT	2700-6500K	Materials	aluminum&PMMA
LGP	PMMA	IP	40
Package	4.9kg/5pcs/Carton	Carton Size	68cm*63cm*3.5cm
Lifetime	50,000h	THD	<13%@230VAC

 Benefits

  (1) Longer lifetime than traditional light.
  (2) 80% Energy-saving over traditional light .
  (3) Minimum maintenance costs.
  (4) Quick and easy installation to minimize retrofit costs
  (5) Using aluminum alloy shell, with frosted poly cover, Have good heat dissipation ability and
  optical effects.

 Application

 Offices, workshops, shopping malls, schools, libraries, hospitals, hotels, retail outlets, living rooms, airports, entertainment spaces, etc.

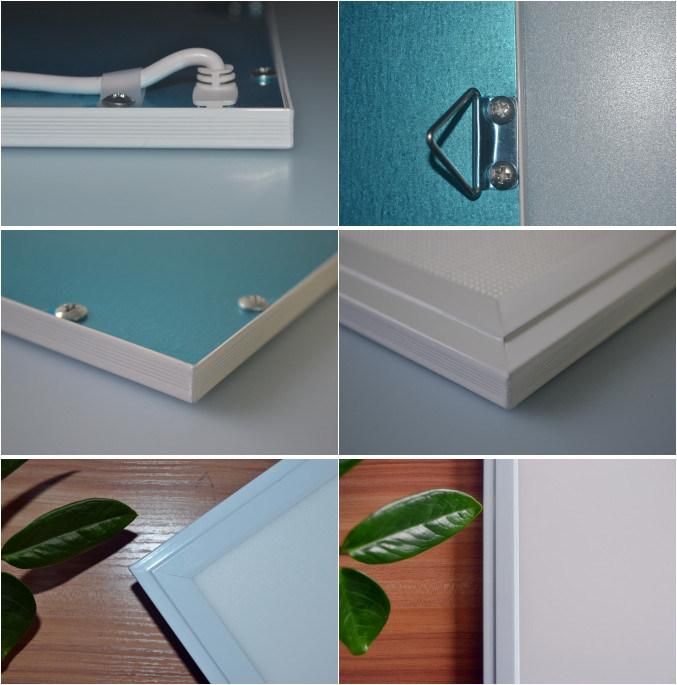

Pictures of the Product






Packaging & Shipping

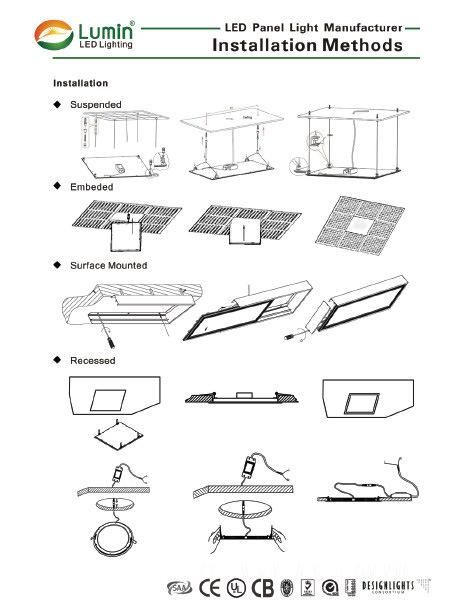

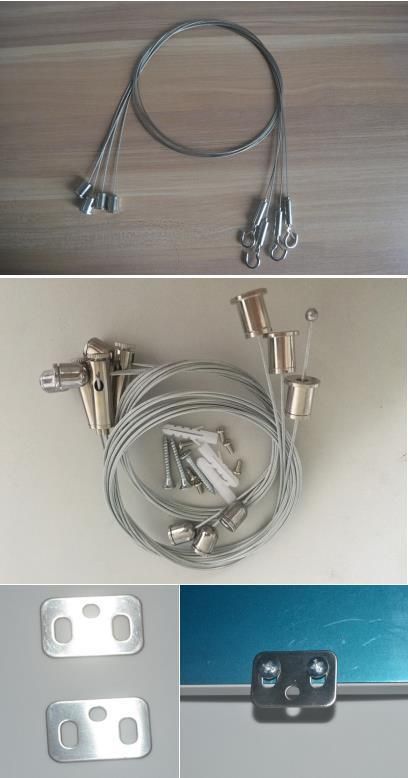

Installation




About LUMIN

Based in Shenzhen, Lumin Lighting is a fast-growing semiconductor lighting manufacturer and suppliers in China. Lumin Lighting  was founded on November 17, 2008. Since its founding, Lumin Lighting is committed to developing, manufacturing, and popularizing LED lighting products, responding to the government policy of energy-saving, emission reduction, and maintainable development.

Lumin Lighting product lines mainly include LED Panel, LED downlight, LED bulbs, and outdoor lights. Meantime, Lumin Lighting also provides customized lighting solutions to customers.

Lumin Lighting takes product quality as our lifeline. We focus on quality during the whole production process by seriously carrying out ISO 9001 Quality System and ISO Environment Management System.



Best Services
(1) Your inquiry will be replied within 12 hours
(2) Fast sample delivery: 3 days around
(3) Best-trained and experienced sales staffs follow up with your inquiries and orders
(4) OEM/ODM services: all can be customized
(5) Distributor, agent, investor and more are welcome
(6) 5-year limited warranty: spare parts can be offered along with orders.
