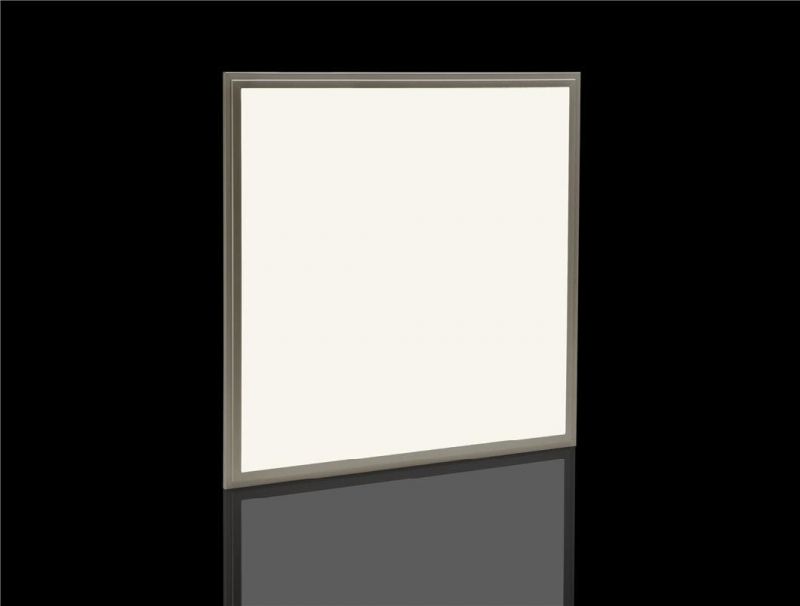

LED Square Backlit Type LED Panel Light 40W 100lm/W Business Office Lighting China Manufacturer
Shenzhen Lumin Lighting Co., Ltd.- Light Source：LED
- Housing Material：Aluminium
- Emitting Color：White
- Dimmable：With Dimmable
- Appearance：Square
- Type：Recessed
Base Info
- Model NO.：LM-PL-66-40W
- Base Material：Metal
- Certification：CE, RoHS, UL, SAA
- Voltage：200-240V
- Beam Angle：120°
- Light Efficacy：100 Lm,W
- CRI：Ra>80
- IP Rating：IP20
- Sdcm：<6
- Transport Package：10PCS,Carton
- Specification：600*600*30mm
- Trademark：Lumin
- Origin：Shenzhen, China
- HS Code：9405100000
- Production Capacity：20000pieces,Month
Description

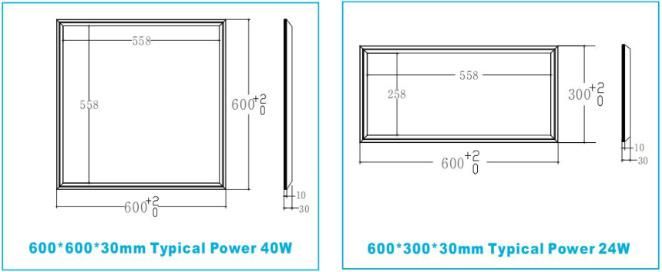

>80<6 LM-PZ63-24W-xxK 600*300mm 24W LM-PZ66-40W-xxK 600*600mm 40W LM-PZ1203-40W-xxK 1200*300mm 40W
Our Features
1. 100 lm/w
Remarkable light efficiency
With the panel 28W 600*600mm,you realize more
than 60% energy savings compared to a classic
4×18W T8 Luminaire.
2. CRI 82
Excellent color rendering
With an CRI of 82,you get a 82 faithful colors.Particularly suited for
office lighting.
3. <6 SDCM
Constant color temperature
LEDs are selected in a single 6 SDCM BIN.In order to guarantee a
homogeneity of color on the entire panel light.All these luminaires
LEDs have an imperceptible color variation to the eye(<6 SDCM).
4. No UV,no IR
Photobiological saftey
Photobiological saftey(UV,IR,Blue Light,etc.) complies with the IEC/
EN62471 standard.
5. Flicker Free
Low ripple LED driver
The ripple of LED driver is controlled below 300mV,which makes the
panel realize flicker free .(Non-professional tools:take photos with
digital camera,the light does not flicker)
6. Dimmable
Dimming options
DALI,RF 2.4G,3 in1 dimming(0/1-10V, PWM, Rx).
Electrics
1. High efficiency power supply,ENEC listed.
2. Input Voltage:AC200-240V,50/60Hz.
3. Power Factor: >0.9.
4. Dimming solutions can be customized.
Environmentally friendly
1. No glare,mercury,ultraviolet,infrared or other hazardouse substances.
2. Working Temperature:-25ºC~50ºC.

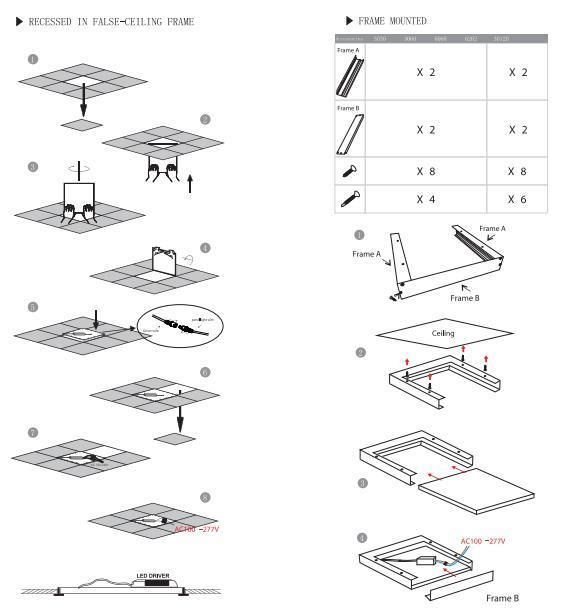

Installation Instructions
1. Fixtures must be operated by a licensed electrician.
2. Check if fixtures are in good condition once the packaging is open.
3. Do not let fixture fall down from ceiling system or clash to hard staff.
4. Make sure that the cable of fixture is long enough to connect.Do not knot or pull the cable strongly.
5. Do connect input end of fixture to output end of LED driver.
6. Wiring must be firm and tight with insulation protection well.Be aware of electricity shock.
7. Keep fixture and LED driver away from water or liquid,free from electric leakage and eletricity shock.

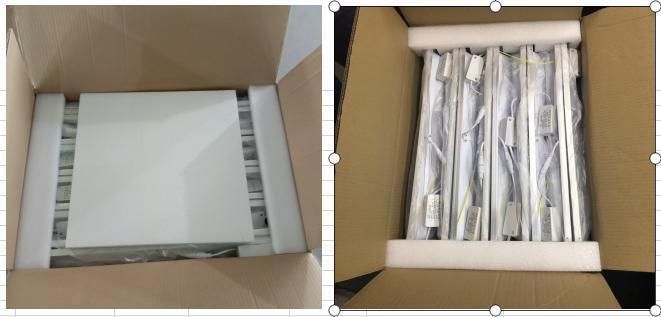

Packaging
600*600 Series LED panels are packaged with K=K solid carton,PE bag and foams.It's safe
and solid for the long-distance transportation.

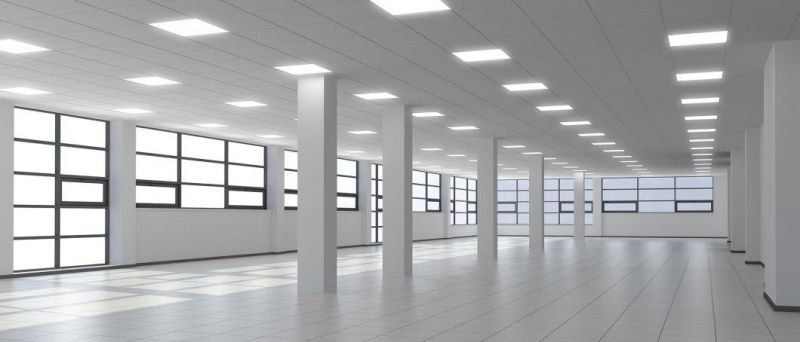

Projects

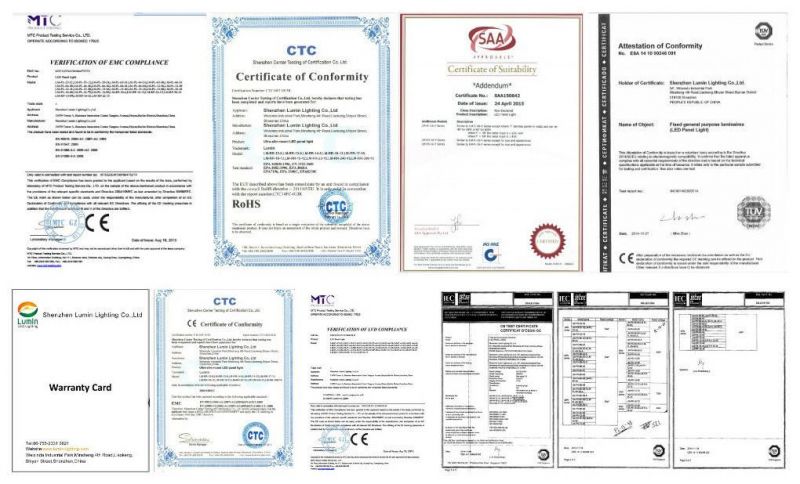

Certification
About LUMIN
Based in Shenzhen,Lumin Lighting is a fast-growing semiconductor lighting manufacturer and suppliers in
China.Lumin Lighting was founded on November 17,2008.Since its founding,Lumin Lighting is committed
to developing,manufacturing and popularizing LED lighting products,responding to the government policy of
energy-saving,emission reduction,and maintainable development.

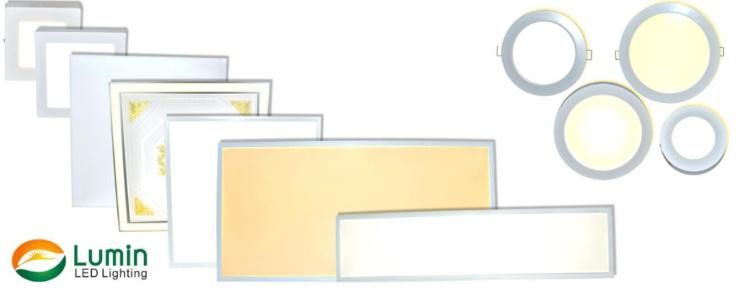

Lumin Lighting product lines mainly include LED Panel,LED downlight,LED bulbs,and outdoor lights.Meantime,
Lumin Lighting also provides customized lighting solutions to customers.
Lumin Lighting takes product quality as our lifeline.We focus on quality during thewhole production process
by seriously carrying out ISO 9001 Quality System and ISO Environment Management System.
Best Services
(1) Your inquiry will be replied within 12 hours.
(2) Fast sample deliverly:3 days around.
(3) Best-trained and experienced sales staffs follow up with your inquiries and orders.
(4) OEM/ODM services:all can be customized.
(5) Distributor,agent,investor and more are welcome.
(6) It can be 5-year limited warranty:spare parts can be offered along with orders.
