• Model NO.：RB-HB-100W2
• Certification：CE, EMC, RoHS, SAA, UL
• Beam Angle：120°
• LED Chips：Bridgelux
• Life：50, 000h
• Power Source：AC
• Electric Current Type：AC
• Emitting Color：Full Range
• Base Material：Aluminum
• Input Voltage：85-265V
• Transport Package：1PCS,Box
• Specification：CE,EMC,ETL,SAA
• Trademark：Rayborn
• Origin：China
• HS Code：9405409000
• Production Capacity：40000PCS,Month

100W LED Industrial High Bay Light Main Technical ParametersItem No.:RB-HB-100WU2Input Voltage:AC 100~277V/347V/480VFreqency Range:50Hz~60HzLed Chip:Osram 3030 chipPower Factor:>0.96Power Efficiency:>90%LED Power 100WLED QTY: 144pcsLED Working Voltage:DC 42~48VSystem Consumption:    103WLED Luminous FluxWarm White    13000LMPure White    138000LMCool White    14000LMViewing Angle:   120/90/60egreeCenter IlluminanceHeight 10M    155LUXHeight 20M    61LUXHeight 30M    35LUXIlluminance AreaHeight 10MDia.1178CM  points visibleHeight 20MDia.2356CM points visibleHeight 30MDia.3535CM points visibleIlluminance Uniformity:>0.6Color TemperatureWarm White3000K~3500KPure White5300K~5700KCool White6000K~6500KColor Rendering IndexRa>80Light Distribution:LED points visibleLight Design:LED+LED Junction Temperature:≤115Working Temperature:-30~65IP Grade:IP65Working Life-span:50000 HPower Line:1.0 mthree lineConnect WireBrownLBlueNYellow / GreenGThe color of the lamp shellBlack and silver is availableCertificateCE /Rohs/SAA/ETLNet Weight:2.8kg

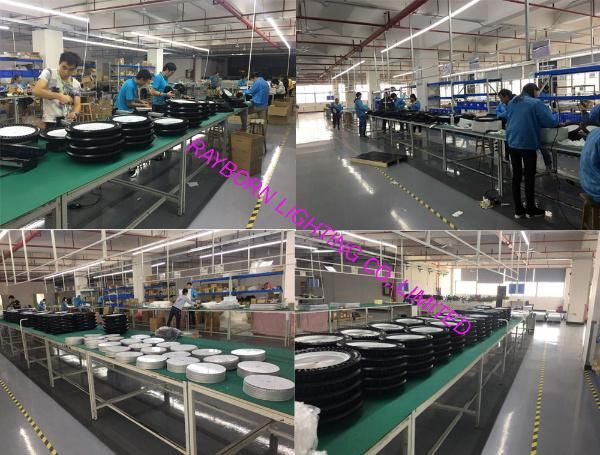

UFO Hihg Bay LED Light Production Workshop:



100W 150W 200W 250W 300W UFO Led High Bay Light Features:

1.Flexible positions can be adjusted within 180°.
2.Adopt copper heatpipe can conduct heat rapidly from the chips to radiator,greatly lower down the temperature of light source,extending life span.
3.Full series led high bay light use Taiwan MeanWell driver,3030 chip is available.
4.Waterproof IP65 design,elimination mist,avoid condensation,widely use for indoor and outdoor.
5.Reflector 60° 90° 120° beam angle is available,meet the requirements of professional light distribution and can be use at different place.

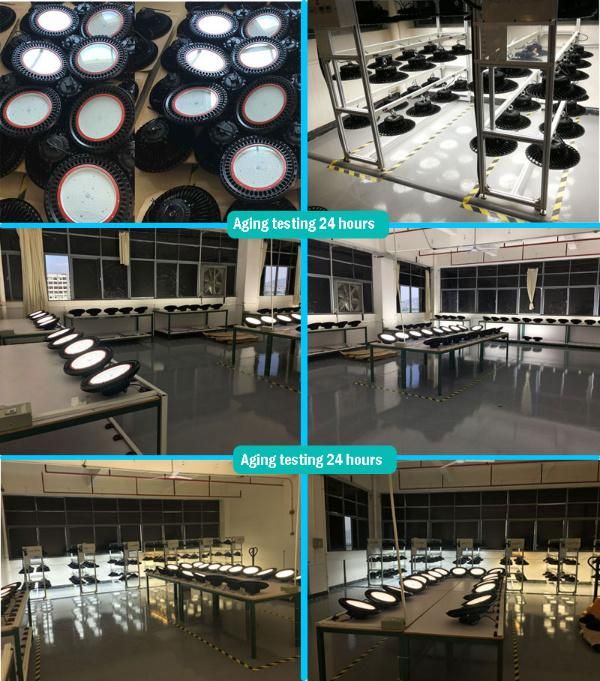

UFO 24-Hour Aging Testing:

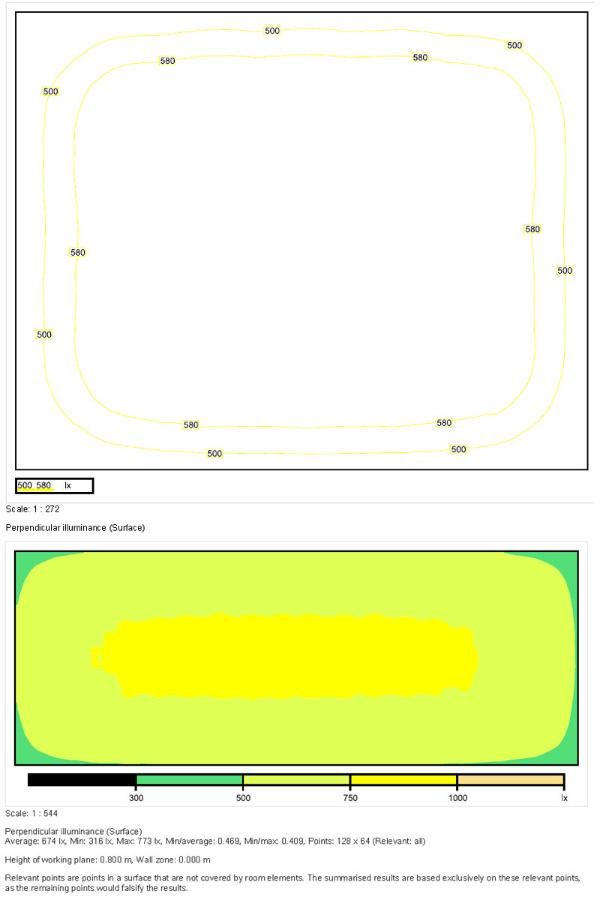

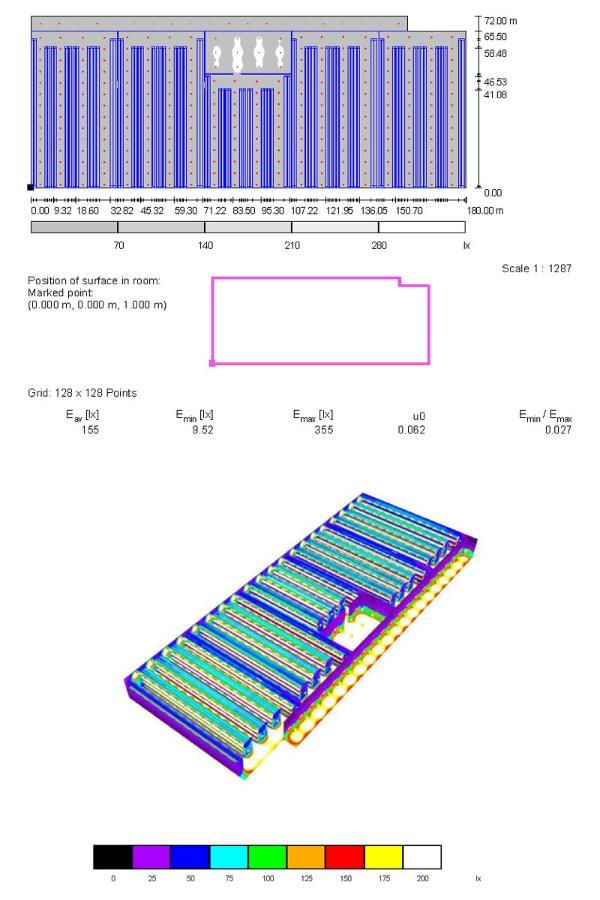

LED High Bay Design Simulation:

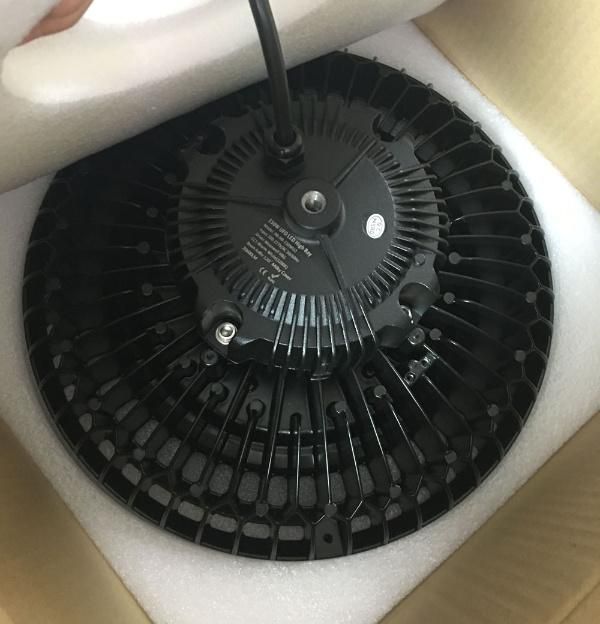

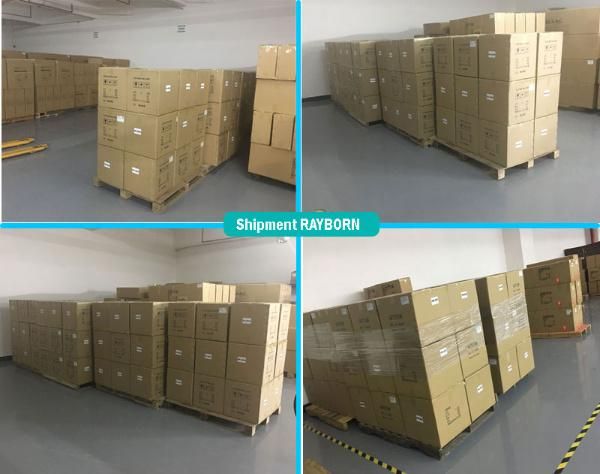

LED High Bay Light Product Packaging:

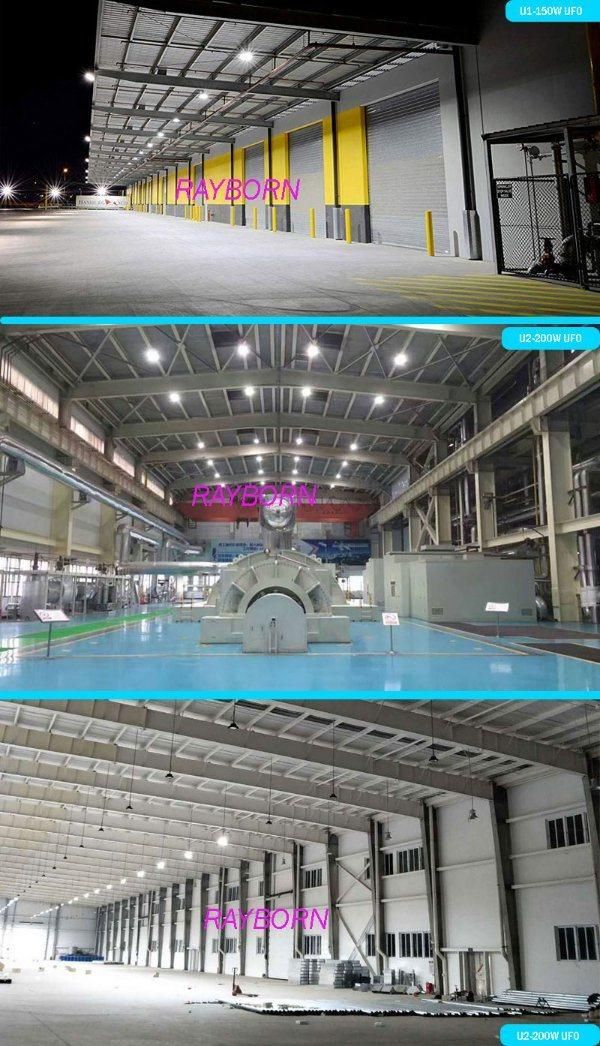

RAYBORN UFO High Bay Light Applications:

Shenzhen Dongguan Zhongshan LED High Bay Lights widely used for Indoor and outdoor places:
Factories, workshops, warehouse, toll stations, gas stations, stadiums, big supermarket, exhibition, commercial building, stadium hall, parking building etc.



Trade Terms:

1. Payment: T/T, L/C at sight, Paypal available

2. Samples can be available within 5-7 working days; Order: 10-20Days

3. Shipping freight is quoted under your requests

4. Shipping port:Shenzhen , China

5. Discouts are offered based on order quantities


Rayborn Company Information:

As a big led manufacturer with years of experiences,we Rayborn led lghting would very like to be your reliable lighting specialist. We ensure that:

1.Offering you the competitive price with good quality led lights.

2.Delivery the goods to you with speed and precision wherever you are.

3.Reply your inquiry and request in 4 hours during workdays.

4.Keep on researching and developing news prodcuts to satisfy your various needs.
