• Model NO.：LM-P66C-36WH-XXK-SKY
• Base Material：Metal
• Certification：CE, RoHS, UL, SAA
• Voltage：200-240V
• Beam Angle：120°
• Light Efficacy：80 Lm,W
• CRI：Ra>80
• LED Chip：4014
• Ugr：22
• Transport Package：Carton
• Specification：595*595*8mm
• Trademark：Lumin
• Origin：Shenzhen, China
• HS Code：9405100000
• Production Capacity：20000pieces,Month

Size: 595*595*8mm,Power:40WEfficacy:80LM/WSDCM: >3/6UGR: 22SMD4014/2835CCT:3000-6000KWarranty:2yearsDriver: any brand is available


Features
1. DLC PREMIUM 80LM/W
2.Ellglble for PG&E Deemed rebate program
3.Available in with multiple variations in measurement variations for each standard size
4.Available in a range of lumens from 3200-3500 lumens, depending on wattage and dimensions
5.Flicker free (reduce the headache and fatigue caused by the irritation of the eyes)
6.IEC/EN 62471 photobiological standard class A (do not damage the retina)
7.No rewiring of fixture, minimizing replacement and maintenance costs
8.Optional: tunable white 3000-6000k, remote control(customized)

Electrics
1. High efficiency power supply,ENEC listed.
2. Input Voltage:AC200-240V,50/60Hz.
3. Power Factor: >0.9.
4. Dimming solutions can be customized.

Environmentally friendly
1. No glare,mercury,ultraviolet,infrared or other hazardouse substances.
2. Working Temperature:-25ºC~50ºC.

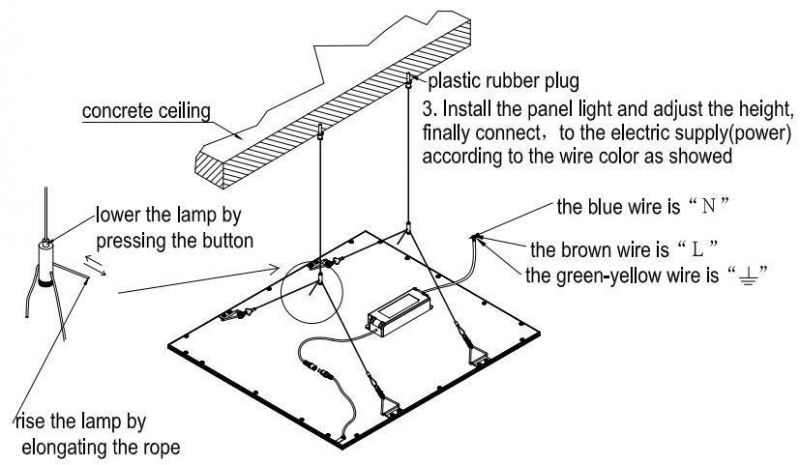

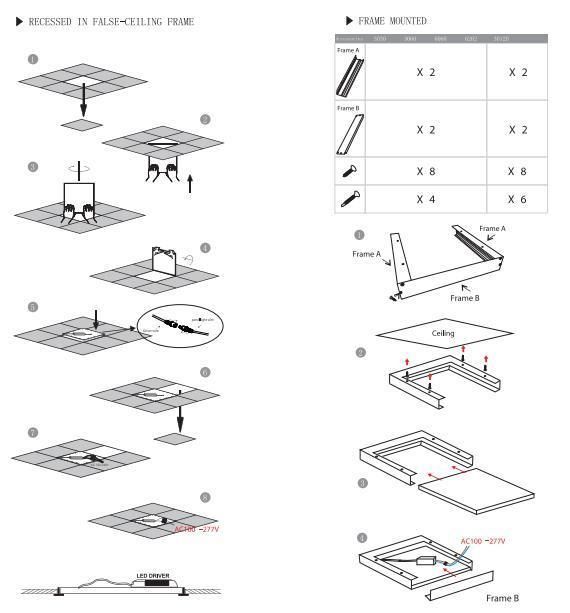

Installation Instructions
1. Fixtures must be operated by a licensed electrician.
2. Check if fixtures are in good condition once the packaging is open.
3. Do not let fixture fall down from ceiling system or clash to hard staff.
4. Make sure that the cable of fixture is long enough to connect.Do not knot or pull the cable strongly.
5. Do connect input end of fixture to output end of LED driver.
6. Wiring must be firm and tight with insulation protection well.Be aware of electricity shock.
7. Keep fixture and LED driver away from water or liquid,free from electric leakage and eletricity shock.

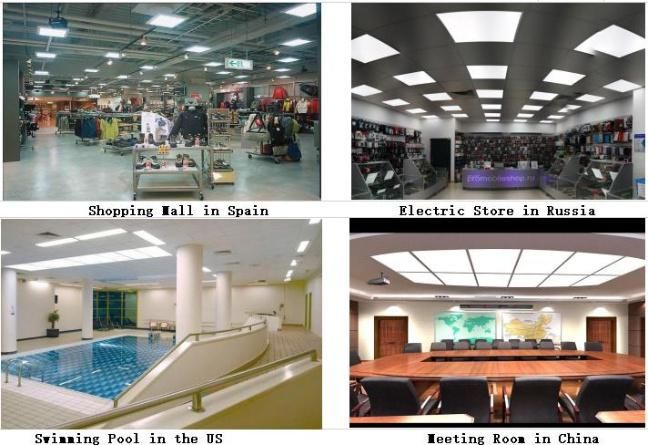

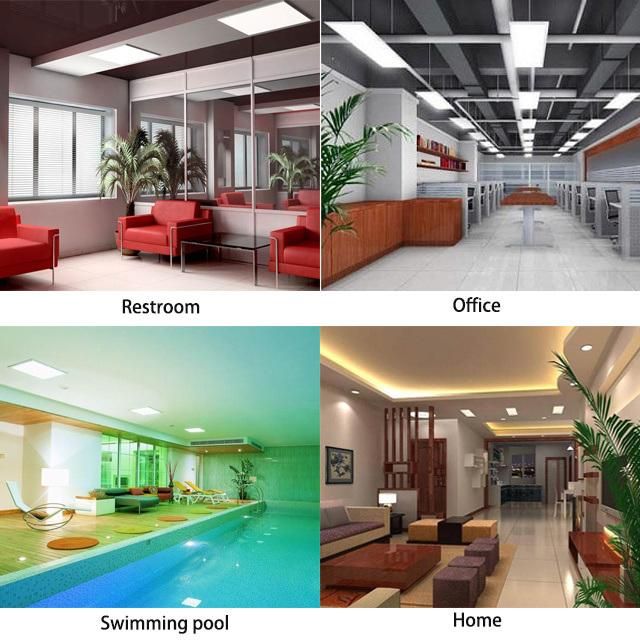

Projects




Certification


About LUMIN

Based in Shenzhen,Lumin Lighting is a fast-growing semiconductor lighting manufacturer and suppliers in
China.Lumin Lighting was founded on November 17,2008.Since its founding,Lumin Lighting is committed
to developing,manufacturing and popularizing LED lighting products,responding to the government policy of
energy-saving,emission reduction,and maintainable development.

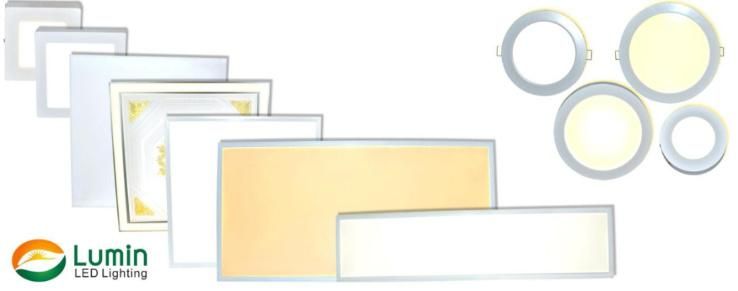

Lumin Lighting product lines mainly include LED Panel,LED downlight,LED bulbs,and outdoor lights.Meantime,
Lumin Lighting also provides customized lighting solutions to customers.

Lumin Lighting takes product quality as our lifeline.We focus on quality during thewhole production process
by seriously carrying out ISO 9001 Quality System and ISO Environment Management System.

Best Services
(1) Your inquiry will be replied within 12 hours.
(2) Fast sample deliverly:3 days around.
(3) Best-trained and experienced sales staffs follow up with your inquiries and orders.
(4) OEM/ODM services:all can be customized.
(5) Distributor,agent,investor and more are welcome.
(6) It can be 5-year limited warranty:spare parts can be offered along with orders.

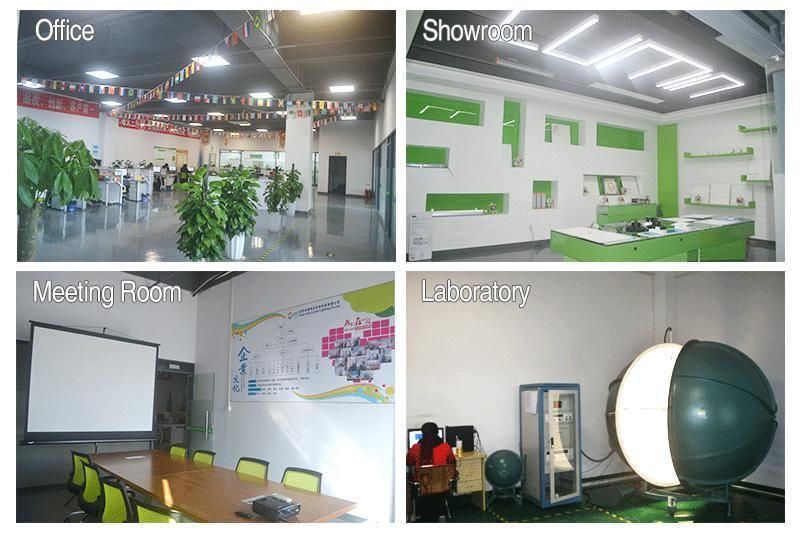

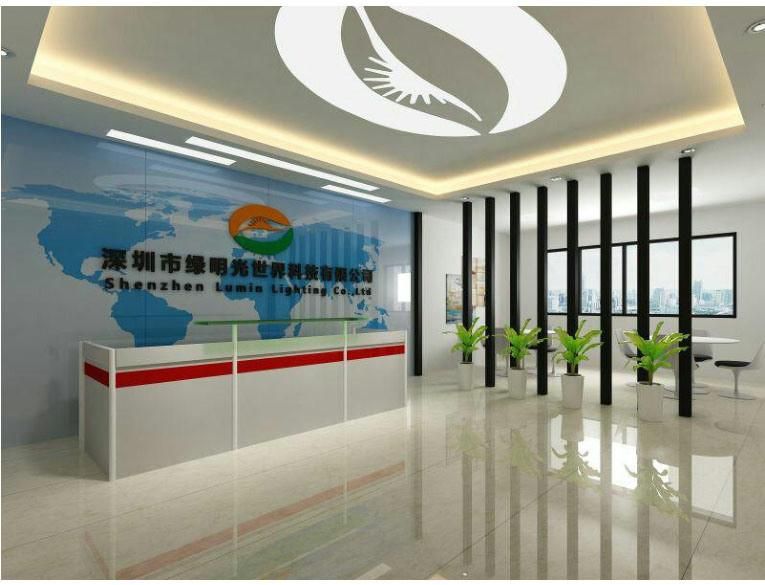

Company Profile
