• Model NO.：LM-WP-66-36
• Base Material：Metal
• Certification：CE, RoHS, UL, ISO9001, SAA, CUL, CB,TUV
• Voltage：85V-265V
• Beam Angle：120°
• Lumen：4000lm
• PF：>0.95
• Opertating Temperature：-20~+40 Deg
• Storage Temperature：-40~+85 Deg
• CRI：>80
• Transport Package：Carton
• Specification：595*595*18mm
• Trademark：Lumin
• Origin：Shenzhen
• HS Code：9405409000
• Production Capacity：10000PCS,Month

Basic Info.

Model NO. LM-WP-66-36 Base Material Metal Certification CE, RoHS, UL, ISO9001, SAA, CUL, CB,TUV Voltage 85V-265V Beam Angle 120° Lumen 4000lm PF >0.95 Opertating Temperature -20~+40 Deg Storage Temperature -40~+85 Deg CRI >80 Transport Package Carton Specification 595*595*18mm Trademark Lumin Origin Shenzhen HS Code 9405409000 Production Capacity 10000PCS/Month

Product Description

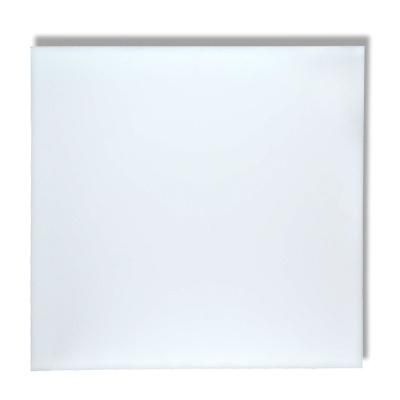

600*600 mm  36W/48W Frameless LED Panel Light for commercial  Lighting

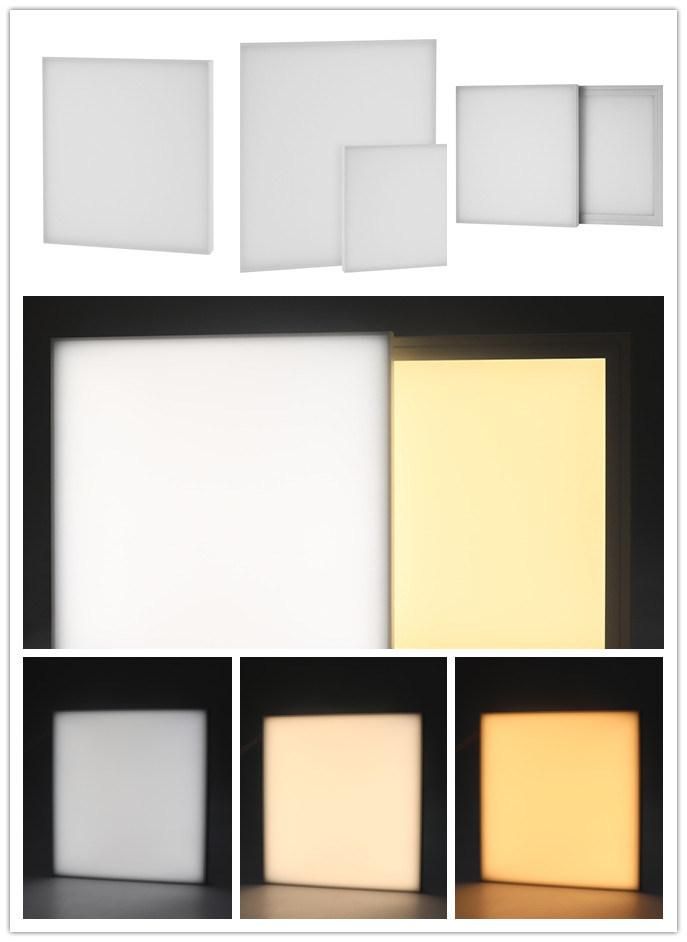

Details

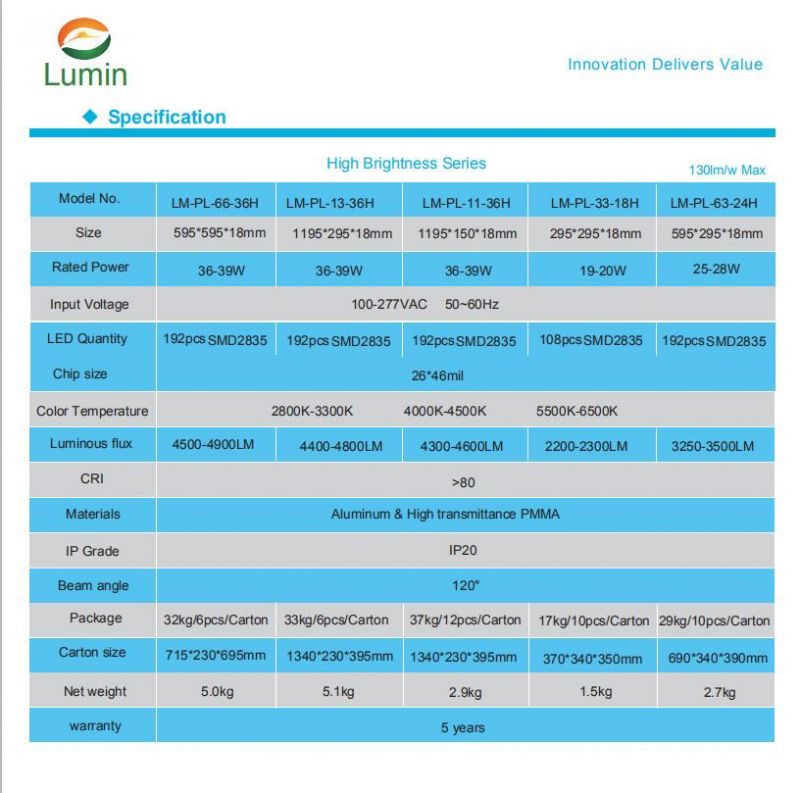

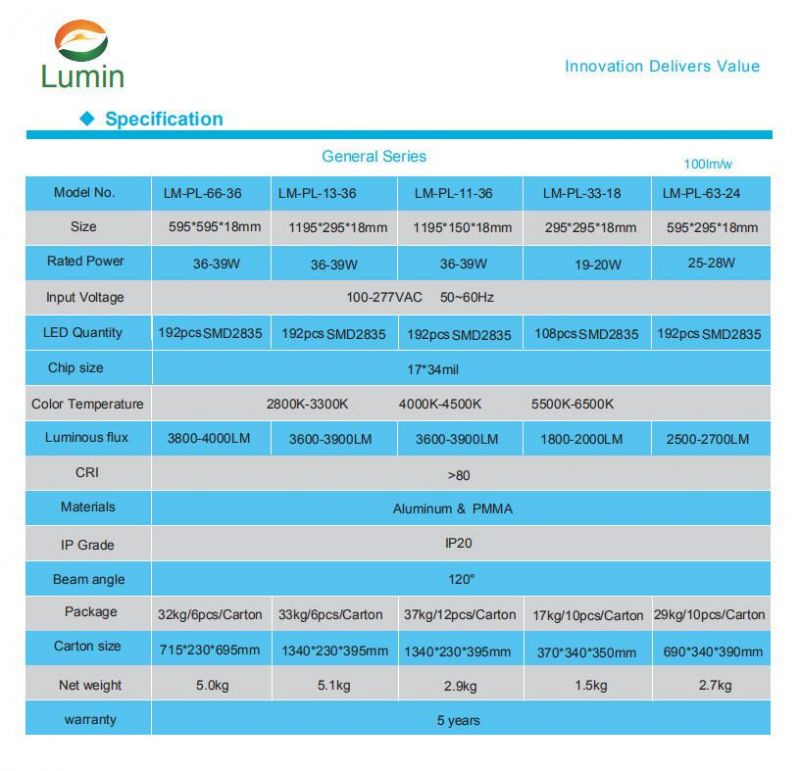

Specification
-------------------------------------------------------------------------------------------------------
---------------

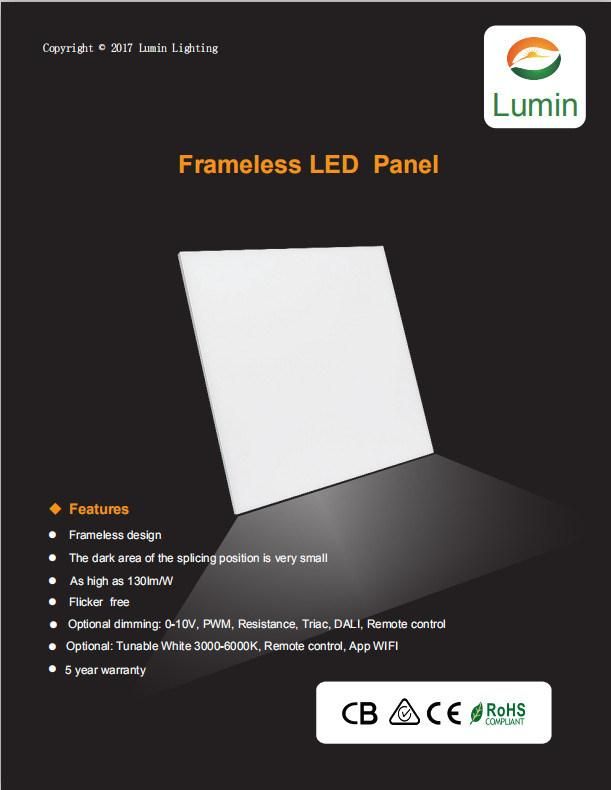

 Features
-------------------------------------------------------------------------------------------------------
---------------
1. Innovative frameless design,elegant appearance light,Can be joined together without limited,Perfect visual effect-no extra frame on the ceiling once installed comparing to framed LED Panel.
2. Optical PMMA LGP,optical PC fire resistant diffuser.
3. Energy saving up to 80%
4. High brightness: > 100LM /W
5. Nice lighting distribution: > 90 %
6. High color rendering index:  Ra> 80/90/95
7.Stable LEDs light source design solution: use the best 4014 LEDs ---- high CRI, high brightness, and low light decay.
8. Excellent circuit design, each group of LEDs work separately, avoiding any problem of lighting output caused or influenced by single faulty LED.
9. New high efficiency constant current driver: wide range of input voltage : AC85-265V.
10.All size can be customized
11. All light color are available
12.Dimmable solutions: 0-10V, Traic, Dali
13.More IP Rating: IP40
14. Instant starting time: < 1.2 s, and no noise as it starts.
15.With special crafts, luminous is 3% higher than other same products from the market
16.Famous LED source and driver chosen for the LED Panel
17. Environment friendly : No mecury, no harmness to human healthy and the earth.

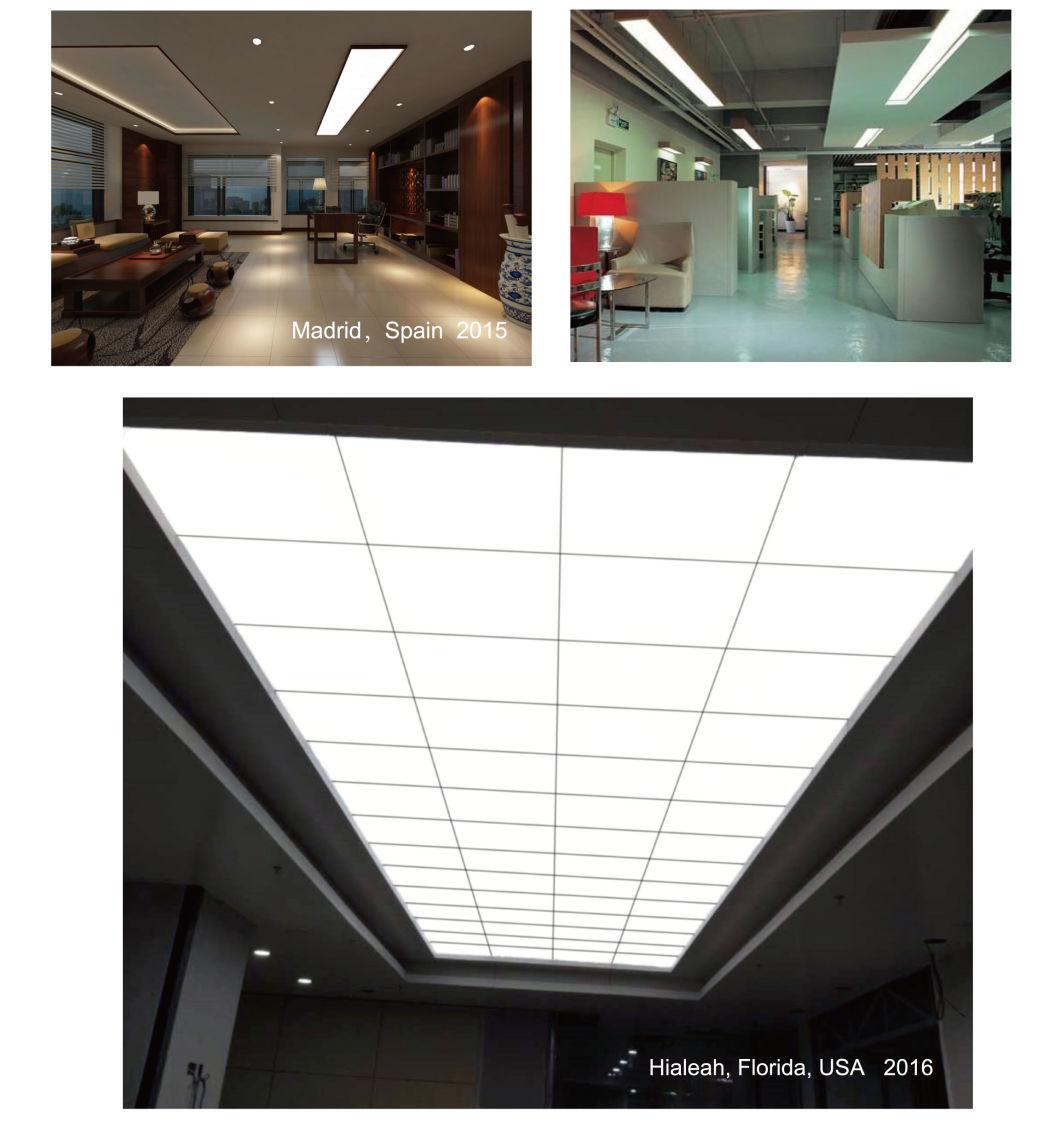

Application
-------------------------------------------------------------------------------------------------------
---------------
         Widely used for home lighting, office lighting, supermarket lighting and other place

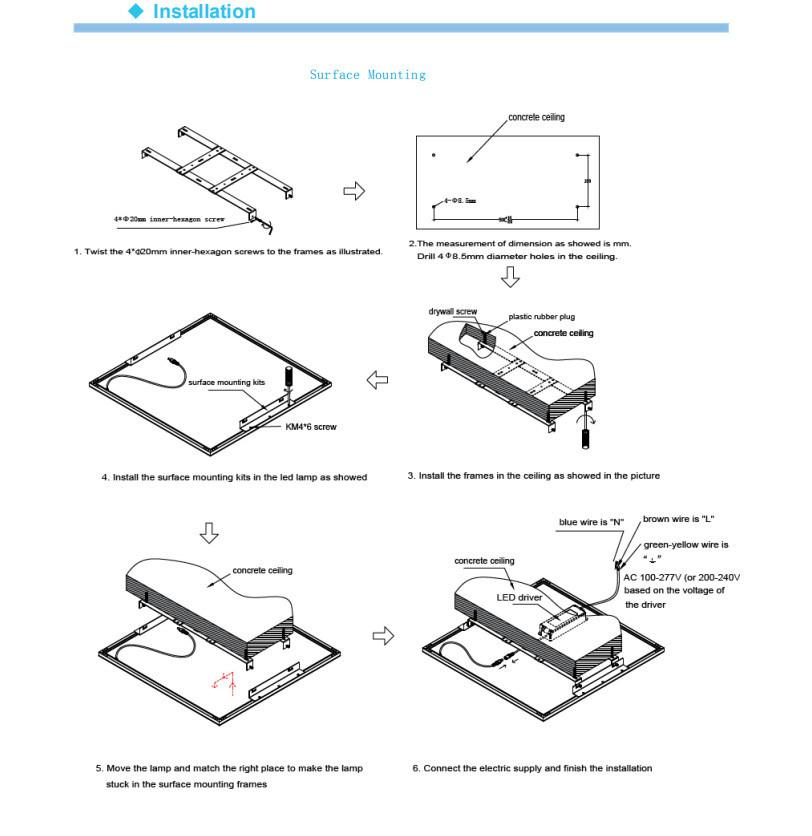

Installation
-------------------------------------------------------------------------------------------------------
---------------


Trade Terms
-------------------------------------------------------------------------------------------------------
---------------
1. Samples will be delivered in 3-5days.
2. Payment terms: 100% T/T or Western Union for small order; 30% deposit and 70% T/T for large order.
3. Delivery time: 5-7 days for small orders; 15-20 days for big orders.
4. Shipping port: Shenzhen

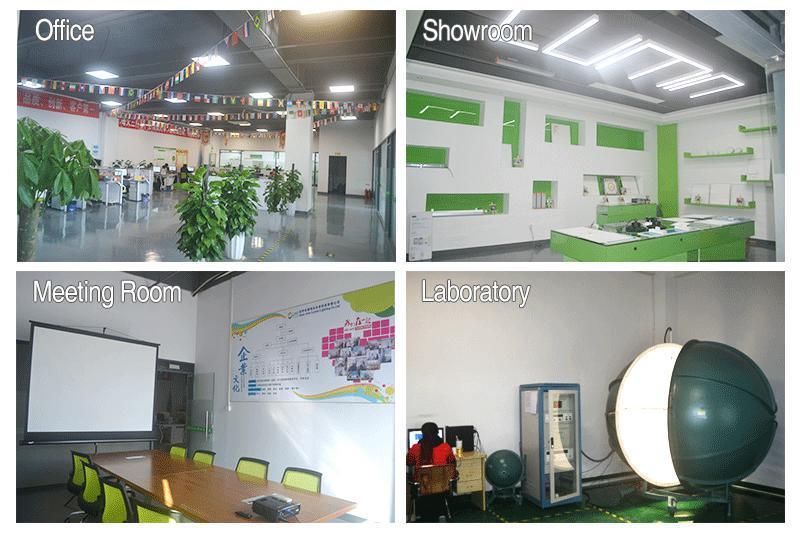

Company Profile




-------------------------------------------------------------------------------------------------------
---------------
Based in Shenzhen, Lumin Lighting is a fast-growing semiconductor lighting manufacturer and supplier in China. Lumin Lighting was founed on November 17, 2008.

Our key product lines mainly include LED panel light, LED pendant light, and LED downlight.
Meantime, Lumin Lighting also provides professional customized lighting solutions to customers.
