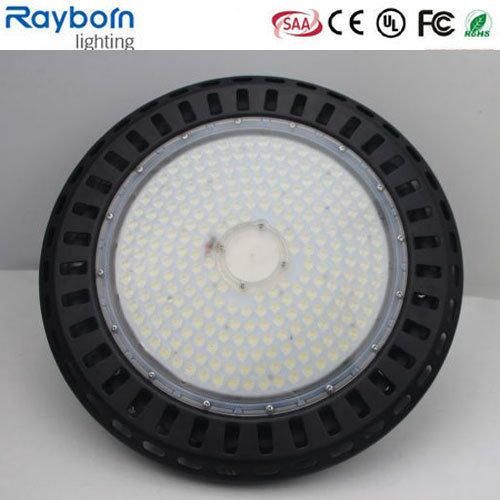

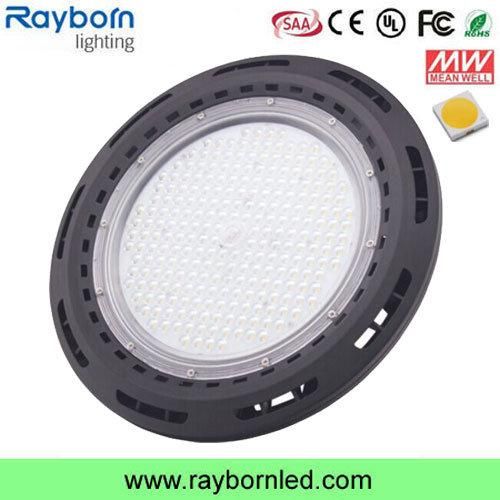

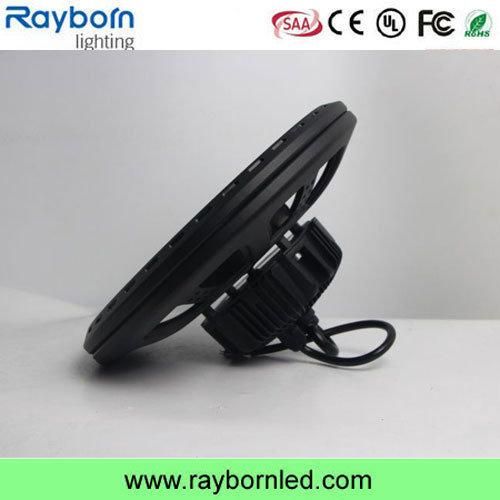

480V UFO LED High Bay Light 100W 200W 250W 150lm/W with CE RoHS ETL

Rayborn Lighting Co., Ltd.
  • Color Temperature：Cool White
  • Lamp Body Material：Aluminum Alloy
  • Power：150W
  • Usage：Mine, Gymnasium, Shipyard, Exhibition, Warehouse, Shopping Mall, Factory
  • Lifespan：≥50000H
  • IP Rating：IP65

Base Info

  • Model NO.：RB-HB-150W2
  • Certification：CE, EMC, LVD, RoHS, SAA, SASO, UL
  • Beam Angle：60°
  • LED Chips：Epistar
  • Power Factor(PF)：0.98
  • Total Harmonic Distortion(Thd)：<8%
  • Power Efficiency：>88%
  • Illuminance Uniformity：>0.6
  • Power Line：H05ss-F
  • Grade：IP65
  • Color Rendering Index：80
  • Driver：Taiwan Meanwell
  • Transport Package：One Piece One Carton
  • Specification：IP54 interior
  • Trademark：Rayborn
  • Origin：China
  • HS Code：94054090
  • Production Capacity：40000PCS

Description

150W UFO LED HIGH BAY Main Technical ParametersItem No.:RB-HB-150WUInput Voltage:AC 100-277VFreqency Range:50Hz~60HzLED Chip:SMD3030 ChipPower Driver:Meanwell HBGPower Factor:>0.98Power Efficiency:>93%LED Power150WLED QTY:196pcsLED Working Voltage:DC 40~48VSystem Consumption:155WLED Luminous FluxWarm White15500LMPure White17700LMCool White18000LMViewing Angle:60/90/120degreeMaximumIlluminanceHeight 10M159LUXHeight 15M71LUXHeight 20M40LUXIlluminance AreaHeight 10MDia.1174 CMDia.1761 CM points visibleHeight 20MDia. 2348 CM points visibleIlluminance Uniformity:>0.6Color TemperatureWarm White3000K~3500KPure White4500K~5500KCool White6000K~6500KColor Rendering IndexRa>80Light Distribution:LED points visibleLED Junction Temperature:≤115ºCWorking Temperature:-35ºC~55ºCIP Grade:IP65Working Life-span:50000 HPower Line:1.0 mm three lineConnect WireBrownLBlueNYellow / GreenGCertificateCE /UL/ROHSSize:328*328*178.5mmProduct Samples:
480V UFO LED High Bay Light 100W 200W 250W 150lm/W with CE RoHS ETL
480V UFO LED High Bay Light 100W 200W 250W 150lm/W with CE RoHS ETL



480V UFO LED High Bay Light 100W 200W 250W 150lm/W with CE RoHS ETL


Quality is our culture:
1) Defective rate control around 1‰ , PF>0.95, can real pass CE, EMC. LVD in Europe, The driver have strictly inspection test before assembly.

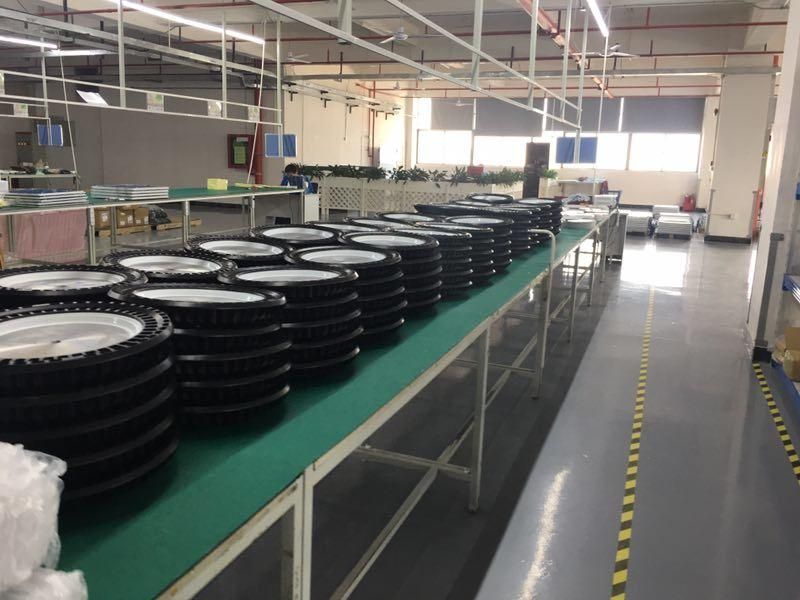

2) Our production line have inspection people inspect product quality process.
Example: Light up test, power wattage test, high-Voltage test, waterproof test, ground connection test and so on.

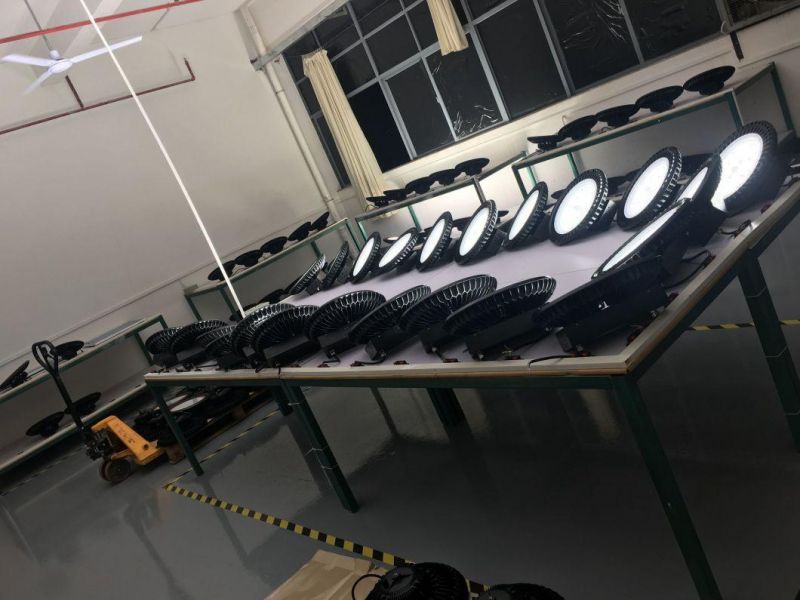

3)12hours more aging test, inspection department will test 100% product for light up test, power wattage test and so on.
480V UFO LED High Bay Light 100W 200W 250W 150lm/W with CE RoHS ETL
480V UFO LED High Bay Light 100W 200W 250W 150lm/W with CE RoHS ETL


Competitive Advantage:

1. CE & RoHS & TUV, SAA approved, Quality Guaranteed

2. Imported original Cree & Bridgelux & Epistar chip, superior light source

3. OEM & ODM welcome, independent R&D ability, patent design.

4. Fast delivery, 2-15 workdays depends on order quantity after payment confirmed

5. Reliable quality & credit, 5 years warranty and 50.000 hours lifespan


Company Information:
As a big led manufacturer with years of experiences,we Rayborn led lghting would very like to be your reliable lighting specialist. We ensure that:
1.Offering you the competitive price with good quality led lights.
2.Delivery the goods to you with speed and precision wherever you are.
3.Reply your inquiry and request in 8 hours during workdays.
4.Keep on researching and developing news prodcuts to satisfy your various needs.


Trade Terms:
1. Payment: T/T, L/C at sight, Paypal available
2. Samples can be available within 5-7 working days; Order: 7-10Days
3. Shipping freight is quoted under your requests
4. Shipping port:Shenzhen , China
5. Discouts are offered based on order quantities

Rayborn services:
1. Your inquiry related to our products or prices will be replied in 24hours.
2. OEM & ODM are welcomed, OEM brand is available.
3. Any defective products within warranty will get maintenance or replacement unconditionally.
4. Protect your sales area
