5W 7W 12W 15W 18W Dimmable COB LED Downlight
Guangzhou KEOU Lighting Co., Ltd.- Color Temperature：2700-7000k
- Lamp Body Material：Aluminum
- Source Number：COB
- Installation：Recessed
- Lamp Installation：Plug Lamp
- Switch Type：Touch On,Off Switch
Base Info
- Model NO.：KEOU-TDCOB-12W
- Warranty：5 Years
- Application：Home Furnishing
- IP Rating：IP20
- Certification：CE, EMC, RoHS, SAA
- 4W/7W/9W/12W/15W/18W：Optional
- OEM/ODM：Available
- Chip Brand：Epistar
- CRI (Ra>)：80

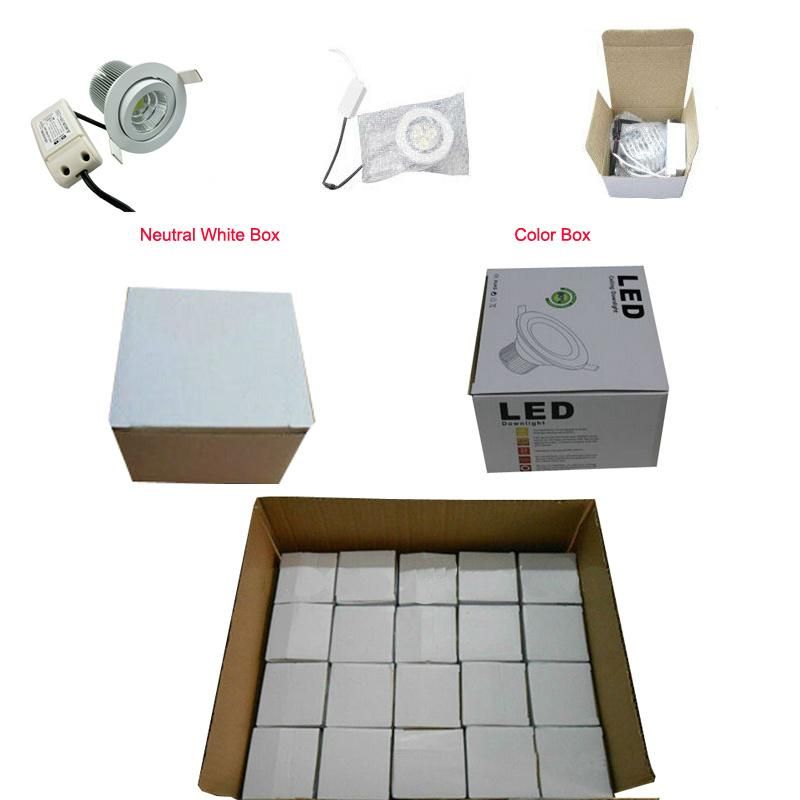

- Transport Package：Colorful Packing Box
- Specification：CE, RoHS, SAA
- Trademark：KEOU
- Origin：Guangzhou, China
- HS Code：9405409000
- Production Capacity：50, 000PCS,Month
Description
Delivery Time: 2-3 days for sample order, 15 days for container order.

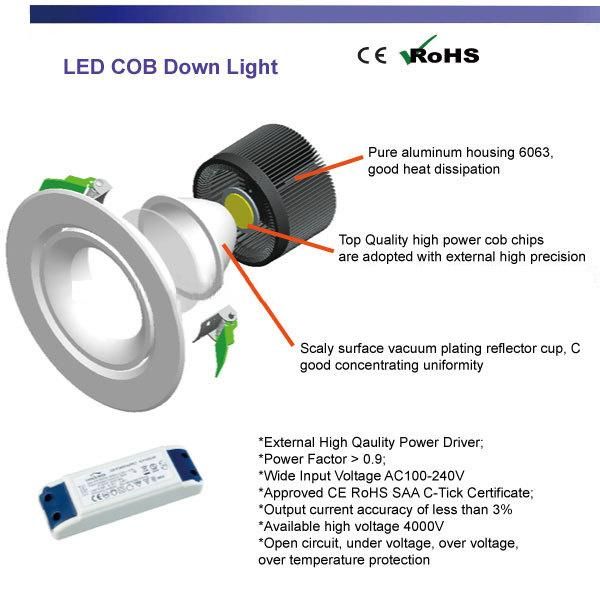

LED COB downlight
| Model | Rated Power | Size(mm) | Punch Size | Luminous Flux | Beam Angle |
| KEOU-TDCOB-4W | 4W | Φ90*80mm | Φ70mm±5 | 400lm±5% | 30°/60° |
| KEOU-TDCOB-7W | 7W | Φ90*80mm | Φ70mm±5 | 650lm±5% | 30°/60° |
| KEOU-TDCOB-10W | 10W | Φ106*80mm | Φ90mm±5 | 950lm±5% | 30°/60° |
| KEOU-TDCOB-12W | 12W | Φ106*80mm | Φ90mm±5 | 1050lm±5% | 30°/60° |
| KEOU-TDCOB-16W | 16W | Φ120*90mm | Φ100mm±5 | 1500lm±5% | 30°/60° |
