• Model NO.：LM-T2271
• IP Rating：IP20
• Certification：CE, CQC, RoHS, SAA, UL
• CRI (Ra>)：80
• Light Source：LED
• Lamp Luminous Flux(Lm)：1700 Lm
• Warranty(Years)：3
• Transport Package：EPE Foam and Carton
• Specification：156*99.5*196mm
• Trademark：Lumin
• Origin：Shenzhen Guangdong China
• HS Code：9405409000
• Production Capacity：10000PCS,Month

Optical & Electric

Light Source

20W SHARP COB

30W SHARP COB

45W SHARP COB

Lumen (lm)

1700 lm

2550 lm

3825 lm

Color Temperature(K)

3000K

4200K

6500K

CRI

≥85

Type of LED

COB LED

Beam Angle

24 degree, 36 degree

Decay Rate (%)

less than 3% within 1000 working hours

System Power (W)

20 / 30 / 45 W

 Lifespan (Hrs)

≥30000Hrs

High Voltage Testing

3000Vac/1min

LED

Lighting Efficacy

110LM/W

Chip Quantity

96PCS

Series-Parallel Way

12S8P

Voltage

37-39VDC

Current

550mA

LED Driver

Input Parameter

100~240VAC,50/60Hz

Power Factor

0.9

Output Parameter

24-42VDC,550mA

Structure

Material

Cast-Aluminium

Dimension

156*99.5*196mm

Cut-out

/

Protection Class

calss I

IP Rating

IP20

Environmental

Applications

hotelhome-lightingrecreation placesupermarketoffice building

Operating Temperature

 -25 ~ 5010% ~ 90% R.H.

Storage Temperature

 -30 ~ 850% ~ 95% R.H.

Packing

Qty/Ctn

carton size

N.W

G.W

10 PCS/ Ctn

75x20x59.5 cm

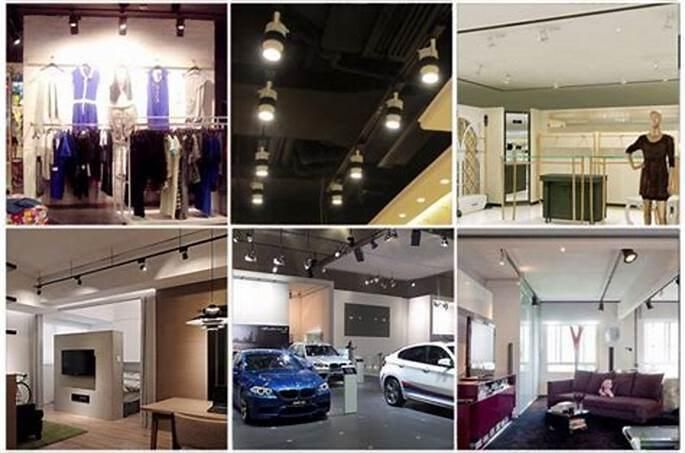

Application

led track light can be widely used in: shopping mall,stores,supermarket,museum,etc..

Shipping

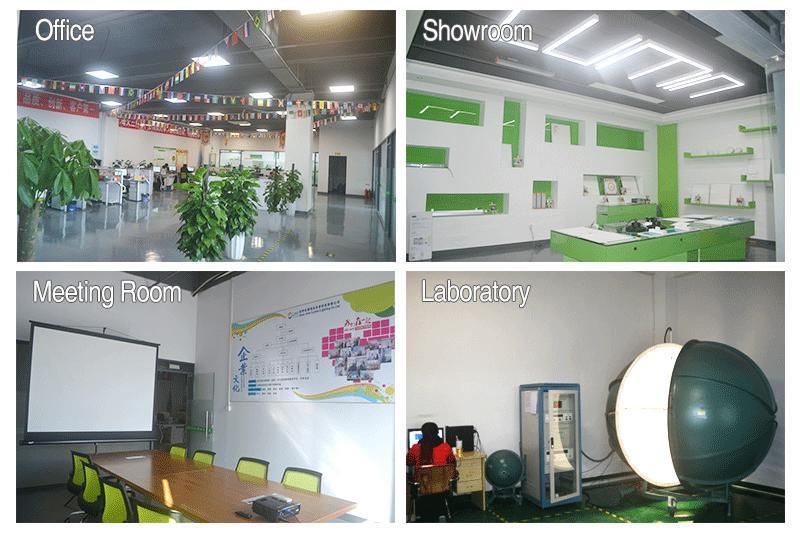

Company  Profile



Based in Shenzhen, Lumin Lighting is a fast-growing semiconductor lighting manufacturer and supplier in China. Lumin Lighting was founed on November 17, 2008. Since its founding, Lumin Lighting is committed to developing, manufacturing, and popularizing LED lighting products, responding to the government's policy of energy-saving, emission reduction, and maintainable development. Nowadays, Lumin Lighting has already been successful in providing quality LED lighting products and green lighting solutions to thousands of families, institutions, and communities worldwide.



Our key product lines mainly include LED panel light, LED pendant light, and LED downlight. Meantime, Lumin Lighting also provides professional customized lighting solutions to customers.

Lumin Lighting takes product quality as our lifeline. We focus on quality control during the whole production process by seriously carrying out ISO 9001 Quality System and ISO Environment Management System. At the same time, we emphasize training of skills and capabilities of our workers and staff to improve production performance.

Our products have already been awarded with certificates of TUV CE, RoHS, SAA,CB, UL, and DLC. With good quaity control, our products are well received by customers throughout the world.
