• Model NO.：DNT-DL-T4-12W
• Color Temperature：Triac,Zigbee Dimmable
• Lamp Body Material：Thermal Conductive Plastic+Aluminum
• Source Number：Single Plug
• Installation：Recessed
• Warranty：5 Years
• Application：Engineering, Home Furnishing
• IP Rating：IP44
• Certification：CE, RoHS, SAA
• Light Efficiency：100-120lm,W
• Ra：>85
• Dimming：Triac,Zigbee
• Temperature Selectable：Ww,Cw,Nw
• Aweighting：8dB
• Transport Package：Carton Box
• Specification：92× 52
• Trademark：Customizable trademark
• Origin：China
• HS Code：9405409000
• Production Capacity：50000 Pieces,Year

Basic Info.

Model NO. DNT-DL-T4-12W Color Temperature Triac/Zigbee Dimmable Lamp Body Material Thermal Conductive Plastic+Aluminum Source Number Single Plug Installation Recessed Warranty 5 Years Application Engineering, Home Furnishing IP Rating IP44 Certification CE, RoHS, SAA Light Efficiency 100-120lm/W Ra >85 Dimming Triac/Zigbee Temperature Selectable Ww/Cw/Nw Aweighting 8dB Transport Package Carton Box Specification 92× 52 Trademark Customizable trademark Origin China HS Code 9405409000 Production Capacity 50000 Pieces/Year

Product Description

Product Features:

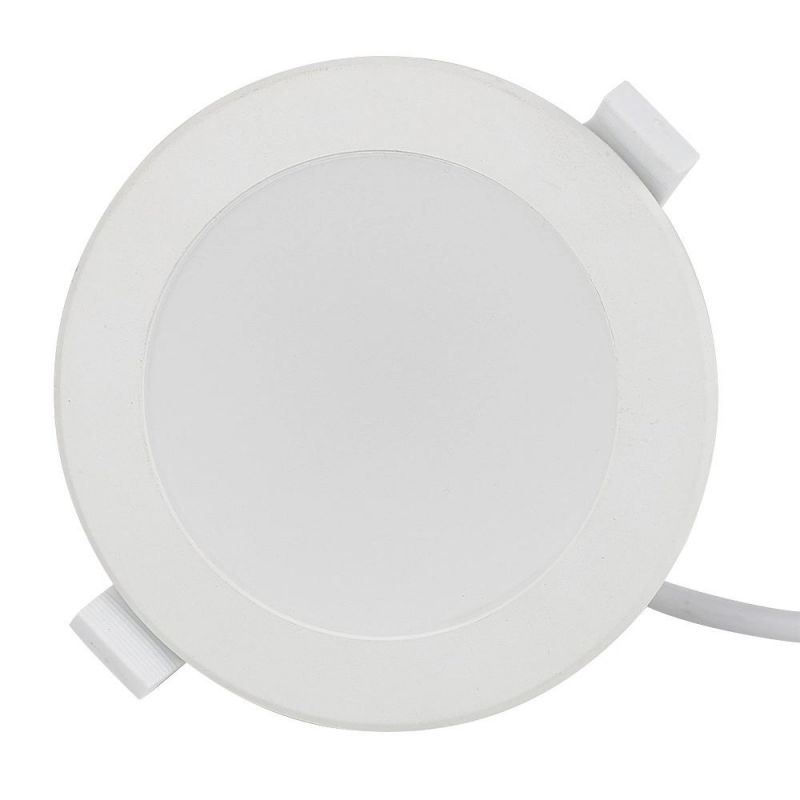

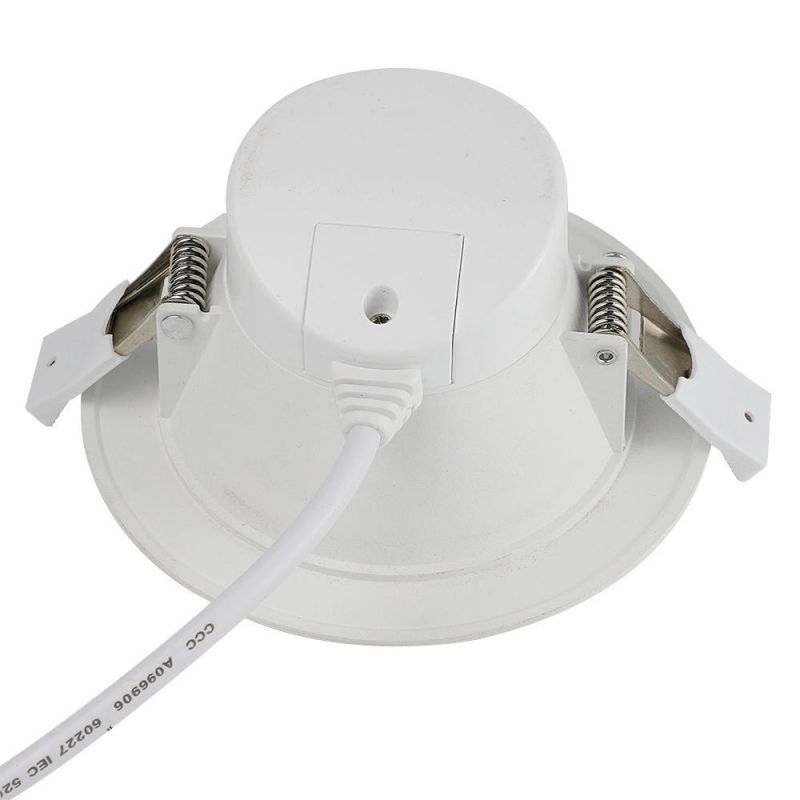

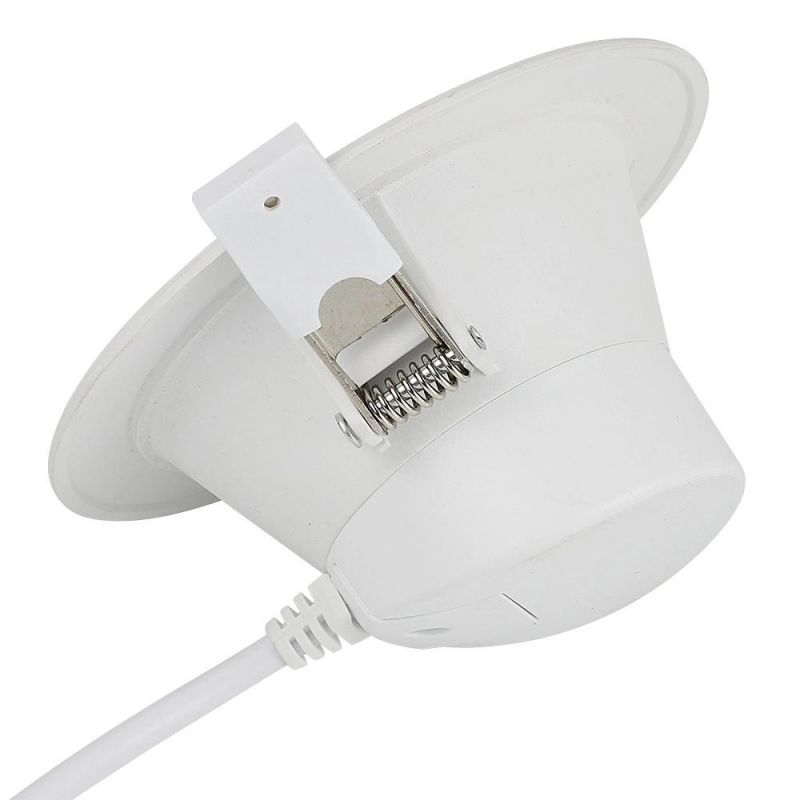

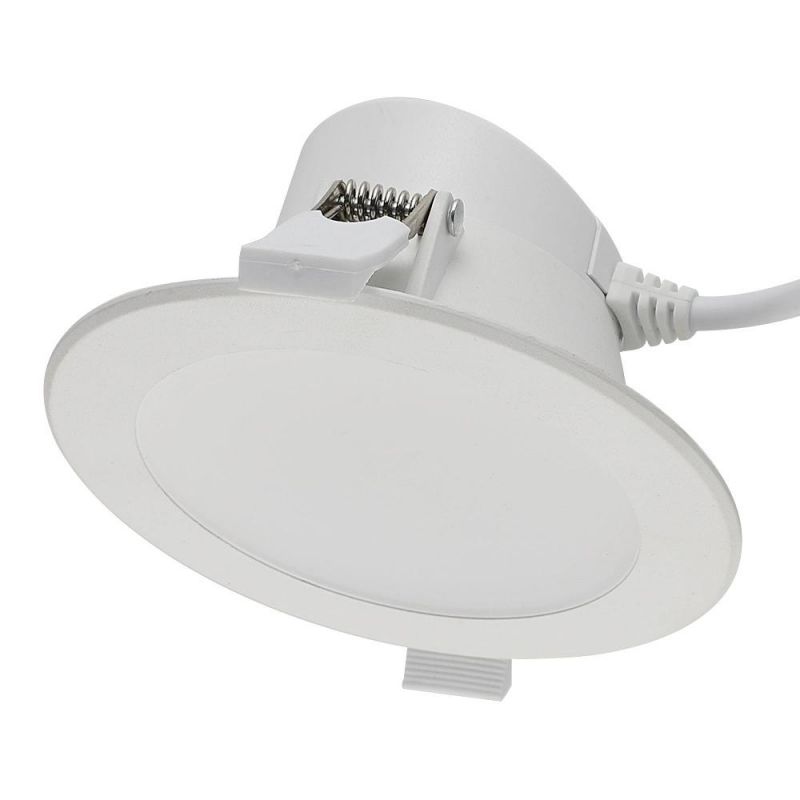

 • CCT Changing LED Downligt • Recessed installation • SMD Module as light source • Triac/Zigbee Dimmable as standard • Wide angle of illumination with even light distribution • ABS Body with PMMA diffuser • DDOB-Dimmable Driver on Board • Improved light effificiency 100-120lm/w • High lihgt output at a reduced energy consumption of over 60% • Ip44 rated for bathroom use • High CRI>85 for natural looking light • Long lifespan of over 50K hours • Temperature Selectable ( WW/CW/NW ) • Selection of colour bezels available ( Chrome ,Brushed,Nickel,Black,Gold,Blue,Green,Red )

 Application
 Residential Buildings, Retail, Automotive and Parking, Education, Government, Healthcare, Hospitality, Offifices and Banks, Commercial Purposes, etc.






Model No.#	Specification	Unit Price	Remark
DNT-DL-T1-6W	Product Name: 2.5 Inch LED dimmable Downlight                           Input Voltage:230VAC 50/60Hz                                                                    Power:6W                          Light Source:SMD2835  36PCS                                                   CCT:3000K-4000K-5700K(switch to change color)                                        CRI:≥80Ra                          Lumen efficiency:100-110LM/W                                             Size:90x52MM                           Cut-out size:70-75MM                        Material: Thermal Conductive Plastic+Aluminum White                  Triac dimmable type WAGO connector	US$6.3	1. With global IOT platform, compatible with TUYA smart APP, control by phone 2. LEDs:Epistar chip                  3. Warranty:2years
DNT-DL-T2-8W	Product Name: 4 Inch LED dimmable Downlight                           Input Voltage:230VAC 50/60Hz                                        Power:8W                          Light Source:SMD2835  44PCS                                         CCT:3000K-4000K-5700K(switch to change color)                                        CRI:≥80Ra                          Lumen efficiency:100-110LM/W                                          Size:115x61MM                           Cut-out size:75-80MM                        Material: Thermal Conductive Plastic+Aluminum White                  Triac dimmable type	US$7.0	1. With global IOT platform, compatible with TUYA smart APP, control by phone 2. LEDs:Epistar chip                  3. Warranty:2years
DNT-DL-T3-10W	Product Name: 6 Inch LED dimmable Downlight                           Input Voltage:230VAC 50/60Hz                                      Power:10W                          Light Source:SMD2835  60PCS                                         CCT:3000K-4000K-5700K(switch to change color)                                        CRI:≥80Ra                          Lumen efficiency:100-110LM/W                                             Size:145x61MM                           Cut-out size:90-95MM                        Material: Thermal Conductive Plastic+Aluminum White                  Triac dimmable type	US$8.4	1. With global IOT platform, compatible with TUYA smart APP, control by phone 2. LEDs:Epistar chip                  3. Warranty:2years
DNT-DL-T4-12W	Product Name: 8 Inch LED dimmable Downlight                           Input Voltage:230VAC 50/60Hz                                            Power:12W                          Light Source:SMD2835  120PCS                                                          CCT:3000K-4000K-5700K(switch to change color)                                        CRI:≥80Ra                          Lumen efficiency:100-110LM/W                                             Size:190x74MM                           Cut-out size:110-115MM                        Material: Thermal Conductive Plastic+Aluminum White                  Triac dimmable type	US$10.1	1. With global IOT platform, compatible with TUYA smart APP, control by phone 2. LEDs:Epistar chip                  3. Warranty:2years

FAQ:

Q1. Are you a factory or trading company?

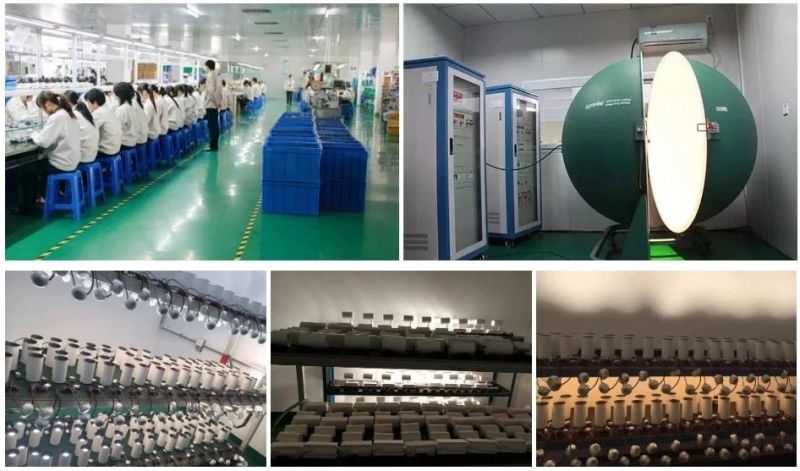

A1: We are factory which located in Shenzhen city Guangdong Province. We also offer ODM& OEM services.

Q2. What is your main product line made?
A2: We mainly produce LED Indoor & outdoor lights and lighting fixtures.
Focus on commercial lighting-LED downlight, panel light, track light, spot light, office light, wall light etc.

Q3: What's your warranty?
A3: Most of our products are 5 years warranty.

Q4: What's your payment term?
A4: 100% T/T for sample order, for standard order, we accept 30% before production, 70% before shipment.

Q5: What's your Lead time?
A5: 2-4 days for samples. 8-15 days for standard order.

Q6. How about the Package & Product design?
A6: 1pcs in a white inner box, then several pieces into a carton.  Accept custom trademarks.
