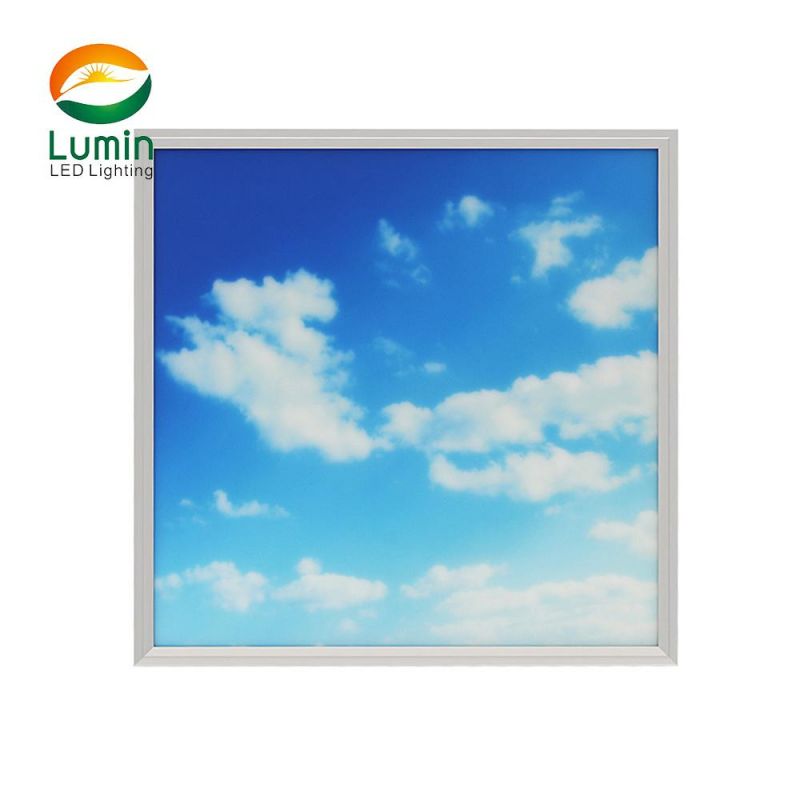

60X60cm 40W Blue Sky LED Panel Light
Shenzhen Lumin Lighting Co., Ltd.- Light Source：LED
- Housing Material：Aluminium
- Emitting Color：White
- Dimmable：Without Dimmable
- Appearance：Square
- Type：Recessed
Base Info
- Model NO.：LM-P66E-36WH-60K-SKY
- Base Material：Non
- Certification：CE, RoHS, UL, ISO9001, SAA, CB TUV
- Voltage：85V-265V
- Beam Angle：120°
- Product Name：Blue Sky LED Panel Light
- Power：40W
- Size：595X595X10mm
- CRI：>80
- Color：6000K
- Luminous Efficiency：50lm,W
- Working Voltage：AC220-240V
- LED Chip：Sanan,Samsung
- Sdcm：<6
- Warranty：5 Years
- Transport Package：Neutral
- Specification：595x595x10mm
- Trademark：lumin
- Origin：Shenzhen, China
- HS Code：9405401000
- Production Capacity：50000PCS Per Month
Description
LED Panel Light Pictures
Features of led panel light
1. Optical PMMA LGP,won't become yellow in 5 years even if the lamp work 12 hours everyday.
2. Ultra-thin design: only 10mm.
3. Energy saving up to 80%
4. Benefits:A. Protecting eyes,soft glow and no glare, B. Working closer to the nature
5. Nice lighting distribution: > 90 %
6. High color rendering index: Ra> 80/90/95
7.Stable LEDs light source design solution: use the best 2835 LEDs ---- high CRI, high brightness, and low light decay.
8. Excellent circuit design, each group of LEDs work separately, avoiding any problem of lighting output caused or influenced by single faulty LED.
9. New high efficiency constant current driver: wide range of input voltage : AC85-265V,you can also use yourself driver system.
10. Instant starting time: < 1.2 s, and no noise as it starts.
11. Environment friendly : No mecury, no harmness to human healthy and the earth.

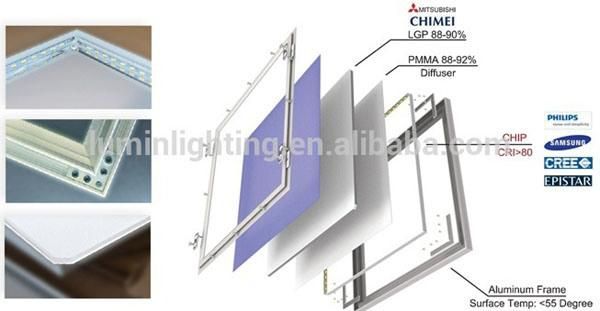

Product detail

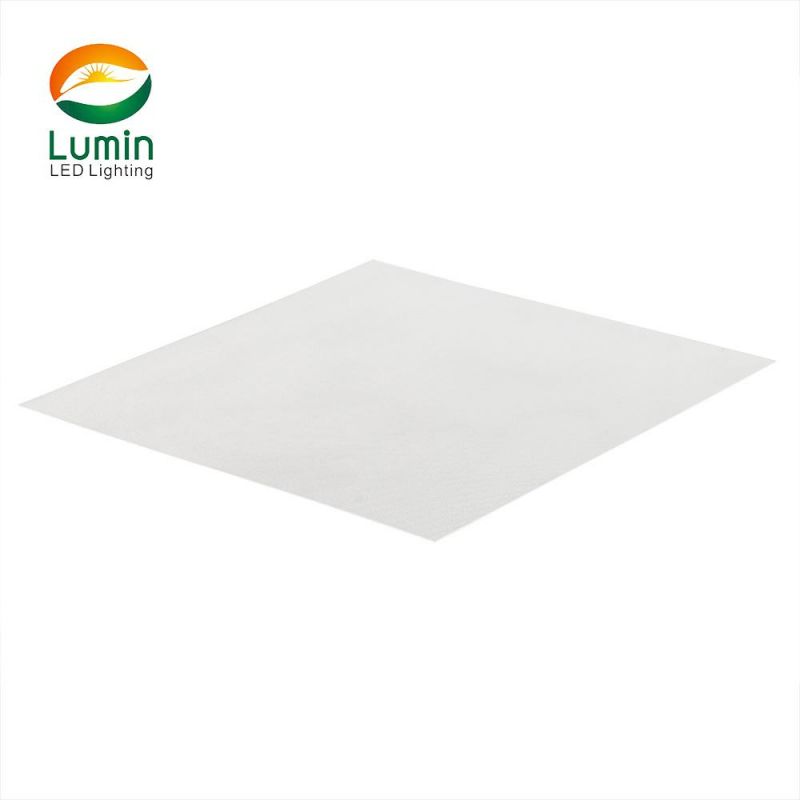

Diffuser

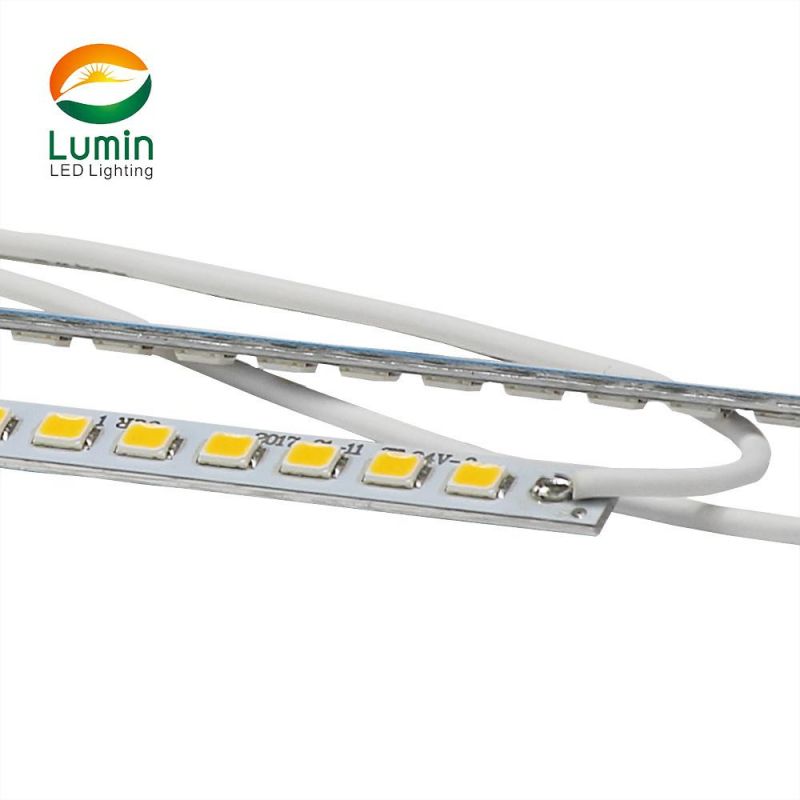

PCB and LEDs: MCPCB with good heat dissipation,LED encapsulated by gold wire with LM80 report,performance is very stable

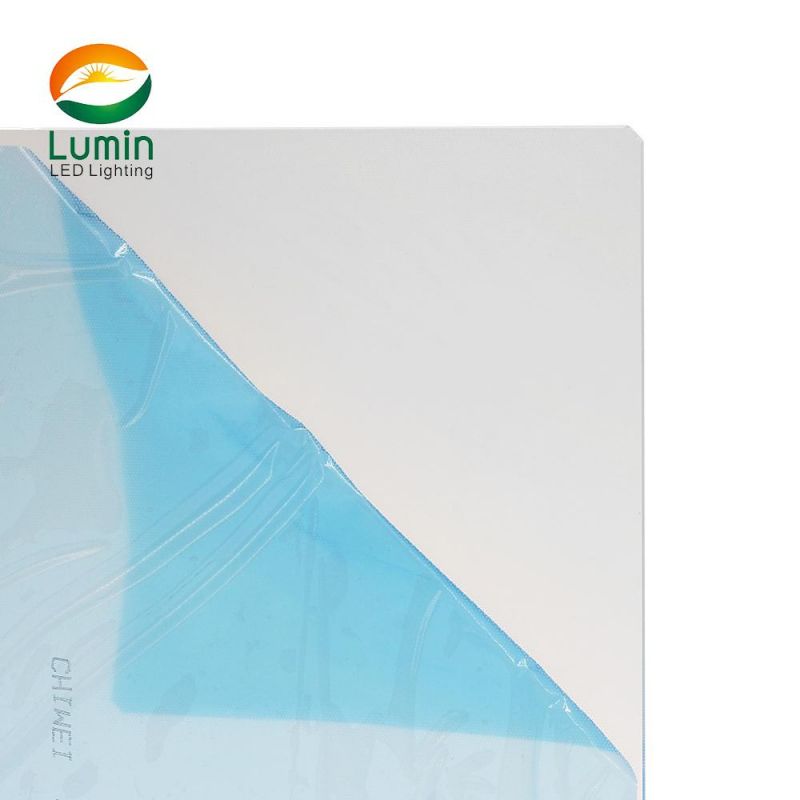

PMMA Light Guide Plate,3mm thickness,many factories do 2mm thickness

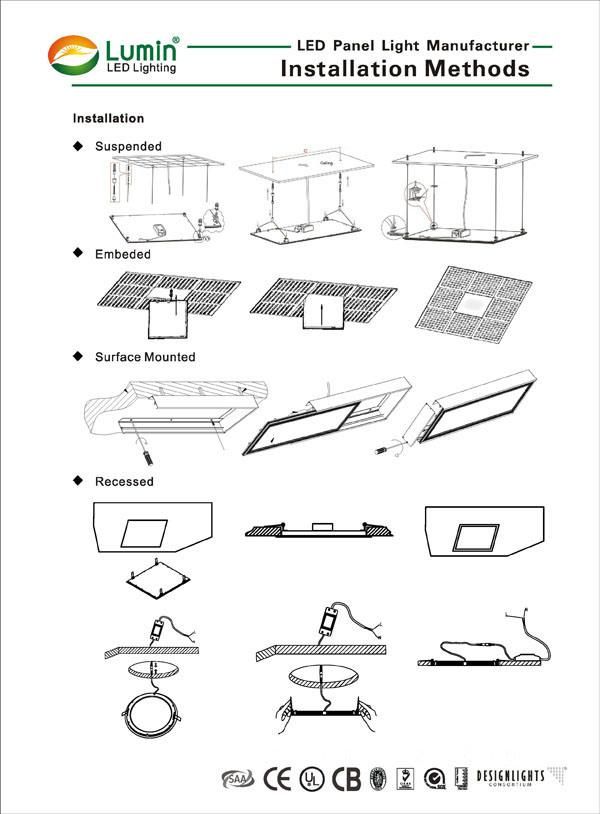

Installation
Installation Instructions
1. Fixtures must be operated by a licensed electrician.
2. Check if fixtures are sloid and in good condition once packaging is open.
3. Do not let fixture fall down from ceiling system or clash to hard stuff.
4. Make sure that the cable of fixture is long enough to connect. Do not knot or pull the cable strongly while wiring.
5. Do connect input end of fixture to output end of LED driver.
6. Wiring must be firm and tight with insulation protection well. Be aware of electricity shock.
7. Keep fixture and LED driver away from water or liquid, free from electric leakage and electricity shock.
8. Must use LED driver approved by Lumin, otherwise, fixtures may not work normally, and may be damaged, may cause unexpected incidents. Lumin will not bear any responsibilities due to such deeds.

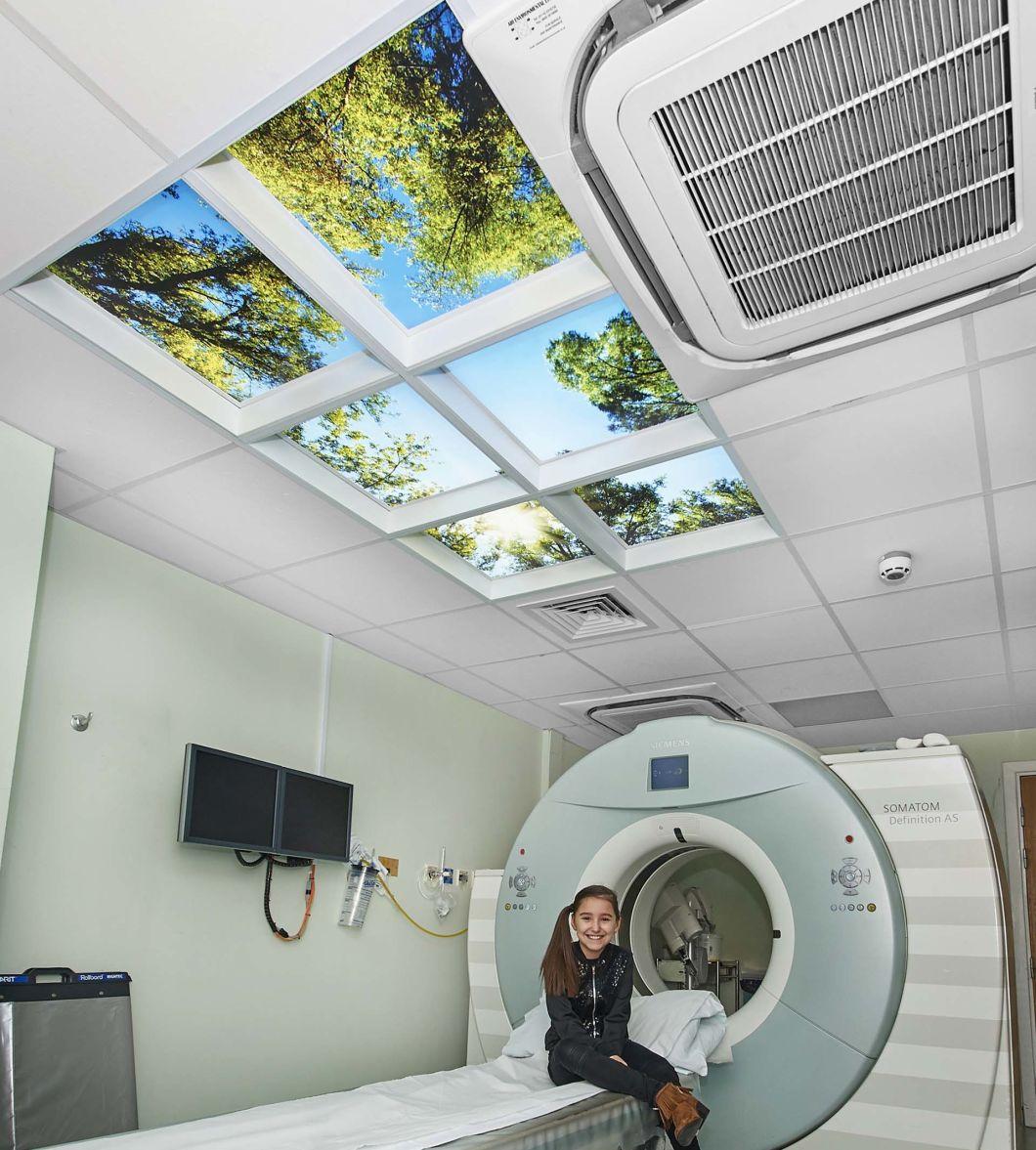

Applications & Project
Such as:offices, workshops, shopping malls, schools, libraries, hospitals, hotels,retail outlets, living rooms, airports, entertainment spaces, etc.

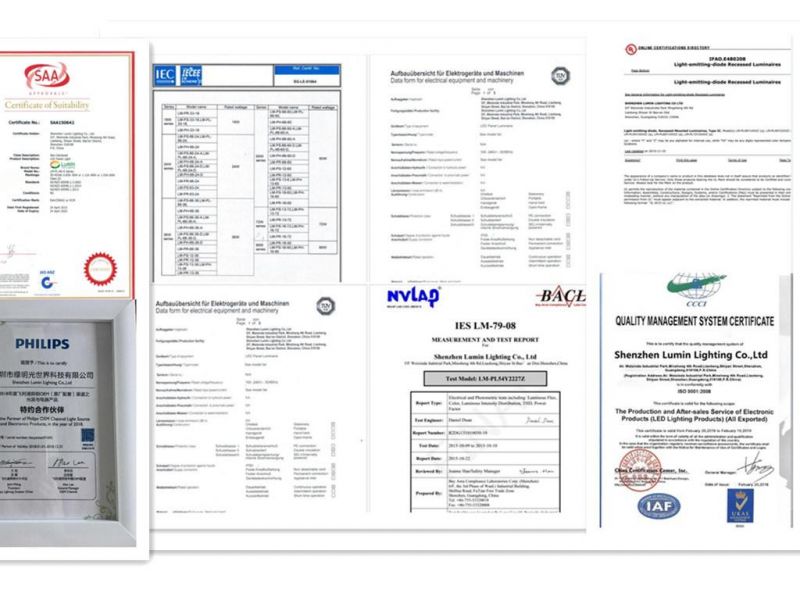

Certification
Company profile
Lumin is a well-know lighting manufacturer in China since 2008. we are committed to developing, manufacturing, and popularizing LED lights, helping people with energy-saving, carbon emission reduction, and maintainable development. Nowadays, Lumin has already been successful in global market, providing quality LED lights and solutions to thousands of families, institutions, and communities worldwide
Quality is our culture. We pay more attention to quality control during production process by complying with ISO 9001 Quality System. And we emphasize to train workers to raise their awareness of quality. All LED lights we are selling pass certifications of TUV, UL, CB,SAA, CE,RoHs. With the advantages of cost and performance, our global customers think highly of our products.
Customer is God. We believe that "the customer is always right". And Our sales team is very professional in our products and service. With their hard work and professionals you can enjoy the best international purchasing experience.
More details will be sent once we receive your inquiry.Looking forward to build cooperation relationship with your esteemed company.
HK Lighting Exhibition
Our services
1. Inquiry will be replied within 12 hours.
2. Fast sample delivery: 1-3 days.
3. Best-trained and experienced sales staffs follow up with your inquiries and orders.
4. Powerful R&D team,new products will be launched every season.
5. 3-5 years warranty.Complaints will be solved within 24 hours by our profession team.
6. OEM/ODM services: all can be customized.
FAQ
Q1: Which certificates does your LED Panel light have?
A1 : CE,RoHS
Q2: What are your drivers and LED chip brand?
A2: Driver: LiFud,BOKE. LED chip: Sanan,Samsung.
Q3: What are the LED Panel lights function?
A3: Bring different environment
LED panel varieties:Universal Standard LED Panel,Germany/USA Standard LED Panel,Triac Dimming LED Panel,0--10V Dimming LED Panel,DALI Dimming LED Panel,24V Consatnt Voltage LED Panel,CCT Dimmable LED Panel,RGB LED Panel, Wifi LED Panel,Invisible LED Panel,Frame LED Panel,Curve Design LED Panel,Emergency LED Panel,Waterproof IP65 LED Panel,Sensor LED Panel,Dual Emitting LED Panel,LED Troffer Light,Backlite LED Panel,Seamless Lighting System,Dual Wing LED Panel,Square LED Panel Downlight,Round LED Panel Downlight.
